KDH222B-LEPDY (2005)
Toyota Hiace/Regiusace
(0408- )KDH20#,211,22#,TRH21#,22#..4FC
A340,A340F,A343E,A343F

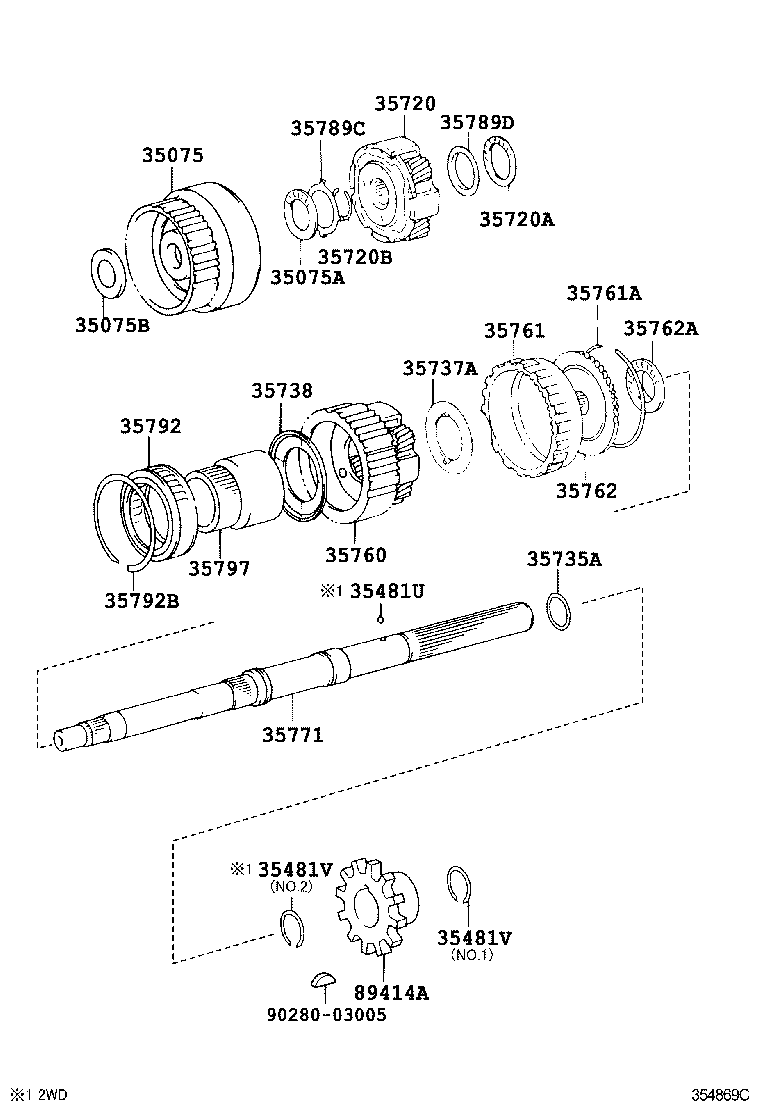

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35075 - GEAR SUB-ASSY, FRONT PLANETARY RING | ||||
| 35075-50010 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 35075A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING | ||||
| 90374-35004 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 35075B - RACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR FRO | ||||
| 35789-30120 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM) | ||||
| 90360-06004 |
KDH200,201,211,220,221,222,223..4FC |
1 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
KDH200,201,211,220,221,222,223,TRH200,211,214,221,223,224..4FC 厚さ=1.50,外径=33.8,NO.1 |
1 | ||
| 90520-32002 |
KDH200,201,211,220,221,222,223,TRH211,214,221,223,224..4FC 厚さ=1.50,外径=37.7,NO.2 |
1 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
KDH200,201,211,220,221,222,223,TRH200,211,214,221,223,224..4FC 厚さ=1.50,外径=33.8,NO.1 |
1 | ||
| 90520-32002 |
KDH200,201,211,220,221,222,223,TRH211,214,221,223,224..4FC 厚さ=1.50,外径=37.7,NO.2 |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-30080 |
TRH21#,22# |
1 | ||
| 35720-35030 |
KDH20#,211,22#..4FC |
1 | ||
| 35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR | ||||
| 90374-35001 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 35720B - RING, SHAFT SNAP (FOR FRONT PLANETARY GEAR) | ||||
| 90520-24026 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-30020 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-30030 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35739-30030 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35705-30010 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 35761 - GEAR, REAR PLANETARY RING | ||||
| 35761-30020 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR) | ||||
| 90521-99024 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 35762 - FLANGE, REAR PLANETARY RING GEAR | ||||
| 35762-30040 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG | ||||
| 90374-38003 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 35771 - SHAFT, OUTPUT | ||||
| 35771-30040 |
KDH200,201,211,220,221,222,223,TRH211,214,221,223,224..4FC |
1 | ||
| 35789C - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT) | ||||
| 35789-30080 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 35789D - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR) | ||||
| 35789-30100 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-14020 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-87001 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 35797 - RACE, 1 WAY CLUTCH INNER | ||||
| 35797-50010 |
KDH20#,211,22#,TRH21#,22#..4FC |
1 | ||
| 89414A - ROTOR, SENSOR | ||||
| 89414-35030 |
KDH200,201,211,220,221,222,223..4FC |
1 | ||
| Common parts | ||||
| 90280-03005 | ||||
(1312- )KDH20#,211,22#,TRH21#,22#..4FC
A340E,A340F,A343E,A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90280-03005 | ||||
