KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0610)2KDFTV

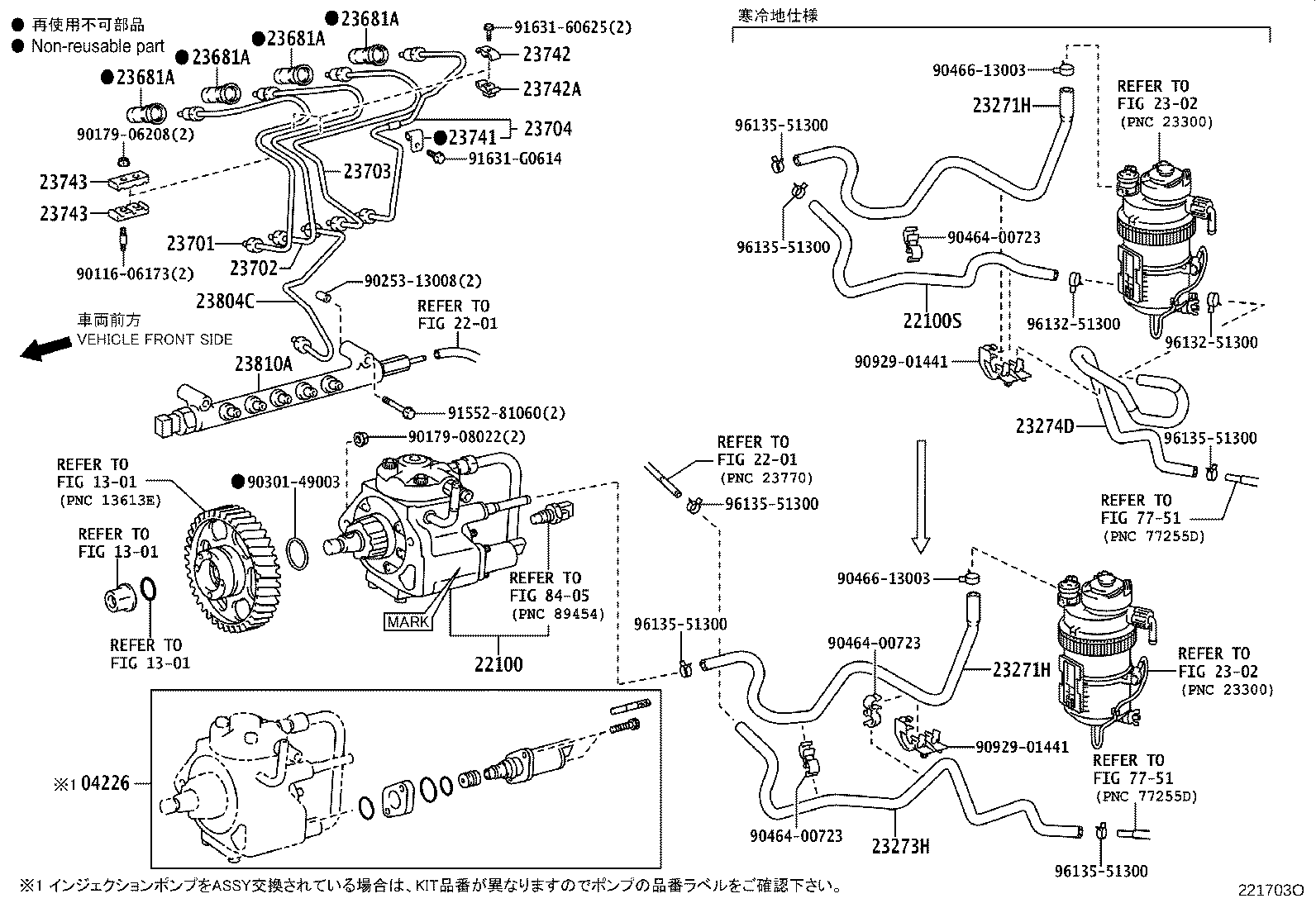

Click highlighted areas on diagram

diagram 04226 1301 1301 1301 2201 2201 22100 22100S 2302 2302 23271H 23271H 23273H 23274D 23681A 23681A 23681A 23681A 23701 23702 23703 23704 23741 23742 23742A 23743 23743 23804C 23810A 7751 7751 8405 9011606173 9017906208 9017908022 9025313008 9030149003 9046400723 9046400723 9046400723 9046613003 9046613003 9092901441 9092901441 9155281060 9163160625 91631G0614 9613251300 9613251300 9613551300 9613551300 9613551300 9613551300 9613551300 9613551300
Part # Description Qty Price
04226 - VALVE KIT, SUCTION CONTROL
04226-30010

2KDFTV..KDH20#,22#

*342

 1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-30040

2KDFTV..KDH20#,22#

ﾏｰｸ 22100−30040

 1
23271H - HOSE, FUEL, NO.1
23271-30150

1KDFTV,2KDFTV..KDH211,22#

 1
23271H - HOSE, FUEL, NO.1
23271-30150

1KDFTV,2KDFTV..KDH211,22#

 1
23274D - HOSE, FUEL, NO.3
23274-30030

1KDFTV,2KDFTV..KDH20#,211,22#

寒冷地仕様

 1
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 4
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-30040

2KDFTV..KDH20#,22#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-30040

2KDFTV..KDH20#,22#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-30040

2KDFTV..KDH20#,22#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-39045

2KDFTV..KDH20#,22#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

2KDFTV..KDH20#,22#

 2
23742A - CLAMP, INJECTION PIPE, NO.3
23742-58020

2KDFTV..KDH20#,22#

 2
23743 - CLAMP, INJECTION PIPE, NO.3
23743-30011

2KDFTV..KDH20#,22#

 2
23743 - CLAMP, INJECTION PIPE, NO.3
23743-30011

2KDFTV..KDH20#,22#

 2
23804C - PIPE SUB-ASSY, FUEL INLET
23804-30040

2KDFTV..KDH20#,22#

 1
23810A - RAIL ASSY, COMMON
23810-0L020

2KDFTV..KDH20#,22#

 1
23810-0L010

2KDFTV..KDH20#,22#

 1
Common parts
90116-06173
90179-06208
90179-08022
90253-13008
90301-49003
90464-00723
90466-13003
90929-01441
91552-81060
91631-60625
91631-G0614
96132-51300
96135-51300
Linked diagrams
1301
2201
2302
7751
8405

(0610-0709)2KDFTV

Click highlighted areas on diagram

diagram 04226 1301 1301 1301 2201 2201 22100 22100S 2302 2302 23271H 23271H 23273H 23274D 23681A 23681A 23681A 23681A 23701 23702 23703 23704 23741 23742 23742A 23743 23743 23804C 23810A 7751 7751 8405 9011606173 9017906208 9017908022 9025313008 9030149003 9046400723 9046400723 9046400723 9046613003 9046613003 9092901441 9092901441 9155281060 9163160625 91631G0614 9613251300 9613251300 9613551300 9613551300 9613551300 9613551300 9613551300 9613551300
Part # Description Qty Price
04226 - VALVE KIT, SUCTION CONTROL
04226-30010

2KDFTV..KDH20#,22#

*342

 1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-30040

2KDFTV..KDH20#,22#

ﾏｰｸ 22100−30040

 1
23271H - HOSE, FUEL, NO.1
23271-30150

1KDFTV,2KDFTV..KDH211,22#

 1
23271H - HOSE, FUEL, NO.1
23271-30150

1KDFTV,2KDFTV..KDH211,22#

 1
23274D - HOSE, FUEL, NO.3
23274-30030

1KDFTV,2KDFTV..KDH20#,211,22#

寒冷地仕様

 1
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 4
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-30040

2KDFTV..KDH20#,22#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-30040

2KDFTV..KDH20#,22#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-30040

2KDFTV..KDH20#,22#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-39045

2KDFTV..KDH20#,22#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

2KDFTV..KDH20#,22#

 2
23742A - CLAMP, INJECTION PIPE, NO.3
23742-58020

2KDFTV..KDH20#,22#

 2
23743 - CLAMP, INJECTION PIPE, NO.3
23743-30011

2KDFTV..KDH20#,22#

 2
23743 - CLAMP, INJECTION PIPE, NO.3
23743-30011

2KDFTV..KDH20#,22#

 2
23804C - PIPE SUB-ASSY, FUEL INLET
23804-30040

2KDFTV..KDH20#,22#

 1
23810A - RAIL ASSY, COMMON
23810-0L020

2KDFTV..KDH20#,22#

 1
23810-0L010

2KDFTV..KDH20#,22#

 1
Common parts
90116-06173
90179-06208
90179-08022
90253-13008
90301-49003
90464-00723
90466-13003
90929-01441
91552-81060
91631-60625
91631-G0614
96132-51300
96135-51300
Linked diagrams
1301
2201
2302
7751
8405
