KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0709)2KDFTV

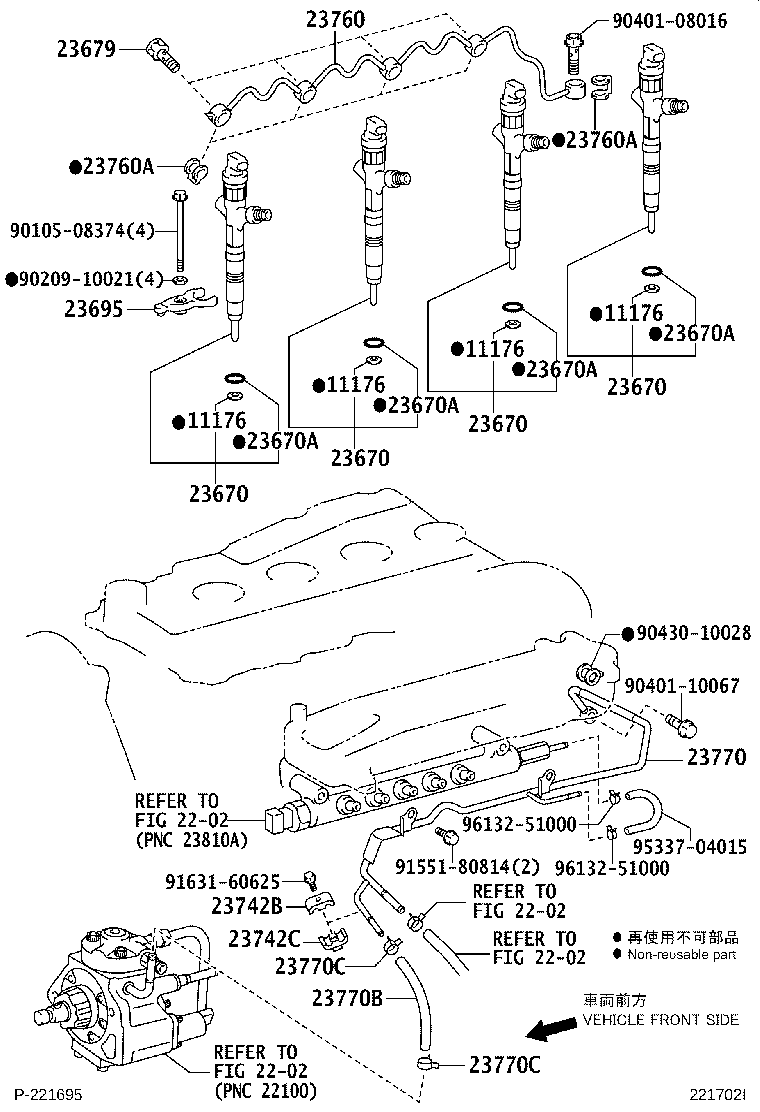

Click highlighted areas on diagram

diagram 11176 11176 11176 11176 2202 2202 2202 2202 23670 23670 23670 23670 23670A 23670A 23670A 23670A 23679 23695 23742B 23742C 23760 23760A 23760A 23770 23770B 23770C 23770C 9010508374 9020910021 9040108016 9040110067 9043010028 9155180814 9163160625 9533704015 9613251000 9613251000
Part # Description Qty Price
11176 - SEAT, INJECTION NOZZLE
11176-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 4
11176 - SEAT, INJECTION NOZZLE
11176-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 4
11176 - SEAT, INJECTION NOZZLE
11176-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 4
11176 - SEAT, INJECTION NOZZLE
11176-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 4
23670 - INJECTOR ASSY
23670-39095

2KDFTV..KDH20#,22#

 4
23670 - INJECTOR ASSY
23670-39095

2KDFTV..KDH20#,22#

 4
23670 - INJECTOR ASSY
23670-39095

2KDFTV..KDH20#,22#

 4
23670 - INJECTOR ASSY
23670-39095

2KDFTV..KDH20#,22#

 4
23670A - RING, O(FOR INJECTOR ASSY)
96721-19017

1KDFTV,2KDFTV..KDH20#,211,22#

 4
23670A - RING, O(FOR INJECTOR ASSY)
96721-19017

1KDFTV,2KDFTV..KDH20#,211,22#

 4
23670A - RING, O(FOR INJECTOR ASSY)
96721-19017

1KDFTV,2KDFTV..KDH20#,211,22#

 4
23670A - RING, O(FOR INJECTOR ASSY)
96721-19017

1KDFTV,2KDFTV..KDH20#,211,22#

 4
23679 - SCREW, INJECTOR FOLLOW
23679-30020

1KDFTV,2KDFTV..KDH20#,211,22#

 4
23695 - CLAMP, NOZZLE HOLDER, NO.1
23695-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 4
23742B - CLAMP, INJECTION PIPE, NO.2
23742-27010

2KDFTV..KDH20#,22#

 1
23742C - CLAMP, INJECTION PIPE, NO.3
23742-58020

2KDFTV..KDH20#,22#

 1
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-30020

1KDFTV,2KDFTV..KDH20#,211,22#

 1
23760A - GASKET
90904-30013

1KDFTV,2KDFTV..KDH20#,211,22#

 5
23760A - GASKET
90904-30013

1KDFTV,2KDFTV..KDH20#,211,22#

 5
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770-30050

2KDFTV..KDH20#,22#

 1
23770-30051

2KDFTV..KDH20#,22#

 1
23770B - HOSE, FUEL
95333-06010

2KDFTV..KDH20#,22#

*H,L=100

 1
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96135-51100

1KDFTV,2KDFTV..KDH20#,211,22#

 2
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96135-51100

1KDFTV,2KDFTV..KDH20#,211,22#

 2
Common parts
90105-08374
90209-10021
90401-08016
90401-10067
90430-10028
91551-80814
91631-60625
95337-04015
96132-51000
Linked diagrams
2202
