Toyota Hiace/regiusace KDH222 STARTER

KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

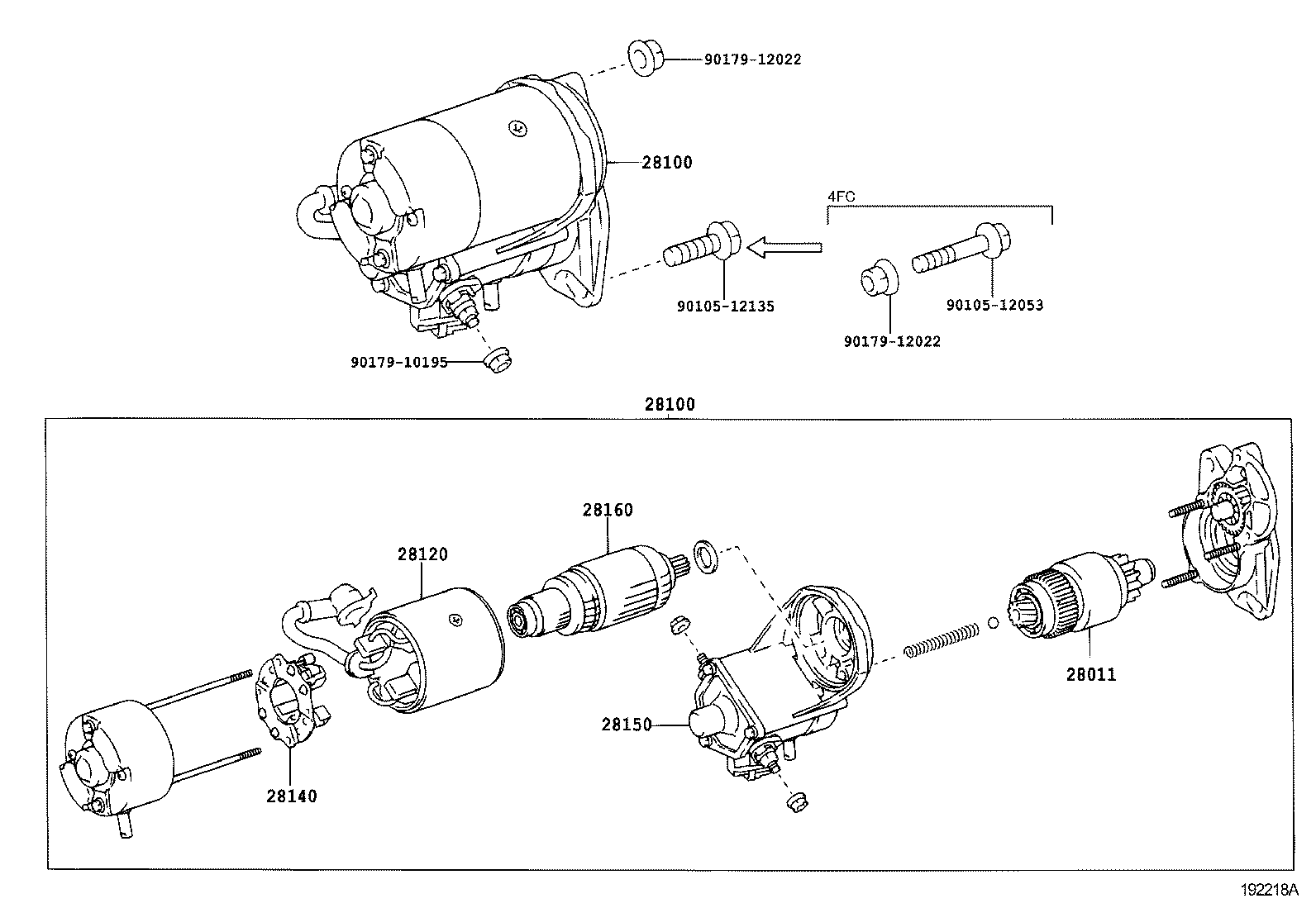

Click highlighted areas on diagram

12V 2.7KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-30050	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28100 - STARTER ASSY
28100-30050	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 12V 2.7KW	08/2004 - 05/2009	1
28100-30100	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 12V 3.0KW,寒冷地仕様	08/2004 - 05/2009	1
28100 - STARTER ASSY
28100-30050	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 12V 2.7KW	08/2004 - 05/2009	1
28100-30100	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 12V 3.0KW,寒冷地仕様	08/2004 - 05/2009	1
28120 - YOKE ASSY, STARTER
28120-67020	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28120-67090	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2004 - 08/2010	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28140-67090	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2004 - 08/2010	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-30050	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28150-30070	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2004 - 08/2010	1
28160 - ARMATURE ASSY, STARTER
28160-54140	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28160-30100	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2004 - 08/2010	1
Common parts
90105-12053
90105-12135
90179-10195
90179-12022

Click highlighted areas on diagram

12V 3.0KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-30050	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28100 - STARTER ASSY
28100-30050	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 12V 2.7KW	08/2004 - 05/2009	1
28100-30100	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 12V 3.0KW,寒冷地仕様	08/2004 - 05/2009	1
28100 - STARTER ASSY
28100-30050	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 12V 2.7KW	08/2004 - 05/2009	1
28100-30100	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 12V 3.0KW,寒冷地仕様	08/2004 - 05/2009	1
28120 - YOKE ASSY, STARTER
28120-67020	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28120-67090	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2004 - 08/2010	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28140-67090	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2004 - 08/2010	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-30050	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28150-30070	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2004 - 08/2010	1
28160 - ARMATURE ASSY, STARTER
28160-54140	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28160-30100	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2004 - 08/2010	1
Common parts
90105-12053
90179-10195
90179-12022
