KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )1KDFTV,2KDFTV

Click highlighted areas on diagram

12V 100A,130A,150A

diagram 1106 1106 1601 27020 27020E 27039 27310 27310B 27312 27330 27360 27370 27384 27387 27415 27416 9009900169 9009900197 9009900268 9009904539 9009905284 9415080600
Part # Description Qty Price

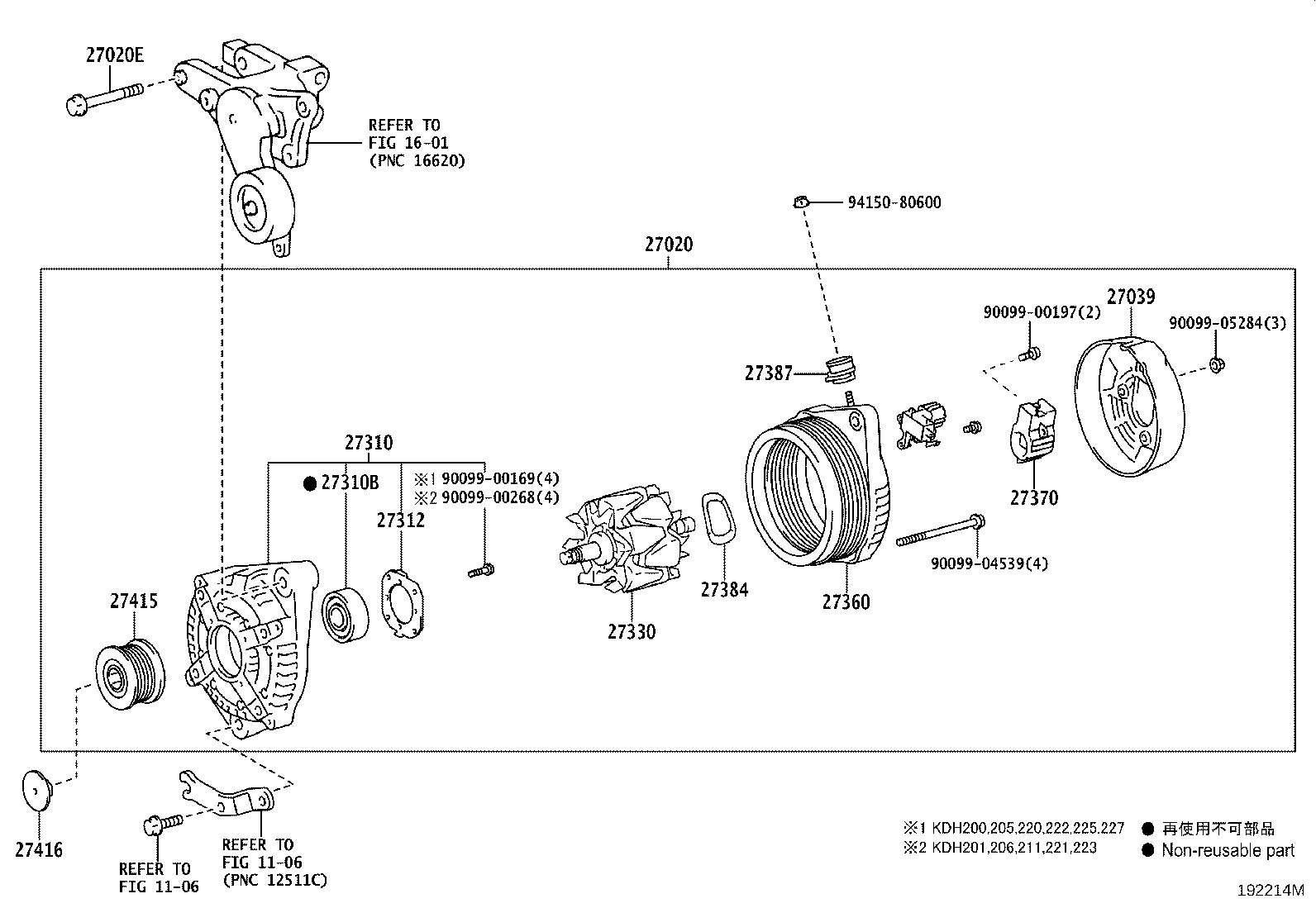

27020 - ALTERNATOR ASSY
27060-30110

2KDFTV..KDH20#,22#

12V 130A,寒冷地仕様

 1
27060-30100

2KDFTV..KDH20#..IV5;2KDFTV..KDH20#,222,227..05S,15S

12V 130A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10092

1KDFTV,2KDFTV..KDH20#,211,22#

 1
27039 - COVER, ALTERNATOR REAR END
27039-50370

2KDFTV..KDH20#,22#

寒冷地仕様

 1
27039-58460

2KDFTV..KDH20#,22#

 1
27039-50370

2KDFTV..KDH20#,22#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-30080

1KDFTV,2KDFTV..KDH20#,211,22#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

2KDFTV,2TRFE..KDH20#,22#,TRH21#,221,226;1TRFE,2TRFE..TRH200,223,224,228,229..4FC..CBU

 1
27312 - PLATE, RETAINER
27312-72100

1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-33090

1KDFTV,2KDFTV..KDH20#..SGL;1KDFTV,2KDFTV..KDH20#..IV5;1KDFTV,2KDFTV,1TRFE,2TRFE..KDH211,222,223,227,TRH200,21#,22#

 1
27360 - COIL ASSY, ALTERNATOR
27360-30110

2KDFTV..KDH20#..IV5;2KDFTV..KDH20#,222,227..05S,15S

 1
27360-30120

1KDFTV..KDH201,206,223..CBU;1KDFTV,2KDFTV..KDH200,205,211,220,221,222,225,227

寒冷地仕様

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58460

1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22#

 1
27384 - WASHER
27384-50030

1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22#

 1
27387 - INSULATOR, TERMINAL
27387-20130

1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22#

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-30011

2KDFTV..KDH20#,22#

 1
27415-30010

2KDFTV..KDH20#,22#

寒冷地仕様

 1
27416 - CAP, ALTERNATOR PULLEY
27416-30011

2KDFTV..KDH20#,22#

 1
27416-30010

2KDFTV..KDH20#,22#

寒冷地仕様

 1
Common parts
90099-00169
90099-00197
90099-00268
90099-04539
90099-05284
94150-80600
Linked diagrams
1106
1601
