KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0709)2KDFTV

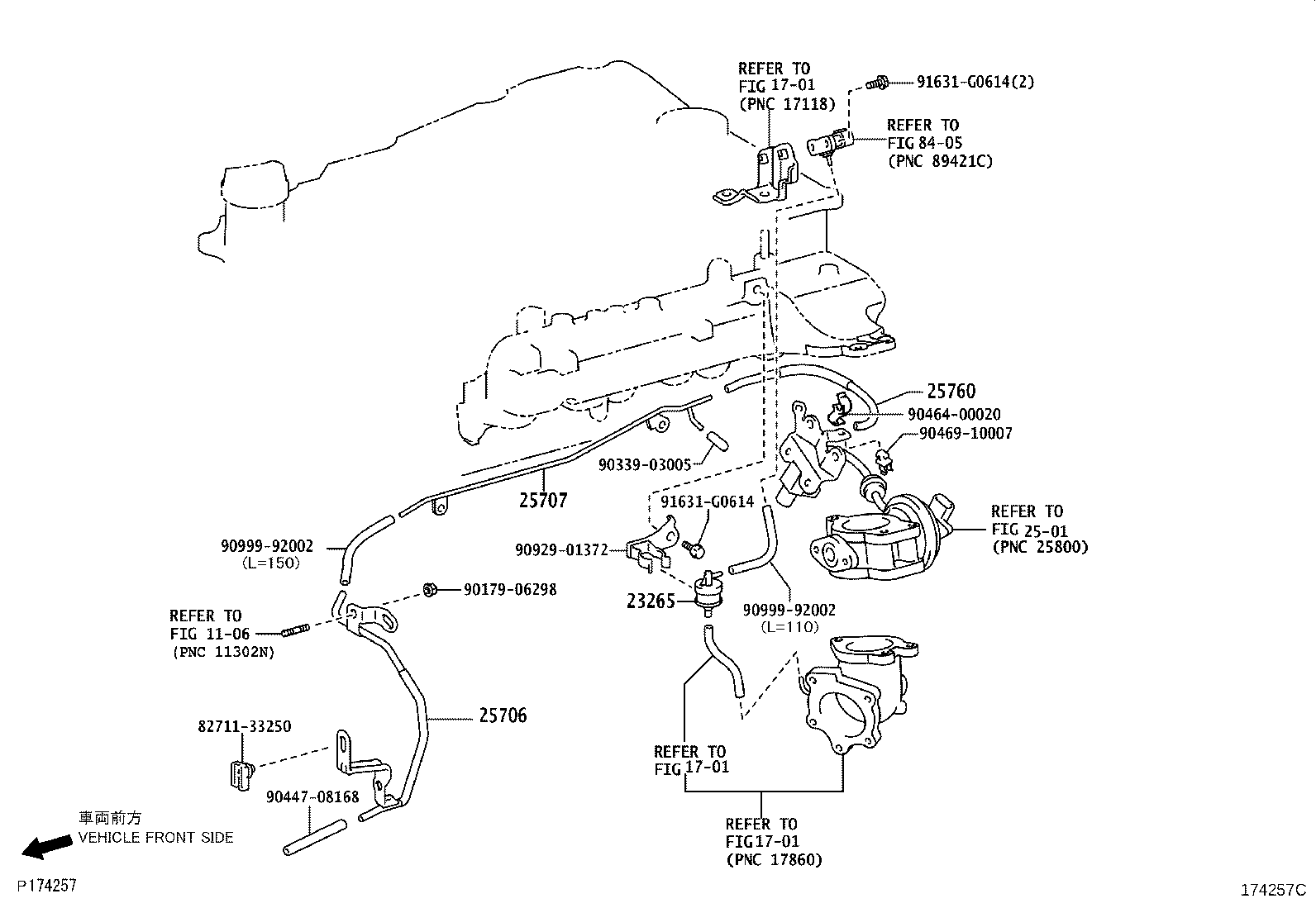

Click highlighted areas on diagram

diagram 1106 1701 1701 1701 23265 2501 25706 25707 25760 8271133250 8405 9017906298 9033903005 9044708168 9046400020 9046910007 9092901372 9099992002 9099992002 91631G0614 91631G0614
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11038

1KDFTV,2KDFTV..KDH20#,211,22#

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-30040

1KDFTV,2KDFTV..KDH20#,211,22#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-67011

2KDFTV..KDH20#,22#

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-30050

2KDFTV..KDH20#,22#

 1
Common parts
82711-33250
90179-06298
90339-03005
90447-08168
90464-00020
90469-10007
90929-01372
90999-92002
91631-G0614
Linked diagrams
1106
1701
2501
8405
