KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501-0709)2KDFTV..KDH22#

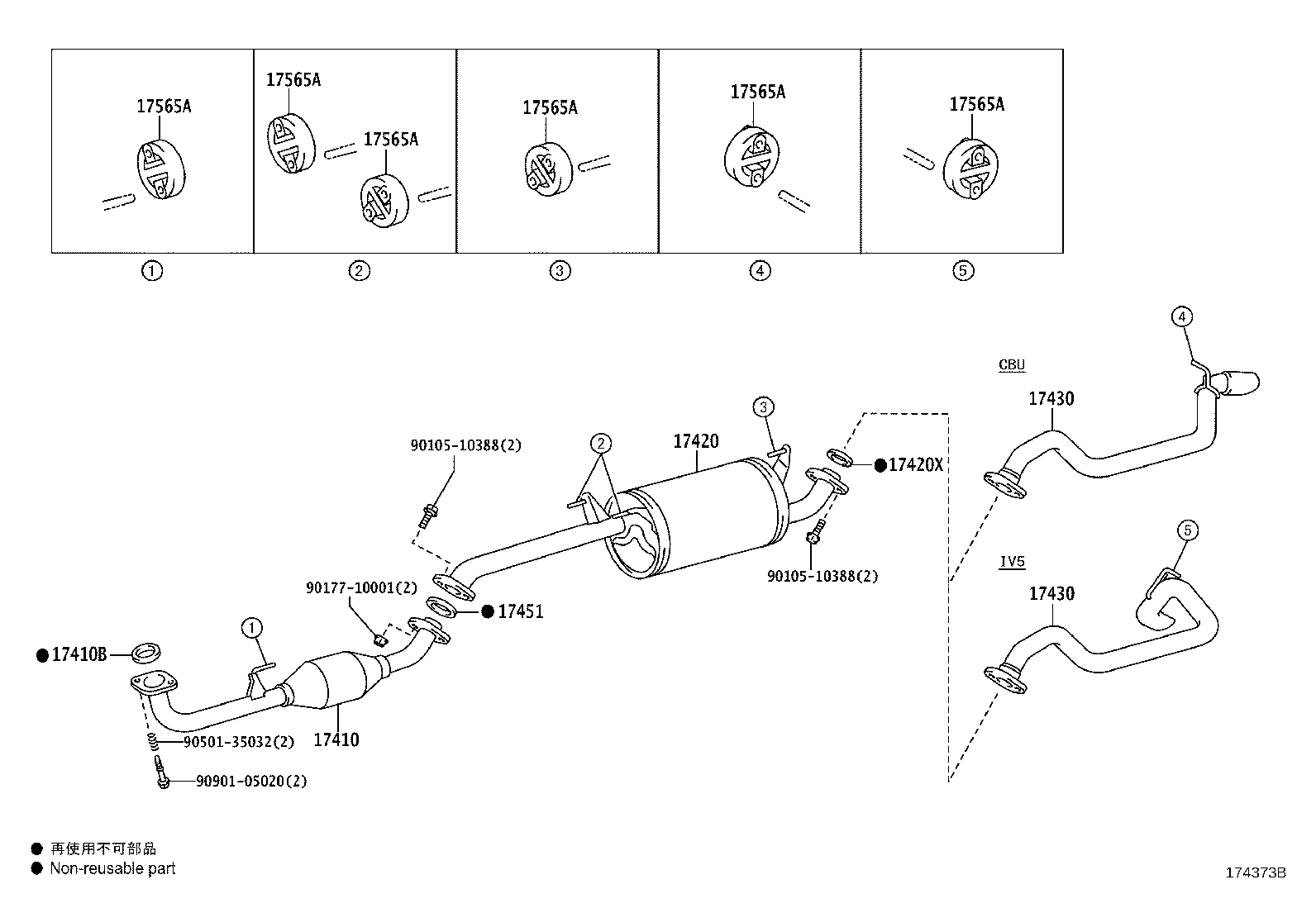

Click highlighted areas on diagram

diagram 17410 17410B 17420 17420X 17430 17430 17451 17565A 17565A 17565A 17565A 17565A 17565A 9010510388 9010510388 9017710001 9050135032 9090105020
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-30060

2KDFTV..KDH200,220,222

 1
17410-30060

2KDFTV..KDH200,220,222

 1
17410B - GASKET, EXHAUST PIPE
17451-67020

2KDFTV..KDH20#,22#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-30090

2KDFTV..KDH22#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-75760

2KDFTV..KDH22#..CBU

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-75760

2KDFTV..KDH22#..CBU

 1
17451 - GASKET, EXHAUST PIPE
90917-06073

2KDFTV..KDH20#,22#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV,1TRFE,2TRFE..KDH200,205,220,222,225,227,TRH200,21#,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV,1TRFE,2TRFE..KDH200,205,220,222,225,227,TRH200,21#,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV,1TRFE,2TRFE..KDH200,205,220,222,225,227,TRH200,21#,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV,1TRFE,2TRFE..KDH200,205,220,222,225,227,TRH200,21#,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV,1TRFE,2TRFE..KDH200,205,220,222,225,227,TRH200,21#,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV,1TRFE,2TRFE..KDH200,205,220,222,225,227,TRH200,21#,22#

 5
Common parts
90105-10388
90177-10001
90501-35032
90901-05020
