KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0408-0709)2KDFTV

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16264 16264A 16264A 16307B 16360A 16361 16361B 16361C 16363 16363A 16363C 16370 16380 16400 16400B 16400F 16401A 16420 16470 16470M 16482 16511A 1651930010 1652930010 16575 16575A 16575A 16576 16576A 16576A 16593 16594 16711 16711A 16712 1709 827111E360 8401 8401 9009904119 9009904119 9009904119 9009905164 9009905164 9009905164 9011906473 9011906473 9011906885 9017908068 9038909025 9048016021 9048023008 9048023008 9048040022 9155380618 9155380618 9155380830 9163160825 9166160616 9167380820
Part # Description Qty Price
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96135-51300

1KDFTV,2KDFTV..KDH20#,211,22#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96135-51300

1KDFTV,2KDFTV..KDH20#,211,22#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-75110

1KDFTV,2KDFTV..KDH211,22#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-22011

1KDFTV,2KDFTV..KDH20#,211,22#

NO.2

 1
90467-20011

1KDFTV,2KDFTV..KDH20#,211,22#

NO.1

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-22011

1KDFTV,2KDFTV..KDH20#,211,22#

NO.2

 1
90467-20011

1KDFTV,2KDFTV..KDH20#,211,22#

NO.1

 1
16307B - BRACKET SUB-ASSY, FAN
16307-75020

2KDFTV..KDH20#,22#

 1
16360A - FAN ASSY, W/MOTOR
16360-75030

2KDFTV..KDH20#,22#

 1
16361 - FAN
16361-75030

1KDFTV,2KDFTV..KDH20#,211,22#

 1
16361B - FAN, NO.2
16361-75040

1KDFTV,2KDFTV..KDH20#,211,22#

 1
16361C - FAN NO.2
16361-30040

2KDFTV..KDH20#,22#

 1
16363 - MOTOR, COOLING FAN
16363-20390

1KDFTV,2KDFTV..KDH20#,211,22#

 1
16363A - MOTOR, COOLING FAN, NO.2
16363-75030

1KDFTV,2KDFTV..KDH20#,211,22#

 1
16363C - MOTOR, COOLING FAN, NO.3
16363-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 1
16370 - FAN ASSY, W/MOTOR, NO.2
16370-30010

2KDFTV..KDH20#,22#

 1
16380 - BRACKET ASSY, FAN
16380-75022

2KDFTV..KDH20#,22#

 1
16400 - RADIATOR ASSY
16400-30170

1KDFTV,2KDFTV..KDH20#,211,22#..4FC

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-30170

1KDFTV,2KDFTV..KDH20#,211,22#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-15520

1KDFTV,2KDFTV..KDH20#,211,22#

 1
16420 - RADIATOR ASSY, SUB
16510-30010

2KDFTV..KDH20#,22#

 1
16470M - GROMMET
90480-15023

1KDFTV,2KDFTV..KDH20#,211,22#

 2
16482 - TANK SUB-ASSY, RADIATOR RESERVE
16480-75070

1KDFTV,2KDFTV..KDH20#,211,22#

 1
16511A - BRACKET, SUB-RADIATOR
16511-30010

2KDFTV..KDH20#,22#

 1
16575A - CLIP, RADIATOR HOSE, NO.5
90467-34006

1KDFTV,2KDFTV..KDH20#,211,22#

 2
16575A - CLIP, RADIATOR HOSE, NO.5
90467-34006

1KDFTV,2KDFTV..KDH20#,211,22#

 2
16576A - CLIP, RADIATOR HOSE, NO.6
90467-34006

1KDFTV,2KDFTV..KDH20#,211,22#

 2
16576A - CLIP, RADIATOR HOSE, NO.6
90467-34006

1KDFTV,2KDFTV..KDH20#,211,22#

 2
16711 - SHROUD, FAN
16711-75230

2KDFTV..KDH20#,22#

 1
16711A - SHROUD, FAN, NO.2
16711-30050

2KDFTV..KDH20#,22#

 1
16712 - SHROUD, FAN, NO.2
16712-75120

2KDFTV..KDH20#,22#

 1
16712-75121

1KDFTV,2KDFTV..KDH20#,211,22#

 1
Common parts
16519-30010
16529-30010
82711-1E360
90099-04119
90099-05164
90119-06473
90119-06885
90179-08068
90389-09025
90480-16021
90480-23008
90480-40022
91553-80618
91553-80830
91631-60825
91661-60616
91673-80820
Linked diagrams
1709
8401

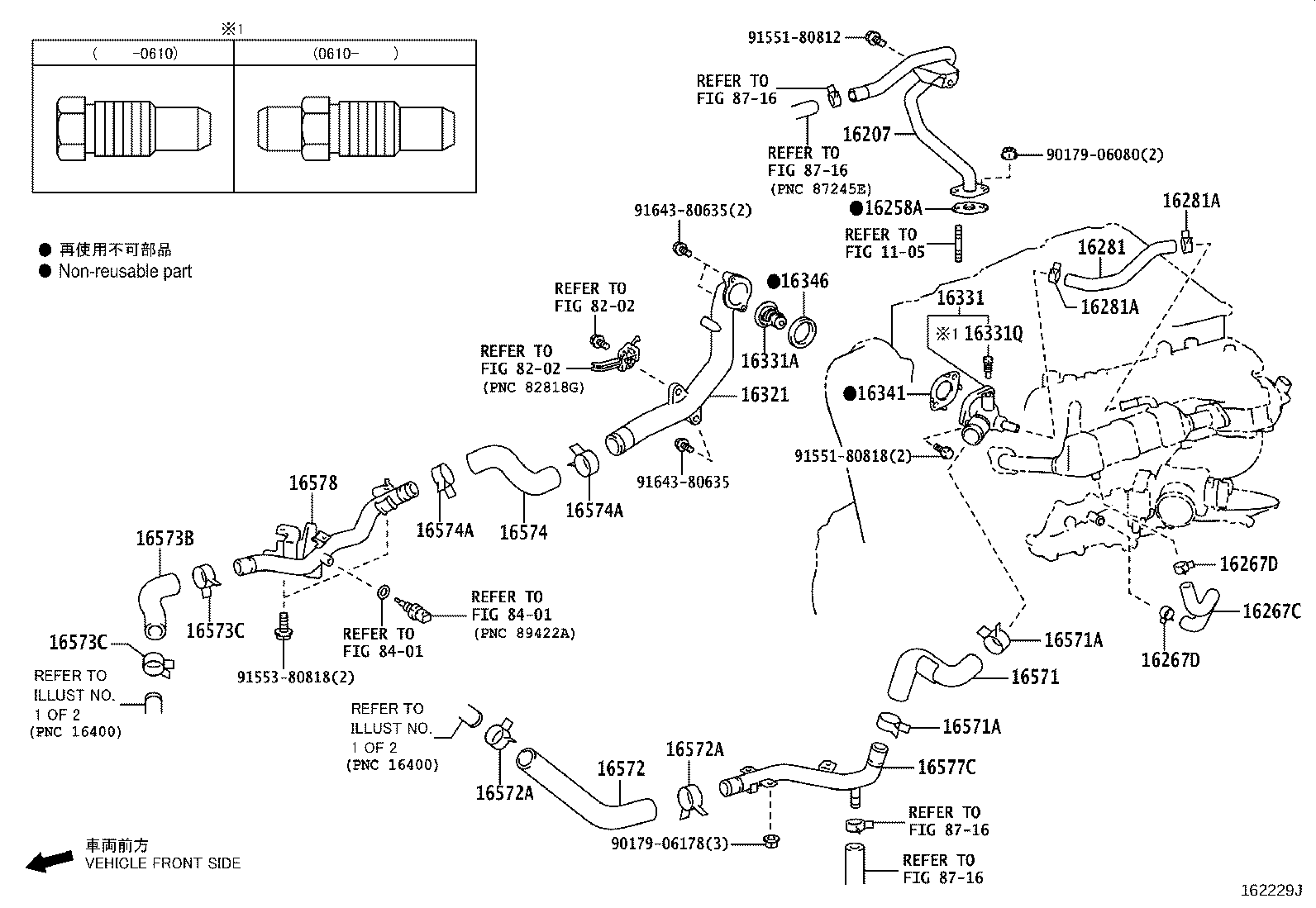

ILLUST NO. 2 OF 2(0408-0709)2KDFTV

Click highlighted areas on diagram

diagram 1105 16207 16258A 16267C 16267D 16267D 16281 16281A 16281A 16321 16331 16331A 16331Q 16341 16346 16571 16571A 16571A 16572 16572A 16572A 16573B 16573C 16573C 16574 16574A 16574A 16577C 16578 8202 8202 8401 8401 8716 8716 8716 8716 9017906080 9017906178 9155180812 9155180818 9155380818 9164380635 9164380635
Part # Description Qty Price
16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2
16207-30060

2KDFTV..KDH20#,22#

 1
16258A - GASKET(FOR HEATER RETURN)
16258-67010

1KDFTV,2KDFTV..KDH20#,211,22#

 1
16267C - HOSE, WATER BY-PASS, NO.4
16267-30040

2KDFTV..KDH20#,22#

 1
16267D - CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-19022

1KDFTV,2KDFTV..KDH20#,211,22#

 2
16267D - CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-19022

1KDFTV,2KDFTV..KDH20#,211,22#

 2
16281 - HOSE, WATER BY-PASS, NO.4
16281-30050

2KDFTV..KDH20#,22#

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-19022

2KDFTV..KDH20#,22#

 2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-19022

2KDFTV..KDH20#,22#

 2
16321 - INLET, WATER
16321-0K010

2KDFTV..KDH200,205,220,222,225,227

(L)

 1
16321-67011

2KDFTV..KDH20#,22#

(J)

 1
16331 - OUTLET, WATER
16331-30070

1KDFTV,2KDFTV..KDH20#,211,22#

 1
16331A - THERMOSTAT
90916-03118

2KDFTV..KDH200,205,220,222,225,227

*WAX 82−95

 1
16331Q - PLUG(FOR WATER OUTLET)
90910-09133

1KDFTV,2KDFTV..KDH20#,211,22#

 1
90910-09087

2KDFTV..KDH20#,22#

 1
16341 - GASKET, WATER OUTLET
16341-30020

1KDFTV,2KDFTV..KDH20#,211,22#

 1
16346 - GASKET, THERMOSTAT
16346-0K010

1KDFTV,2KDFTV..KDH20#,211,22#

(L)

 1
16346-67010

1KDFTV,2KDFTV..KDH20#,211,22#

(J)

 1
16571 - HOSE, RADIATOR, INLET
16571-30070

1KDFTV,2KDFTV..KDH200,201,211,220,221,222,223

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-41007

1KDFTV,2KDFTV..KDH20#,211,22#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-41007

1KDFTV,2KDFTV..KDH20#,211,22#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-75270

2KDFTV..KDH20#,22#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-41007

1KDFTV,2KDFTV..KDH20#,211,22#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-41007

1KDFTV,2KDFTV..KDH20#,211,22#

 2
16573B - HOSE, RADIATOR, NO.3
16573-30020

1KDFTV,2KDFTV..KDH211,22#

 1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90466-41007

1KDFTV,2KDFTV..KDH20#,211,22#

 2
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90466-41007

1KDFTV,2KDFTV..KDH20#,211,22#

 2
16574 - HOSE, RADIATOR, NO.4
16574-30020

1KDFTV,2KDFTV..KDH211,22#

 1
16574A - CLIP, RADIATOR HOSE, NO.4
90466-41007

1KDFTV,2KDFTV..KDH20#,211,22#

 2
16574A - CLIP, RADIATOR HOSE, NO.4
90466-41007

1KDFTV,2KDFTV..KDH20#,211,22#

 2
16577C - PIPE, RADIATOR
16577-30030

2KDFTV..KDH20#,22#

 1
16578 - PIPE, RADIATOR, NO.2
16578-30011

1KDFTV,2KDFTV..KDH20#,211,22#

 1
16578-30010

2KDFTV..KDH20#,22#

 1
Common parts
90179-06080
90179-06178
91551-80812
91551-80818
91553-80818
91643-80635
Linked diagrams
1105
8202
8401
8716
