KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )1KDFTV,2KDFTV

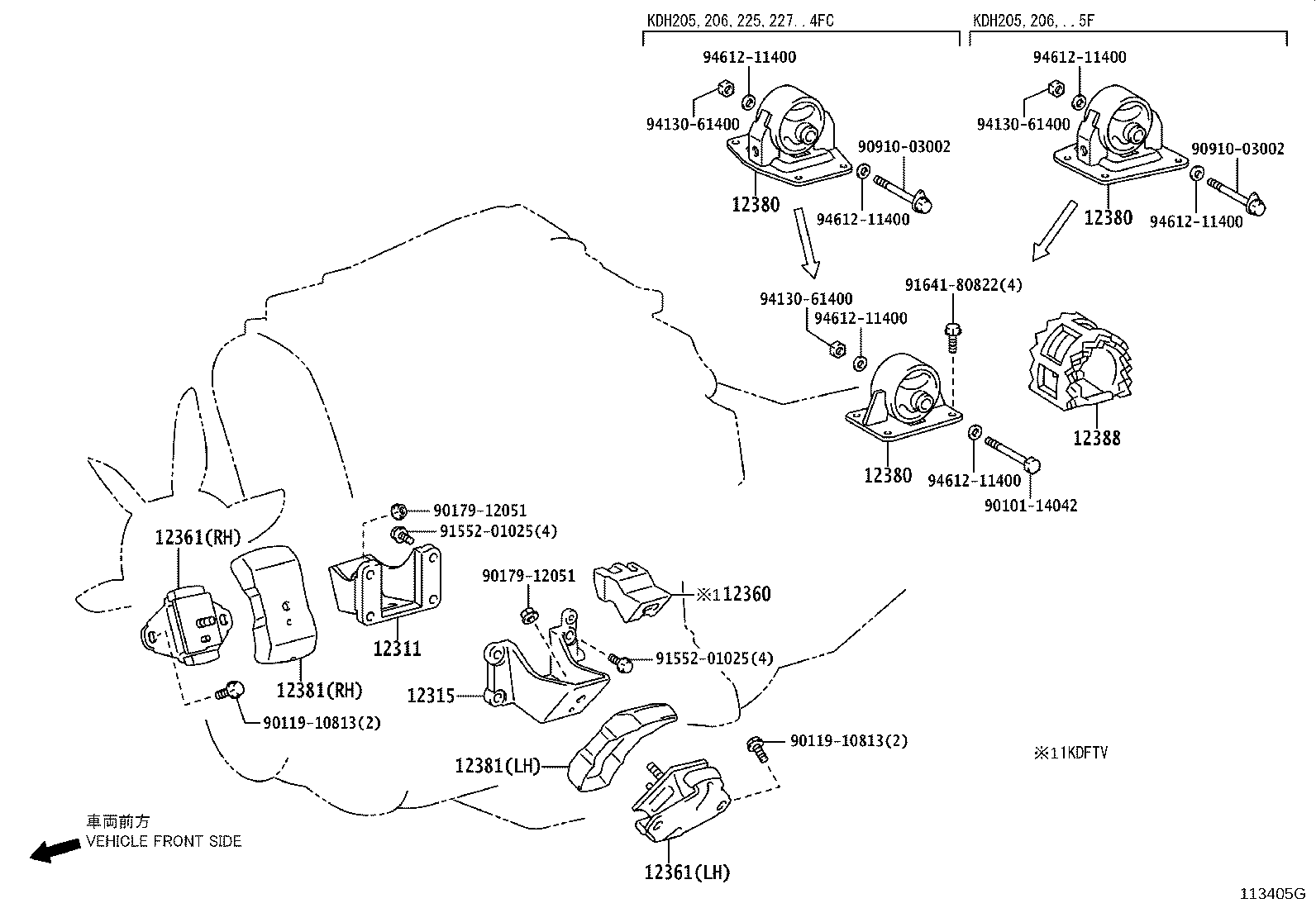

Click highlighted areas on diagram

diagram 12311 12315 12360 12361 12361 12380 12380 12380 12381 12381 12388 9010114042 9011910813 9011910813 9017912051 9017912051 9091003002 9091003002 9155201025 9155201025 9164180822 9413061400 9413061400 9413061400 9461211400 9461211400 9461211400 9461211400 9461211400 9461211400
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-30070

2KDFTV..KDH20#,22#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-30060

2KDFTV..KDH200,220,222

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-30060

2KDFTV..KDH20#,22#

右側 & 左側

 2
12361-30090

2KDFTV..KDH20#,22#

右側

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-30060

2KDFTV..KDH20#,22#

右側 & 左側

 2
12361-30090

2KDFTV..KDH20#,22#

右側

 1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-30010

1KDFTV,2KDFTV..KDH200,201,211,220,221,222,223

 1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-30010

1KDFTV,2KDFTV..KDH200,201,211,220,221,222,223

 1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-30010

1KDFTV,2KDFTV..KDH200,201,211,220,221,222,223

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-30030

2KDFTV..KDH20#,22#

右側

 1
12381-67010

2KDFTV..KDH20#,22#

右側 & 左側

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-30030

2KDFTV..KDH20#,22#

右側

 1
12381-67010

2KDFTV..KDH20#,22#

右側 & 左側

 2
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-67011

1KDFTV,2KDFTV..KDH20#,211,22#

 1
Common parts
90101-14042
90119-10813
90179-12051
90910-03002
91552-01025
91641-80822
94130-61400
94612-11400
