KDH222B-LEPDY (2005)
Toyota Hiace/Regiusace
(0408- )

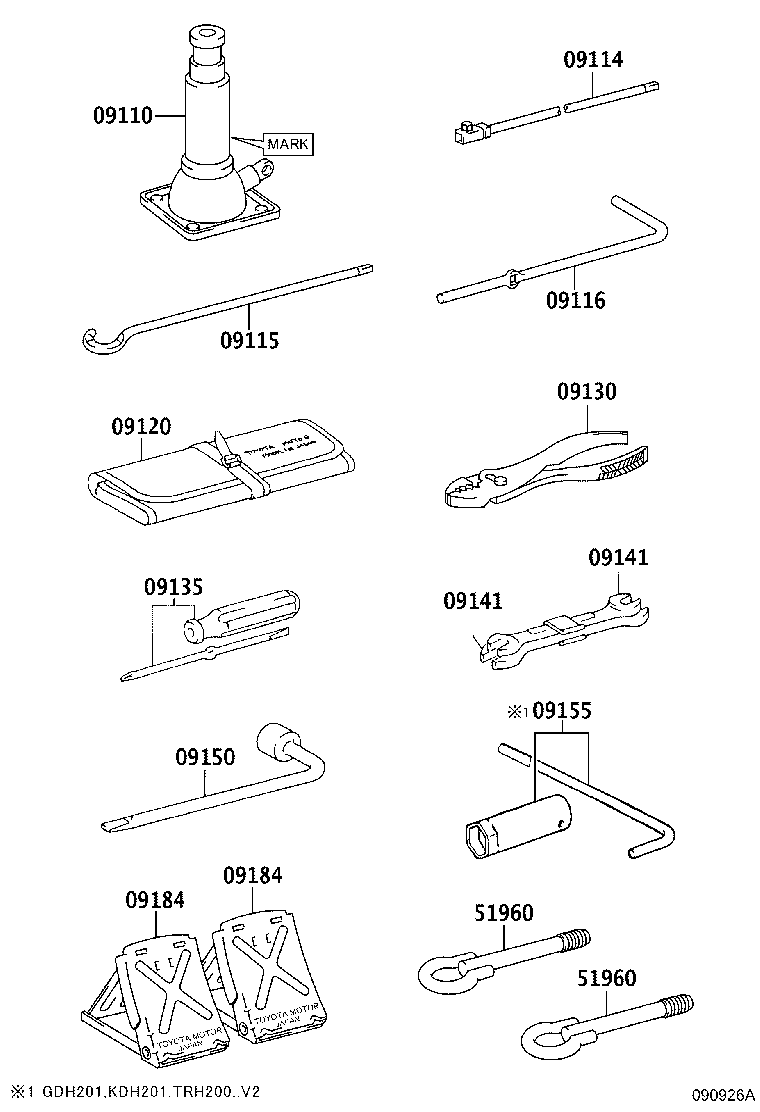

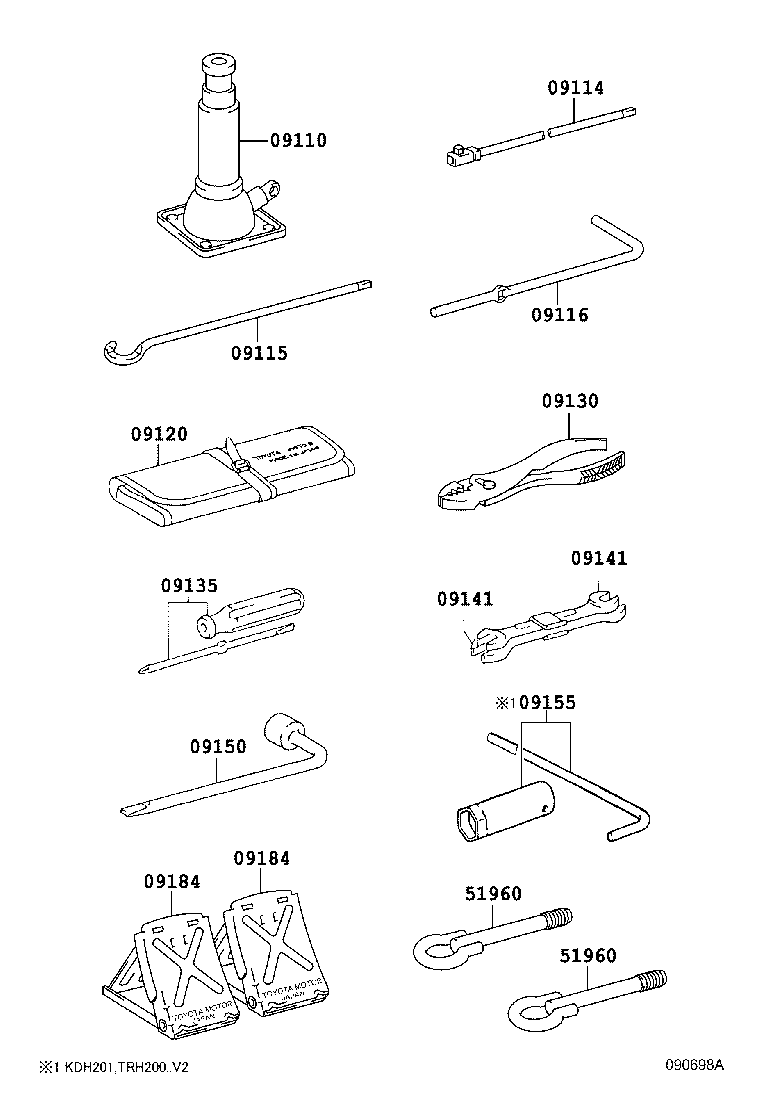

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09110 - JACK ASSY | ||||
| 09111-26150 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 09114 - EXTENSION SUB-ASSY, JACK HANDLE | ||||
| 09114-28010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 09115 - ROD SUB-ASSY, JACK HANDLE | ||||
| 09115-28030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 09116 - LEVER, JACK HANDLE | ||||
| 09116-35041 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-12011 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 09130 - PLIERS | ||||
| 99913-11500 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾌﾟﾗｲﾔ |
1 | ||
| 99913-11500 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ｽﾊﾟﾅ |
1 | ||
| 99913-11500 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞｰ |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾌﾟﾗｲﾔ |
1 | ||
| 99915-10700 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ｽﾊﾟﾅ |
1 | ||
| 99915-10700 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞｰ |
1 | ||
| 09141 - SPANNER | ||||
| 99914-10810 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU 8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞｰ |
1 | ||
| 99914-11214 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU 12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ｽﾊﾟﾅ |
1 | ||
| 99914-11214 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU 12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾌﾟﾗｲﾔ |
1 | ||
| 99914-10810 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU 8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ｽﾊﾟﾅ |
1 | ||
| 99914-10810 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU 8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾌﾟﾗｲﾔ |
1 | ||
| 99914-11214 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU 12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞｰ |
1 | ||
| 09141 - SPANNER | ||||
| 99914-10810 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU 8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞｰ |
1 | ||
| 99914-11214 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU 12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ｽﾊﾟﾅ |
1 | ||
| 99914-11214 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU 12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾌﾟﾗｲﾔ |
1 | ||
| 99914-10810 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU 8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ｽﾊﾟﾅ |
1 | ||
| 99914-10810 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU 8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾌﾟﾗｲﾔ |
1 | ||
| 99914-11214 |
KDH201,TRH200..V1..CBU;KDH200,205,206,211,22#,TRH21#,22#..CBU 12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞｰ |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-40010 |
KDH201,206,211,221,223,TRH200,21#,22# ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ｽﾊﾟﾅ |
1 | ||
| 09150-40010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 09150-40010 |
KDH201,206,211,221,223,TRH200,21#,22# ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾌﾟﾗｲﾔ |
1 | ||
| 09150-40010 |
KDH201,206,211,221,223,TRH200,21#,22# ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞｰ |
1 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00010 |
KDH201,206,211,221,223,TRH200,21#,22# ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ｽﾊﾟﾅ |
2 | ||
| 09184-00010 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 09184-00010 |
KDH201,206,211,221,223,TRH200,21#,22# ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞｰ |
2 | ||
| 09184-00010 |
KDH201,206,211,221,223,TRH200,21#,22# ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾌﾟﾗｲﾔ |
2 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00010 |
KDH201,206,211,221,223,TRH200,21#,22# ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ｽﾊﾟﾅ |
2 | ||
| 09184-00010 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 09184-00010 |
KDH201,206,211,221,223,TRH200,21#,22# ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞｰ |
2 | ||
| 09184-00010 |
KDH201,206,211,221,223,TRH200,21#,22# ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾌﾟﾗｲﾔ |
2 | ||
| 51960 - HOOK ASSY, FRONT | ||||
| 51960-58010 |
KDH22#,TRH22# |
2 | ||
| 51960 - HOOK ASSY, FRONT | ||||
| 51960-58010 |
KDH22#,TRH22# |
2 | ||
