KDH211K-KRPEY (2007)
Toyota Hiace/Regiusace

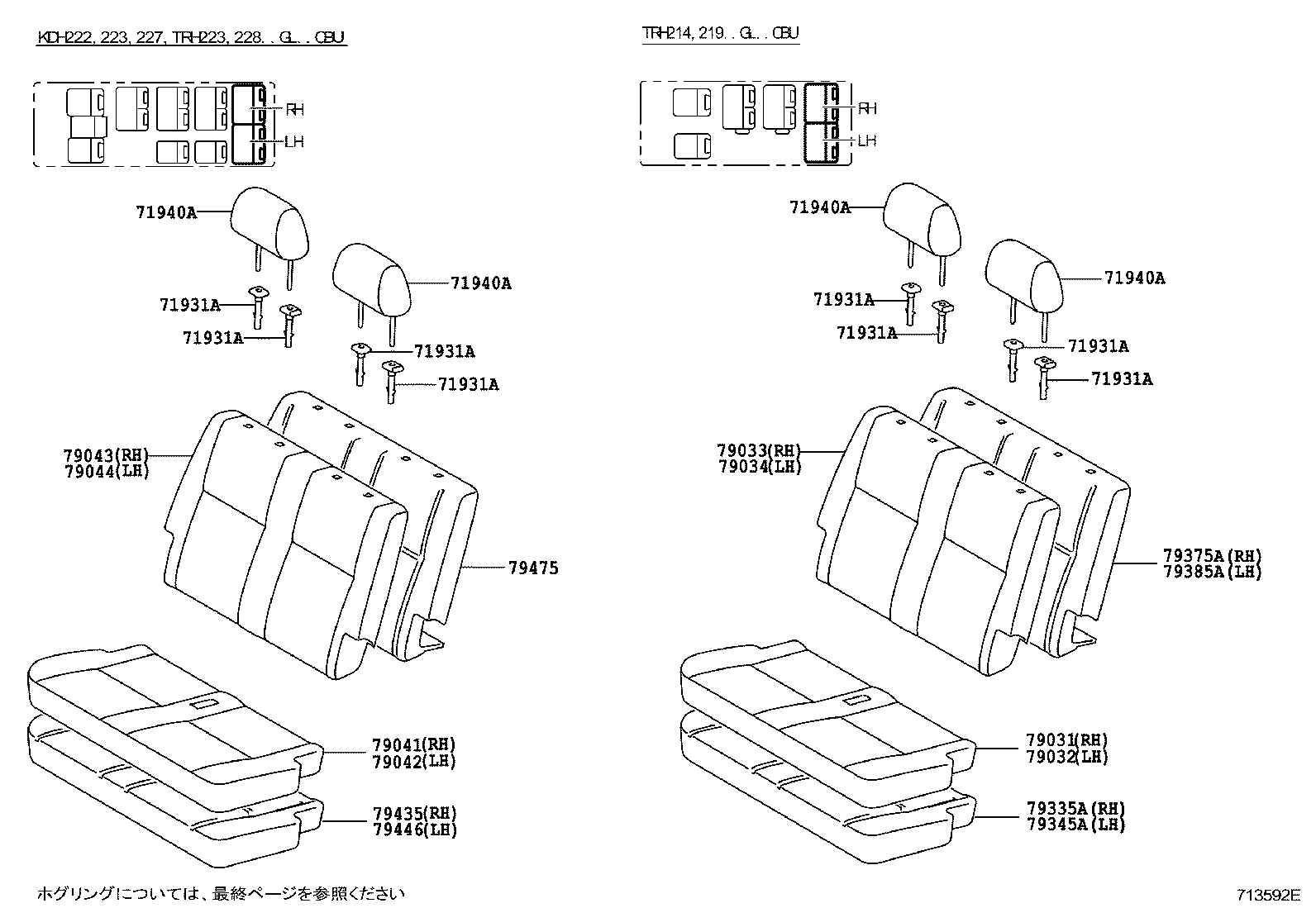

ILLUST NO. 1 OF 2(0408-1205)GL..CBU
ﾘﾔ ｽﾍﾟｰｽｱｯﾌﾟ ｼｰﾄ(ﾘﾔ NO.3 ｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B8 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B8 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B8 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B8 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B8 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B8 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B8 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B8 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26380B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
2 | ||
| 71940-26450C0 |
KDH20#,211,TRH200,211,216..SGL PRIME SELECTION*(K),BLACK,TRIM13 |
2 | ||
| 71940-26381B1 |
KDH20#,211,TRH200,211,216..SGL MEDIUM GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26380B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
2 | ||
| 71940-26450C0 |
KDH20#,211,TRH200,211,216..SGL PRIME SELECTION*(K),BLACK,TRIM13 |
2 | ||
| 71940-26381B1 |
KDH20#,211,TRH200,211,216..SGL MEDIUM GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26380B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
2 | ||
| 71940-26450C0 |
KDH20#,211,TRH200,211,216..SGL PRIME SELECTION*(K),BLACK,TRIM13 |
2 | ||
| 71940-26381B1 |
KDH20#,211,TRH200,211,216..SGL MEDIUM GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26380B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
2 | ||
| 71940-26450C0 |
KDH20#,211,TRH200,211,216..SGL PRIME SELECTION*(K),BLACK,TRIM13 |
2 | ||
| 71940-26381B1 |
KDH20#,211,TRH200,211,216..SGL MEDIUM GRAY,TRIM1# |
2 | ||

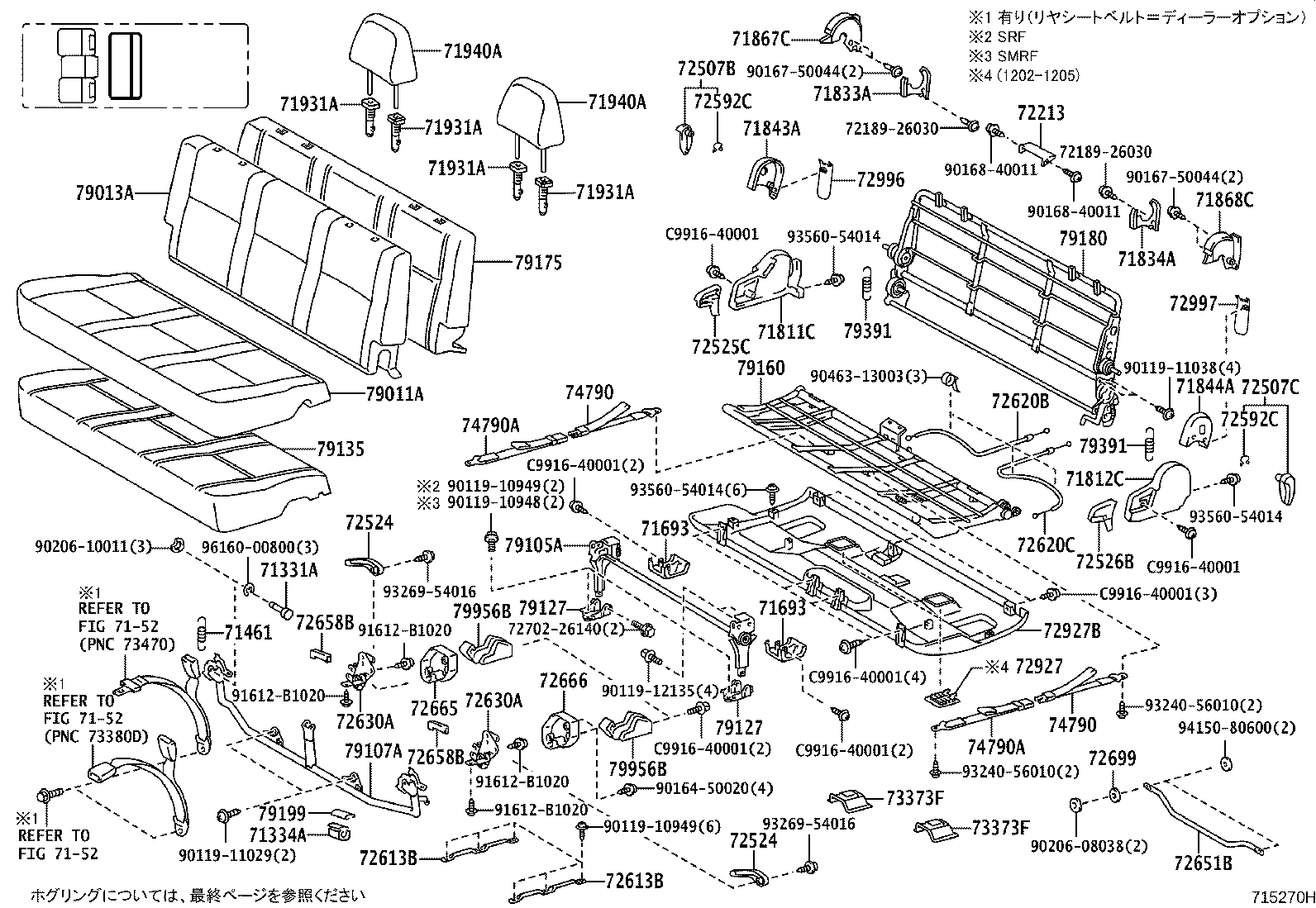

(0709-1205)SGL
ﾘﾔ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71331A - PIN, REAR SEAT HINGE | ||||
| 71331-26110 |
KDH20#,211,TRH200,211,216..SGL |
3 | ||
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-26110 |
KDH211,TRH211,216 |
2 | ||
| 71461 - SPRING, REAR SEAT CUSHION | ||||
| 71461-26030 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-26010B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
2 | ||
| 71693-26010B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
2 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-26010B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
2 | ||
| 71693-26010B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
2 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26170B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 71811-26170B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26160B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 71812-26160B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-26030B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 71833-26030B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-26040B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 71834-26040B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-26010B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 71843-26010B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-26010B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 71844-26010B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 71867C - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26050B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 71867-26050B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 71868C - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26020B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 71868-26020B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B8 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B8 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B8 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B8 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26380B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
2 | ||
| 71940-26450C0 |
KDH20#,211,TRH200,211,216..SGL PRIME SELECTION*(K),BLACK,TRIM13 |
2 | ||
| 71940-26381B1 |
KDH20#,211,TRH200,211,216..SGL MEDIUM GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26380B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
2 | ||
| 71940-26450C0 |
KDH20#,211,TRH200,211,216..SGL PRIME SELECTION*(K),BLACK,TRIM13 |
2 | ||
| 71940-26381B1 |
KDH20#,211,TRH200,211,216..SGL MEDIUM GRAY,TRIM1# |
2 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-26010B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72213-26010B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH | ||||
| 72507-58030B2 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 72507-58030B0 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH | ||||
| 72507-58040B2 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 72507-58040B0 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-26120B0 |
KDH20#,211,TRH200,211,216..SGL MD.GRAY,TRIM1# |
2 | ||
| 72525-26120B2 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-26120B0 |
KDH20#,211,TRH200,211,216..SGL MD.GRAY,TRIM1# |
2 | ||
| 72525-26120B2 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
2 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-26110B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72525-26110B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-26050B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 72526-26050B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90520-01006 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90520-01006 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-26100 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72613-26101 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-26100 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72613-26101 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-26020 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-26030 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 72630A - LOCK ASSY, REAR NO.1 SEAT | ||||
| 72630-26070 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72630A - LOCK ASSY, REAR NO.1 SEAT | ||||
| 72630-26070 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72651B - ROD, REAR SEAT LOCK | ||||
| 72651-26100 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-26060B0 |
KDH20#,211,TRH200,211,216..SGL MD.GRAY,TRIM1# |
1 | ||
| 72665-26060B2 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72665-26050B0 |
KDH20#,211,TRH200,211,216..SGL MD.GRAY,TRIM1# |
1 | ||
| 72665-26050B2 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72699 - PLATE, REAR SEAT LOCK RELEASE | ||||
| 72699-26040 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-26050B0 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
2 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-26020B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 72927-26060B0 |
KDH211,TRH211,216 DK.GRAY,TRIM1# |
1 | ||
| 72927-26020B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-26080B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72996-26080B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72997-26050B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 72997-26050B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-26020B0 |
KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,GRAY,TRIM1# |
2 | ||
| 73373-26020B1 |
KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,DK.GRAY,TRIM1# |
2 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-26020B0 |
KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,GRAY,TRIM1# |
2 | ||
| 73373-26020B1 |
KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,DK.GRAY,TRIM1# |
2 | ||
| 74790 - HOLDER ASSY, WARNING REFLECTOR | ||||
| 74790-26030 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 74790 - HOLDER ASSY, WARNING REFLECTOR | ||||
| 74790-26030 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 74790A - HOLDER ASSY, WARNING REFLECTOR | ||||
| 74790-26040 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 74790A - HOLDER ASSY, WARNING REFLECTOR | ||||
| 74790-26040 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-26A62B4 |
KDH20#,211,TRH200,211,216..SGL MEDIUM GRAY,TRIM1# |
1 | ||
| 79011-26A61B3 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 79011-26C90C0 |
KDH20#,211,TRH200,211,216..SGL PRIME SELECTION*(K),BLACK,TRIM13 |
1 | ||
| 79011-26A63B4 |
KDH20#,211,TRH200,211,216..SGL MEDIUM GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-26B21B3 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 79013-26B22B4 |
KDH20#,211,TRH200,211,216..SGL MEDIUM GRAY,TRIM1# |
1 | ||
| 79013-26E50C0 |
KDH20#,211,TRH200,211,216..SGL PRIME SELECTION*(K),BLACK,TRIM13 |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79105-26480 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 79107A - LEG SUB-ASSY, NO.1 SEAT, REAR | ||||
| 79107-26130 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 79127 - BRACKET, NO.1 SEAT LEG, LOWER | ||||
| 71308-26010 |
KDH211,TRH211,216 左側 |
1 | ||
| 71309-26160 |
KDH211,TRH211,216 右側 |
1 | ||
| 79127 - BRACKET, NO.1 SEAT LEG, LOWER | ||||
| 71308-26010 |
KDH211,TRH211,216 左側 |
1 | ||
| 71309-26160 |
KDH211,TRH211,216 右側 |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-26300 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 79135-26301 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-26240 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-26271 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-26310 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
KDH20#,211,TRH200,211,216..(05S,06S,09S)..CBU |
2 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79956-26240B2 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
2 | ||
| 79956-26240B0 |
KDH20#,211,TRH200,211,216..SGL MD.GRAY,TRIM1# |
2 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79956-26240B2 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
2 | ||
| 79956-26240B0 |
KDH20#,211,TRH200,211,216..SGL MD.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 72189-26030 | ||||
| 72702-26140 | ||||
| 90119-10948 | ||||
| 90119-10949 | ||||
| 90119-11029 | ||||
| 90119-11038 | ||||
| 90119-12135 | ||||
| 90164-50020 | ||||
| 90167-50044 | ||||
| 90168-40011 | ||||
| 90206-08038 | ||||
| 90206-10011 | ||||
| 90463-13003 | ||||
| 91612-B1020 | ||||
| 93240-56010 | ||||
| 93269-54016 | ||||
| 93560-54014 | ||||
| 94150-80600 | ||||
| 96160-00800 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1205- )SGL
ﾘﾔ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71331A - PIN, REAR SEAT HINGE | ||||
| 71331-26110 |
KDH20#,211,TRH200,211,216..SGL |
3 | ||
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-26110 |
KDH211,TRH211,216 |
2 | ||
| 71461 - SPRING, REAR SEAT CUSHION | ||||
| 71461-26030 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-26010B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
2 | ||
| 71693-26010B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
2 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-26010B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
2 | ||
| 71693-26010B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
2 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26170B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 71811-26170B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26160B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 71812-26160B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-26030B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 71833-26030B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-26040B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 71834-26040B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-26010B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 71843-26010B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-26010B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 71844-26010B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 71867C - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26050B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 71867-26050B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 71868C - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26020B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 71868-26020B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B8 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B8 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B8 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B8 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
KDH20#,211,TRH200,211,216..SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26380B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
2 | ||
| 71940-26450C0 |
KDH20#,211,TRH200,211,216..SGL PRIME SELECTION*(K),BLACK,TRIM13 |
2 | ||
| 71940-26381B1 |
KDH20#,211,TRH200,211,216..SGL MEDIUM GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26380B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
2 | ||
| 71940-26450C0 |
KDH20#,211,TRH200,211,216..SGL PRIME SELECTION*(K),BLACK,TRIM13 |
2 | ||
| 71940-26381B1 |
KDH20#,211,TRH200,211,216..SGL MEDIUM GRAY,TRIM1# |
2 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-26010B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72213-26010B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH | ||||
| 72507-58030B2 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 72507-58030B0 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH | ||||
| 72507-58040B2 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 72507-58040B0 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-26120B0 |
KDH20#,211,TRH200,211,216..SGL MD.GRAY,TRIM1# |
2 | ||
| 72525-26120B2 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-26120B0 |
KDH20#,211,TRH200,211,216..SGL MD.GRAY,TRIM1# |
2 | ||
| 72525-26120B2 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
2 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-26110B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72525-26110B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-26050B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 72526-26050B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90520-01006 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90520-01006 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-26100 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72613-26101 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-26100 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72613-26101 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-26020 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-26030 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 72630A - LOCK ASSY, REAR NO.1 SEAT | ||||
| 72630-26070 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72630A - LOCK ASSY, REAR NO.1 SEAT | ||||
| 72630-26070 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72651B - ROD, REAR SEAT LOCK | ||||
| 72651-26100 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-26060B0 |
KDH20#,211,TRH200,211,216..SGL MD.GRAY,TRIM1# |
1 | ||
| 72665-26060B2 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72665-26050B0 |
KDH20#,211,TRH200,211,216..SGL MD.GRAY,TRIM1# |
1 | ||
| 72665-26050B2 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72699 - PLATE, REAR SEAT LOCK RELEASE | ||||
| 72699-26040 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-26020B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 72927-26060B0 |
KDH211,TRH211,216 DK.GRAY,TRIM1# |
1 | ||
| 72927-26020B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-26080B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 72996-26080B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72997-26050B0 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 72997-26050B1 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-26020B0 |
KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,GRAY,TRIM1# |
2 | ||
| 73373-26020B1 |
KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,DK.GRAY,TRIM1# |
2 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-26020B0 |
KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,GRAY,TRIM1# |
2 | ||
| 73373-26020B1 |
KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,DK.GRAY,TRIM1# |
2 | ||
| 74790 - HOLDER ASSY, WARNING REFLECTOR | ||||
| 74790-26030 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 74790 - HOLDER ASSY, WARNING REFLECTOR | ||||
| 74790-26030 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 74790A - HOLDER ASSY, WARNING REFLECTOR | ||||
| 74790-26040 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 74790A - HOLDER ASSY, WARNING REFLECTOR | ||||
| 74790-26040 |
KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-26A62B4 |
KDH20#,211,TRH200,211,216..SGL MEDIUM GRAY,TRIM1# |
1 | ||
| 79011-26A61B3 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 79011-26C90C0 |
KDH20#,211,TRH200,211,216..SGL PRIME SELECTION*(K),BLACK,TRIM13 |
1 | ||
| 79011-26A63B4 |
KDH20#,211,TRH200,211,216..SGL MEDIUM GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-26B21B3 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 79013-26B22B4 |
KDH20#,211,TRH200,211,216..SGL MEDIUM GRAY,TRIM1# |
1 | ||
| 79013-26E50C0 |
KDH20#,211,TRH200,211,216..SGL PRIME SELECTION*(K),BLACK,TRIM13 |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79105-26480 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 79107A - LEG SUB-ASSY, NO.1 SEAT, REAR | ||||
| 79107-26130 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 79127 - BRACKET, NO.1 SEAT LEG, LOWER | ||||
| 71308-26010 |
KDH211,TRH211,216 左側 |
1 | ||
| 71309-26160 |
KDH211,TRH211,216 右側 |
1 | ||
| 79127 - BRACKET, NO.1 SEAT LEG, LOWER | ||||
| 71308-26010 |
KDH211,TRH211,216 左側 |
1 | ||
| 71309-26160 |
KDH211,TRH211,216 右側 |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-26300 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 79135-26301 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-26240 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-26271 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-26310 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
KDH20#,211,TRH200,211,216..(05S,06S,09S)..CBU |
2 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79956-26240B2 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
2 | ||
| 79956-26240B0 |
KDH20#,211,TRH200,211,216..SGL MD.GRAY,TRIM1# |
2 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79956-26240B2 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
2 | ||
| 79956-26240B0 |
KDH20#,211,TRH200,211,216..SGL MD.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 72189-26030 | ||||
| 72702-26140 | ||||
| 90119-10948 | ||||
| 90119-10949 | ||||
| 90119-11029 | ||||
| 90119-11038 | ||||
| 90119-12135 | ||||
| 90164-50020 | ||||
| 90167-50044 | ||||
| 90168-40011 | ||||
| 90206-08038 | ||||
| 90206-10011 | ||||
| 90463-13003 | ||||
| 91612-B1020 | ||||
| 93240-56010 | ||||
| 93269-54016 | ||||
| 93560-54014 | ||||
| 94150-80600 | ||||
| 96160-00800 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
