KDH211K-KRPEY (2007)
Toyota Hiace/Regiusace

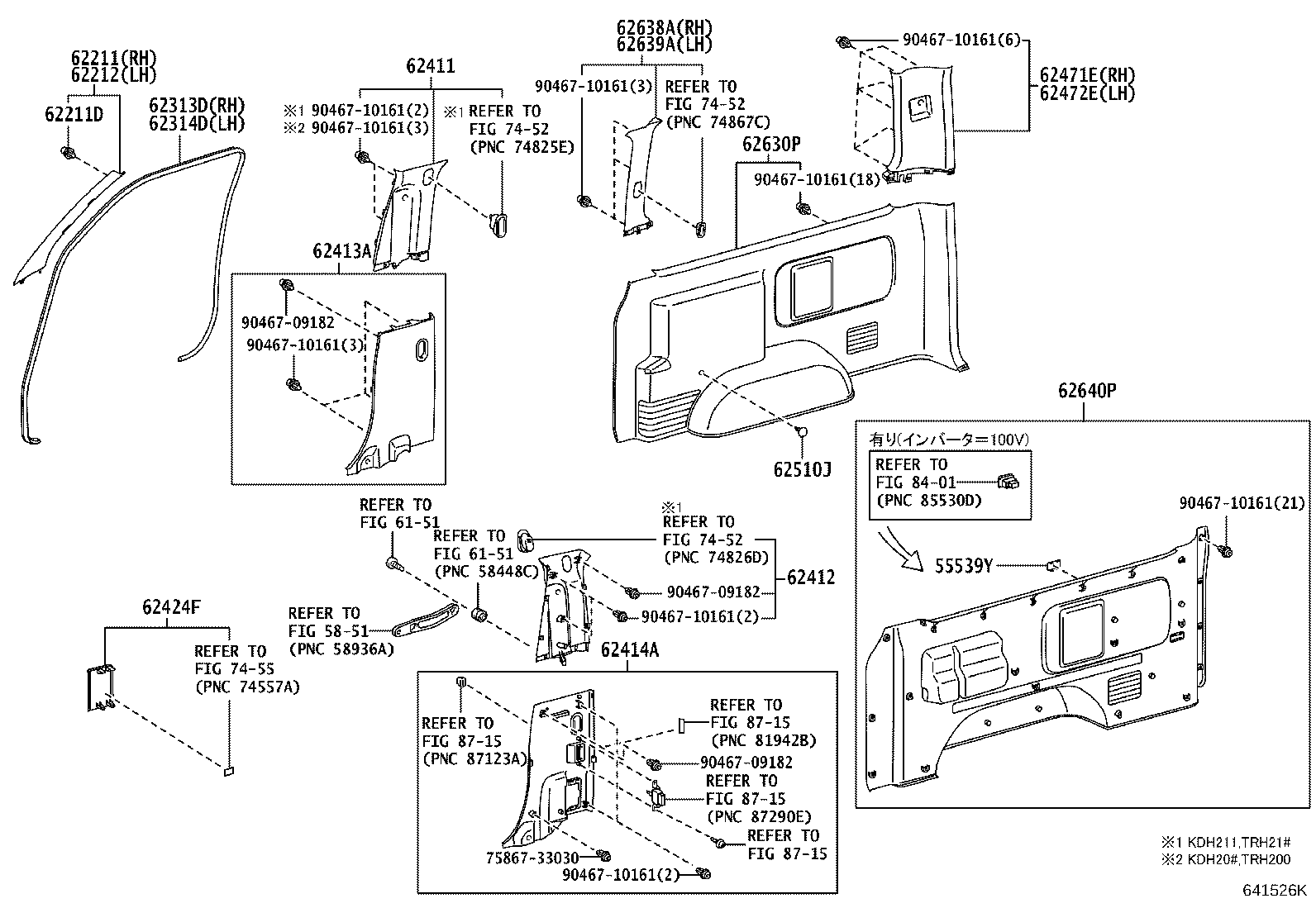

(0408-1205)SGL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539Y - COVER, SPARE SWITCH HOLE | ||||
| 55539-28120B4 |
KDH201,206,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,GRAY,TRIM1# |
1 | ||
| 55539-28120B2 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 55539-28120B2 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 55539-28120B4 |
KDH20#,TRH200..IV5;KDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL GRAY,TRIM1# |
1 | ||
| 55539-28120B2 |
KDH20#,TRH200..IV5;KDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL DK.GRAY,TRIM1# |
1 | ||
| 55539-28120B4 |
KDH201,206,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-26050B0 |
TRH224,229..IV5;KDH20#,TRH200..SGL;KDH20#,22#,TRH200,21#,221,223,226,228..HRF,SMRF LT.GRAY,TRIM1# |
1 | ||
| 62210-26052B0 |
TRH224..IV5;KDH20#,TRH200..SGL;KDH20#,211,22#,TRH200,21#,221,223,226,228..HRF,SHRF,SMRF LT.GRAY,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-10161 |
KDH20#,TRH200..SGL;KDH20#,211,22#,TRH200,21#,22#..HRF,SHRF,SMRF |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-26032B0 |
TRH224..IV5;KDH20#,TRH200..SGL;KDH20#,211,22#,TRH200,21#,221,223,226,228..HRF,SHRF,SMRF LT.GRAY,TRIM1# |
1 | ||
| 62220-26030B0 |
TRH224,229..IV5;KDH20#,TRH200..SGL;KDH20#,22#,TRH200,21#,221,223,226,228..HRF,SMRF LT.GRAY,TRIM1# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-26100B0 |
KDH211,TRH211,216 LT.GRAY,TRIM1# |
1 | ||
| 62410-26100B1 |
KDH211,TRH211,216 LT.GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-26100B0 |
KDH211,TRH211,216 LT.GRAY,TRIM1# |
1 | ||
| 62420-26100B1 |
KDH211,TRH211,216 LT.GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-26290B0 |
KDH20#,211..SGL GRAY,TRIM1# |
1 | ||
| 62413-26220B1 |
KDH200,205,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 62413-26220B0 |
TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 62413-26290B1 |
KDH20#,211..SGL DK.GRAY,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-26330B1 |
KDH200,205,TRH200,211,216..SGL;KDH200,205,222,223,227,TRH200,223,228..IV5 GRAY,TRIM1# |
1 | ||
| 62414-26430B0 |
KDH20#..IV5;KDH20#,211..SGL GRAY,TRIM1# |
1 | ||
| 62414-26330B0 |
TRH200,211,216..SGL;KDH223,TRH200,223,228..IV5 DK.GRAY,TRIM1# |
1 | ||
| 62414-26430B1 |
KDH20#..IV5;KDH20#,211..SGL DK.GRAY,TRIM1# |
1 | ||
| 62414-26330B2 |
TRH200,211,216..SGL;KDH223,TRH200,223,224,228..IV5 DK.GRAY,TRIM1# |
1 | ||
| 62414-26430B2 |
KDH20#..IV5;KDH20#,211..SGL DK.GRAY,TRIM1# |
1 | ||
| 62424F - COVER, CENTER PILLAR GARNISH, LOWER LH | ||||
| 62424-26030B0 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 62424-26030B1 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 62424-26031B0 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 62471E - GARNISH, ROOF SIDE, INNER UPPER RH | ||||
| 62471-26320B0 |
KDH211,TRH211,216 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り,LT.GRAY,TRIM1# |
1 | ||
| 62471-26260B0 |
KDH20#,223,TRH200,223,228..IV5;KDH211,222,227,TRH211,216,224,229..GC,GL,SGL LT.GRAY,TRIM1# |
1 | ||
| 62472E - GARNISH, ROOF SIDE, INNER UPPER LH | ||||
| 62472-26290B0 |
KDH211,TRH211,216 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り,LT.GRAY,TRIM1# |
1 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-26230B0 |
KDH20#,211,TRH200,21#..GL,SGL GRAY,TRIM1# |
1 | ||
| 67771-26230B2 |
KDH20#,211,TRH200,21#..GL,SGL DK.GRAY,TRIM1# |
1 | ||
| 67771-26230B0 |
KDH201,206,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,GRAY,TRIM1# |
1 | ||
| 67771-26230B0 |
KDH201,206,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),GRAY,TRIM1# |
1 | ||
| 67771-26230B2 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 67771-26230B2 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-2F420B1 |
KDH201,206,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,GRAY,TRIM1# |
1 | ||
| 62630-2F420B1 |
KDH201,206,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),GRAY,TRIM1# |
1 | ||
| 62630-2F420B2 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62630-26D70B0 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 62630-2F420B2 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 62630-2F420B1 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 62630-2F420B2 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 62630-26D70B0 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 62630-26D70B0 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-26040B0 |
KDH20#,211,TRH200,211,216..SGL LT.GRAY,TRIM1# |
1 | ||
| 62638-26040B1 |
KDH20#,211,TRH200,211,216..SGL LT.GRAY,TRIM1# |
1 | ||
| 62638-26160B0 |
KDH20#,211,TRH200,211,216..SGL LT.GRAY,TRIM1# |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-26030B1 |
KDH20#,211,TRH200,211,216..SGL LT.GRAY,TRIM1# |
1 | ||
| 62639-26030B0 |
KDH20#,211,TRH200,211,216..SGL LT.GRAY,TRIM1# |
1 | ||
| 62639-26130B0 |
KDH20#,211,TRH200,211,216..SGL LT.GRAY,TRIM1# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-26A00B1 |
KDH20#,211,TRH200,211,216..SGL ｲﾝﾊﾞｰﾀ−有り(100V),GRAY,TRIM1# |
1 | ||
| 62640-26A10B1 |
KDH201,206,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,GRAY,TRIM1# |
1 | ||
| 62640-26A10B1 |
KDH201,206,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),GRAY,TRIM1# |
1 | ||
| 62640-26A10B1 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 62640-26A10B2 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 62640-26A10B2 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 62640-26A10B2 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62640-26E80B0 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 62640-26A00B2 |
KDH20#,211,TRH200,211,216..SGL ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62640-26E80B0 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62640-26E80B0 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 62640-26E70B0 |
KDH20#,211,TRH200,211,216..SGL ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 75867-33030 | ||||
| 90467-09182 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 6151 | ||||
| 7452 | ||||
| 7455 | ||||
| 8401 | ||||
| 8715 | ||||

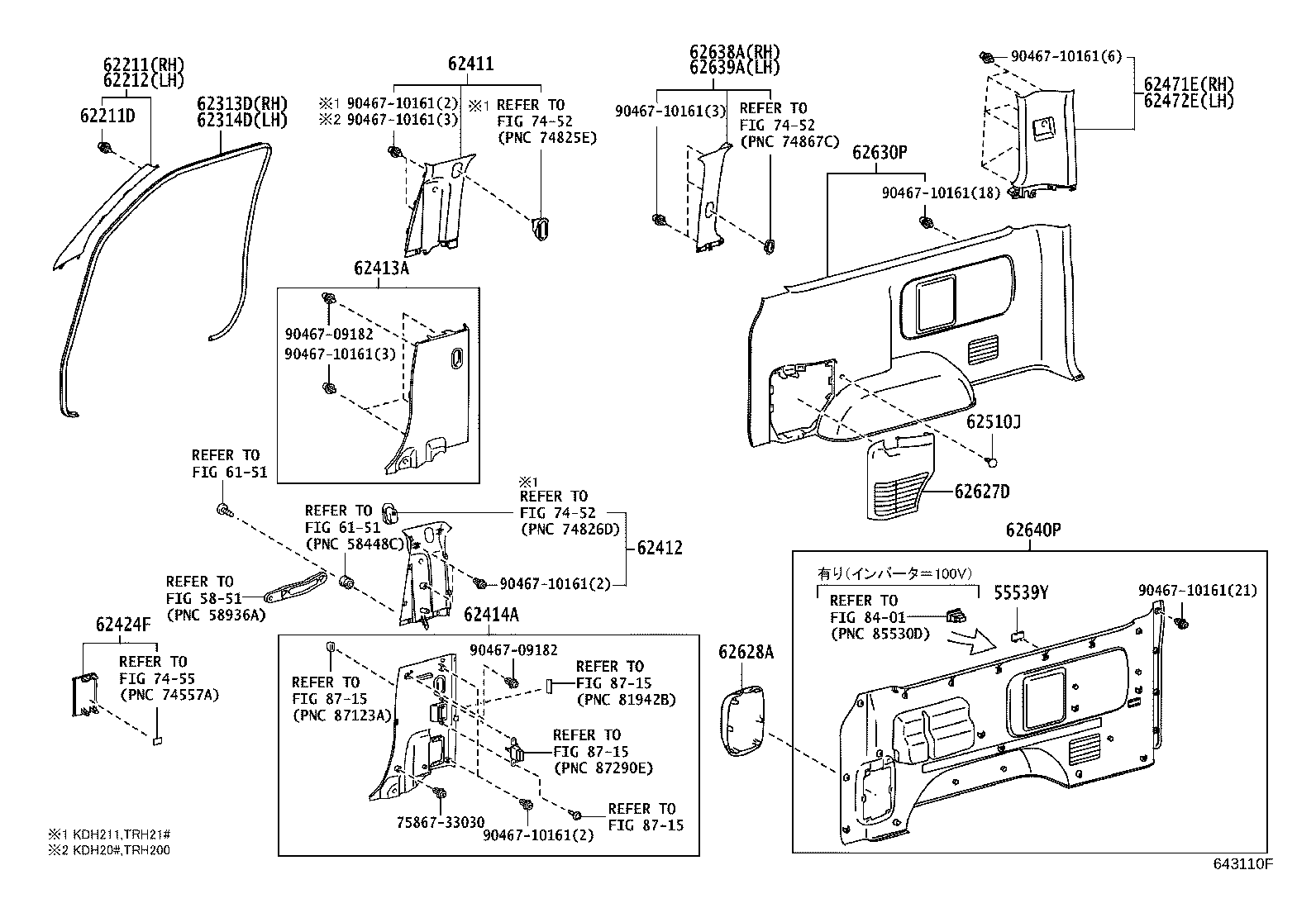

(1205- )SGL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539Y - COVER, SPARE SWITCH HOLE | ||||
| 55539-28120B4 |
KDH201,206,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,GRAY,TRIM1# |
1 | ||
| 55539-28120B2 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 55539-28120B2 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 55539-28120B4 |
KDH20#,TRH200..IV5;KDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL GRAY,TRIM1# |
1 | ||
| 55539-28120B2 |
KDH20#,TRH200..IV5;KDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL DK.GRAY,TRIM1# |
1 | ||
| 55539-28120B4 |
KDH201,206,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-26050B0 |
TRH224,229..IV5;KDH20#,TRH200..SGL;KDH20#,22#,TRH200,21#,221,223,226,228..HRF,SMRF LT.GRAY,TRIM1# |
1 | ||
| 62210-26052B0 |
TRH224..IV5;KDH20#,TRH200..SGL;KDH20#,211,22#,TRH200,21#,221,223,226,228..HRF,SHRF,SMRF LT.GRAY,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-10161 |
KDH20#,TRH200..SGL;KDH20#,211,22#,TRH200,21#,22#..HRF,SHRF,SMRF |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-26032B0 |
TRH224..IV5;KDH20#,TRH200..SGL;KDH20#,211,22#,TRH200,21#,221,223,226,228..HRF,SHRF,SMRF LT.GRAY,TRIM1# |
1 | ||
| 62220-26030B0 |
TRH224,229..IV5;KDH20#,TRH200..SGL;KDH20#,22#,TRH200,21#,221,223,226,228..HRF,SMRF LT.GRAY,TRIM1# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-26100B0 |
KDH211,TRH211,216 LT.GRAY,TRIM1# |
1 | ||
| 62410-26100B1 |
KDH211,TRH211,216 LT.GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-26100B0 |
KDH211,TRH211,216 LT.GRAY,TRIM1# |
1 | ||
| 62420-26100B1 |
KDH211,TRH211,216 LT.GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-26290B0 |
KDH20#,211..SGL GRAY,TRIM1# |
1 | ||
| 62413-26220B1 |
KDH200,205,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 62413-26220B0 |
TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 62413-26290B1 |
KDH20#,211..SGL DK.GRAY,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-26330B1 |
KDH200,205,TRH200,211,216..SGL;KDH200,205,222,223,227,TRH200,223,228..IV5 GRAY,TRIM1# |
1 | ||
| 62414-26430B0 |
KDH20#..IV5;KDH20#,211..SGL GRAY,TRIM1# |
1 | ||
| 62414-26330B0 |
TRH200,211,216..SGL;KDH223,TRH200,223,228..IV5 DK.GRAY,TRIM1# |
1 | ||
| 62414-26430B1 |
KDH20#..IV5;KDH20#,211..SGL DK.GRAY,TRIM1# |
1 | ||
| 62414-26330B2 |
TRH200,211,216..SGL;KDH223,TRH200,223,224,228..IV5 DK.GRAY,TRIM1# |
1 | ||
| 62414-26430B2 |
KDH20#..IV5;KDH20#,211..SGL DK.GRAY,TRIM1# |
1 | ||
| 62424F - COVER, CENTER PILLAR GARNISH, LOWER LH | ||||
| 62424-26030B0 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 62424-26030B1 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 62424-26031B0 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 62471E - GARNISH, ROOF SIDE, INNER UPPER RH | ||||
| 62471-26320B0 |
KDH211,TRH211,216 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り,LT.GRAY,TRIM1# |
1 | ||
| 62471-26260B0 |
KDH20#,223,TRH200,223,228..IV5;KDH211,222,227,TRH211,216,224,229..GC,GL,SGL LT.GRAY,TRIM1# |
1 | ||
| 62472E - GARNISH, ROOF SIDE, INNER UPPER LH | ||||
| 62472-26290B0 |
KDH211,TRH211,216 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り,LT.GRAY,TRIM1# |
1 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-26230B0 |
KDH20#,211,TRH200,21#..GL,SGL GRAY,TRIM1# |
1 | ||
| 67771-26230B2 |
KDH20#,211,TRH200,21#..GL,SGL DK.GRAY,TRIM1# |
1 | ||
| 67771-26230B0 |
KDH201,206,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,GRAY,TRIM1# |
1 | ||
| 67771-26230B0 |
KDH201,206,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),GRAY,TRIM1# |
1 | ||
| 67771-26230B2 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 67771-26230B2 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 62627D - COVER, SIDE TRIM, RH | ||||
| 62627-26040B0 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 62627-26040B0 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62627-26040B0 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 62628A - COVER, SIDE TRIM, LH | ||||
| 62628-26010B0 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 62628-26010B0 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62628-26010B0 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-2F420B1 |
KDH201,206,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,GRAY,TRIM1# |
1 | ||
| 62630-2F420B1 |
KDH201,206,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),GRAY,TRIM1# |
1 | ||
| 62630-2F420B2 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62630-26D70B0 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 62630-2F420B2 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 62630-2F420B1 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 62630-2F420B2 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 62630-26D70B0 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 62630-26D70B0 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-26040B0 |
KDH20#,211,TRH200,211,216..SGL LT.GRAY,TRIM1# |
1 | ||
| 62638-26040B1 |
KDH20#,211,TRH200,211,216..SGL LT.GRAY,TRIM1# |
1 | ||
| 62638-26160B0 |
KDH20#,211,TRH200,211,216..SGL LT.GRAY,TRIM1# |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-26030B1 |
KDH20#,211,TRH200,211,216..SGL LT.GRAY,TRIM1# |
1 | ||
| 62639-26030B0 |
KDH20#,211,TRH200,211,216..SGL LT.GRAY,TRIM1# |
1 | ||
| 62639-26130B0 |
KDH20#,211,TRH200,211,216..SGL LT.GRAY,TRIM1# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-26A00B1 |
KDH20#,211,TRH200,211,216..SGL ｲﾝﾊﾞｰﾀ−有り(100V),GRAY,TRIM1# |
1 | ||
| 62640-26A10B1 |
KDH201,206,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,GRAY,TRIM1# |
1 | ||
| 62640-26A10B1 |
KDH201,206,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),GRAY,TRIM1# |
1 | ||
| 62640-26A10B1 |
KDH20#,211,TRH200,211,216..SGL GRAY,TRIM1# |
1 | ||
| 62640-26A10B2 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 62640-26A10B2 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 62640-26A10B2 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62640-26E80B0 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 62640-26A00B2 |
KDH20#,211,TRH200,211,216..SGL ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62640-26E80B0 |
KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62640-26E80B0 |
KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 62640-26E70B0 |
KDH20#,211,TRH200,211,216..SGL ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 75867-33030 | ||||
| 90467-09182 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 6151 | ||||
| 7452 | ||||
| 7455 | ||||
| 8401 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
