KDH206V-SRPEY (2007)

Toyota Hiace/Regiusace

Production Sep 2007 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )KDH20#,TRH200..SGL

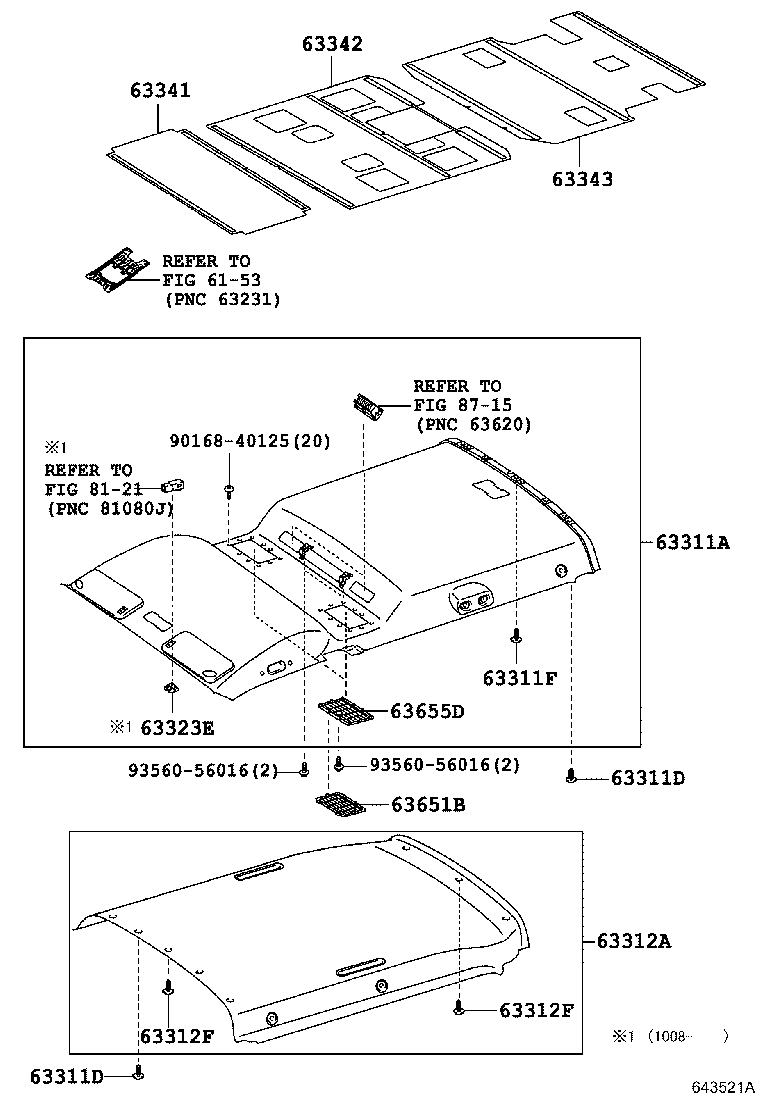

Click highlighted areas on diagram

diagram 6153 63311A 63311D 63311D 63311F 63312A 63312F 63312F 63323E 63341 63342 63343 63651B 63655D 8121 8715 9016840125 9356056016 9356056016
Part # Description Qty Price
63311A - HEADLINING, ROOF NO.1
63310-26870B1

KDH20#,TRH200..SGL

LIGHT GRAY,TRIM1#

 1
63310-26871B1

KDH20#,TRH200..SGL

LIGHT GRAY,TRIM1#

 1
63310-26E40B0

KDH20#,TRH200..SGL

LIGHT GRAY,TRIM1#

 1
63310-26G00B0

KDH20#,TRH200..SGL

ﾊﾞｯｸﾓﾆﾀ−有り,LIGHT GRAY,TRIM1#

 1
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0

KDH20#,TRH200..SGL

LT.GRAY,TRIM1#

 14
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0

KDH20#,TRH200..SGL

LT.GRAY,TRIM1#

 14
63311F - CLIP, ROOF HEADLINING, NO.1
63399-26050B0

KDH223,TRH223,224,228..CBU;KDH20#,211,220,221,222,225,227,TRH200,21#,221,226,229..HRF,SMRF,SRF

LT.GRAY,TRIM1#

 1
63312A - HEADLINING, ROOF, NO.2
63320-26150B1

KDH20#,TRH200..SGL

LIGHT GRAY,TRIM1#

 1
63312F - CLIP, ROOF HEADLINING, NO.2
63399-26050B0

KDH223,TRH223,224,228..CBU;KDH20#,211,222,227,TRH200,21#,229..05S,10S,15S

LT.GRAY,TRIM1#

 2
63312F - CLIP, ROOF HEADLINING, NO.2
63399-26050B0

KDH223,TRH223,224,228..CBU;KDH20#,211,222,227,TRH200,21#,229..05S,10S,15S

LT.GRAY,TRIM1#

 2
63323E - CASE, HEADLINING LAMP
63323-58020B0

KDH20#,211,TRH200,211,216..SGL

LT.GRAY,TRIM1#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-26180

KDH20#,TRH200..SGL

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-26120

KDH20#,TRH200..SGL

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-26090

KDH20#,TRH200..SGL

 1
63655D - COVER, AIR INTAKE
63655-26050B0

KDH20#,211,TRH200,21#..05S,10S

LT.GRAY,TRIM1#,右側

 1
63655-26060B0

KDH20#,211,TRH200,21#..05S,10S

LT.GRAY,TRIM1#,左側

 1
Common parts
90168-40125
93560-56016
Linked diagrams
6153
8121
8715
