KDH206V-RFMDY (2013)
Toyota Hiace/Regiusace
Production
Dec 2013
-
Nov 2017
Engine
1KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1312- )5F

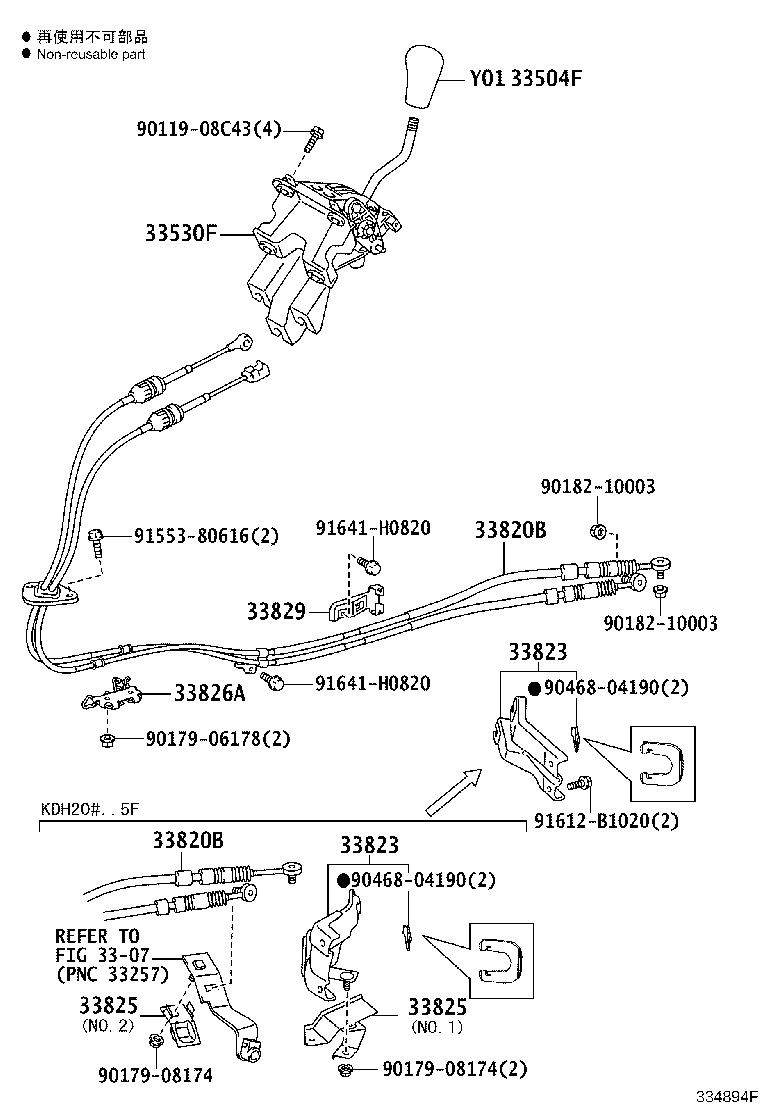

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12180B7 |
KDH20#,TRH200..5F DK.GRAY,TRIM1# |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-26220 |
KDH20#..5F |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-26303 |
KDH20#..5F |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-26303 |
KDH20#..5F |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33804-26040 |
KDH20#..5F |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33804-26040 |
KDH20#..5F |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-26041 |
KDH206..5F;KDH201..SRF..5F;KDH201..V2..HRF..5F NO.2 |
1 | ||
| 33825-26031 |
KDH206..5F;KDH201..SRF..5F;KDH201..V2..HRF..5F NO.1 |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-26041 |
KDH206..5F;KDH201..SRF..5F;KDH201..V2..HRF..5F NO.2 |
1 | ||
| 33825-26031 |
KDH206..5F;KDH201..SRF..5F;KDH201..V2..HRF..5F NO.1 |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-26050 |
KDH20#,TRH200..5F |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-26091 |
KDH20#,TRH200..5F |
1 | ||
| Common parts | ||||
| 90119-08C43 | ||||
| 90179-06178 | ||||
| 90179-08174 | ||||
| 90182-10003 | ||||
| 90468-04190 | ||||
| 91553-80616 | ||||
| 91612-B1020 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 3307 | ||||
