KDH206K-FRMDY (2007)
Toyota Hiace/Regiusace

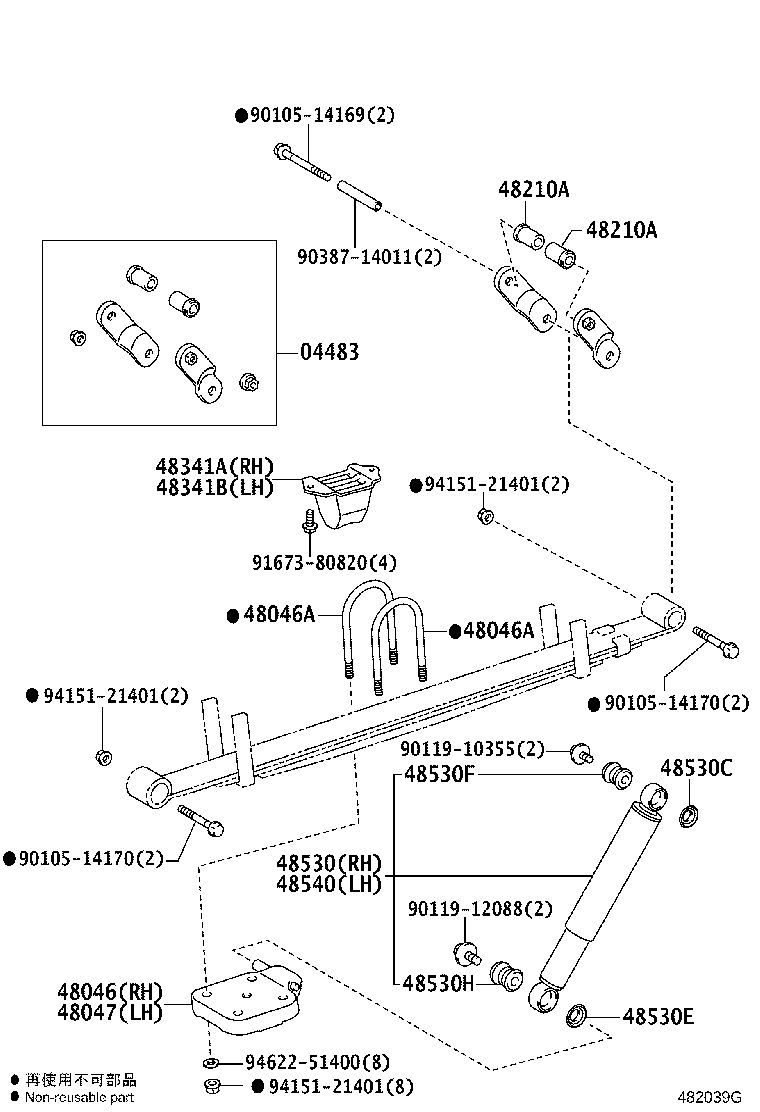

ILLUST NO. 1 OF 2(0408- )KDH205,206,220,221,225,TRH211,216,221,226..CBU ; (0709-1008)KDH211,TRH21
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-26140 |
KDH205,206,220,221,225,TRH216,221,226..CBU |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-26130 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14177 |
TRH221..SHRF;KDH200,TRH200..V2;TRH200..V1..HRF..5D;KDH201,205,206,211,221,225,TRH211,216,226..CBU 長さ=175 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14177 |
TRH221..SHRF;KDH200,TRH200..V2;TRH200..V1..HRF..5D;KDH201,205,206,211,221,225,TRH211,216,226..CBU 長さ=175 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-26130 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18008 |
KDH20#,211,22#,TRH200,21#,22# |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18008 |
KDH20#,211,22#,TRH200,21#,22# |
4 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-26270 |
KDH227,TRH228,229..IV5;KDH205,206,220,221,225,TRH216,221,226 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-26270 |
KDH227,TRH228,229..IV5;KDH205,206,220,221,225,TRH216,221,226 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80737 |
KDH205,206,TRH216..CBU ﾏｰｸ 48531−26850 |
1 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03011 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 48530F - RETAINER, SHOCK ABSORBER CUSHION(FOR REAR) | ||||
| 90385-16009 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19006 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80737 |
KDH205,206,TRH216..CBU ﾏｰｸ 48531−26850 |
1 | ||
| Common parts | ||||
| 90105-14169 | ||||
| 90105-14170 | ||||
| 90119-10355 | ||||
| 90119-12088 | ||||
| 90387-14011 | ||||
| 91673-80820 | ||||
| 94151-21401 | ||||
| 94622-51400 | ||||

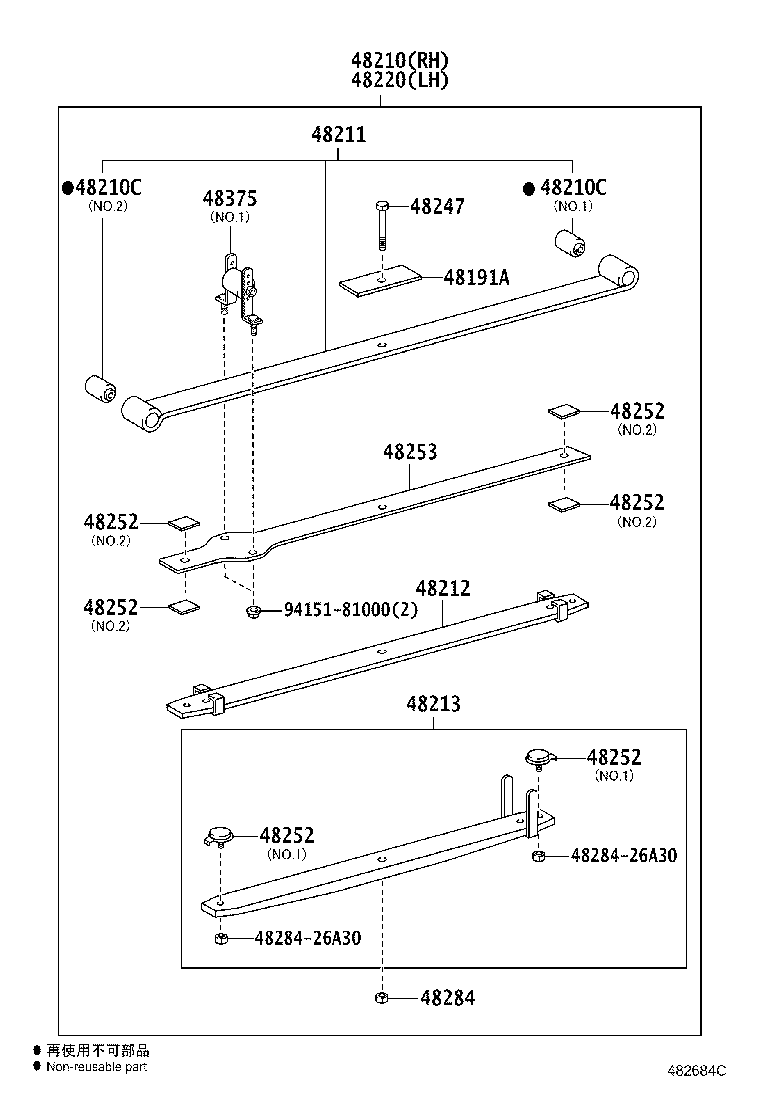

ILLUST NO. 2 OF 2(0709-1008)KDH206..DX..CBU ; (0709- )SGL
3-ﾘｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48191-34010 |
KDH206..CBU;KDH201,211,TRH200,211,216..SGL |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26A31 |
KDH206,TRH216..CBU 3枚ﾘｰﾌ |
1 | ||
| 48210-26C61 |
KDH206,TRH216..CBU 3枚ﾘｰﾌ |
1 | ||
| 48210-26E20 |
KDH206..DX..CBU 3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
KDH20#,211,22#,TRH200,21#,22# NO.2 |
2 | ||
| 90389-14007 |
KDH20#,211,22#,TRH200,21#,22# NO.1 |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
KDH20#,211,22#,TRH200,21#,22# NO.2 |
2 | ||
| 90389-14007 |
KDH20#,211,22#,TRH200,21#,22# NO.1 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26A31 |
KDH206,TRH216..CBU |
2 | ||
| 48201-26E20 |
KDH206..DX..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-26A31 |
KDH206,TRH216..CBU |
2 | ||
| 48202-26E20 |
KDH206..DX..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-26A31 |
KDH206,TRH216..CBU |
2 | ||
| 48203-26E20 |
KDH206..DX..CBU |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26C61 |
KDH206,TRH216..CBU 3枚ﾘｰﾌ |
1 | ||
| 48210-26A31 |
KDH206,TRH216..CBU 3枚ﾘｰﾌ |
1 | ||
| 48210-26E20 |
KDH206..DX..CBU 3枚ﾘｰﾌ |
1 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26B00 |
KDH20#,211,221,TRH200,211,216,221,226..CBU NO.2 |
8 | ||
| 48252-26A01 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.2 |
8 | ||
| 48252-28170 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26B00 |
KDH20#,211,221,TRH200,211,216,221,226..CBU NO.2 |
8 | ||
| 48252-26A01 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.2 |
8 | ||
| 48252-28170 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26B00 |
KDH20#,211,221,TRH200,211,216,221,226..CBU NO.2 |
8 | ||
| 48252-26A01 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.2 |
8 | ||
| 48252-28170 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26B00 |
KDH20#,211,221,TRH200,211,216,221,226..CBU NO.2 |
8 | ||
| 48252-26A01 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.2 |
8 | ||
| 48252-28170 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26B00 |
KDH20#,211,221,TRH200,211,216,221,226..CBU NO.2 |
8 | ||
| 48252-26A01 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.2 |
8 | ||
| 48252-28170 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26B00 |
KDH20#,211,221,TRH200,211,216,221,226..CBU NO.2 |
8 | ||
| 48252-26A01 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.2 |
8 | ||
| 48252-28170 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1 |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26B00 |
KDH201,TRH200..V2;KDH201,TRH200..SGL;KDH206,211,TRH211,216..CBU |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
KDH20#,22#,TRH200,21#,22# |
2 | ||
| 48375 - DAMPER, LEAF SPRING DYNAMIC | ||||
| 48370-26090 |
KDH20#,TRH200..V1..DX..CBU NO.1 |
2 | ||
| Common parts | ||||
| 48284-26A30 | ||||
| 94151-81000 | ||||

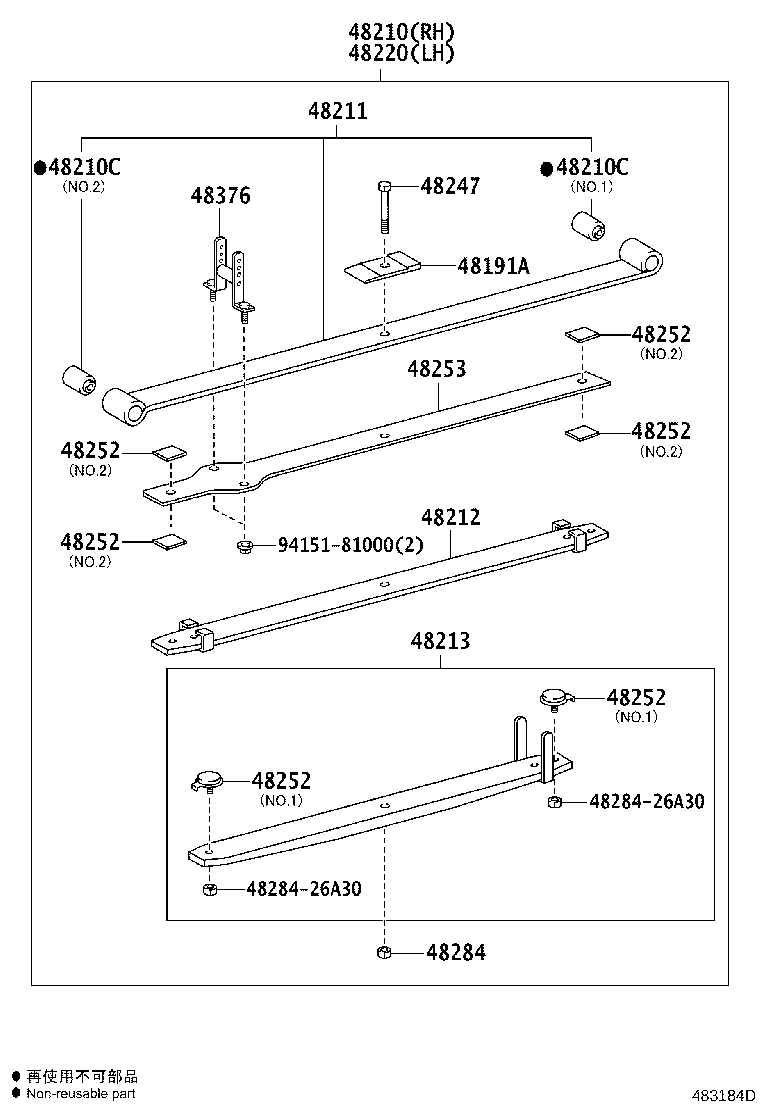

ILLUST NO. 2 OF 2(1008- )KDH206..DX..CBU
3-ﾘｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48191-34010 |
KDH206..CBU;KDH201,211,TRH200,211,216..SGL |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26A31 |
KDH206,TRH216..CBU 3枚ﾘｰﾌ |
1 | ||
| 48210-26C61 |
KDH206,TRH216..CBU 3枚ﾘｰﾌ |
1 | ||
| 48210-26E20 |
KDH206..DX..CBU 3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
KDH20#,211,22#,TRH200,21#,22# NO.2 |
2 | ||
| 90389-14007 |
KDH20#,211,22#,TRH200,21#,22# NO.1 |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
KDH20#,211,22#,TRH200,21#,22# NO.2 |
2 | ||
| 90389-14007 |
KDH20#,211,22#,TRH200,21#,22# NO.1 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26A31 |
KDH206,TRH216..CBU |
2 | ||
| 48201-26E20 |
KDH206..DX..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-26A31 |
KDH206,TRH216..CBU |
2 | ||
| 48202-26E20 |
KDH206..DX..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-26A31 |
KDH206,TRH216..CBU |
2 | ||
| 48203-26E20 |
KDH206..DX..CBU |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26C61 |
KDH206,TRH216..CBU 3枚ﾘｰﾌ |
1 | ||
| 48210-26A31 |
KDH206,TRH216..CBU 3枚ﾘｰﾌ |
1 | ||
| 48210-26E20 |
KDH206..DX..CBU 3枚ﾘｰﾌ |
1 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26B00 |
KDH20#,211,221,TRH200,211,216,221,226..CBU NO.2 |
8 | ||
| 48252-26A01 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.2 |
8 | ||
| 48252-28170 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26B00 |
KDH20#,211,221,TRH200,211,216,221,226..CBU NO.2 |
8 | ||
| 48252-26A01 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.2 |
8 | ||
| 48252-28170 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26B00 |
KDH20#,211,221,TRH200,211,216,221,226..CBU NO.2 |
8 | ||
| 48252-26A01 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.2 |
8 | ||
| 48252-28170 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26B00 |
KDH20#,211,221,TRH200,211,216,221,226..CBU NO.2 |
8 | ||
| 48252-26A01 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.2 |
8 | ||
| 48252-28170 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26B00 |
KDH20#,211,221,TRH200,211,216,221,226..CBU NO.2 |
8 | ||
| 48252-26A01 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.2 |
8 | ||
| 48252-28170 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26B00 |
KDH20#,211,221,TRH200,211,216,221,226..CBU NO.2 |
8 | ||
| 48252-26A01 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.2 |
8 | ||
| 48252-28170 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1 |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26B00 |
KDH201,TRH200..V2;KDH201,TRH200..SGL;KDH206,211,TRH211,216..CBU |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
KDH20#,22#,TRH200,21#,22# |
2 | ||
| 48376 - BRACKET, REAR LEAF SPRING DYNAMIC DANPER | ||||
| 48376-26020 |
KDH20#,TRH200..V1..DX..CBU |
2 | ||
| Common parts | ||||
| 48284-26A30 | ||||
| 94151-81000 | ||||
ILLUST NO. 1 OF 2(1312-2006)TRH221,226 ; (1312-2006)GDH206,221,226,KDH206,211,221,TRH216..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-14169 | ||||
| 90105-14170 | ||||
| 90119-10355 | ||||
| 90119-12088 | ||||
| 90387-14011 | ||||
| 91673-80820 | ||||
| 94151-21401 | ||||
| 94622-51400 | ||||
