KDH206K-ERPDY (2013)
Toyota Hiace/Regiusace
ILLUST NO. 1 OF 2(1312-2006)TRH221,226 ; (1312-2006)GDH206,221,226,KDH206,211,221,TRH216..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-26140 |
GDH206,221,226,KDH206,221,TRH216,221,226..CBU,IV6,IV7 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-26130 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14177 |
TRH200..(4FC,6FC)..CBU;GDH20#,211,221,226,KDH20#,211,221,TRH211,216,221,226..CBU,IV6,IV7 長さ=175 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14177 |
TRH200..(4FC,6FC)..CBU;GDH20#,211,221,226,KDH20#,211,221,TRH211,216,221,226..CBU,IV6,IV7 長さ=175 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-26130 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18008 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18008 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-26270 |
GDH206,221,226,KDH206,221,TRH216,221,226,228..02S,03S,05S,06S,09S |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-26270 |
GDH206,221,226,KDH206,221,TRH216,221,226,228..02S,03S,05S,06S,09S |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80792 |
GDH206,KDH206,TRH216..CBU ﾏｰｸ 48531−26851 |
1 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03011 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 48530F - RETAINER, SHOCK ABSORBER CUSHION(FOR REAR) | ||||
| 90385-16009 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19006 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80792 |
GDH206,KDH206,TRH216..CBU ﾏｰｸ 48531−26851 |
1 | ||
| Common parts | ||||
| 90105-14169 | ||||
| 90105-14170 | ||||
| 90119-10355 | ||||
| 90119-12088 | ||||
| 90387-14011 | ||||
| 91673-80820 | ||||
| 94151-21401 | ||||
| 94622-51400 | ||||

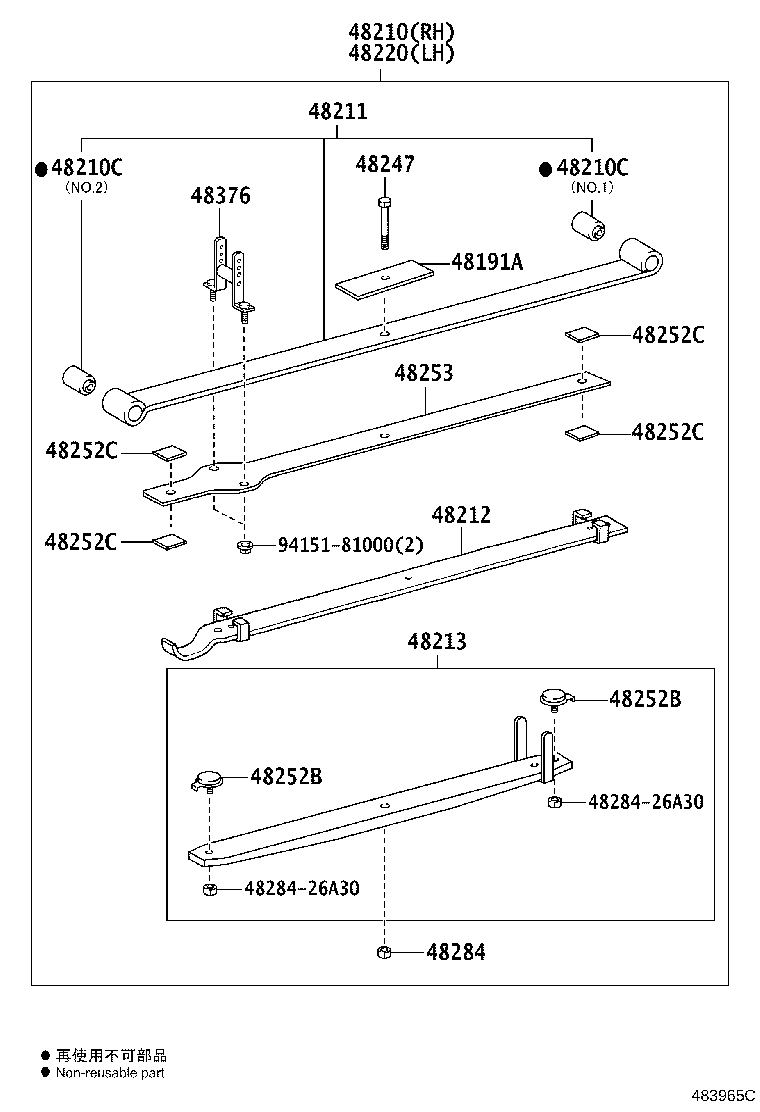

ILLUST NO. 2 OF 2(1312- )GDH206,KDH206..DX..CBU
3ﾘｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48191-34010 |
KDH206..CBU;KDH201,211..SGL |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26E21 |
GDH206,KDH206..DX..CBU 3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 NO.2 |
2 | ||
| 90389-14007 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 NO.1 |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 NO.2 |
2 | ||
| 90389-14007 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 NO.1 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26E21 |
GDH206,KDH206..DX..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-26E21 |
GDH206,KDH206..DX..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-26E21 |
GDH206,KDH206..DX..CBU |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26E21 |
GDH206,KDH206..DX..CBU 3枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26A30 |
GDH206,KDH206,TRH216..CBU |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-28170 |
GDH201,KDH201..DX..CBU;TRH200..(4FC,6FC)..DX..CBU;GDH206,22#,KDH206,22#,TRH216,221,223,226,228..CBU,IV6,IV7 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-28170 |
GDH201,KDH201..DX..CBU;TRH200..(4FC,6FC)..DX..CBU;GDH206,22#,KDH206,22#,TRH216,221,223,226,228..CBU,IV6,IV7 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-26A01 |
TRH200..(4FC,6FC)..CBU;GDH20#,211,22#,KDH20#,211,22#,TRH211,216,221,223,226,228..CBU,IV6,IV7 |
8 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-26A01 |
TRH200..(4FC,6FC)..CBU;GDH20#,211,22#,KDH20#,211,22#,TRH211,216,221,223,226,228..CBU,IV6,IV7 |
8 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-26A01 |
TRH200..(4FC,6FC)..CBU;GDH20#,211,22#,KDH20#,211,22#,TRH211,216,221,223,226,228..CBU,IV6,IV7 |
8 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-26A01 |
TRH200..(4FC,6FC)..CBU;GDH20#,211,22#,KDH20#,211,22#,TRH211,216,221,223,226,228..CBU,IV6,IV7 |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26B00 |
TRH200..(4FC,6FC)..CBU;GDH20#,211,22#,KDH20#,211,22#,TRH211,216,221,223,226,228..CBU,IV6,IV7 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-26A30 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 48376 - BRACKET, REAR LEAF SPRING DYNAMIC DANPER | ||||
| 48376-26020 |
TRH200..V1..(4FC,6FC)..DX..CBU;GDH20#,22#,KDH20#,22#,TRH221,223,226,228..(COM,V1)..(DX,GL)..(CBU,IV6,IV7) |
2 | ||
| Common parts | ||||
| 48284-26A30 | ||||
| 94151-81000 | ||||
