KDH205V-SRMDY (2004)

Toyota Hiace/Regiusace

Production Aug 2004 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )KDH205,206

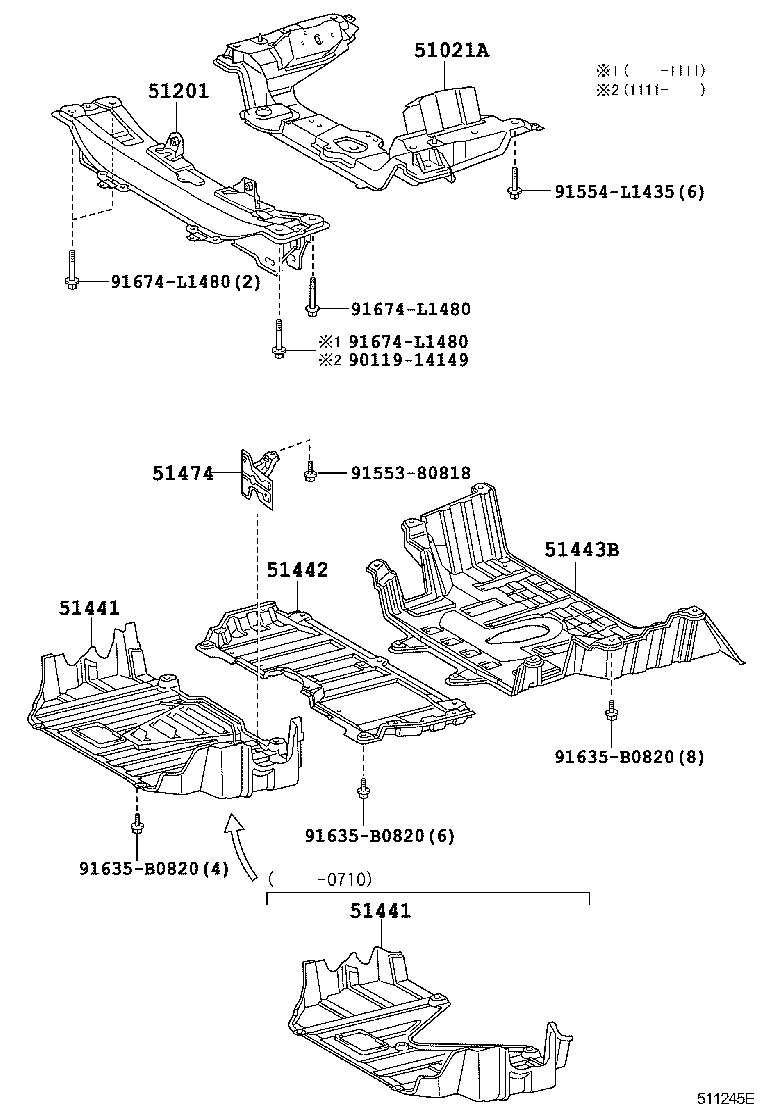

Click highlighted areas on diagram

diagram 51021A 51201 51441 51441 51442 51443B 51474 9011914149 9155380818 91554L1435 91635B0820 91635B0820 91635B0820 91674L1480 91674L1480 91674L1480
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-26090

KDH205,206

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-26290

KDH205,206

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-26170

KDH205

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-26170

KDH205

 1
51442 - COVER, ENGINE UNDER, NO.2
51406-26140

KDH205,206

 1
51443B - COVER, ENGINE UNDER, NO.3
51407-26030

KDH205

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51074-26010

KDH20#,211,22#

 1
Common parts
90119-14149
91553-80818
91554-L1435
91635-B0820
91674-L1480
