KDH205V-SRMDY (2004)

Toyota Hiace/Regiusace

Production Aug 2004 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )KDH205,206..5F

Click highlighted areas on diagram

R351F

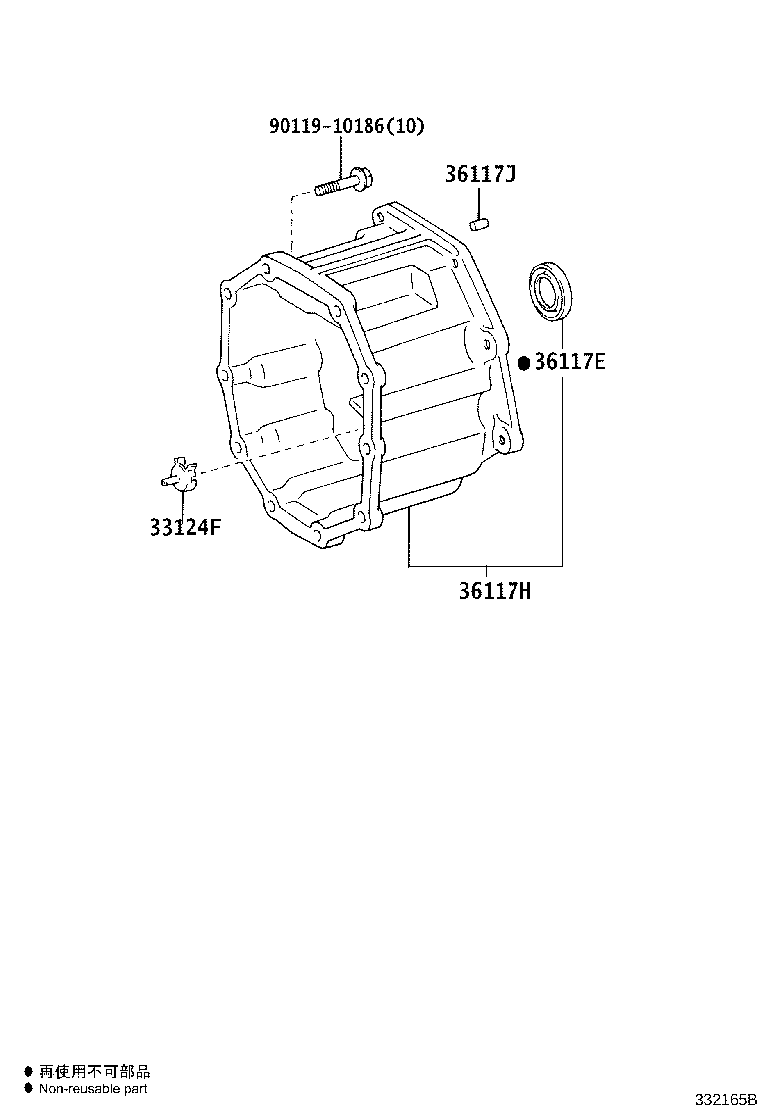

diagram 33124F 36117E 36117H 36117J 9011910186
Part # Description Qty Price
33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124-35100

KDH20#..5F

 1
36117E - SEAL, OIL(FOR TRANSFER ADAPTER)
90310-40004

KDH205,206..5F

 1
36117H - ADAPTER SUB-ASSY, TRANSFER
36107-26030

KDH205..5F

 1
36117J - PIN, STRAIGHT
90250-10214

KDH205..5F

 2
Common parts
90119-10186
