KDH205K-ERPDY5 (2004)

Toyota Hiace/Regiusace

Production Aug 2004 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0709)KDH20#,TRH200..IV5

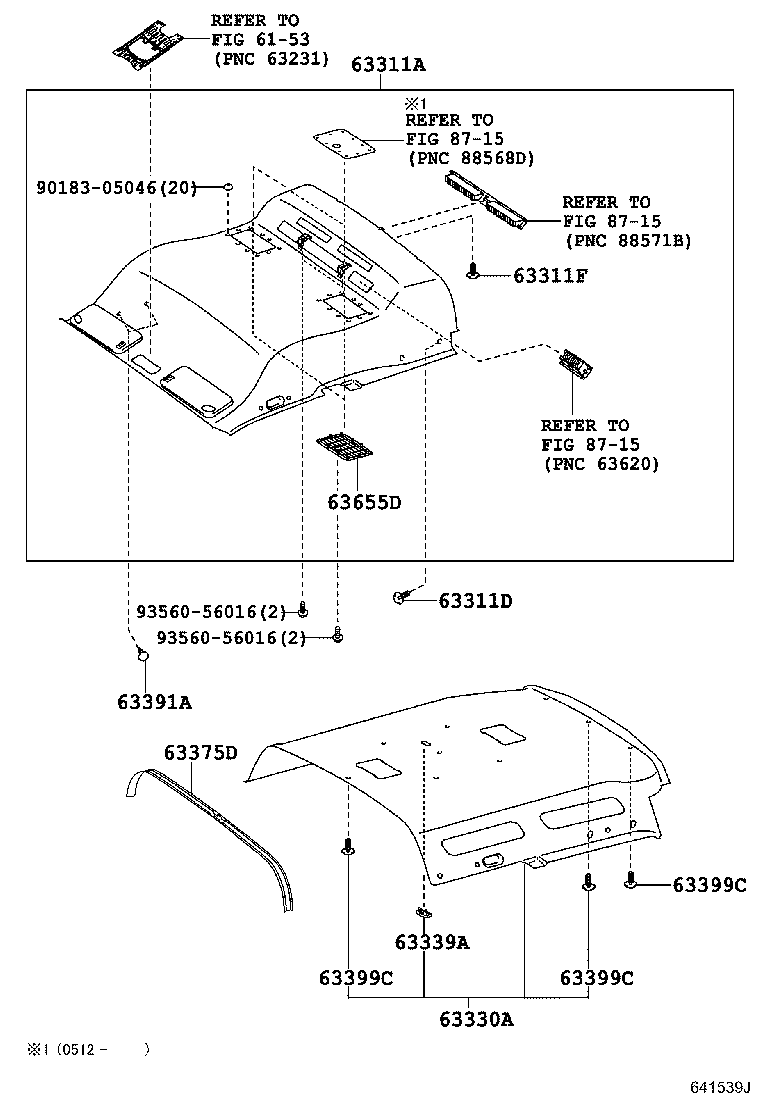

Click highlighted areas on diagram

ｱﾘ(ﾃﾞｭｱﾙ ｴｱｺﾝ)

diagram 6153 63311A 63311D 63311F 63330A 63339A 63375D 63391A 63399C 63399C 63399C 63655D 8715 8715 8715 9018305046 9356056016 9356056016
Part # Description Qty Price
63311A - HEADLINING, ROOF NO.1
63310-26B20B1

KDH20#,TRH200..IV5

LIGHT GRAY,TRIM1#

 1
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0

KDH20#,TRH200..IV5;KDH220,221,225,TRH221,226..06S

LT.GRAY,TRIM1#

 4
63311F - CLIP, ROOF HEADLINING, NO.1
63399-26050B0

KDH223,TRH223,224,228..CBU;KDH20#,211,220,221,222,225,227,TRH200,21#,221,226,229..HRF,SMRF,SRF

LT.GRAY,TRIM1#

 1
63330A - HEADLINING ASSY, ROOF, REAR
63320-26340B0

KDH20#,TRH200..IV5

LIGHT GRAY,TRIM1#

 1
63320-26350B0

KDH20#,TRH200..IV5

ﾙｰﾌｻｲﾄﾞｳｲﾝﾄﾞｳ−有り,LIGHT GRAY,TRIM1#

 1
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-52020B0

KDH200,205,TRH200..IV5

ﾙｰﾌｻｲﾄﾞｳｲﾝﾄﾞｳ−有り,LT.GRAY,TRIM1#

 1
63339-52020B0

KDH20#,TRH200..IV5

LT.GRAY,TRIM1#

 1
63375D - MOULDING, ROOF HEADLINING
63375-26150B0

KDH20#,TRH200..IV5

LT.GRAY,TRIM1#

 1
63391A - CLIP(FOR ROOF HEADLINING TRIM)
90467-06177B5

KDH20#,22#,TRH200,22#..HRF

LT.GRAY,TRIM1#

 2
63399C - CLIP, ROOF HEADLINING
63399-26050B0

KDH20#,TRH200..IV5

LT.GRAY,TRIM1#

 18
63399C - CLIP, ROOF HEADLINING
63399-26050B0

KDH20#,TRH200..IV5

LT.GRAY,TRIM1#

 18
63399C - CLIP, ROOF HEADLINING
63399-26050B0

KDH20#,TRH200..IV5

LT.GRAY,TRIM1#

 18
63655D - COVER, AIR INTAKE
63655-26020B0

KDH200,205..SGL;KDH20#,TRH200..IV5

LT.GRAY,TRIM1#

 2
Common parts
90183-05046
93560-56016
Linked diagrams
6153
8715
