KDH201V-SRPEY (2007)
Toyota Hiace/Regiusace

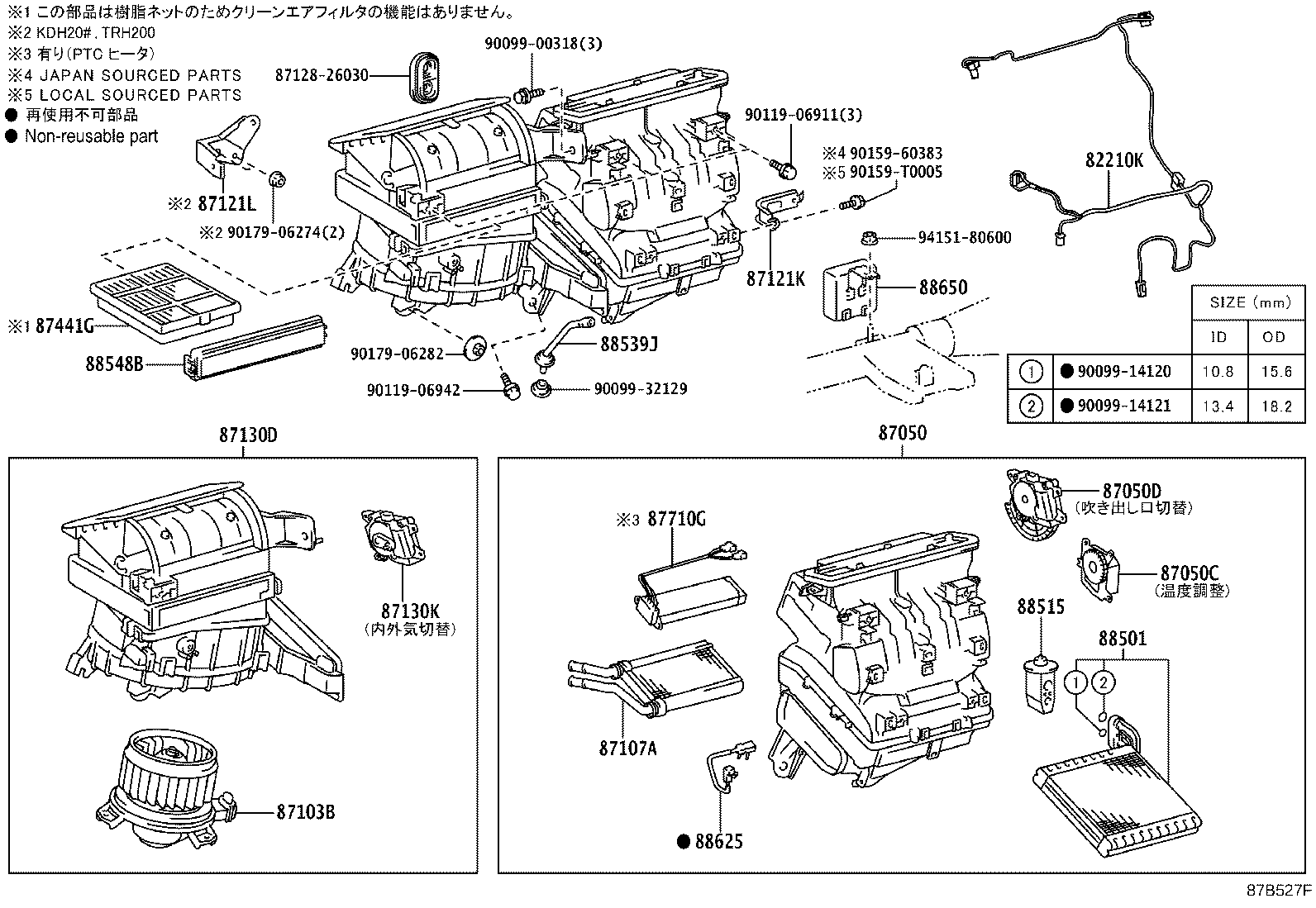

ILLUST NO. 1 OF 2(1008- )02S ; (1008- )GC,GL,SGL..CBU
ﾌﾛﾝﾄ---ｵｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-26010 |
TRH221,226..02S;KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-26020 |
KDH201,206,211,223..(GL,SGL)..CBU |
1 | ||
| 87050-26030 |
KDH201,206,211,223..(GL,SGL)..CBU 寒冷地仕様 |
1 | ||
| 87050-26160 |
KDH20#,211,223..(GL,SGL)..CBU 寒冷地仕様 |
1 | ||
| 87050-26150 |
KDH20#,211,223..(GL,SGL)..CBU |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-12170 |
TRH221,226..02S;KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-26100 |
TRH221,226..02S;KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-26060 |
TRH221,226..02S;KDH201,206,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU |
1 | ||
| 87103-12060 |
TRH221,226..02S;KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
TRH221,226..02S;KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU |
1 | ||
| 87107-26210 |
TRH221,226..02S;KDH201,206,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU |
1 | ||
| 87121K - BRACKET, HEATER | ||||
| 87121-26200 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 87121-26030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 87121L - BRACKET, HEATER | ||||
| 87121-26050 |
KDH20#,TRH200 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-26161 |
KDH20#,211,223..(GL,SGL)..CBU |
1 | ||
| 87130-26160 |
KDH20#,22# |
1 | ||
| 87130-12541 |
KDH20#,211,223..(GL,SGL)..CBU |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-42120 |
TRH221,226..02S;KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU |
1 | ||
| 87441G - FILTER, HEATER AIR | ||||
| 87441-26010 |
KDH20#,211,22#,TRH200,21#,22# ｲﾗｽﾄ参照 |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-42030 |
KDH20#,211,223..(GL,SGL)..CBU |
1 | ||
| 87710-26060 |
KDH20#,211,22# |
1 | ||
| 87710-26080 |
KDH20#,211,223..(GL,SGL)..CBU |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-26210 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88501-26211 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88501-26280 |
KDH20#,211,223..(GL,SGL)..CBU 寒冷地仕様 |
1 | ||
| 88501-26220 |
KDH20#,211,22# 寒冷地仕様 |
1 | ||
| 88501-72020 |
TRH221,226..02S;KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU |
1 | ||
| 88501-26281 |
KDH20#,211,22# 寒冷地仕様 |
1 | ||
| 88501-26221 |
KDH20#,211,22# 寒冷地仕様 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-26070 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88515-26100 |
TRH221,226..02S;KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU |
1 | ||
| 88515-26080 |
KDH20#,211,22# 寒冷地仕様 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-26470 |
KDH20#,TRH200 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 87498-26010 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 88548-26070 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-26410 |
KDH20#,22# 寒冷地仕様 |
1 | ||
| 88650-26500 |
KDH20#,211,223..(GL,SGL)..CBU 寒冷地仕様 |
1 | ||
| 88650-26400 |
KDH201,206,211,223..(GL,SGL)..CBU |
1 | ||
| 88650-26530 |
KDH20#,211,223..(GL,SGL)..CBU |
1 | ||
| 88650-26540 |
KDH20#,211,223..(GL,SGL)..CBU 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 87128-26030 | ||||
| 90099-00318 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-32129 | ||||
| 90119-06911 | ||||
| 90119-06942 | ||||
| 90159-60383 | ||||
| 90159-T0005 | ||||
| 90179-06274 | ||||
| 90179-06282 | ||||
| 94151-80600 | ||||
