Toyota Hiace/regiusace KDH201 SEAT BELT

KDH201V-SRPEY (2007)

Toyota Hiace/Regiusace

Production Sep 2007 - Dec 2013

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

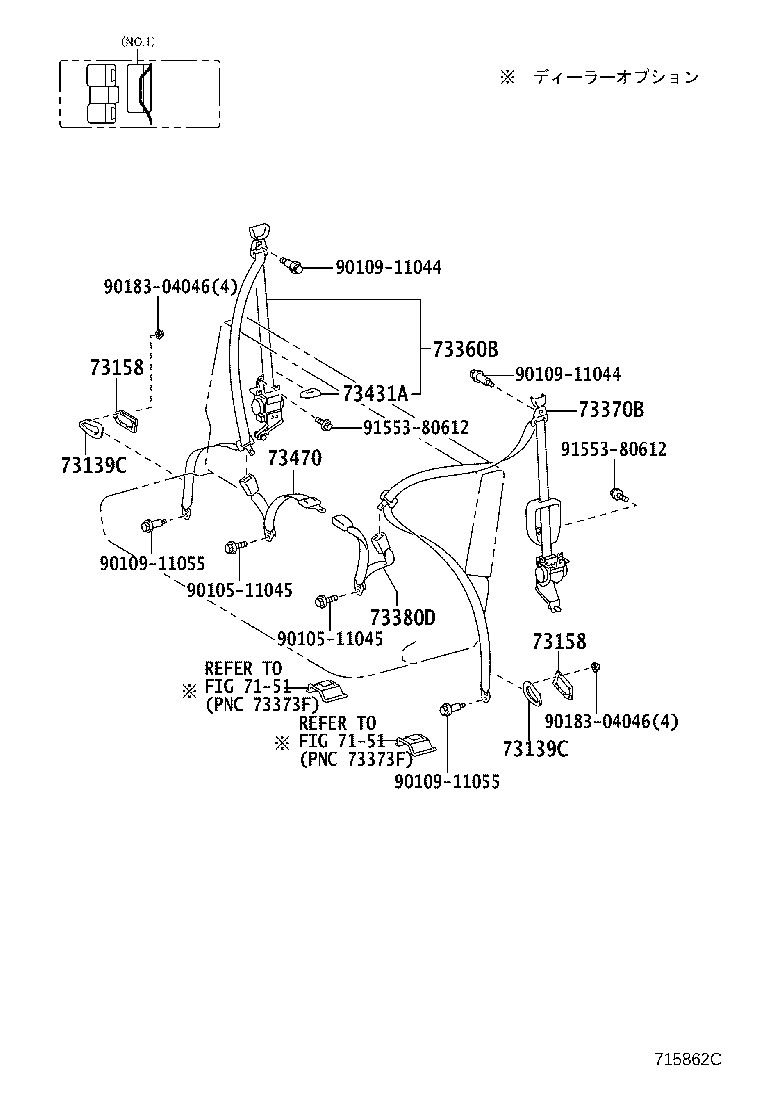

(0408-1205)SGL

Click highlighted areas on diagram

ﾘﾔｼｰﾄﾍﾞﾙﾄ

Part #	Description	Period	Qty
73139C - COVER, REAR SEAT BELT
73139-26020B1	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,DK.GRAY,TRIM1#,左側	08/2010 - 05/2012	1
73139-26010B1	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,DK.GRAY,TRIM1#,右側	08/2010 - 05/2012	1
73139-26020B0	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,MD.GRAY,TRIM1#,左側	08/2004 - 08/2010	1
73139-26010B0	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,MD.GRAY,TRIM1#,右側	08/2004 - 08/2010	1
73139C - COVER, REAR SEAT BELT
73139-26020B1	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,DK.GRAY,TRIM1#,左側	08/2010 - 05/2012	1
73139-26010B1	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,DK.GRAY,TRIM1#,右側	08/2010 - 05/2012	1
73139-26020B0	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,MD.GRAY,TRIM1#,左側	08/2004 - 08/2010	1
73139-26010B0	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,MD.GRAY,TRIM1#,右側	08/2004 - 08/2010	1
73158 - BRACKET, SEAT BELT GUIDE SET
73158-26010	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,右側	08/2004 - 05/2012	1
73158-26030	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,左側	08/2004 - 05/2012	1
73158 - BRACKET, SEAT BELT GUIDE SET
73158-26010	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,右側	08/2004 - 05/2012	1
73158-26030	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,左側	08/2004 - 05/2012	1
73360B - BELT ASSY, REAR SEAT, OUTER
73360-26650B1	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,GRAY,TRIM1#	08/2004 - 08/2010	1
73360-26650B2	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,DK.GRAY,TRIM1#	08/2010 - 05/2012	1
73360-26710C0	KDH20#,TRH200..SGL BLACK,TRIM1#	05/2012 - 12/2013	1
73370B - BELT ASSY, REAR SEAT, OUTER
73370-26410B1	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,GRAY,TRIM1#	08/2004 - 08/2010	1
73370-26410C1	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,BLACK,TRIM1#	08/2010 - 05/2012	1
73370-26450C0	KDH20#,TRH200..SGL BLACK,TRIM1#	05/2012 - 12/2013	1
73380D - BELT ASSY, REAR SEAT, INNER
73480-26010B2	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,GRAY,TRIM1#	08/2004 - 04/2009	1
73480-26010B0	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,GRAY,TRIM1#	04/2009 - 08/2010	1
73480-26010C0	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,BLACK,TRIM1#	08/2010 - 05/2012	1
73480-26050C0	KDH20#,211,TRH200,211,216..SGL BLACK,TRIM1#	05/2012 - 12/2013	1
73431A - COVER, REAR SEAT BELT RETRACTOR
73431-26050B0	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,GRAY,TRIM1#	08/2004 - 08/2010	1
73431-26050B1	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,DK.GRAY,TRIM1#	08/2010 - 05/2012	1
73470 - BELT ASSY, REAR SEAT, OUTER
73470-26010B0	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,GRAY,TRIM1#	04/2009 - 08/2010	1
73470-26050C0	KDH20#,211,TRH200,211,216..SGL BLACK,TRIM1#	05/2012 - 12/2013	1
73470-26010C0	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,BLACK,TRIM1#	08/2010 - 05/2012	1
73470-26010B2	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,GRAY,TRIM1#	08/2004 - 04/2009	1
Common parts
90105-11045
90109-11044
90109-11055
90183-04046
91553-80612
Linked diagrams
7151

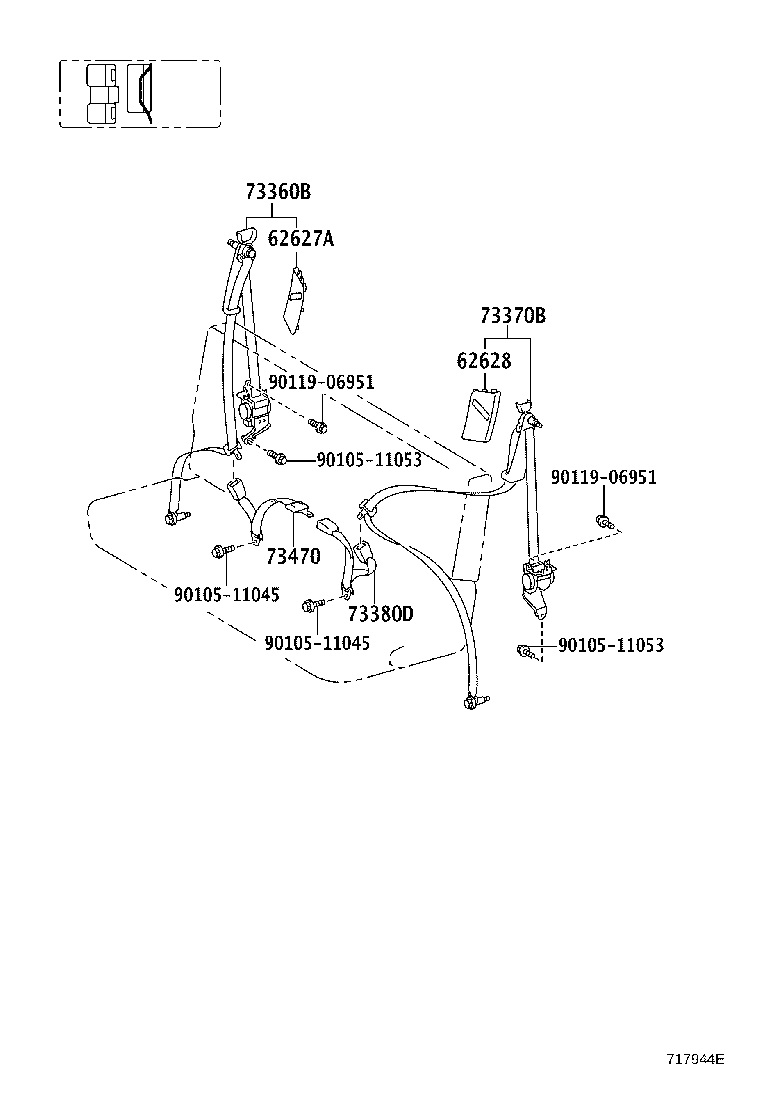

(1205- )SGL

Click highlighted areas on diagram

ﾘﾔｼｰﾄﾍﾞﾙﾄ

Part #	Description	Period	Qty
62627A - COVER, SIDE TRIM COVER, RH
62627-26100B0	KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1#	05/2012 - 12/2013	1
62628 - COVER, SIDE TRIM COVER, LH
62628-26020B0	KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1#	05/2012 - 12/2013	1
73360B - BELT ASSY, REAR SEAT, OUTER
73360-26650B1	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,GRAY,TRIM1#	08/2004 - 08/2010	1
73360-26650B2	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,DK.GRAY,TRIM1#	08/2010 - 05/2012	1
73360-26710C0	KDH20#,TRH200..SGL BLACK,TRIM1#	05/2012 - 12/2013	1
73370B - BELT ASSY, REAR SEAT, OUTER
73370-26410B1	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,GRAY,TRIM1#	08/2004 - 08/2010	1
73370-26410C1	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,BLACK,TRIM1#	08/2010 - 05/2012	1
73370-26450C0	KDH20#,TRH200..SGL BLACK,TRIM1#	05/2012 - 12/2013	1
73380D - BELT ASSY, REAR SEAT, INNER
73480-26010B2	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,GRAY,TRIM1#	08/2004 - 04/2009	1
73480-26010B0	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,GRAY,TRIM1#	04/2009 - 08/2010	1
73480-26010C0	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,BLACK,TRIM1#	08/2010 - 05/2012	1
73480-26050C0	KDH20#,211,TRH200,211,216..SGL BLACK,TRIM1#	05/2012 - 12/2013	1
73470 - BELT ASSY, REAR SEAT, OUTER
73470-26010B0	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,GRAY,TRIM1#	04/2009 - 08/2010	1
73470-26050C0	KDH20#,211,TRH200,211,216..SGL BLACK,TRIM1#	05/2012 - 12/2013	1
73470-26010C0	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,BLACK,TRIM1#	08/2010 - 05/2012	1
73470-26010B2	KDH20#,211,TRH200,211,216..SGL ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),ｱｳﾀ:3点式&ｲﾝﾅ:2点式,GRAY,TRIM1#	08/2004 - 04/2009	1
Common parts
90105-11045
90105-11053
90119-06951
