KDH201V-RRPDY (2007)
Toyota Hiace/Regiusace

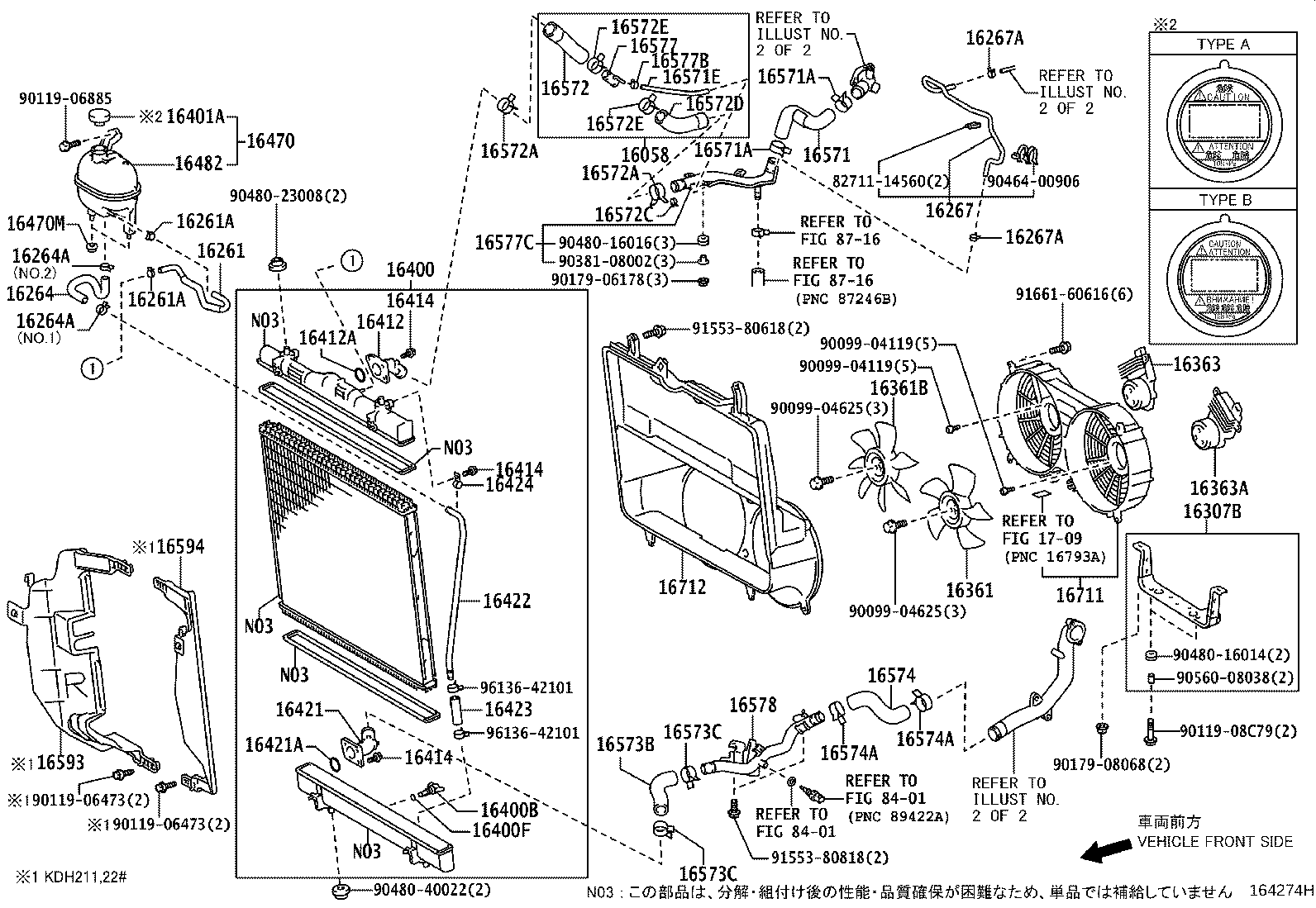

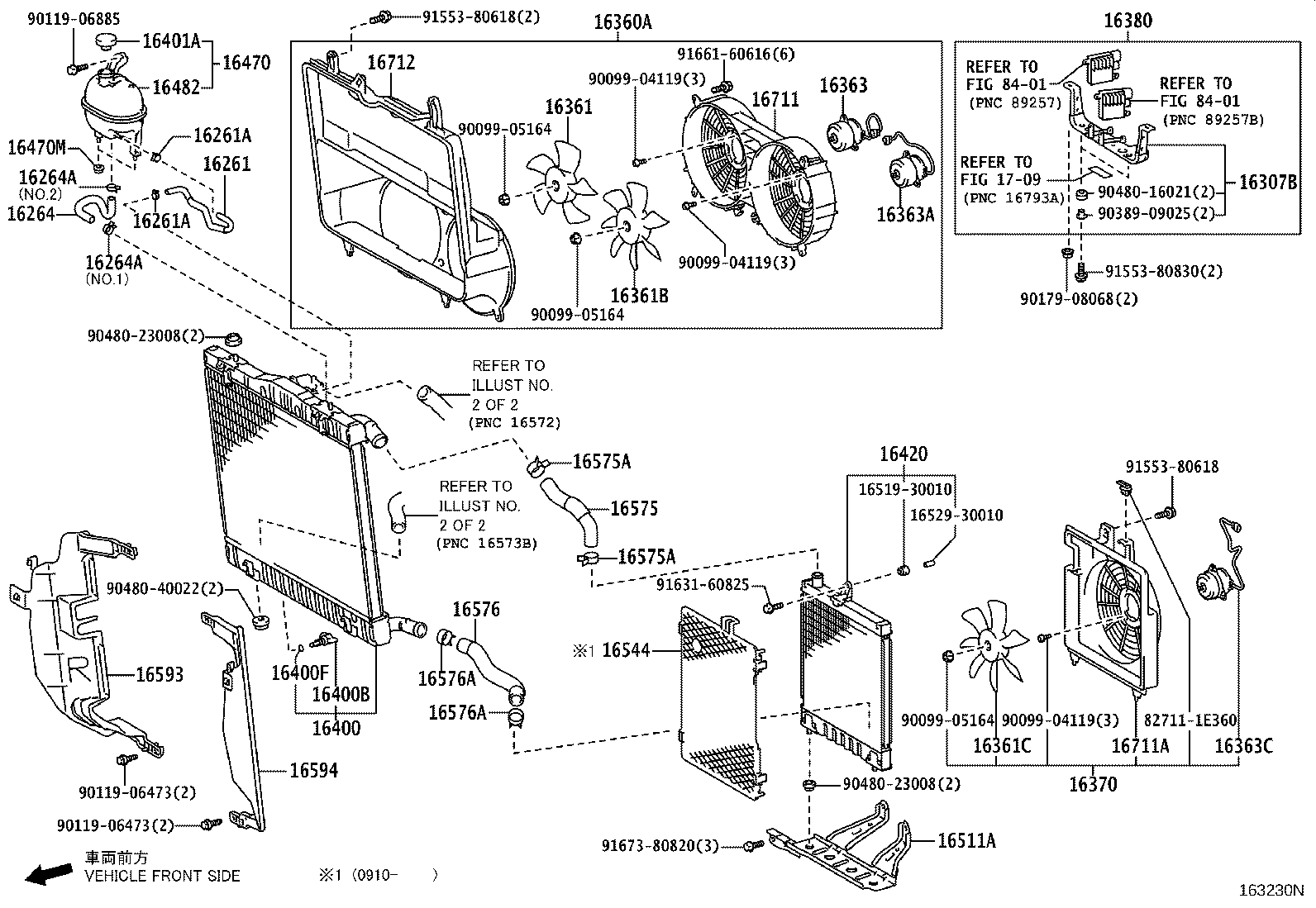

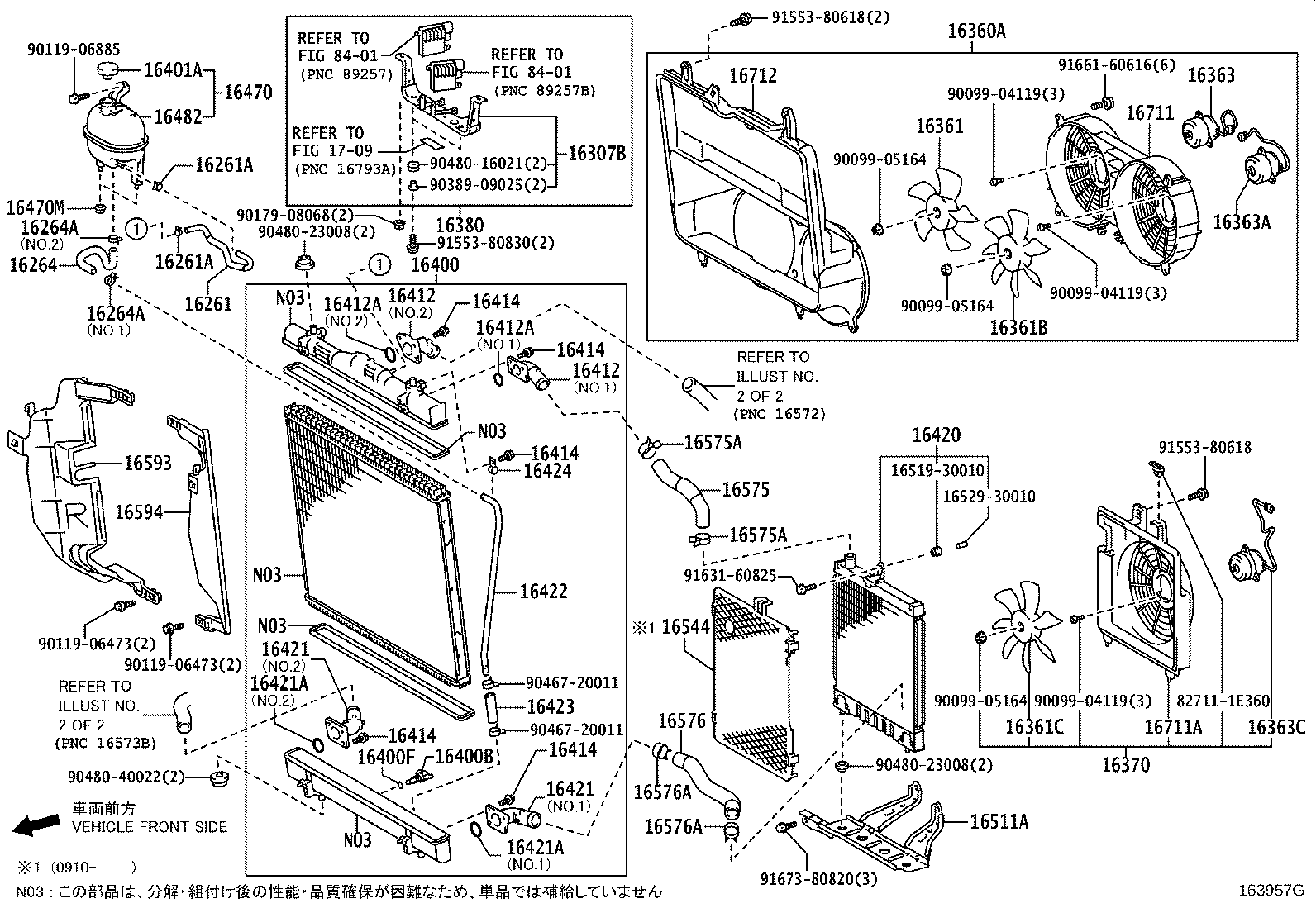

ILLUST NO. 1 OF 2(0709-0902)1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75150 |
1KDFTV,2KDFTV..KDH20# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75090 |
1KDFTV,2KDFTV..KDH20# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 96136-42501 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 96136-42501 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16361 - FAN | ||||
| 16361-30050 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16361-75030 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-75040 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16361-30060 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16361C - FAN NO.2 | ||||
| 16361-30040 |
1KDFTV..KDH201,206,211,221,223 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-30040 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16363-20390 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16363-30041 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-30041 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16363-30040 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16363-75030 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16363C - MOTOR, COOLING FAN, NO.3 | ||||
| 16363-30010 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16370 - FAN ASSY, W/MOTOR, NO.2 | ||||
| 16370-30010 |
1KDFTV..KDH201,206,211,221,223 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-30170 |
1KDFTV,2KDFTV..KDH20#,211,22#..4FC |
1 | ||
| 16400-30171 |
1KDFTV..KDH20#,211,22#..4FC |
1 | ||
| 16400-30172 |
1KDFTV..KDH20#,211,22#..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-37010 |
1KDFTV..KDH20#,211,22# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 16475-51010 |
1KDFTV..KDH20#,211,22# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 16420 - RADIATOR ASSY, SUB | ||||
| 16510-30010 |
1KDFTV..KDH201,206,211,221,223 |
1 | ||
| 16510-30011 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
1KDFTV..KDH20#,211,22# PNC 16401A=TYPE B |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16511A - BRACKET, SUB-RADIATOR | ||||
| 16511-30010 |
1KDFTV..KDH201,206,211,221,223 |
1 | ||
| 16544 - PROTECTOR, SUB-RADIATOR | ||||
| 16544-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-30010 |
1KDFTV,2KDFTV..KDH20# |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90467-34006 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90467-34006 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16576 - HOSE, RADIATOR, NO.6 | ||||
| 16576-30010 |
1KDFTV,2KDFTV..KDH20# |
1 | ||
| 16576A - CLIP, RADIATOR HOSE, NO.6 | ||||
| 90467-34006 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16576A - CLIP, RADIATOR HOSE, NO.6 | ||||
| 90467-34006 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-30081 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16711-75230 |
1KDFTV..KDH201,206,211,221,223 |
1 | ||
| 16711-30080 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16711A - SHROUD, FAN, NO.2 | ||||
| 16711-30050 |
1KDFTV..KDH201,206,211,221,223 |
1 | ||
| Common parts | ||||
| 16519-30010 | ||||
| 16529-30010 | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90179-08068 | ||||
| 90389-09025 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80618 | ||||
| 91553-80830 | ||||
| 91631-60825 | ||||
| 91661-60616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||

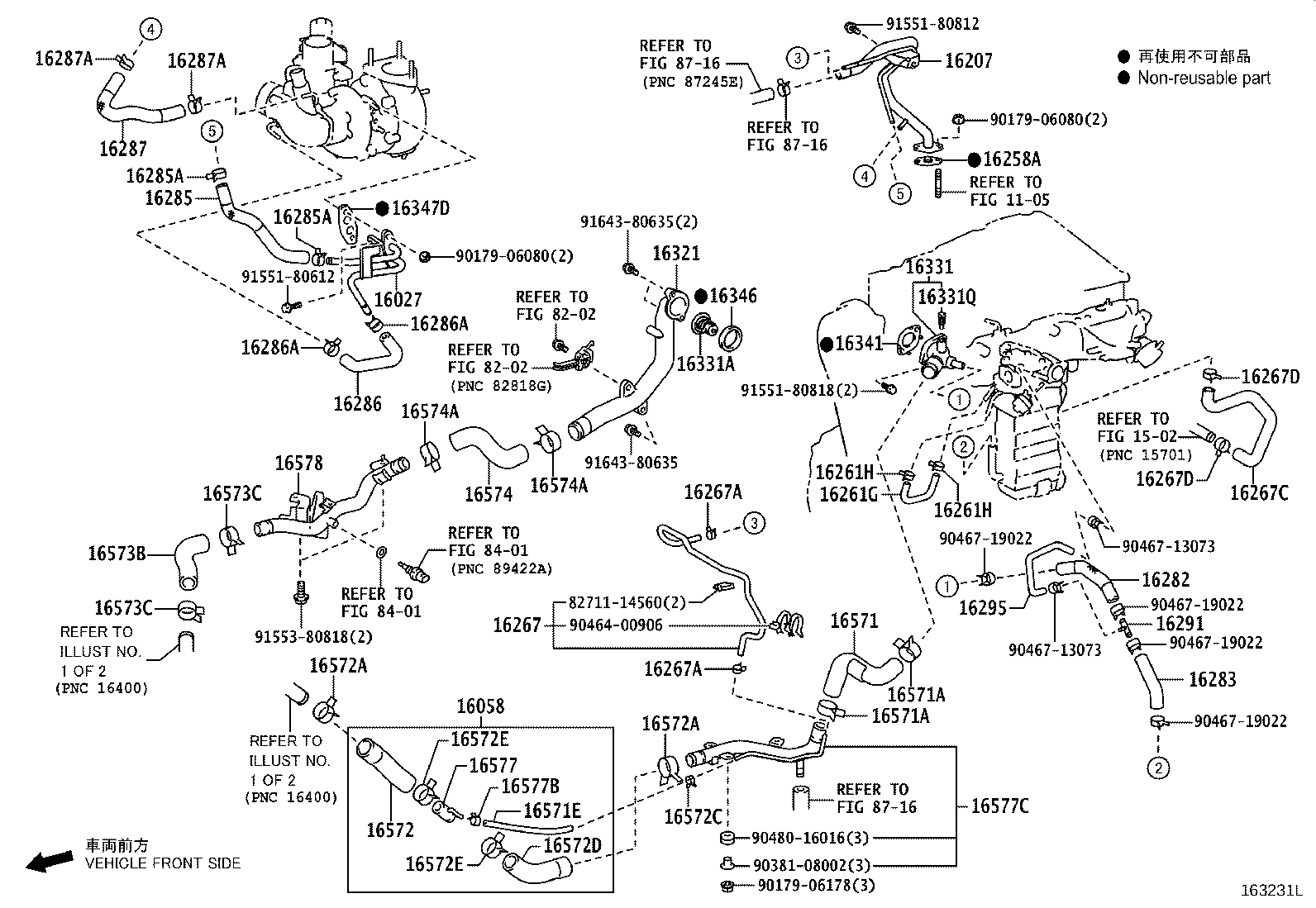

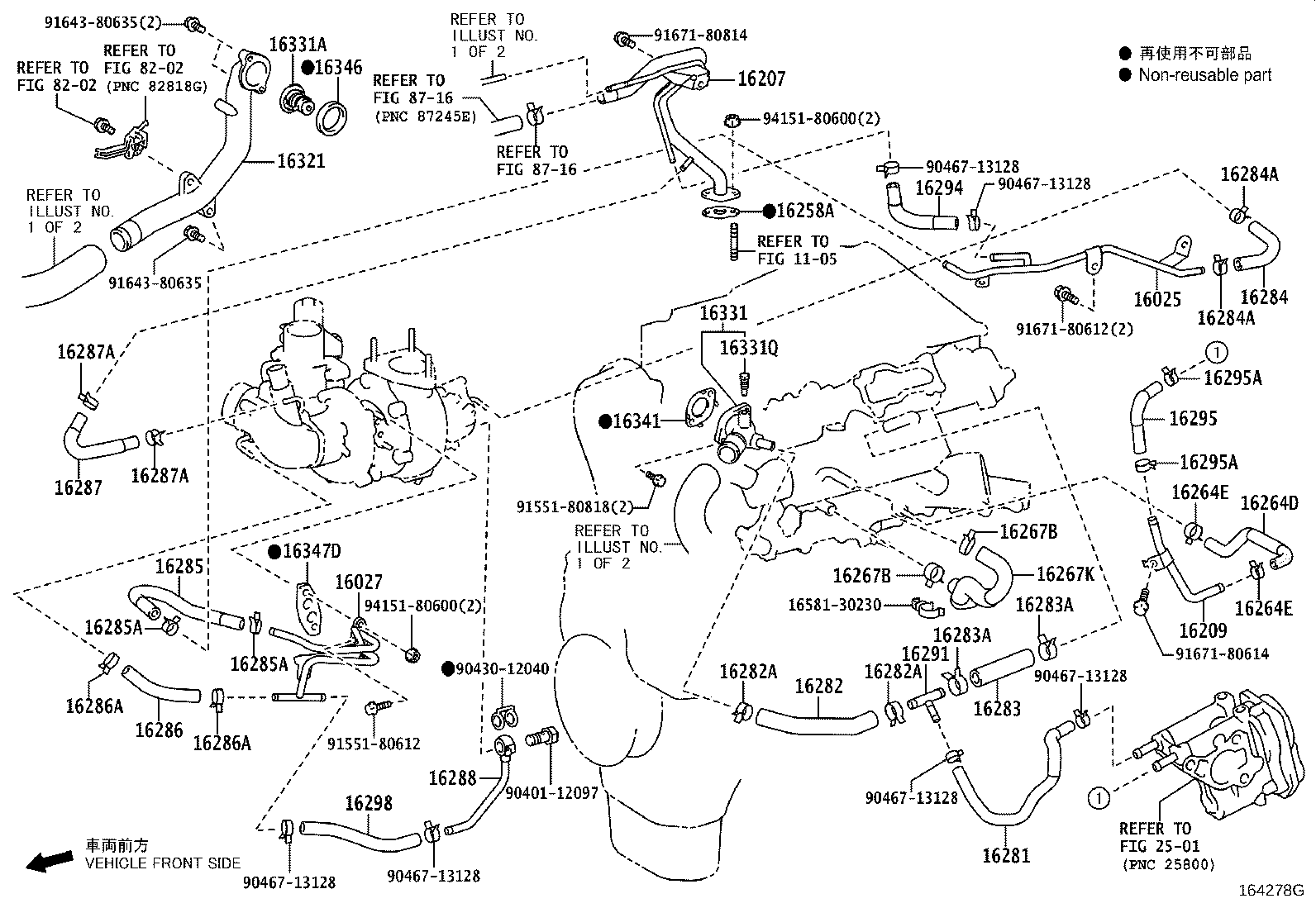

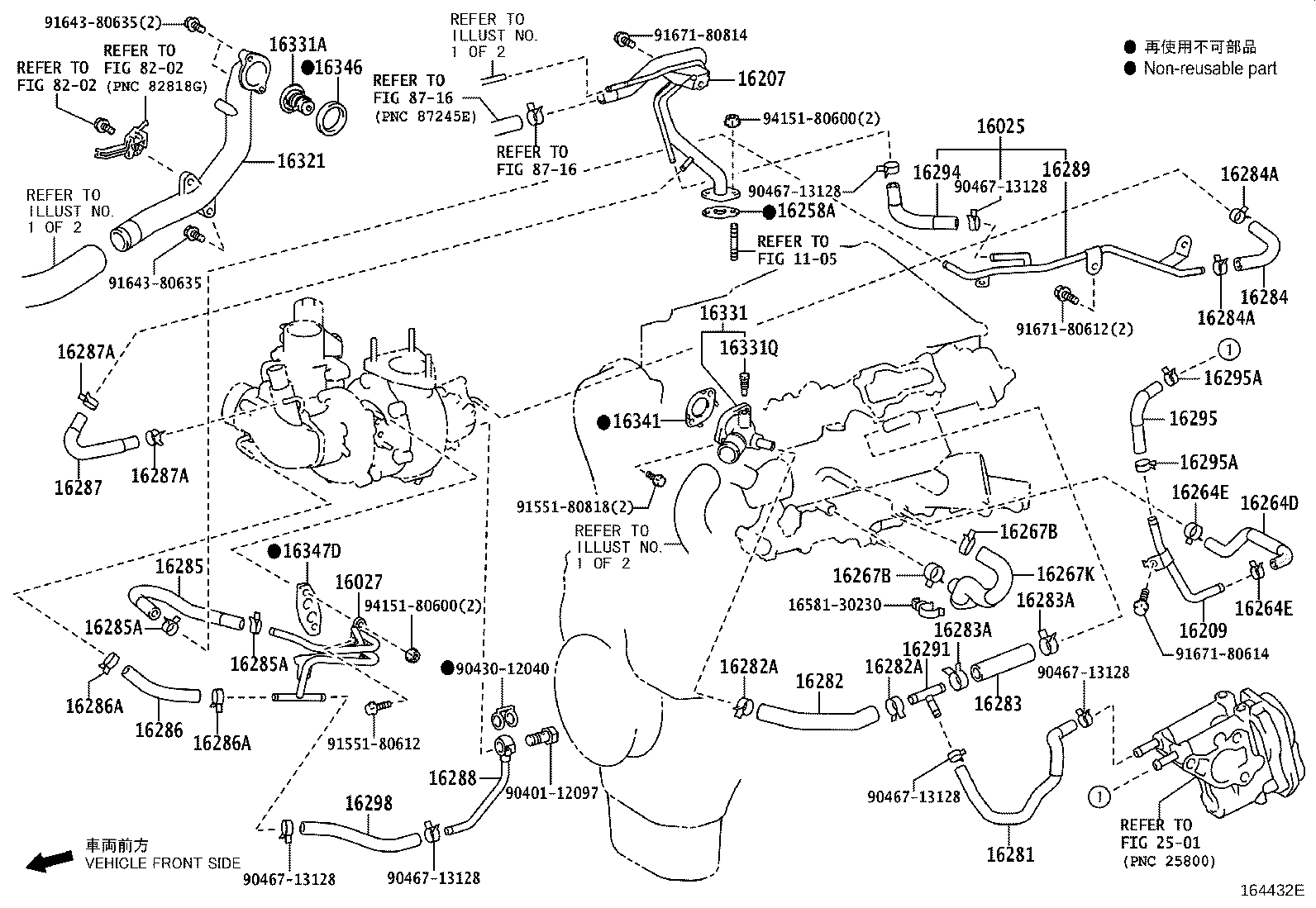

ILLUST NO. 2 OF 2(0709-1008)1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30090 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16027-30130 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16058 - HOSE SUB-ASSY, RADIATOR, NO.2 | ||||
| 16058-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30160 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-30140 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30130 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16267-30110 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-30020 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16282-30030 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-30020 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16283-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-30081 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16285-30120 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-30040 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 99555-10100 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16287 - HOSE, TURBO WATER, NO.4 | ||||
| 16287-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16287-30030 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16295-30020 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0K010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16321-0K010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30070 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1KDFTV..KDH20#,211,22# *WAX 82−95 |
1 | ||
| 90916-03139 |
1KDFTV..KDH20#,211,22# *WAX 87−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-30020 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-0K010 |
1KDFTV,2KDFTV..KDH20#,211,22# (L) |
1 | ||
| 16346-67010 |
1KDFTV,2KDFTV..KDH20#,211,22# (J) |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-30070 |
1KDFTV,2KDFTV..KDH200,201,211,220,221,222,223 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16571E - HOSE, WATER | ||||
| 99555-10500 |
1KDFTV..KDH20#,211,22# *H,L=280 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-30061 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-30090 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-37005 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-37005 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-30010 |
1KDFTV,2KDFTV..KDH20# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-30010 |
1KDFTV,2KDFTV..KDH200,201 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-30040 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-30021 |
1KDFTV..KDH20#,211,22# |
1 | ||
| Common parts | ||||
| 82711-14560 | ||||
| 90179-06080 | ||||
| 90179-06178 | ||||
| 90381-08002 | ||||
| 90464-00906 | ||||
| 90467-13073 | ||||
| 90467-19022 | ||||
| 90480-16016 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91553-80818 | ||||
| 91643-80635 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1502 | ||||
| 8202 | ||||
| 8401 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(0902-1008)1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75150 |
1KDFTV,2KDFTV..KDH20# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75090 |
1KDFTV,2KDFTV..KDH20# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 96136-42501 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 96136-42501 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16361 - FAN | ||||
| 16361-30050 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16361-75030 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-75040 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16361-30060 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16361C - FAN NO.2 | ||||
| 16361-30040 |
1KDFTV..KDH201,206,211,221,223 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-30040 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16363-20390 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16363-30041 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-30041 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16363-30040 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16363-75030 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16363C - MOTOR, COOLING FAN, NO.3 | ||||
| 16363-30010 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16370 - FAN ASSY, W/MOTOR, NO.2 | ||||
| 16370-30010 |
1KDFTV..KDH201,206,211,221,223 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-30170 |
1KDFTV,2KDFTV..KDH20#,211,22#..4FC |
1 | ||
| 16400-30171 |
1KDFTV..KDH20#,211,22#..4FC |
1 | ||
| 16400-30172 |
1KDFTV..KDH20#,211,22#..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-37010 |
1KDFTV..KDH20#,211,22# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 16475-51010 |
1KDFTV..KDH20#,211,22# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 16412 - PIPE, RADIATOR TANK, UPPER | ||||
| 16412-30171 |
1KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16412-75540 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16412-75540 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 16412 - PIPE, RADIATOR TANK, UPPER | ||||
| 16412-30171 |
1KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16412-75540 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16412-75540 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 16412A - RING, O(FOR RADIATOR UPPER TANK PIPE) | ||||
| 16413-30171 |
1KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16413-75540 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16413-75541 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16413-75540 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 16412A - RING, O(FOR RADIATOR UPPER TANK PIPE) | ||||
| 16413-30171 |
1KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16413-75540 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16413-75541 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16413-75540 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
1KDFTV..KDH20#,211,22# |
7 | ||
| 16414-75540 |
1KDFTV..KDH20#,211,22# |
13 | ||
| 90119-06885 |
1KDFTV..KDH20#,211,22# |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
1KDFTV..KDH20#,211,22# |
7 | ||
| 16414-75540 |
1KDFTV..KDH20#,211,22# |
13 | ||
| 90119-06885 |
1KDFTV..KDH20#,211,22# |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
1KDFTV..KDH20#,211,22# |
7 | ||
| 16414-75540 |
1KDFTV..KDH20#,211,22# |
13 | ||
| 90119-06885 |
1KDFTV..KDH20#,211,22# |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
1KDFTV..KDH20#,211,22# |
7 | ||
| 16414-75540 |
1KDFTV..KDH20#,211,22# |
13 | ||
| 90119-06885 |
1KDFTV..KDH20#,211,22# |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
1KDFTV..KDH20#,211,22# |
7 | ||
| 16414-75540 |
1KDFTV..KDH20#,211,22# |
13 | ||
| 90119-06885 |
1KDFTV..KDH20#,211,22# |
7 | ||
| 16420 - RADIATOR ASSY, SUB | ||||
| 16510-30010 |
1KDFTV..KDH201,206,211,221,223 |
1 | ||
| 16510-30011 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16421 - PIPE, RADIATOR TANK, LOWER NO.1 | ||||
| 16422-30171 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16421-30171 |
1KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16422-30171 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 16421 - PIPE, RADIATOR TANK, LOWER NO.1 | ||||
| 16422-30171 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16421-30171 |
1KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16422-30171 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 16421A - RING, O(FOR RADIATOR LOWER TANK PIPE NO.1) | ||||
| 16413-75540 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 16413-30171 |
1KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16413-75541 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16413-75540 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16421A - RING, O(FOR RADIATOR LOWER TANK PIPE NO.1) | ||||
| 16413-75540 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 16413-30171 |
1KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16413-75541 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16413-75540 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16422 - PIPE, RADIATOR TANK, LOWER NO.2 | ||||
| 16422-75540 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16423 - HOSE, RADIATOR TANK | ||||
| 16423-75540 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16424 - CLAMP, RADIATOR TANK PIPE | ||||
| 16424-75540 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
1KDFTV..KDH20#,211,22# PNC 16401A=TYPE B |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16511A - BRACKET, SUB-RADIATOR | ||||
| 16511-30010 |
1KDFTV..KDH201,206,211,221,223 |
1 | ||
| 16544 - PROTECTOR, SUB-RADIATOR | ||||
| 16544-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-30010 |
1KDFTV,2KDFTV..KDH20# |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90467-34006 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90467-34006 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16576 - HOSE, RADIATOR, NO.6 | ||||
| 16576-30010 |
1KDFTV,2KDFTV..KDH20# |
1 | ||
| 16576A - CLIP, RADIATOR HOSE, NO.6 | ||||
| 90467-34006 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16576A - CLIP, RADIATOR HOSE, NO.6 | ||||
| 90467-34006 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-30081 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16711-75230 |
1KDFTV..KDH201,206,211,221,223 |
1 | ||
| 16711-30080 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16711A - SHROUD, FAN, NO.2 | ||||
| 16711-30050 |
1KDFTV..KDH201,206,211,221,223 |
1 | ||
| Common parts | ||||
| 16519-30010 | ||||
| 16529-30010 | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90179-08068 | ||||
| 90389-09025 | ||||
| 90467-20011 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80618 | ||||
| 91553-80830 | ||||
| 91631-60825 | ||||
| 91661-60616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(1008- )1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16058 - HOSE SUB-ASSY, RADIATOR, NO.2 | ||||
| 16058-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75150 |
1KDFTV,2KDFTV..KDH20# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75090 |
1KDFTV,2KDFTV..KDH20# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 96136-42501 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 96136-42501 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30130 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16361 - FAN | ||||
| 16361-30050 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16361-75030 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-75040 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16361-30060 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-30040 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16363-20390 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16363-30041 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-30041 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16363-30040 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16363-75030 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-30170 |
1KDFTV,2KDFTV..KDH20#,211,22#..4FC |
1 | ||
| 16400-30171 |
1KDFTV..KDH20#,211,22#..4FC |
1 | ||
| 16400-30172 |
1KDFTV..KDH20#,211,22#..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-37010 |
1KDFTV..KDH20#,211,22# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 16475-51010 |
1KDFTV..KDH20#,211,22# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 16412 - PIPE, RADIATOR TANK, UPPER | ||||
| 16412-30171 |
1KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16412-75540 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16412-75540 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 16412A - RING, O(FOR RADIATOR UPPER TANK PIPE) | ||||
| 16413-30171 |
1KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16413-75540 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16413-75541 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16413-75540 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
1KDFTV..KDH20#,211,22# |
7 | ||
| 16414-75540 |
1KDFTV..KDH20#,211,22# |
13 | ||
| 90119-06885 |
1KDFTV..KDH20#,211,22# |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
1KDFTV..KDH20#,211,22# |
7 | ||
| 16414-75540 |
1KDFTV..KDH20#,211,22# |
13 | ||
| 90119-06885 |
1KDFTV..KDH20#,211,22# |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
1KDFTV..KDH20#,211,22# |
7 | ||
| 16414-75540 |
1KDFTV..KDH20#,211,22# |
13 | ||
| 90119-06885 |
1KDFTV..KDH20#,211,22# |
7 | ||
| 16421 - PIPE, RADIATOR TANK, LOWER NO.1 | ||||
| 16422-30171 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16421-30171 |
1KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16422-30171 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 16421A - RING, O(FOR RADIATOR LOWER TANK PIPE NO.1) | ||||
| 16413-75540 |
1KDFTV..KDH20#,211,22# NO.2 |
1 | ||
| 16413-30171 |
1KDFTV..KDH20#,211,22# NO.1 |
1 | ||
| 16413-75541 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16413-75540 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16422 - PIPE, RADIATOR TANK, LOWER NO.2 | ||||
| 16422-75540 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16423 - HOSE, RADIATOR TANK | ||||
| 16423-75540 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16424 - CLAMP, RADIATOR TANK PIPE | ||||
| 16424-75540 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
1KDFTV..KDH20#,211,22# PNC 16401A=TYPE B |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-30070 |
1KDFTV,2KDFTV..KDH200,201,211,220,221,222,223 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16571E - HOSE, WATER | ||||
| 99555-10500 |
1KDFTV..KDH20#,211,22# *H,L=280 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-30061 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-30090 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-37005 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-37005 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-30010 |
1KDFTV,2KDFTV..KDH20# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-30010 |
1KDFTV,2KDFTV..KDH200,201 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,211,22# |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-30040 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-30021 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-30081 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16711-75230 |
1KDFTV..KDH201,206,211,221,223 |
1 | ||
| 16711-30080 |
1KDFTV..KDH20#,211,22# |
1 | ||
| Common parts | ||||
| 82711-14560 | ||||
| 90099-04119 | ||||
| 90099-04625 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08068 | ||||
| 90381-08002 | ||||
| 90464-00906 | ||||
| 90480-16014 | ||||
| 90480-16016 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 90560-08038 | ||||
| 91553-80618 | ||||
| 91553-80818 | ||||
| 91661-60616 | ||||
| 96136-42101 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1008-1109)1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16025 - PIPE SUB-ASSY, WATER BY-PASS, NO.5 | ||||
| 16025-30020 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16025-30021 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30090 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16027-30130 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30160 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16209 - PIPE SUB-ASSY, WATER BY-PASS, NO.4 | ||||
| 16209-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-30100 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-19022 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-19022 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16267K - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30150 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-30110 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-30020 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16282-30030 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-19022 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-19022 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-30020 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16283-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-19022 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-19022 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30050 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-30081 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16285-30120 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-30040 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 99555-10100 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16287 - HOSE, TURBO WATER, NO.4 | ||||
| 16287-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16287-30030 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16294 - HOSE, WATER BY-PASS, NO.11 | ||||
| 16293-30020 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16295-30020 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16298 - HOSE, WATER BY-PASS, NO.12 | ||||
| 16299-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0K010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16321-0K010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30070 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1KDFTV..KDH20#,211,22# *WAX 82−95 |
1 | ||
| 90916-03139 |
1KDFTV..KDH20#,211,22# *WAX 87−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-30020 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-0K010 |
1KDFTV,2KDFTV..KDH20#,211,22# (L) |
1 | ||
| 16346-67010 |
1KDFTV,2KDFTV..KDH20#,211,22# (J) |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| Common parts | ||||
| 16581-30230 | ||||
| 90401-12097 | ||||
| 90430-12040 | ||||
| 90467-13128 | ||||
| 91551-80612 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80814 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 2501 | ||||
| 8202 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1109- )1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16025 - PIPE SUB-ASSY, WATER BY-PASS, NO.5 | ||||
| 16025-30020 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16025-30021 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30090 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16027-30130 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30160 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16209 - PIPE SUB-ASSY, WATER BY-PASS, NO.4 | ||||
| 16209-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-30100 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-19022 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-19022 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16267K - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30150 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-30110 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-30020 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16282-30030 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-19022 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-19022 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-30020 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16283-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-19022 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-19022 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30050 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-30081 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16285-30120 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-30040 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 99555-10100 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16287 - HOSE, TURBO WATER, NO.4 | ||||
| 16287-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16287-30030 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90467-13073 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16289 - PIPE, WATER BY-PASS, NO.5 | ||||
| 16289-30020 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16294 - HOSE, WATER BY-PASS, NO.11 | ||||
| 16293-30020 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16295-30020 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-13128 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16298 - HOSE, WATER BY-PASS, NO.12 | ||||
| 16299-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0K010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16321-0K010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30070 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1KDFTV..KDH20#,211,22# *WAX 82−95 |
1 | ||
| 90916-03139 |
1KDFTV..KDH20#,211,22# *WAX 87−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-30020 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-0K010 |
1KDFTV,2KDFTV..KDH20#,211,22# (L) |
1 | ||
| 16346-67010 |
1KDFTV,2KDFTV..KDH20#,211,22# (J) |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| Common parts | ||||
| 16581-30230 | ||||
| 90401-12097 | ||||
| 90430-12040 | ||||
| 90467-13128 | ||||
| 91551-80612 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80814 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 2501 | ||||
| 8202 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
