KDH201V-RKPDY (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Nov 2017
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )1KDFTV

Click highlighted areas on diagram

diagram 1105 1105 11301A 11301G 11301H 11301J 11301K 11301L 11301N 11301P 11301P 11301Q 11302H 11302L 11302M 11302N 11303A 11320 11321 11322A 11322B 11354 11355 11356 11381 11381A 12511C 1501 15134B 15350 15605C 1601 1601 1601 19529A 9010506231 9010906017 9011006018 9011906748 9011906749 9017906298 9017906299 9021008019 9030108010 9040110057 9095001848 9155180610 9155180616 9155180616 9155180616 9155180635 9155180660 9155300825 9161961250 9161961250 9167180612 9167180614 9212280616 9672119012
Part # Description Qty Price
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

1KDFTV..KDH20#,211,22#

長さ=18,外径=8

 1
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90301-22007

1KDFTV..KDH20#,211,22#

 1
11301H - RING, O(FOR TIMING GEAR CASE, LOWER)
90301-09018

1KDFTV..KDH20#,211,22#

 1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90341-18015

1KDFTV..KDH20#,211,22#

 1
11301K - SENSOR, CRANK POSITION
90919-05052

1KDFTV..KDH20#,211,22#

 1
11301L - SENSOR, CRANK POSITION NO.2
90919-05085

1KDFTV..KDH20#,211,22#

 1
11301N - CLAMP
19529-30060

1KDFTV..KDH201..SRF;1KDFTV..KDH206,211,22#;1KDFTV..KDH201..V2..HRF;1KDFTV..KDH201..V1..HRF..4FC

 1
11301P - O RING, CRANK POSITION SENSOR
90301-14016

1KDFTV..KDH20#,211,22#

 2
11301P - O RING, CRANK POSITION SENSOR
90301-14016

1KDFTV..KDH20#,211,22#

 2
11301Q - SEAL, TYPE T OIL(FOR INJECTION PUMP)
90311-65004

1KDFTV..KDH20#,211,22#

 1
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08377

1KDFTV..KDH20#,211,22#

 2
11302L - BOLT, STUD(FOR INJECTION PUMP)
90116-08377

1KDFTV..KDH20#,211,22#

 2
11302M - BOLT, STUD(FOR POWER STEERING VANE PUMP)
90116-10160

1KDFTV..KDH20#,211,22#

 2
11302N - BOLT, STUD(FOR VACUUM TRANSMITTING PIPE)
90126-06029

1KDFTV..KDH201..SRF;1KDFTV..KDH206,211,22#;1KDFTV..KDH201..V2..HRF;1KDFTV..KDH201..V1..HRF..4FC

 1
11303A - SEAL, OIL(FOR CRANKSHAFT FRONT)
90311-50051

1KDFTV..KDH20#,211,22#

 1
11320 - CASE ASSY, TIMING GEAR
11320-30090

1KDFTV..KDH20#,211,22#

 1
11321 - CASE, TIMING GEAR
11302-30030

1KDFTV..KDH20#,211,22#

 1
11322A - COVER, TIMING BELT, NO.1
11332-30040

1KDFTV..KDH20#,211,22#

 1
11322B - COVER, TIMING BELT, NO.2
11322-30010

1KDFTV..KDH20#,211,22#

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-30010

1KDFTV..KDH20#,211,22#

 1
11355 - PLATE, REAR END
11355-67011

1KDFTV..KDH20#,211,22#

 1
11356 - PLATE, REAR END, NO.2
11356-30030

1KDFTV..KDH206..5F;1KDFTV..KDH201,211,22#..4FC

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-0K010

1KDFTV..KDH20#,211,22#

(L)

 1
11381-67020

1KDFTV..KDH20#,211,22#

(J)

 1
11381A - SEAL, ENGINE REAR OIL
90311-95015

1KDFTV..KDH20#,211,22#

 1
12511C - BRACKET, ALTERNATOR
12511-30031

1KDFTV..KDH20#,211,22#

 1
15134B - GASKET, OIL PUMP RELIEF VALVE
15134-67010

1KDFTV..KDH20#,211,22#

 1
15350 - VALVE ASSY, OIL PRESSURE SWITCHING
15350-30011

1KDFTV..KDH201..SRF;1KDFTV..KDH206,211,22#;1KDFTV..KDH201..V2..HRF;1KDFTV..KDH201..V1..HRF..4FC

 1
15605C - VALVE SUB-ASSY, OIL CHECK
15605-30040

1KDFTV..KDH201..SRF;1KDFTV..KDH206,211,22#;1KDFTV..KDH201..V2..HRF;1KDFTV..KDH201..V1..HRF..4FC

 1
19529A - CLAMP
19529-30050

1KDFTV..KDH201..SRF;1KDFTV..KDH206,211,22#;1KDFTV..KDH201..V2..HRF;1KDFTV..KDH201..V1..HRF..4FC

 1
Common parts
90105-06231
90109-06017
90110-06018
90119-06748
90119-06749
90179-06298
90179-06299
90210-08019
90301-08010
90401-10057
90950-01848
91551-80610
91551-80616
91551-80635
91551-80660
91553-00825
91619-61250
91671-80612
91671-80614
92122-80616
96721-19012
Linked diagrams
1105
1501
1601

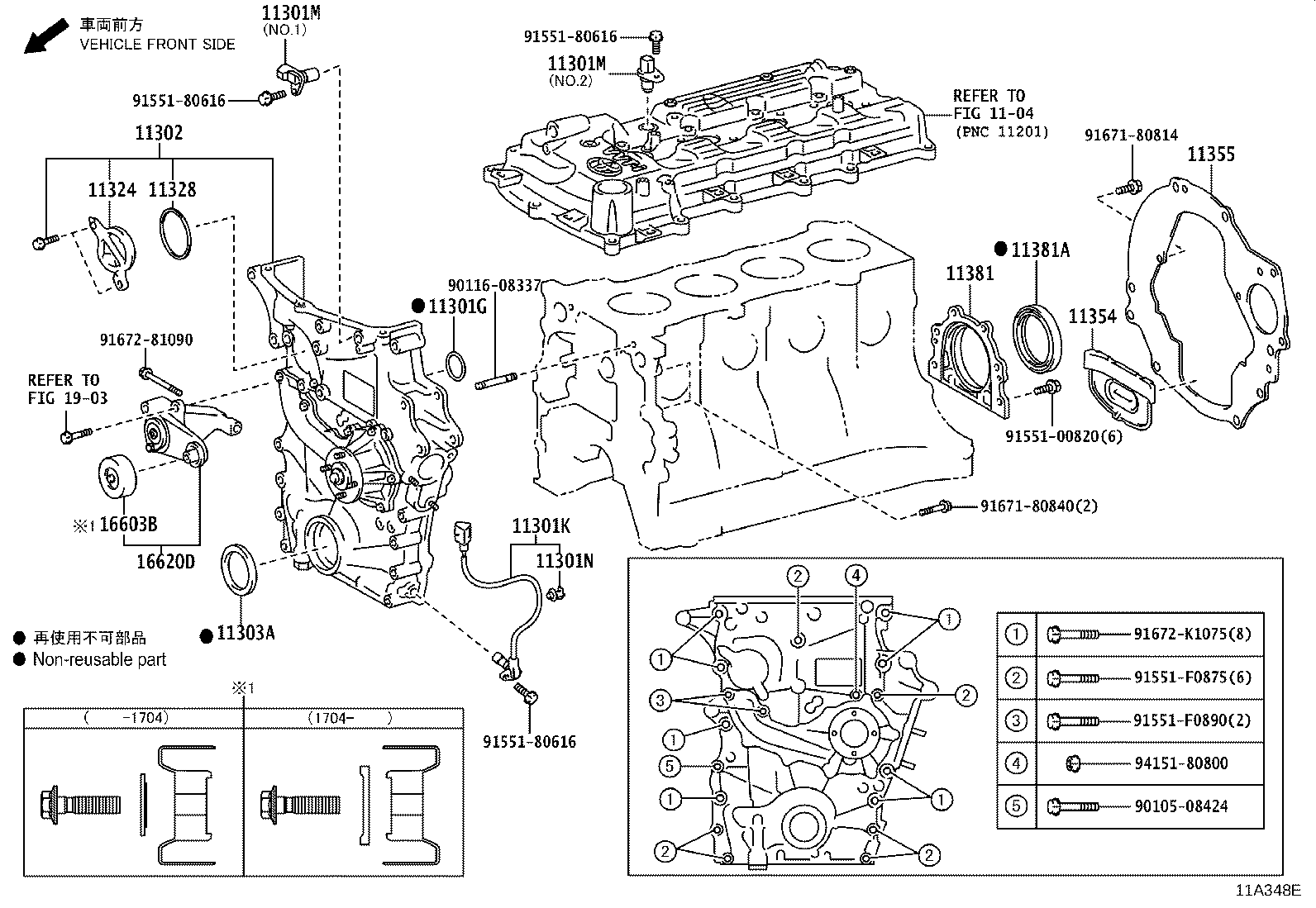

ILLUST NO. 1 OF 2(1501- )2TRFE..TRH214,219..4D ; (1501- )1TRFE,2TRFE..TRH200,211,216,22# ; (17

Click highlighted areas on diagram

diagram 1104 11301G 11301K 11301M 11301M 11301N 11302 11303A 11324 11328 11354 11355 11381 11381A 16603B 16620D 9010508424 9011608337 9155100820 9155180616 9155180616 9155180616 91551F0875 91551F0890 9167180814 9167180840 9167281090 91672K1075 9415180800
Part # Description Qty Price
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90301-22007

1KDFTV..KDH20#,211,22#

 1
11301K - SENSOR, CRANK POSITION
90919-05052

1KDFTV..KDH20#,211,22#

 1
11301N - CLAMP
19529-30060

1KDFTV..KDH201..SRF;1KDFTV..KDH206,211,22#;1KDFTV..KDH201..V2..HRF;1KDFTV..KDH201..V1..HRF..4FC

 1
11303A - SEAL, OIL(FOR CRANKSHAFT FRONT)
90311-50051

1KDFTV..KDH20#,211,22#

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-30010

1KDFTV..KDH20#,211,22#

 1
11355 - PLATE, REAR END
11355-67011

1KDFTV..KDH20#,211,22#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-0K010

1KDFTV..KDH20#,211,22#

(L)

 1
11381-67020

1KDFTV..KDH20#,211,22#

(J)

 1
11381A - SEAL, ENGINE REAR OIL
90311-95015

1KDFTV..KDH20#,211,22#

 1
Common parts
90105-08424
90116-08337
91551-00820
91551-80616
91551-F0875
91551-F0890
91671-80814
91671-80840
91672-81090
91672-K1075
94151-80800
Linked diagrams
1104
