Toyota Hiace/regiusace KDH201 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
HIACE/REGIUSACE
KDH201V-RBPDY (2013)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

KDH201V-RBPDY (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Nov 2017

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1312- )TRH211,216..4FC ; (1404- )TRH214..4FC..GL ; (1501- )TRH211,216 ; (

Click highlighted areas on diagram

ﾘﾔ

Part #	Description	Period	Qty	Price
Common parts
88718-2F070
88718-2F080
88718-2F100
88718-2F200
88718-2F210
88718-2F220
90099-00264
90099-00968
90099-04492
90099-14119
90099-14120
90099-14121
91553-80616
91553-80630
91553-80814
Linked diagrams

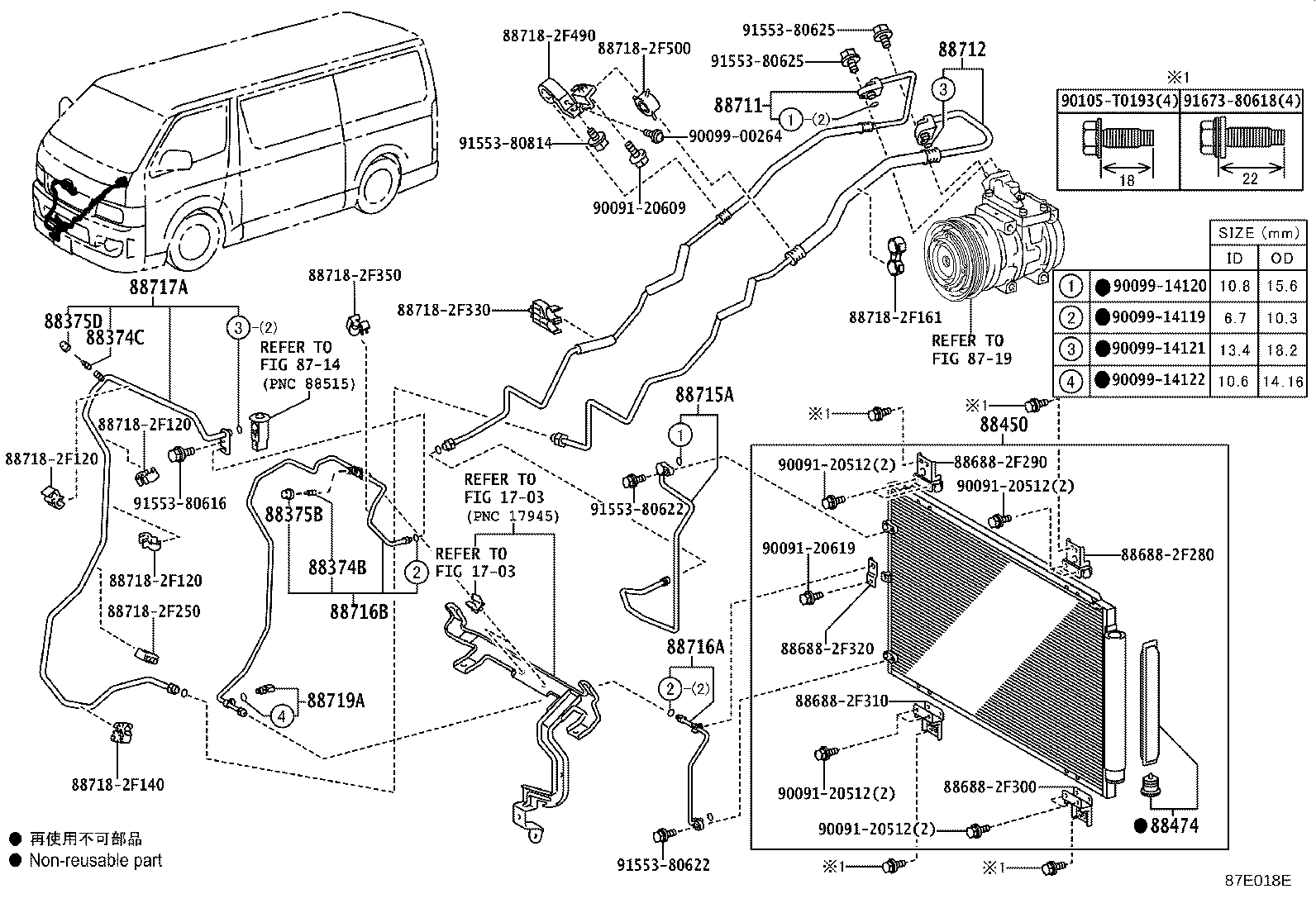

8714

(1312- )KDH20#..DX..CBU

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ｼﾝｸﾞﾙｴｱｺﾝ

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ,該当品番なし	12/2013 - 12/2999	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様,該当品番なし	12/2013 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ,該当品番なし	12/2013 - 12/2999	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様,該当品番なし	12/2013 - 12/2999	1
88374-30010	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ,該当品番なし	12/2013 - 12/2999	1
88375-30280	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様,該当品番なし	12/2013 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様,該当品番なし	12/2013 - 12/2999	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ,該当品番なし	12/2013 - 12/2999	1
88375-30290	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
88450 - CONDENSER ASSY, W/RECEIVER
88450-26120	GDH20#,KDH20#,TRH200..SP 冷凍ﾊﾞﾝ	12/2013 - 05/2020	1
88450-26120	GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#	12/2013 - 05/2020	1
88474 - DRYER, COOLER
88474-17010	GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#	12/2013 - 05/2020	1
88474-17010	GDH20#,KDH20#,TRH200..SP 冷凍ﾊﾞﾝ	12/2013 - 05/2020	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2F310	KDH201..SP 冷凍ﾊﾞﾝ	12/2013 - 11/2017	1
88711-2F310	KDH201	12/2013 - 11/2017	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2F360	KDH201	12/2013 - 11/2017	1
88712-2F360	KDH201..SP 冷凍ﾊﾞﾝ	12/2013 - 11/2017	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-26390	GDH201..CBU;GDH206,KDH20#;TRH200..4FC,6FC	12/2013 - 12/2999	1
88715-26390	GDH20#,KDH20#..SP;TRH200..SP..(4FC,6FC) 冷凍ﾊﾞﾝ	12/2013 - 12/2999	1
88715-26390	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様	12/2013 - 12/2999	1
88715-26410	GDH201..CBU;GDH206,KDH20# 寒冷地仕様	12/2013 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-2F620	TRH200..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..DX..CBU	12/2013 - 12/2999	1
88710-2F620	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様	12/2013 - 12/2999	1
88710-2F620	GDH20#,KDH20#..SP;TRH200..SP..(4FC,6FC) 冷凍ﾊﾞﾝ	12/2013 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ,該当品番なし	12/2013 - 12/2999	1
88716-2N151	KDH20# 寒冷地仕様	12/2013 - 11/2017	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様,該当品番なし	12/2013 - 12/2999	1
88716-2N120	KDH20#,TRH200	12/2013 - 11/2017	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88710-2F862	KDH20# 寒冷地仕様	12/2013 - 11/2017	1
88717-2F680	KDH20#,TRH200..DX..CBU	12/2013 - 11/2017	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様,該当品番なし	12/2013 - 12/2999	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ,該当品番なし	12/2013 - 12/2999	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ,該当品番なし	12/2013 - 12/2999	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様,該当品番なし	12/2013 - 12/2999	1
Common parts
88688-2F280
88688-2F290
88688-2F300
88688-2F310
88688-2F320
88718-2F120
88718-2F140
88718-2F161
88718-2F250
88718-2F330
88718-2F350
88718-2F490
88718-2F500
90091-20512
90091-20609
90091-20619
90099-00264
90099-14119
90099-14120
90099-14121
90099-14122
90105-T0193
91553-80616
91553-80622
91553-80625
91553-80814
91673-80618
Linked diagrams
1703
8714
8719

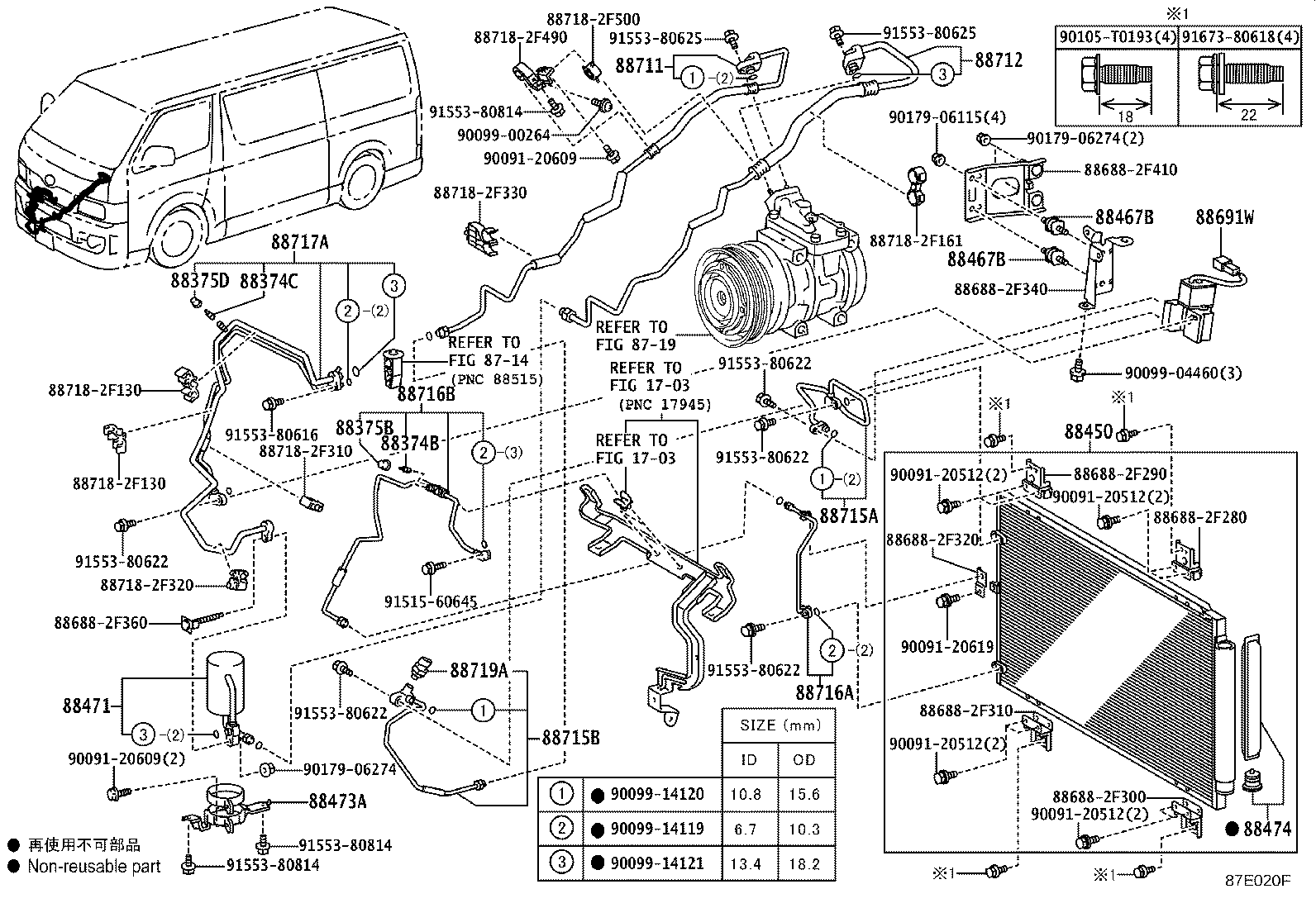

(1312- )KDH20#..DX..CBU

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ｼﾝｸﾞﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ,該当品番なし	12/2013 - 12/2999	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様,該当品番なし	12/2013 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ,該当品番なし	12/2013 - 12/2999	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様,該当品番なし	12/2013 - 12/2999	1
88374-30010	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ,該当品番なし	12/2013 - 12/2999	1
88375-30280	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様,該当品番なし	12/2013 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様,該当品番なし	12/2013 - 12/2999	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ,該当品番なし	12/2013 - 12/2999	1
88375-30290	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
88450 - CONDENSER ASSY, W/RECEIVER
88450-26120	GDH20#,KDH20#,TRH200..SP 冷凍ﾊﾞﾝ	12/2013 - 05/2020	1
88450-26120	GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#	12/2013 - 05/2020	1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-30270	GDH206,KDH20#,223;GDH201,211,22#,KDH211,221..CBU,IV6 寒冷地仕様	12/2013 - 12/2999	2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-30270	GDH206,KDH20#,223;GDH201,211,22#,KDH211,221..CBU,IV6 寒冷地仕様	12/2013 - 12/2999	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-26021	GDH20#,221,226,KDH20#,221..DX..CBU 寒冷地仕様	12/2013 - 12/2999	1
88473A - HOLDER, RECEIVER
88473-26011	GDH206,KDH20#,223;GDH201,211,22#,KDH211,221..CBU,IV6 寒冷地仕様	12/2013 - 12/2999	1
88474 - DRYER, COOLER
88474-17010	GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#	12/2013 - 05/2020	1
88474-17010	GDH20#,KDH20#,TRH200..SP 冷凍ﾊﾞﾝ	12/2013 - 05/2020	1
88691W - VALVE, MAGNET
88691-26020	GDH206,KDH20#,223;GDH201,211,22#,KDH211,221..CBU,IV6 寒冷地仕様	12/2013 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2F310	KDH201..SP 冷凍ﾊﾞﾝ	12/2013 - 11/2017	1
88711-2F310	KDH201	12/2013 - 11/2017	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2F360	KDH201	12/2013 - 11/2017	1
88712-2F360	KDH201..SP 冷凍ﾊﾞﾝ	12/2013 - 11/2017	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-26390	GDH201..CBU;GDH206,KDH20#;TRH200..4FC,6FC	12/2013 - 12/2999	1
88715-26390	GDH20#,KDH20#..SP;TRH200..SP..(4FC,6FC) 冷凍ﾊﾞﾝ	12/2013 - 12/2999	1
88715-26390	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様	12/2013 - 12/2999	1
88715-26410	GDH201..CBU;GDH206,KDH20# 寒冷地仕様	12/2013 - 12/2999	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88710-2F730	GDH206,KDH20#,223;GDH201,211,22#,KDH211,221..CBU,IV6 寒冷地仕様	12/2013 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-2F620	TRH200..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..DX..CBU	12/2013 - 12/2999	1
88710-2F620	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様	12/2013 - 12/2999	1
88710-2F620	GDH20#,KDH20#..SP;TRH200..SP..(4FC,6FC) 冷凍ﾊﾞﾝ	12/2013 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ,該当品番なし	12/2013 - 12/2999	1
88716-2N151	KDH20# 寒冷地仕様	12/2013 - 11/2017	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様,該当品番なし	12/2013 - 12/2999	1
88716-2N120	KDH20#,TRH200	12/2013 - 11/2017	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88710-2F862	KDH20# 寒冷地仕様	12/2013 - 11/2017	1
88717-2F680	KDH20#,TRH200..DX..CBU	12/2013 - 11/2017	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様,該当品番なし	12/2013 - 12/2999	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ,該当品番なし	12/2013 - 12/2999	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ,該当品番なし	12/2013 - 12/2999	1
00000-00000	GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様,該当品番なし	12/2013 - 12/2999	1
Common parts
88688-2F280
88688-2F290
88688-2F300
88688-2F310
88688-2F320
88688-2F340
88688-2F360
88688-2F410
88718-2F130
88718-2F161
88718-2F310
88718-2F320
88718-2F330
88718-2F490
88718-2F500
90091-20512
90091-20609
90091-20619
90099-00264
90099-04460
90099-14119
90099-14120
90099-14121
90105-T0193
90179-06115
90179-06274
91515-60645
91553-80616
91553-80622
91553-80625
91553-80814
91673-80618
Linked diagrams
1703
8714
8719
