KDH201V-RBPDY (2013)
Toyota Hiace/Regiusace
(1312- )GDH20#..5D..03S ; (1312- )KDH223,TRH214,219,223,228..4D ; (1312- )
ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

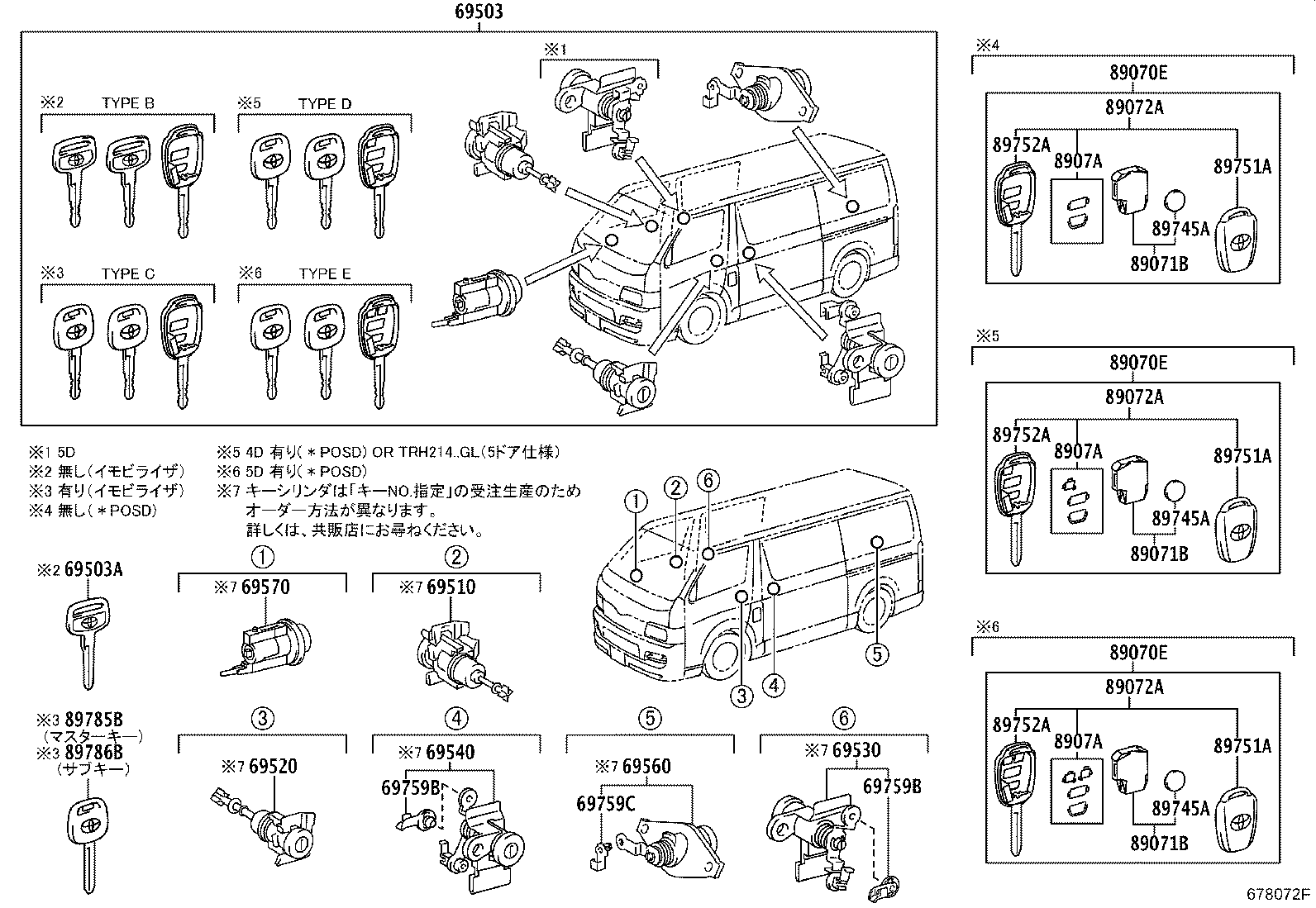

| 69503 - CYLINDER SET, LOCK | ||||
| 69005-26573 |
TRH224..CBU;KDH20#,22#,TRH200,214,219,221,223,226,228,229..4D ﾀｲﾌﾟ C |
1 | ||
| 69005-26573 |
KDH20#..SP 冷凍ﾊﾞﾝ&ﾄﾞｱｱｳﾄｻｲﾄﾞﾊﾝﾄﾞﾙ−ﾌﾞﾗｯｸ(ｷｰｼﾘﾝﾀﾞ:全ﾄﾞｱ),ﾀｲﾌﾟ C |
1 | ||
| 69005-26573 |
KDH20#..V1..SP 現金輸送車&ﾄﾞｱｱｳﾄｻｲﾄﾞﾊﾝﾄﾞﾙ−ﾌﾞﾗｯｸ(ｷｰｼﾘﾝﾀﾞ:全ﾄﾞｱ),ﾀｲﾌﾟ C |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-26030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 69520-26030 |
GDH20#,KDH20#..V1..SP 現金輸送車&ﾄﾞｱｱｳﾄｻｲﾄﾞﾊﾝﾄﾞﾙ−ﾌﾞﾗｯｸ(ｷｰｼﾘﾝﾀﾞ:全ﾄﾞｱ) |
1 | ||
| 69520-26030 |
GDH20#,KDH20#..SP 冷凍ﾊﾞﾝ&ﾄﾞｱｱｳﾄｻｲﾄﾞﾊﾝﾄﾞﾙ−ﾌﾞﾗｯｸ(ｷｰｼﾘﾝﾀﾞ:全ﾄﾞｱ) |
1 | ||
| 69540 - CYLINDER ASSY, SLIDE DOOR LOCK, LH | ||||
| 69540-26061 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 69560 - CYLINDER ASSY, BACK DOOR LOCK | ||||
| 69560-26060 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-33120 |
GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX |
1 | ||
| 69759B - SNAP, REAR DOOR LOCK CYLINDER | ||||
| 69759-32090 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 左側 |
1 | ||
| 69759B - SNAP, REAR DOOR LOCK CYLINDER | ||||
| 69759-32090 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 左側 |
1 | ||
| 69759C - SNAP, BACK DOOR LOCK CYLINDER | ||||
| 69759-24090 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-26750 |
GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-26750 |
GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-26750 |
GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-12290 |
TRH224..CBU;TRH200..5D..4FC;KDH20#,211,22#,TRH211,216..4FC,5F;TRH200,214,219,221,223,226,228,229..4D |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-12290 |
TRH224..CBU;TRH200..5D..4FC;KDH20#,211,22#,TRH211,216..4FC,5F;TRH200,214,219,221,223,226,228,229..4D |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-12290 |
TRH224..CBU;TRH200..5D..4FC;KDH20#,211,22#,TRH211,216..4FC,5F;TRH200,214,219,221,223,226,228,229..4D |
1 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-42400 |
GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX |
1 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-42400 |
GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX |
1 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-42400 |
GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX |
1 | ||
| 8907A - SWITCH SET, TRANSMITTER | ||||
| 8907A-52010 |
TRH224..CBU;TRH200..5D..4FC;KDH20#,211,22#,TRH211,216..4FC,5F;TRH200,214,219,221,223,226,228,229..4D |
1 | ||
| 8907A - SWITCH SET, TRANSMITTER | ||||
| 8907A-52010 |
TRH224..CBU;TRH200..5D..4FC;KDH20#,211,22#,TRH211,216..4FC,5F;TRH200,214,219,221,223,226,228,229..4D |
1 | ||
| 8907A - SWITCH SET, TRANSMITTER | ||||
| 8907A-52010 |
TRH224..CBU;TRH200..5D..4FC;KDH20#,211,22#,TRH211,216..4FC,5F;TRH200,214,219,221,223,226,228,229..4D |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-48030 |
TRH200,214,219..4D;TRH200,211,216..5D..4FC;GDH20#,211,22#,KDH20#,211,22#,TRH22# CR2016 |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-48030 |
TRH200,214,219..4D;TRH200,211,216..5D..4FC;GDH20#,211,22#,KDH20#,211,22#,TRH22# CR2016 |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-48030 |
TRH200,214,219..4D;TRH200,211,216..5D..4FC;GDH20#,211,22#,KDH20#,211,22#,TRH22# CR2016 |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-42090 |
TRH200..5D..4FC;TRH200,214,219,22#..4D;KDH20#,211,22#,TRH211,216..4FC,5F |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-42090 |
TRH200..5D..4FC;TRH200,214,219,22#..4D;KDH20#,211,22#,TRH211,216..4FC,5F |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-42090 |
TRH200..5D..4FC;TRH200,214,219,22#..4D;KDH20#,211,22#,TRH211,216..4FC,5F |
1 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-42050 |
GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX |
1 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-42050 |
GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX |
1 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-42050 |
GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-42040 |
KDH20#,211,22#,TRH200,21#,22# ﾌﾞﾗﾝｸｷｰ |
1 | ||
