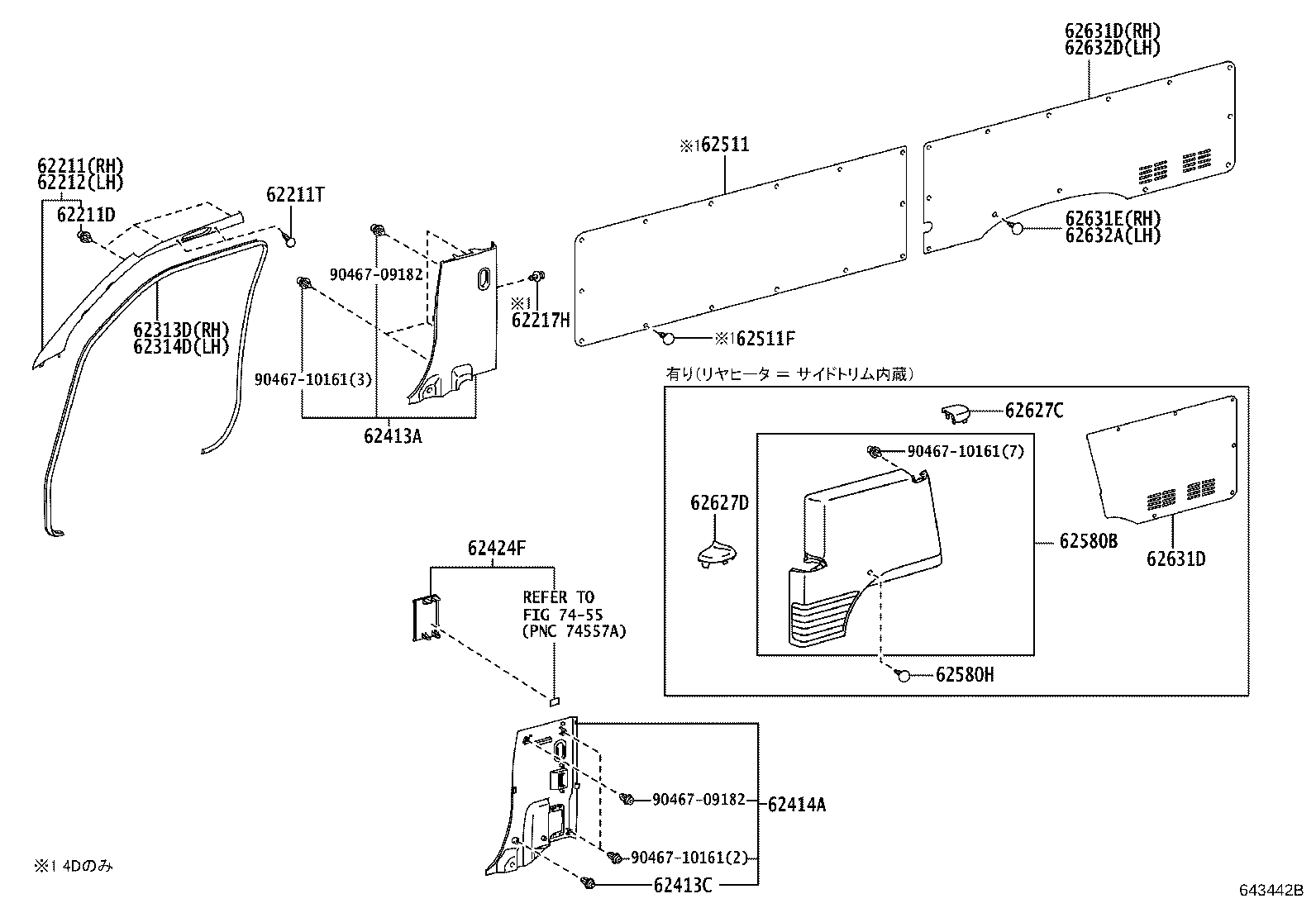

KDH201V-RBPDY (2013)
Toyota Hiace/Regiusace
(1312- )03S..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-26041B0 |
GDH20#,KDH20#..SRF..DX;TRH200..SRF..(4FC,6FC)..DX LT.GRAY,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-10161 |
KDH20#,TRH200..SRF..DX |
6 | ||
| 90467-09236 |
KDH20#,TRH200..SRF..DX |
6 | ||
| 67771-28150 |
TRH200..SRF..6FC..DX;GDH20#,KDH20#..SRF..DX |
6 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-06177B5 |
GDH20#,KDH20#..SRF..DX;TRH200..SRF..(4FC,6FC)..DX LT.GRAY,TRIM1# |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-26021B0 |
GDH20#,KDH20#..SRF..DX;TRH200..SRF..(4FC,6FC)..DX LT.GRAY,TRIM1# |
1 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 62489-26010B2 |
TRH200..4D..(4FC,6FC)..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-26010C0 |
GDH201,TRH214,219..DX..CBU;KDH223,TRH200,223,228..(4FC,6FC)..(DX,GL);GDH206,22#,KDH20#,221,TRH221,226..(03S,05S,06S,09S,14S)..(DX,GL) BLACK,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62314-26010C0 |
GDH201,TRH214,219..DX..CBU;KDH223,TRH200,223,228..(4FC,6FC)..(DX,GL);GDH206,22#,KDH20#,221,TRH221,226..(03S,05S,06S,09S,14S)..(DX,GL) BLACK,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-26160B0 |
TRH200..V1..4D..(4FC,6FC)..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 62413-26170B0 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 冷凍ﾊﾞﾝ,DK.GRAY,TRIM1# |
1 | ||
| 62413-26170B0 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 保冷ﾊﾞﾝ,DK.GRAY,TRIM1# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 75867-33030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67771-28150 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-26220B0 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 冷凍ﾊﾞﾝ,DK.GRAY,TRIM1# |
1 | ||
| 62414-26220B0 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 保冷ﾊﾞﾝ,DK.GRAY,TRIM1# |
1 | ||
| 62414-26310B2 |
GDH201,KDH201..V1..SP;GDH206,KDH206..DX..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..DX..CBU;GDH201,221,226,KDH201,221,TRH221,226..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 62414-26210B0 |
GDH201,KDH201..V1..SP;GDH206,KDH206..DX..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..DX..CBU;GDH201,221,226,KDH201,221,TRH221,226..SG..DX..CBU DK.GRAY,TRIM1# |
1 | ||
| 62424F - COVER, CENTER PILLAR GARNISH, LOWER LH | ||||
| 62424-26032B0 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 62424-26031B0 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62511-26200 |
KDH20#,TRH200..V1..SP..(4FC,5F) 保冷ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 62511-26200 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 冷凍ﾊﾞﾝ |
1 | ||
| 62511-26200 |
KDH201..HRF..4D..5F;TRH200..V1..4D..03S..6FC..CBU;TRH200,221,226..V1..4D..4FC..CBU;GDH20#,221,226,KDH20#,TRH221,226..V1..4D..(02S,03S)..(CBU,IV6,IV7) |
1 | ||
| 62511-26200 |
KDH20#,TRH200..V1..SP..(4FC,5F) 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 62511-26200 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 保冷ﾊﾞﾝ |
1 | ||
| 62511-26331 |
TRH200..V1..4D..(4FC,6FC)..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..4D..(CBU,IV6,IV7) ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-26230E0 |
KDH201..HRF..4D..5F;TRH200..V1..4D..4FC..CBU;GDH221,226,KDH221,TRH221,226;GDH20#,KDH20#..V1..4D..(03S,09S)..CBU;TRH200..V1..4D..(03S,09S)..(5F,6FC)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
KDH201..HRF..4D..5F;TRH200..V1..4D..4FC..CBU;GDH221,226,KDH221,TRH221,226;GDH20#,KDH20#..V1..4D..(03S,09S)..CBU;TRH200..V1..4D..(03S,09S)..(5F,6FC)..CBU CREAM YELLOW,TRIM1# |
14 | ||
| 67771-26230E0 |
KDH20#,TRH200..V1..SP..(4FC,5F) 冷凍ﾊﾞﾝ&寒冷地仕様,CREAM YELLOW,TRIM1# |
14 | ||
| 67771-26230E0 |
GDH20#,KDH20#,TRH200..V1..SP 保冷ﾊﾞﾝ,CREAM YELLOW,TRIM1# |
14 | ||
| 67771-26230E0 |
GDH20#,KDH20#,TRH200..V1..SP 冷凍ﾊﾞﾝ,CREAM YELLOW,TRIM1# |
14 | ||
| 67771-26230E0 |
KDH20#,TRH200..V1..SP..(4FC,5F) 保冷ﾊﾞﾝ&寒冷地仕様,CREAM YELLOW,TRIM1# |
14 | ||
| 62580B - BOARD ASSY, SIDE HEATER COVER, RH | ||||
| 62580-26160B0 |
GDH20#,KDH20#..V1..4D..CBU;TRH200..V1..4D..(4FC,6FC)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 62580H - RETAINER, SIDE HEATER COVER, RH | ||||
| 67771-26230B2 |
GDH206,KDH206..DX..CBU;GDH201,KDH201,TRH200..V1..SP;GDH201,221,226,KDH201,221,TRH200,221,226..SG..DX..(CBU,IV6,IV7) ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 62627C - COVER, SIDE TRIM, NO.1 | ||||
| 62627-26060B0 |
TRH200..09S..4FC;GDH201,KDH201..V1..SP;TRH200..V1..SP..(4FC,6FC);GDH206,KDH206..(03S,06S)..CBU;GDH201,KDH201..SG..(03S,06S)..CBU;TRH200..SG..(03S,06S)..(4FC,6FC)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 62627D - COVER, SIDE TRIM, RH | ||||
| 62627-26070B0 |
KDH201..HRF..4D..5F;TRH200..V1..4D..4FC..CBU;TRH200..V1..4D..03S..6FC..CBU;GDH20#,KDH20#..V1..4D..03S..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 62631D - BOARD, QUARTER TRIM, REAR RH | ||||
| 62631-26230 |
KDH20#,TRH200..V1..SP..(4FC,5F) 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 62631-26230 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 冷凍ﾊﾞﾝ |
1 | ||
| 62631-26230 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 保冷ﾊﾞﾝ |
1 | ||
| 62631-26230 |
KDH20#,TRH200..V1..SP..(4FC,5F) 保冷ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 62631-26230 |
KDH201..HRF..4D..5F;TRH200..V1..5D..6FC..DX;GDH20#,KDH20#..V1..5D..DX;TRH200..V1..4D..03S..6FC..CBU;GDH20#,KDH20#..V1..4D..03S..CBU;TRH200..V1..(03S,06S)..4FC..CBU |
1 | ||
| 62631-26250 |
GDH20#,KDH20#..V1..(03S,06S)..CBU;TRH200..V1..(03S,06S)..(4FC,6FC)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 62631D - BOARD, QUARTER TRIM, REAR RH | ||||
| 62631-26230 |
KDH20#,TRH200..V1..SP..(4FC,5F) 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 62631-26230 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 冷凍ﾊﾞﾝ |
1 | ||
| 62631-26230 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 保冷ﾊﾞﾝ |
1 | ||
| 62631-26230 |
KDH20#,TRH200..V1..SP..(4FC,5F) 保冷ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 62631-26230 |
KDH201..HRF..4D..5F;TRH200..V1..5D..6FC..DX;GDH20#,KDH20#..V1..5D..DX;TRH200..V1..4D..03S..6FC..CBU;GDH20#,KDH20#..V1..4D..03S..CBU;TRH200..V1..(03S,06S)..4FC..CBU |
1 | ||
| 62631-26250 |
GDH20#,KDH20#..V1..(03S,06S)..CBU;TRH200..V1..(03S,06S)..(4FC,6FC)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 62631E - RETAINER, QUATER TRIM | ||||
| 67771-26230E0 |
KDH201..V1..HRF..5F;TRH200..V1..SP..4FC;TRH200..SG..4FC..DX..CBU;GDH20#,KDH20#..V1..(03S,09S)..CBU;TRH200..V1..(03S,09S)..(5F,6FC)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),CREAM YELLOW,TRIM1# |
6 | ||
| 67771-26230E0 |
GDH20#,KDH20#,TRH200..V1..SP 保冷ﾊﾞﾝ,CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
KDH20#,TRH200..V1..SP..(4FC,5F) 保冷ﾊﾞﾝ&寒冷地仕様,CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
GDH20#,KDH20#,TRH200..V1..SP 冷凍ﾊﾞﾝ,CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
KDH20#,TRH200..V1..SP..(4FC,5F) 冷凍ﾊﾞﾝ&寒冷地仕様,CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
KDH201..V1..HRF..5F;TRH200..V1..SP..4FC;TRH200..SG..4FC..DX..CBU;GDH20#,KDH20#..V1..(03S,09S)..CBU;TRH200..V1..(03S,09S)..(5F,6FC)..CBU CREAM YELLOW,TRIM1# |
13 | ||
| 62632A - RETAINER(FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-26230E0 |
KDH20#,TRH200..V1..SP..(4FC,5F) 冷凍ﾊﾞﾝ&寒冷地仕様,CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
GDH20#,KDH20#,TRH200..V1..SP 冷凍ﾊﾞﾝ,CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
KDH20#,TRH200..V1..SP..(4FC,5F) 保冷ﾊﾞﾝ&寒冷地仕様,CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
KDH201..V1..HRF..5F;TRH200..V1..SP..4FC;TRH200..SG..4FC..DX..CBU;GDH20#,KDH20#..V1..(03S,09S)..CBU;TRH200..V1..(03S,09S)..(5F,6FC)..CBU CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
GDH20#,KDH20#,TRH200..V1..SP 保冷ﾊﾞﾝ,CREAM YELLOW,TRIM1# |
13 | ||
| 62632D - BOARD, QUARTER TRIM, REAR LH | ||||
| 62632-26300 |
KDH201..V1..HRF..5F;TRH200..V1..03S..6FC..CBU;GDH20#,KDH20#..V1..03S..CBU;TRH200..V1..(03S,06S)..4FC..CBU |
1 | ||
| 62632-26300 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 冷凍ﾊﾞﾝ |
1 | ||
| 62632-26300 |
KDH20#,TRH200..V1..SP..(4FC,5F) 保冷ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 62632-26300 |
KDH20#,TRH200..V1..SP..(4FC,5F) 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 62632-26300 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 保冷ﾊﾞﾝ |
1 | ||
| Common parts | ||||
| 90467-09182 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 7455 | ||||

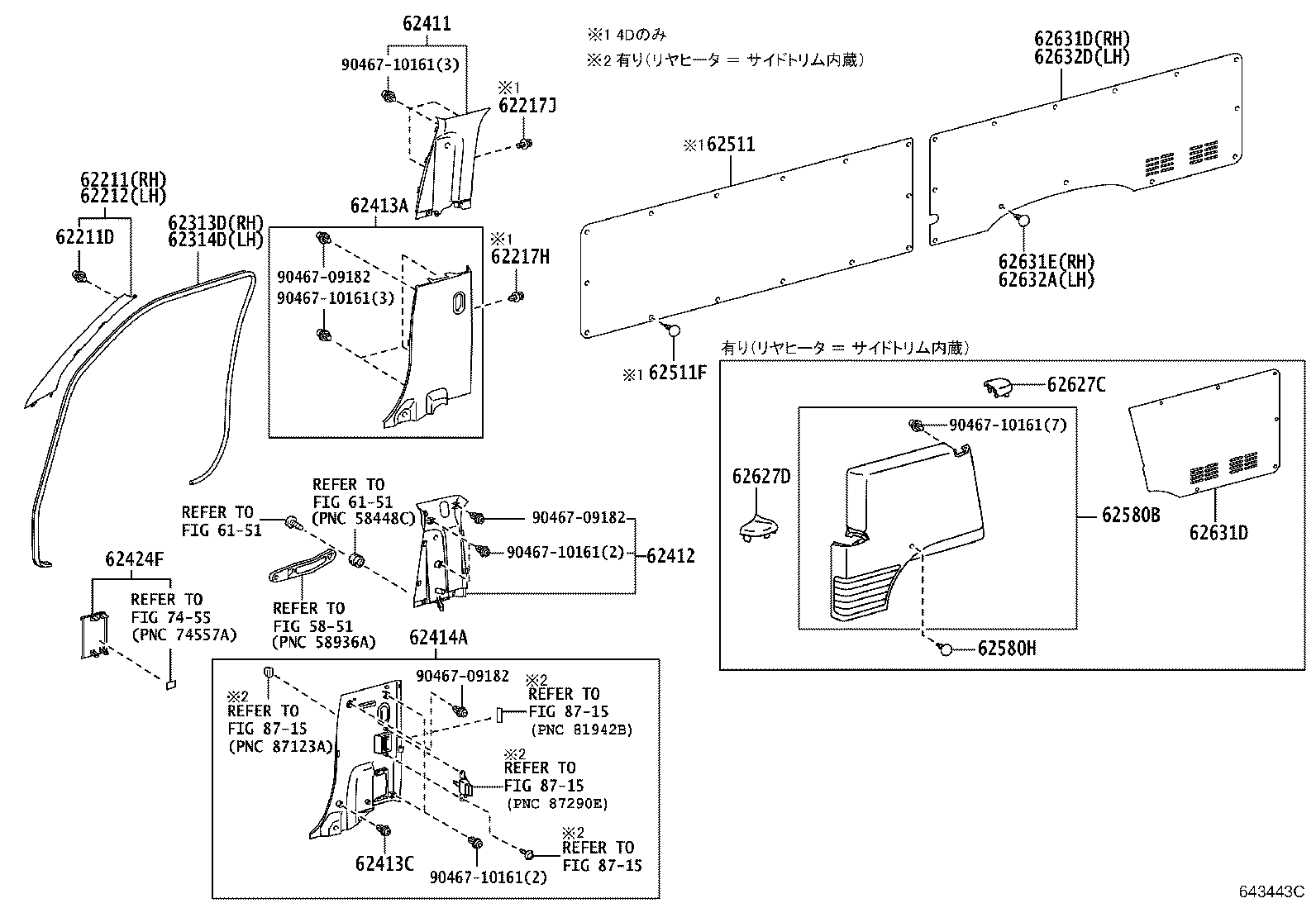

(1312- )03S..CBU
ｱﾘ(ﾃﾞｭｱﾙｴｱｺﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-26041B0 |
GDH20#,KDH20#..SRF..DX;TRH200..SRF..(4FC,6FC)..DX LT.GRAY,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-10161 |
KDH20#,TRH200..SRF..DX |
6 | ||
| 90467-09236 |
KDH20#,TRH200..SRF..DX |
6 | ||
| 67771-28150 |
TRH200..SRF..6FC..DX;GDH20#,KDH20#..SRF..DX |
6 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-26021B0 |
GDH20#,KDH20#..SRF..DX;TRH200..SRF..(4FC,6FC)..DX LT.GRAY,TRIM1# |
1 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 62489-26010B2 |
TRH200..4D..(4FC,6FC)..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-26010C0 |
GDH201,TRH214,219..DX..CBU;KDH223,TRH200,223,228..(4FC,6FC)..(DX,GL);GDH206,22#,KDH20#,221,TRH221,226..(03S,05S,06S,09S,14S)..(DX,GL) BLACK,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62314-26010C0 |
GDH201,TRH214,219..DX..CBU;KDH223,TRH200,223,228..(4FC,6FC)..(DX,GL);GDH206,22#,KDH20#,221,TRH221,226..(03S,05S,06S,09S,14S)..(DX,GL) BLACK,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-26160B0 |
TRH200..V1..4D..(4FC,6FC)..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 62413-26170B0 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 冷凍ﾊﾞﾝ,DK.GRAY,TRIM1# |
1 | ||
| 62413-26170B0 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 保冷ﾊﾞﾝ,DK.GRAY,TRIM1# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 75867-33030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67771-28150 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-26220B0 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 冷凍ﾊﾞﾝ,DK.GRAY,TRIM1# |
1 | ||
| 62414-26220B0 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 保冷ﾊﾞﾝ,DK.GRAY,TRIM1# |
1 | ||
| 62414-26310B2 |
GDH201,KDH201..V1..SP;GDH206,KDH206..DX..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..DX..CBU;GDH201,221,226,KDH201,221,TRH221,226..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 62414-26210B0 |
GDH201,KDH201..V1..SP;GDH206,KDH206..DX..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..DX..CBU;GDH201,221,226,KDH201,221,TRH221,226..SG..DX..CBU DK.GRAY,TRIM1# |
1 | ||
| 62424F - COVER, CENTER PILLAR GARNISH, LOWER LH | ||||
| 62424-26032B0 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 62424-26031B0 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62511-26200 |
KDH20#,TRH200..V1..SP..(4FC,5F) 保冷ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 62511-26200 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 冷凍ﾊﾞﾝ |
1 | ||
| 62511-26200 |
KDH201..HRF..4D..5F;TRH200..V1..4D..03S..6FC..CBU;TRH200,221,226..V1..4D..4FC..CBU;GDH20#,221,226,KDH20#,TRH221,226..V1..4D..(02S,03S)..(CBU,IV6,IV7) |
1 | ||
| 62511-26200 |
KDH20#,TRH200..V1..SP..(4FC,5F) 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 62511-26200 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 保冷ﾊﾞﾝ |
1 | ||
| 62511-26331 |
TRH200..V1..4D..(4FC,6FC)..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..4D..(CBU,IV6,IV7) ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-26230E0 |
KDH201..HRF..4D..5F;TRH200..V1..4D..4FC..CBU;GDH221,226,KDH221,TRH221,226;GDH20#,KDH20#..V1..4D..(03S,09S)..CBU;TRH200..V1..4D..(03S,09S)..(5F,6FC)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
KDH201..HRF..4D..5F;TRH200..V1..4D..4FC..CBU;GDH221,226,KDH221,TRH221,226;GDH20#,KDH20#..V1..4D..(03S,09S)..CBU;TRH200..V1..4D..(03S,09S)..(5F,6FC)..CBU CREAM YELLOW,TRIM1# |
14 | ||
| 67771-26230E0 |
KDH20#,TRH200..V1..SP..(4FC,5F) 冷凍ﾊﾞﾝ&寒冷地仕様,CREAM YELLOW,TRIM1# |
14 | ||
| 67771-26230E0 |
GDH20#,KDH20#,TRH200..V1..SP 保冷ﾊﾞﾝ,CREAM YELLOW,TRIM1# |
14 | ||
| 67771-26230E0 |
GDH20#,KDH20#,TRH200..V1..SP 冷凍ﾊﾞﾝ,CREAM YELLOW,TRIM1# |
14 | ||
| 67771-26230E0 |
KDH20#,TRH200..V1..SP..(4FC,5F) 保冷ﾊﾞﾝ&寒冷地仕様,CREAM YELLOW,TRIM1# |
14 | ||
| 62580B - BOARD ASSY, SIDE HEATER COVER, RH | ||||
| 62580-26160B0 |
GDH20#,KDH20#..V1..4D..CBU;TRH200..V1..4D..(4FC,6FC)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 62580H - RETAINER, SIDE HEATER COVER, RH | ||||
| 67771-26230B2 |
GDH206,KDH206..DX..CBU;GDH201,KDH201,TRH200..V1..SP;GDH201,221,226,KDH201,221,TRH200,221,226..SG..DX..(CBU,IV6,IV7) ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 62627C - COVER, SIDE TRIM, NO.1 | ||||
| 62627-26060B0 |
TRH200..09S..4FC;GDH201,KDH201..V1..SP;TRH200..V1..SP..(4FC,6FC);GDH206,KDH206..(03S,06S)..CBU;GDH201,KDH201..SG..(03S,06S)..CBU;TRH200..SG..(03S,06S)..(4FC,6FC)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 62627D - COVER, SIDE TRIM, RH | ||||
| 62627-26070B0 |
KDH201..HRF..4D..5F;TRH200..V1..4D..4FC..CBU;TRH200..V1..4D..03S..6FC..CBU;GDH20#,KDH20#..V1..4D..03S..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 62631D - BOARD, QUARTER TRIM, REAR RH | ||||
| 62631-26230 |
KDH20#,TRH200..V1..SP..(4FC,5F) 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 62631-26230 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 冷凍ﾊﾞﾝ |
1 | ||
| 62631-26230 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 保冷ﾊﾞﾝ |
1 | ||
| 62631-26230 |
KDH20#,TRH200..V1..SP..(4FC,5F) 保冷ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 62631-26230 |
KDH201..HRF..4D..5F;TRH200..V1..5D..6FC..DX;GDH20#,KDH20#..V1..5D..DX;TRH200..V1..4D..03S..6FC..CBU;GDH20#,KDH20#..V1..4D..03S..CBU;TRH200..V1..(03S,06S)..4FC..CBU |
1 | ||
| 62631-26250 |
GDH20#,KDH20#..V1..(03S,06S)..CBU;TRH200..V1..(03S,06S)..(4FC,6FC)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 62631D - BOARD, QUARTER TRIM, REAR RH | ||||
| 62631-26230 |
KDH20#,TRH200..V1..SP..(4FC,5F) 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 62631-26230 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 冷凍ﾊﾞﾝ |
1 | ||
| 62631-26230 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 保冷ﾊﾞﾝ |
1 | ||
| 62631-26230 |
KDH20#,TRH200..V1..SP..(4FC,5F) 保冷ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 62631-26230 |
KDH201..HRF..4D..5F;TRH200..V1..5D..6FC..DX;GDH20#,KDH20#..V1..5D..DX;TRH200..V1..4D..03S..6FC..CBU;GDH20#,KDH20#..V1..4D..03S..CBU;TRH200..V1..(03S,06S)..4FC..CBU |
1 | ||
| 62631-26250 |
GDH20#,KDH20#..V1..(03S,06S)..CBU;TRH200..V1..(03S,06S)..(4FC,6FC)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 62631E - RETAINER, QUATER TRIM | ||||
| 67771-26230E0 |
KDH201..V1..HRF..5F;TRH200..V1..SP..4FC;TRH200..SG..4FC..DX..CBU;GDH20#,KDH20#..V1..(03S,09S)..CBU;TRH200..V1..(03S,09S)..(5F,6FC)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),CREAM YELLOW,TRIM1# |
6 | ||
| 67771-26230E0 |
GDH20#,KDH20#,TRH200..V1..SP 保冷ﾊﾞﾝ,CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
KDH20#,TRH200..V1..SP..(4FC,5F) 保冷ﾊﾞﾝ&寒冷地仕様,CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
GDH20#,KDH20#,TRH200..V1..SP 冷凍ﾊﾞﾝ,CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
KDH20#,TRH200..V1..SP..(4FC,5F) 冷凍ﾊﾞﾝ&寒冷地仕様,CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
KDH201..V1..HRF..5F;TRH200..V1..SP..4FC;TRH200..SG..4FC..DX..CBU;GDH20#,KDH20#..V1..(03S,09S)..CBU;TRH200..V1..(03S,09S)..(5F,6FC)..CBU CREAM YELLOW,TRIM1# |
13 | ||
| 62632A - RETAINER(FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-26230E0 |
KDH20#,TRH200..V1..SP..(4FC,5F) 冷凍ﾊﾞﾝ&寒冷地仕様,CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
GDH20#,KDH20#,TRH200..V1..SP 冷凍ﾊﾞﾝ,CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
KDH20#,TRH200..V1..SP..(4FC,5F) 保冷ﾊﾞﾝ&寒冷地仕様,CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
KDH201..V1..HRF..5F;TRH200..V1..SP..4FC;TRH200..SG..4FC..DX..CBU;GDH20#,KDH20#..V1..(03S,09S)..CBU;TRH200..V1..(03S,09S)..(5F,6FC)..CBU CREAM YELLOW,TRIM1# |
13 | ||
| 67771-26230E0 |
GDH20#,KDH20#,TRH200..V1..SP 保冷ﾊﾞﾝ,CREAM YELLOW,TRIM1# |
13 | ||
| 62632D - BOARD, QUARTER TRIM, REAR LH | ||||
| 62632-26300 |
KDH201..V1..HRF..5F;TRH200..V1..03S..6FC..CBU;GDH20#,KDH20#..V1..03S..CBU;TRH200..V1..(03S,06S)..4FC..CBU |
1 | ||
| 62632-26300 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 冷凍ﾊﾞﾝ |
1 | ||
| 62632-26300 |
KDH20#,TRH200..V1..SP..(4FC,5F) 保冷ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 62632-26300 |
KDH20#,TRH200..V1..SP..(4FC,5F) 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 62632-26300 |
GDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC) 保冷ﾊﾞﾝ |
1 | ||
| Common parts | ||||
| 90467-09182 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 6151 | ||||
| 7455 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
