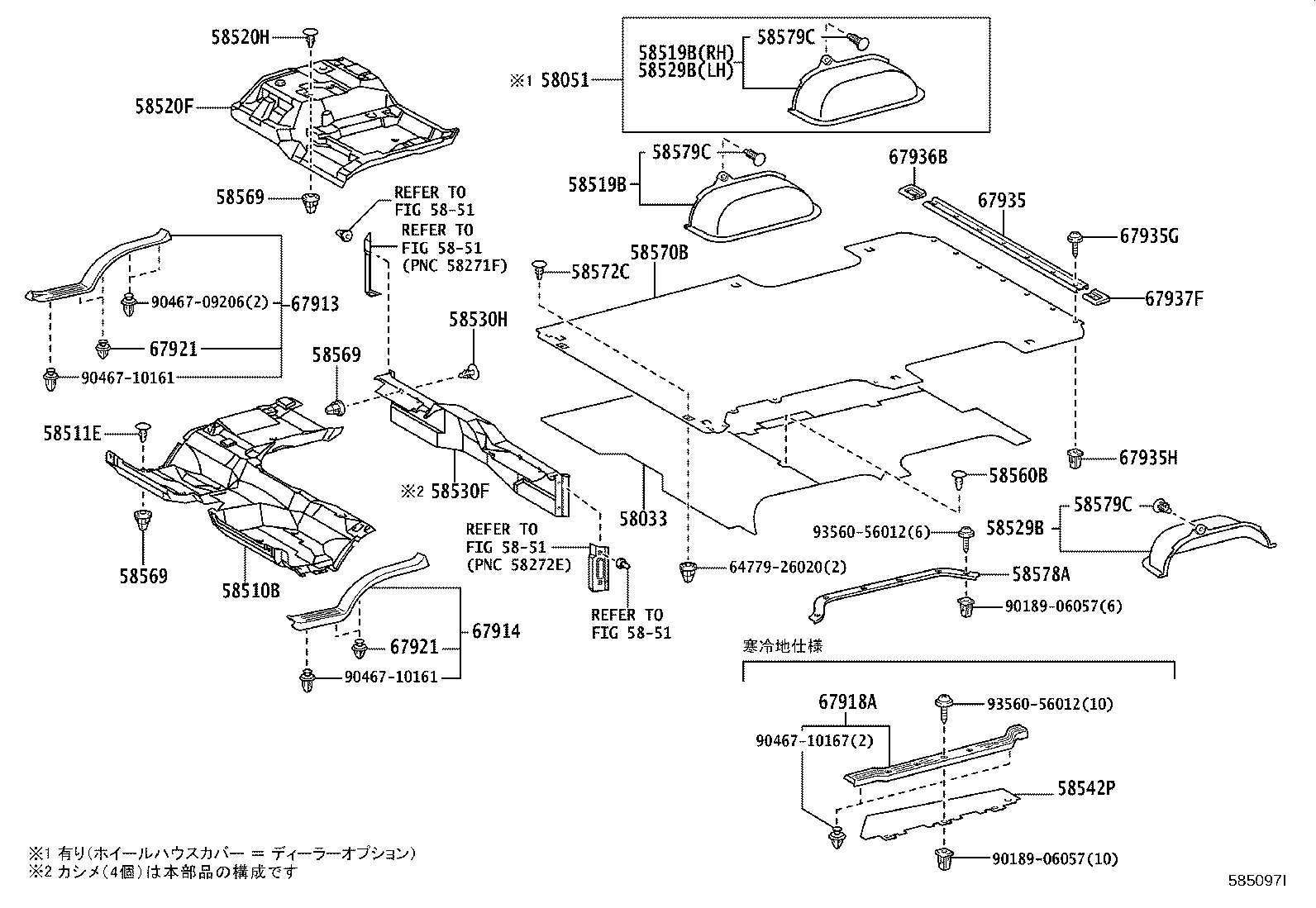

KDH201V-RBPDY (2013)
Toyota Hiace/Regiusace
(1312- )KDH20#..4D..03S..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58051 - MAT SET, FLOOR | ||||
| 58051-26260B2 |
TRH200..V1..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..DX..CBU ***,ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),DK.GRAY,TRIM1# |
1 | ||
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58510-26F90B0 |
KDH20#..4FC..DX..CBU DK.GRAY,TRIM1# |
1 | ||
| 58510-26Q30B0 |
KDH20#..4FC..DX..CBU DK.GRAY,TRIM1# |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 64726-26010B1 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
10 | ||
| 58519B - MAT, REAR WHEEL HOUSE, RH | ||||
| 58519-26410B2 |
TRH200..V1..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..DX..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),DK.GRAY,TRIM1# |
1 | ||
| 58519-26450B2 |
GDH20#,KDH20#..V1..DX..CBU;TRH200..V1..(4FC,6FC)..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 58519B - MAT, REAR WHEEL HOUSE, RH | ||||
| 58519-26410B2 |
TRH200..V1..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..DX..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),DK.GRAY,TRIM1# |
1 | ||
| 58519-26450B2 |
GDH20#,KDH20#..V1..DX..CBU;TRH200..V1..(4FC,6FC)..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 58520F - MAT ASSY, ENGINE COVER | ||||
| 58520-26312B2 |
KDH20#..DX..CBU;TRH200..(4FC,6FC)..DX..CBU DK.GRAY,TRIM1# |
1 | ||
| 58520H - CLIP(FOR ENGINE COVER MAT) | ||||
| 64726-26010B1 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
2 | ||
| 58529B - MAT, REAR WHEEL HOUSE, LH | ||||
| 58529-26320B2 |
TRH200..V1..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 58529-26320B2 |
TRH200..V1..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..DX..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),DK.GRAY,TRIM1# |
1 | ||
| 58529B - MAT, REAR WHEEL HOUSE, LH | ||||
| 58529-26320B2 |
TRH200..V1..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 58529-26320B2 |
TRH200..V1..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..DX..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),DK.GRAY,TRIM1# |
1 | ||
| 58530F - MAT ASSY, HEADER | ||||
| 58530-26G10B2 |
KDH20#..V1..SP DK.GRAY,TRIM1# |
1 | ||
| 58530-26S00B0 |
KDH20#..V1..SP DK.GRAY,TRIM1# |
1 | ||
| 58530H - CLIP(FOR HEADER MAT & HEADER CARPET) | ||||
| 64726-26010B1 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
9 | ||
| 58542P - MAT, STEP, LH | ||||
| 58542-26050B2 |
TRH200..V1..SP..(4FC,6FC);GDH20#,KDH20#..V1..03S..CBU;GDH226,TRH200,221,226..SG..(4FC,6FC)..DX..CBU 寒冷地仕様,DK.GRAY,TRIM1# |
1 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 58578A - PLATE, REAR FLOOR MAT SUPPORT SIDE, LH | ||||
| 58578-26040B1 |
TRH200..V1..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..DX..CBU DK.GRAY,TRIM1# |
1 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-10034C0 |
TRH200..V1..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),BLACK |
2 | ||
| 90467-10034C0 |
TRH200..V1..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..DX..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),BLACK |
2 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-10034C0 |
TRH200..V1..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),BLACK |
2 | ||
| 90467-10034C0 |
TRH200..V1..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..DX..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),BLACK |
2 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-10034C0 |
TRH200..V1..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),BLACK |
2 | ||
| 90467-10034C0 |
TRH200..V1..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..V1..DX..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),BLACK |
2 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-26082B1 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-26062B1 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-26160B1 |
GDH201,KDH201..V1..SP;GDH206,KDH206..DX..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..DX..CBU;GDH201,221,226,KDH201,221,TRH221,226..SG..DX..CBU 寒冷地仕様,DK.GRAY,TRIM1# |
1 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26190 |
GDH20#,KDH20#..V1..DX..CBU;TRH200..V1..(4FC,6FC)..DX..CBU |
1 | ||
| 67935G - SCREW, BACK DOOR SCUFF PLATE | ||||
| 93560-56014 |
KDH20#,TRH200..V1..DX..CBU |
6 | ||
| 93560-56012 |
GDH20#,KDH20#..V1..DX..CBU;TRH200..V1..(4FC,6FC)..DX..CBU |
6 | ||
| 67935H - GROMMET, BACK DOOR SCUFF PLATE | ||||
| 90189-06057 |
GDH201,KDH201..V1..SP;GDH206,KDH206..DX..CBU;TRH200..V1..SP..(4FC,6FC);GDH201,KDH201..SG..DX..CBU;TRH200..SG..(4FC,6FC)..DX..CBU |
6 | ||
| 67936B - COVER, BACK DOOR SCUFF SIDE, RH | ||||
| 67936-26040B1 |
TRH200..V1..(4FC,6FC)..DX..CBU;GDH20#,22#,KDH20#,22#,TRH214,219,221,223,226,228..(COM,V1,WG)..DX..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 67937F - COVER, BACK DOOR SCUFF SIDE, LH | ||||
| 67937-26040B1 |
TRH200..V1..(4FC,6FC)..DX..CBU;GDH20#,22#,KDH20#,22#,TRH214,219,221,223,226,228..(COM,V1,WG)..DX..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 64779-26020 | ||||
| 90189-06057 | ||||
| 90467-09206 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 93560-56012 | ||||
| Linked diagrams | ||||
| 5851 | ||||
