KDH201V-RBPDY (2013)
Toyota Hiace/Regiusace

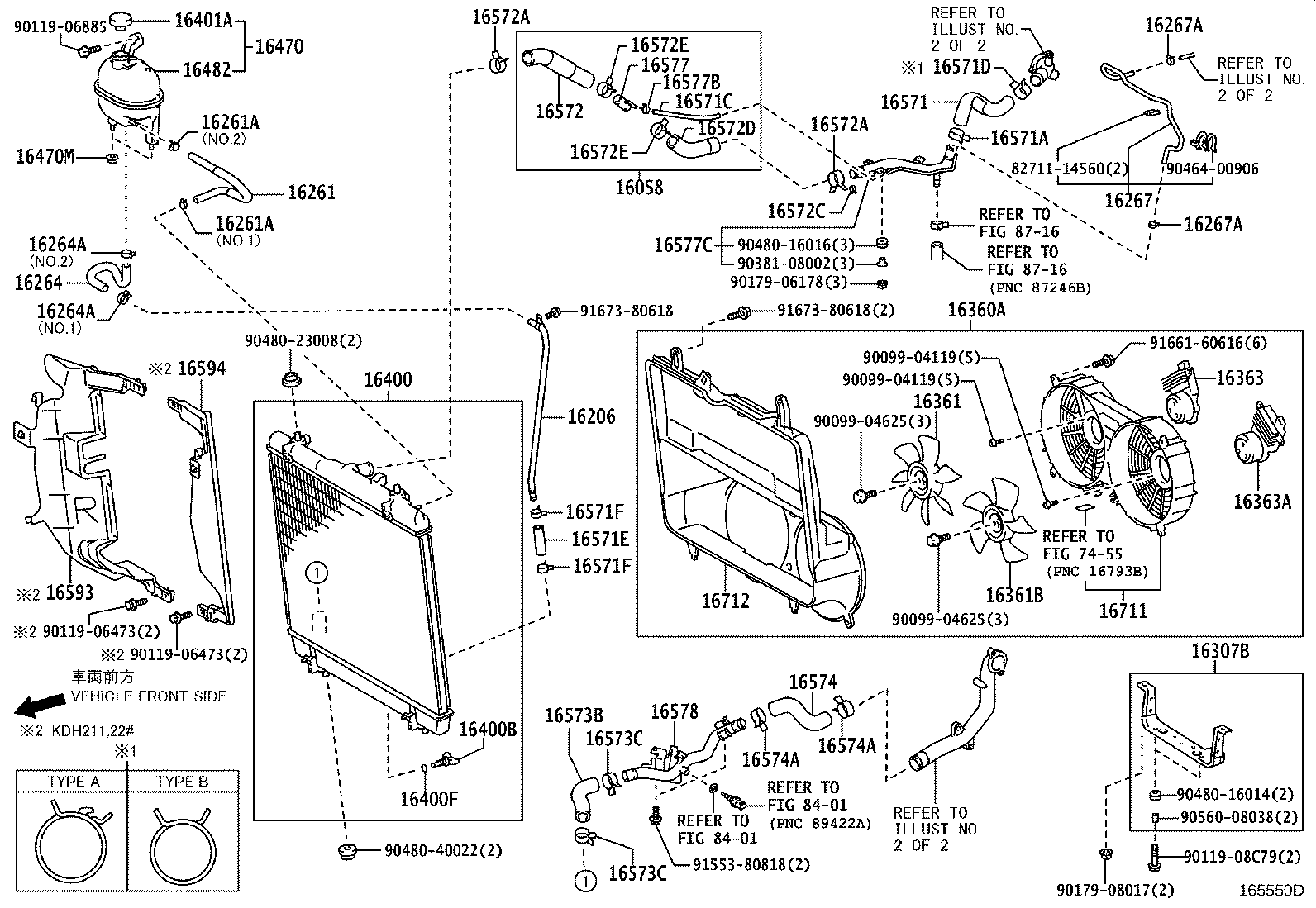

ILLUST NO. 1 OF 2(1312- )1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16058 - HOSE SUB-ASSY, RADIATOR, NO.2 | ||||
| 16058-30020 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-75010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75230 |
1KDFTV..KDH20# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1KDFTV..KDH20#,211,22# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96136-41501 |
1KDFTV..KDH20#,211,22# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1KDFTV..KDH20#,211,22# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96136-41501 |
1KDFTV..KDH20#,211,22# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75170 |
1KDFTV..KDH20# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42101 |
1KDFTV..KDH20#,211,22# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96138-42501 |
1KDFTV..KDH20#,211,22# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42501 |
1KDFTV..KDH20#,211,22# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42101 |
1KDFTV..KDH20#,211,22# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96138-42501 |
1KDFTV..KDH20#,211,22# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42501 |
1KDFTV..KDH20#,211,22# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30130 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-30023 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16360-30022 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16361 - FAN | ||||
| 16361-30060 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-30050 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-30041 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-30041 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-30280 |
1KDFTV..KDH20#,211,22#..4FC |
1 | ||
| 16400-30281 |
1KDFTV..KDH20#,211,22#..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-37011 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16475-37010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16475-28140 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16470-75123 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16470-75124 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 90480-14470 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-30070 |
1KDFTV..KDH201,211,22# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-54801 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 99555-10500 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54801 |
1KDFTV..KDH20#,211,22# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 16571E - HOSE, WATER | ||||
| 99555-20075 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-30110 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-54801 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-54801 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96136-41501 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-30090 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54301 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54301 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-30030 |
1KDFTV..KDH20# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-30010 |
1KDFTV..KDH201 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 96136-54801 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 96136-54801 |
1KDFTV..KDH20#,211,22# |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-30040 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 96136-41501 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-30021 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-30011 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-30081 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16711-30082 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75122 |
1KDFTV..KDH20#,211,22# |
1 | ||
| Common parts | ||||
| 82711-14560 | ||||
| 90099-04119 | ||||
| 90099-04625 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08017 | ||||
| 90381-08002 | ||||
| 90464-00906 | ||||
| 90480-16014 | ||||
| 90480-16016 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 90560-08038 | ||||
| 91553-80818 | ||||
| 91661-60616 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8401 | ||||
| 8716 | ||||

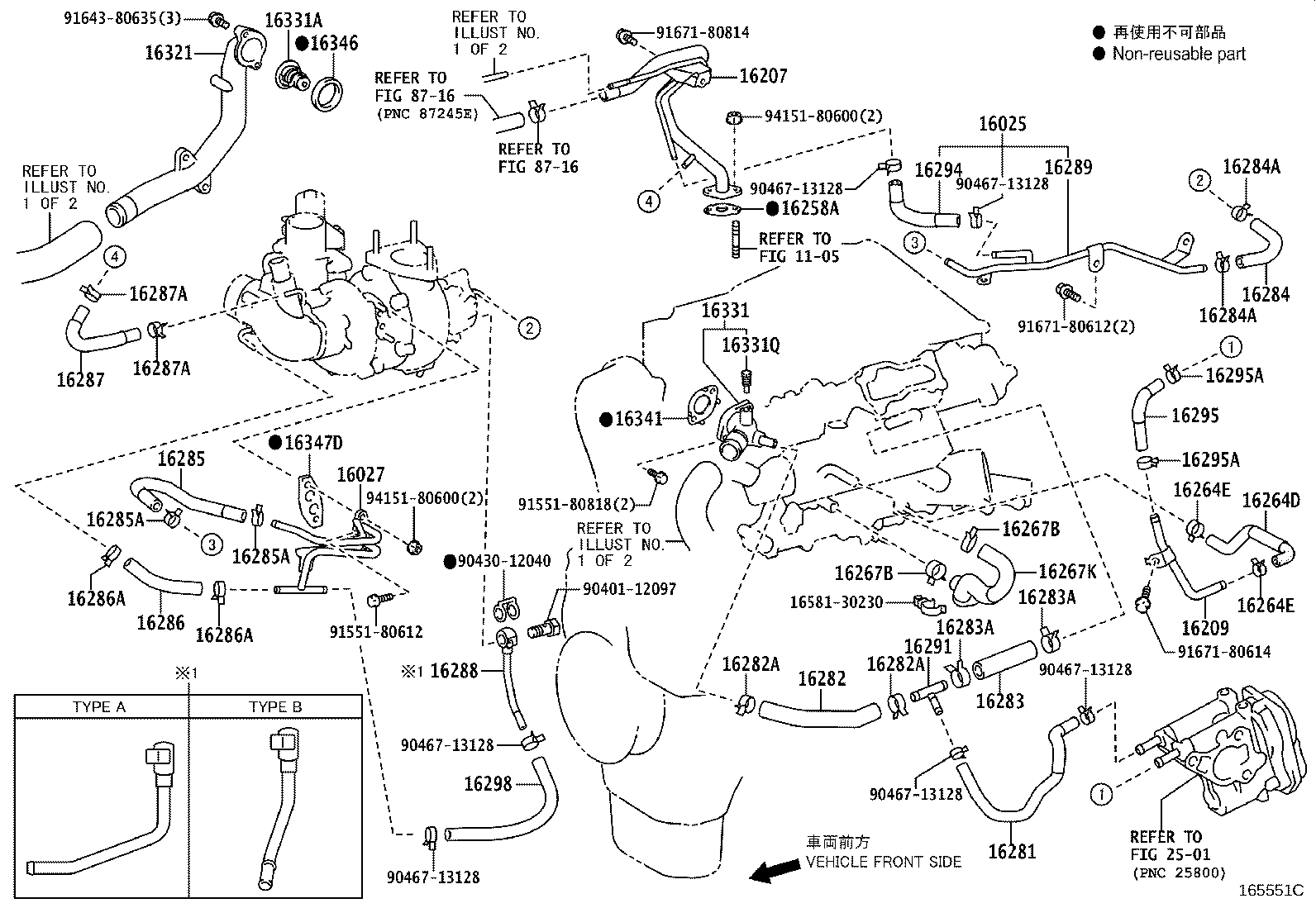

ILLUST NO. 2 OF 2(1312- )1KDFTV
