KDH201K-FRMDY (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

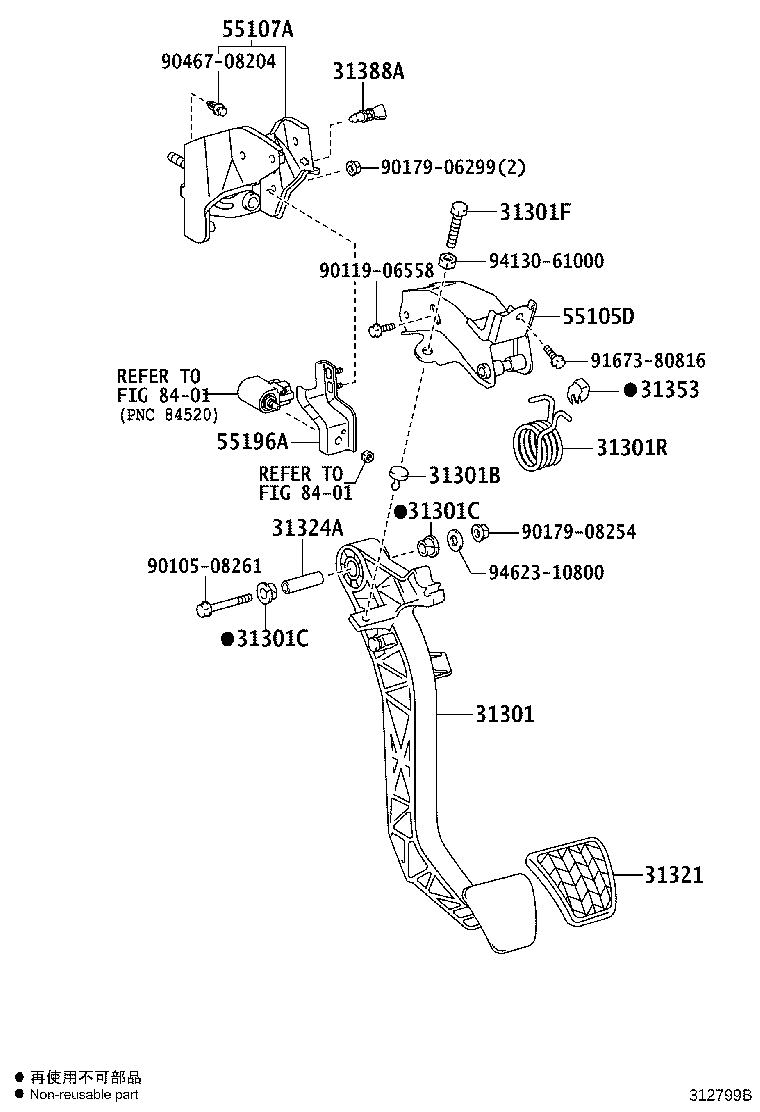

ILLUST NO. 1 OF 2(1312- )5F

Click highlighted areas on diagram

diagram 31301 31301B 31301C 31301C 31301F 31301R 31321 31324A 31353 31388A 55105D 55107A 55196A 8401 8401 9010508261 9011906558 9017906299 9017908254 9046708204 9167380816 9413061000 9462310800
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31311-26151

KDH20#,TRH200..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-14015

KDH20#,TRH200..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-14015

KDH20#,TRH200..5F

 2
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03127

KDH20#,TRH200..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

KDH20#,TRH200..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-08160

KDH20#,TRH200..5F

 1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-26010

KDH20#,TRH200..5F

 1
31388A - STOPPER, CLUTCH RELEASE SECTOR
31388-26010

KDH20#,TRH200..5F

 1
55105D - BRACKET SUB-ASSY, CLUTCH PEDAL
55105-26020

KDH20#,TRH200..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-26040

KDH20#,TRH200..5F

 1
55196A - BRACKET, CLUTCH START SWITCH MOUNTING
55196-26020

KDH20#,TRH200..5F

 1
Common parts
90105-08261
90119-06558
90179-06299
90179-08254
90467-08204
91673-80816
94130-61000
94623-10800
Linked diagrams
8401

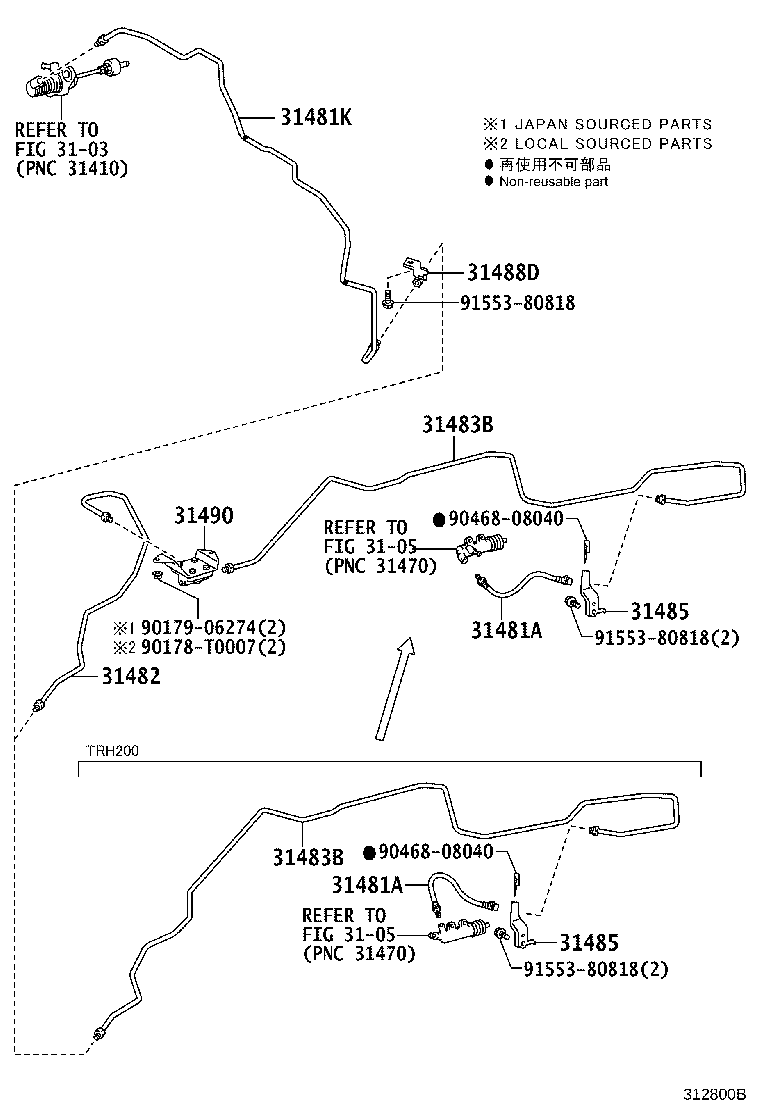

ILLUST NO. 2 OF 2(1312- )5F

Click highlighted areas on diagram

diagram 3103 3105 3105 31481A 31481A 31481K 31482 31483B 31483B 31485 31485 31488D 31490 90178T0007 9017906274 9046808040 9046808040 9155380818 9155380818 9155380818
Part # Description Qty Price
31481A - HOSE, CLUTCH, NO.1
90947-02D92

KDH20#..5F

 1
31481A - HOSE, CLUTCH, NO.1
90947-02D92

KDH20#..5F

 1
31481K - TUBE, MASTER CYLINDER TO TUBE CONNECTOR
31481-26310

KDH20#,TRH200..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26280

KDH20#..5F

 1
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-26010

KDH20#..5F

 1
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-26010

KDH20#..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-26130

KDH20#,TRH200..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-26130

KDH20#,TRH200..5F

 1
31488D - WAY, 2(FOR CLUTCH TUBE TO RELEASE CYLINDER)
90412-12063

KDH20#,TRH200..5F

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-26011

KDH20#..5F

 1
Common parts
90178-T0007
90179-06274
90468-08040
91553-80818
Linked diagrams
3103
3105
