KDH201K-FMMDY (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Nov 2017
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )KDH20#..5F

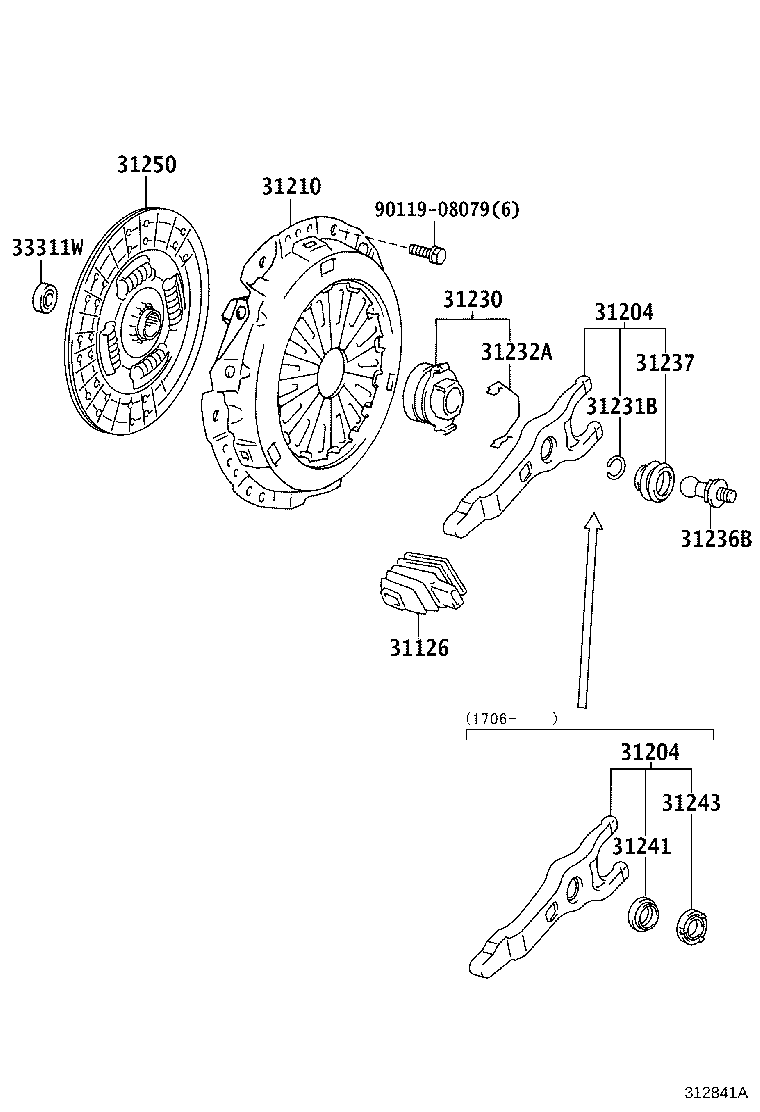

Click highlighted areas on diagram

diagram 31126 31204 31204 31210 31230 31231B 31232A 31236B 31237 31241 31243 31250 33311W 9011908079
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-60081

KDH20#..5F

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-35070

KDH20#..5F

 1
31204-35071

KDH20#..5F

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-35070

KDH20#..5F

 1
31204-35071

KDH20#..5F

 1
31210 - COVER ASSY, CLUTCH
31210-36350

KDH20#..5F

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-60221

KDH20#..5F

 1
31231B - RING, SNAP(FOR CLUTCH RELEASE HUB)
90521-22003

KDH20#..5F

 1
31232A - CLIP, RELEASE BEARING HUB
31232-60030

KDH20#..5F

TYPE B:ｲﾗｽﾄ参照

 1
31236B - SUPPORT, RELEASE FORK
31236-35050

KDH20#..5F

 1
31236-71011

KDH20#..5F

 1
31237 - BOOT, CLUTCH RELEASE FORK SUPPORT
31237-60010

KDH201..5F

 1
31241 - SEAL, CLUTCH RELEASE FORK DUST
31241-71010

KDH20#..5F

 1
31243 - COLLAR, CLUTCH RELEASE FORK
31243-0K010

KDH20#..5F

 1
31250 - DISC ASSY, CLUTCH
31250-26252

KDH20#..5F

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

KDH20#..5F

NACHI

 1
90363-T0006

KDH20#..5F

NSK

 1
Common parts
90119-08079
