KDH201K-ERPDY5 (2007)

Toyota Hiace/Regiusace

Production Sep 2007 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 5(0807- )KDH20#,TRH200..IV5

Click highlighted areas on diagram

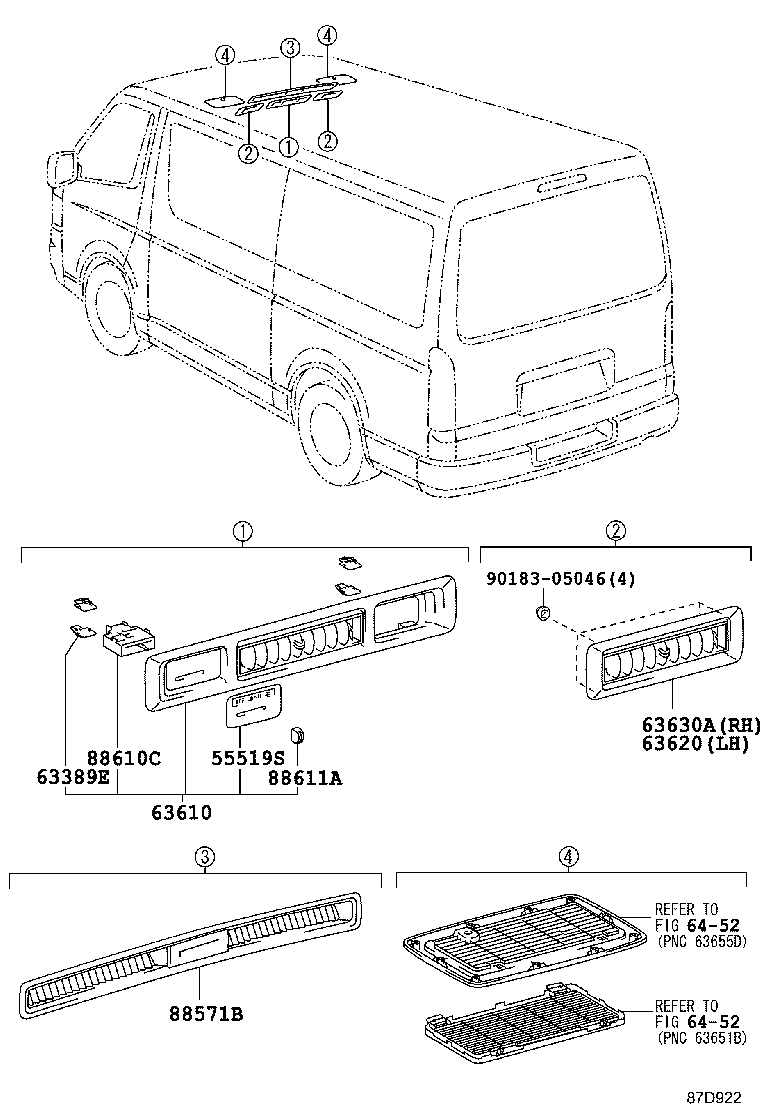

ﾘﾔｸｰﾗ ｺﾝﾄﾛｰﾙｽｲﾂﾁ & ｴｱｱｳﾄﾚﾂﾄ ﾚｼﾞｽﾀ

diagram 55519S 63389E 63610 63620 6452 6452 88571B 88610C 88611A 9018305046
Part # Description Qty Price
55519S - LABEL, REAR COOLER CONTROL INFORMATION
63697-26100

KDH20#,TRH200..IV5;KDH20#,211,222,223,227,TRH200,21#,22#..(HRF,SMRF,SRF)..(02S,05S,10S,15S)

 1
63389E - RETAINER, AIR OUTLET REGISTER
63389-26010

KDH20#,TRH200..IV5;KDH20#,211,222,223,227,TRH200,21#,22#..(HRF,SMRF,SRF)..(02S,05S,10S,15S)

 4
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63610-26070B1

TRH214,219..GL;KDH20#,TRH223,224,229..IV5;KDH20#,211,223,TRH211,216..05S,15S

LT.GRAY,TRIM1#

 1
63610-26070B0

KDH20#,TRH200..IV5;KDH20#,211,222,223,227,TRH200,21#,22#..(HRF,SMRF,SRF)..(02S,05S,10S,15S)

LT.GRAY,TRIM1#

 1
63620 - REGISTER ASSY, AIR OUTLET, NO.2
63620-26070B0

KDH20#,TRH200..IV5;KDH20#,211,222,223,227,TRH200,21#,22#..(HRF,SMRF,SRF)..(02S,05S,10S,15S)

LT.GRAY,TRIM1#

 2
88571B - GRILLE, AIR OUTLET
88571-26030B0

KDH20#,TRH200..IV5

LT.GRAY,TRIM1#

 1
88610C - SWITCH ASSY, COOLER CONTROL
88610-26090

KDH20#,TRH200..IV5;KDH20#,211,223,TRH200,21#,22#..(HRF,SMRF,SRF)..(02S,05S,10S,15S)

 1
88610-95J03

KDH20#,TRH200..IV5;KDH20#,211,222,223,227,TRH200,21#,22#..(HRF,SMRF,SRF)..(02S,05S,10S,15S)

 1
88611A - KNOB, COOLER CONTROL SWITCH
88611-28020B4

KDH20#,TRH200..IV5;KDH20#,211,222,223,227,TRH200,21#,22#..(HRF,SMRF,SRF)..(02S,05S,10S,15S)

LT.GRAY,TRIM1#

 1
Common parts
90183-05046
Linked diagrams
6452

(1312- )KDH20#,TRH200..4FC..IV5 ; (1501- )TRH200..IV5 ; (1712- )GDH20#..IV

Click highlighted areas on diagram

ﾘﾔｸｰﾗ ｺﾝﾄﾛｰﾙｽｲｯﾁ & ｴｱｱｳﾄﾚｯﾄ ﾚｼﾞｽﾀ

diagram 55519S 63389E 63610 63620 63630A 6452 6452 88571B 88610C 88611A 9018305046
Part # Description Qty Price
Common parts
90183-05046
Linked diagrams
6452

(1312- )KDH20#,211,221,TRH200,21#,22#..SG..4FC,5F..CBU,IV5,IV6 ; (1501- )TRH2

Click highlighted areas on diagram

ﾘﾔｸｰﾗ ｺﾝﾄﾛｰﾙｽｲｯﾁ & ｴｱｱｳﾄﾚｯﾄ ﾚｼﾞｽﾀ

diagram 55519S 63389E 63610 63620 63630A 6452 6452 88610C 88611A 9018305046
Part # Description Qty Price
Common parts
90183-05046
Linked diagrams
6452

(1312- )4FC,5F ; (1501- )TRH223,224,228..IV5 ; (1501- )TRH200,214,219,221,

Click highlighted areas on diagram

ﾌﾛﾝﾄﾋｰﾀ ｺﾝﾄﾛｰﾙ

diagram 5551 55905A 55905B 55905C 55906 55908A 55909A 55910B 55910B 55910B 8401
Part # Description Qty Price
Linked diagrams
5551
8401

(1312- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｴｱﾀﾞｸﾄ

diagram 55850A 8714 87201A 87201A 87211 87211A 87211B 88505 9015960383 9015960383 9015960383 90159T0005 90159T0005 9046707215
Part # Description Qty Price
Common parts
90159-60383
90159-T0005
90467-07215
Linked diagrams
8714

(1312- )4FC,5F ; (1501- )TRH214,219..4D ;(1501- )TRH200..V1..SP..6FC ; (1

Click highlighted areas on diagram

ﾘﾔﾋｰﾀ ｺﾝﾄﾛｰﾙ

diagram 81942B 87123A 87290E 88601A 9356855012 9356855012
Part # Description Qty Price
Common parts
93568-55012

(1312- )4FC,5F ; (1501- )TRH214,219..4D ;(1501- )TRH200,211,216,22#..6FC

Click highlighted areas on diagram

ｾﾝｻ (ｸｰﾗ ｻｰﾐｽﾀ)

diagram 8401 88625C 88625C 88625Q
Part # Description Qty Price
Linked diagrams
8401
