KDH201K-ERPDY5 (2007)
Toyota Hiace/Regiusace
Production
Sep 2007
-
Dec 2013
Engine
1KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0709- )KDH201,211,22#..4FC

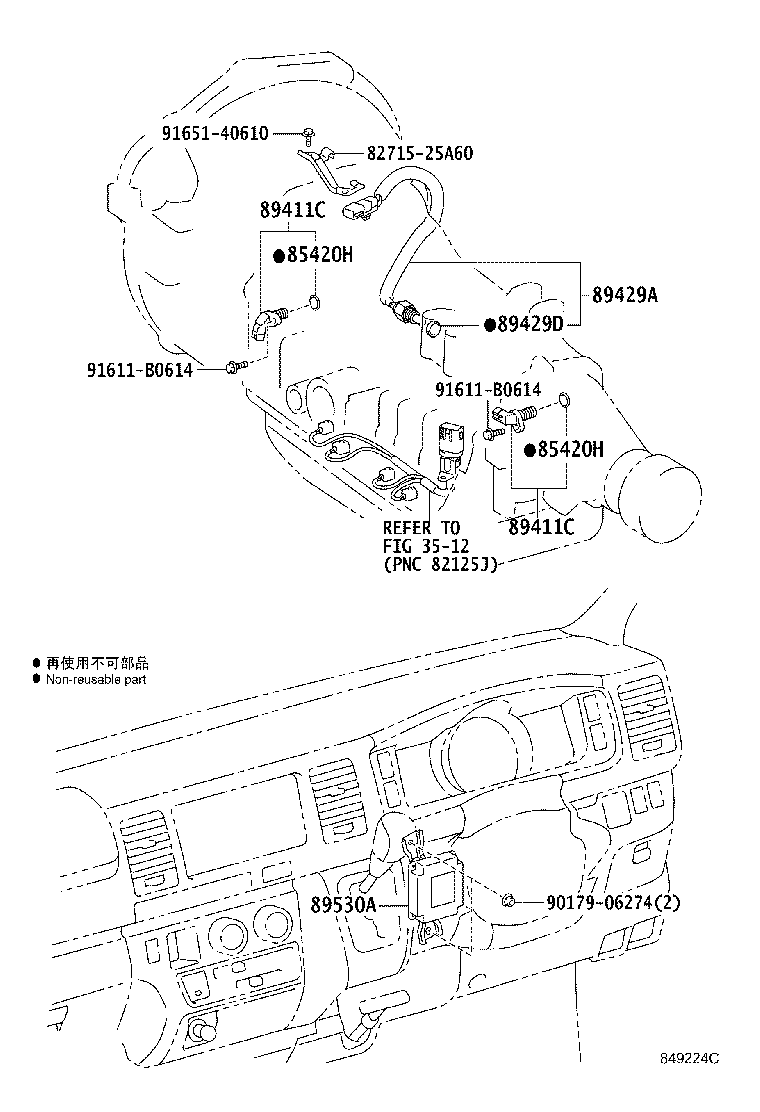

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85420H - RING, O(FOR SPEED SENSOR) | ||||
| 90301-11008 |
KDH20#,211,22#,TRH21#,22#..4FC |
2 | ||
| 85420H - RING, O(FOR SPEED SENSOR) | ||||
| 90301-11008 |
KDH20#,211,22#,TRH21#,22#..4FC |
2 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-50010 |
KDH20#,211,22#,TRH21#,22#..4FC |
2 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-50010 |
KDH20#,211,22#,TRH21#,22#..4FC |
2 | ||
| 89429A - SENSOR, TEMPERATURE | ||||
| 89429-25010 |
KDH20#,211,22#..4FC |
1 | ||
| 89429D - RING, O(FOR TEMPERATURE SENSOR) | ||||
| 90301-11006 |
KDH20#,211,22#,TRH200,21#,22#..4FC |
1 | ||
| 89530A - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-26230 |
KDH201,211,22#..4FC |
1 | ||
| 89530-26260 |
KDH201,211,22#..4FC |
1 | ||
| Common parts | ||||
| 82715-25A60 | ||||
| 90179-06274 | ||||
| 91611-B0614 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 3512 | ||||
(1312- )KDH201,211,22#..4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-25A60 | ||||
| 90179-06274 | ||||
| 91611-B0614 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 3512 | ||||
