Toyota Hiace/Regiusace

Production Sep 2007 - Dec 2013

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0709-1008)KDH20#,211,22#

Click highlighted areas on diagram

Part #	Description	Period	Qty
85911K - RELAY, HEATER(FOR AIR FUEL RATIO SENSOR)
90987-02027	KDH20#,211,22#	09/2007 - 08/2010	1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-71030	KDH20#,211,22#	09/2007 - 12/2013	1
89421-71020	KDH20#,22#	08/2004 - 09/2007	1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030	KDH20#,211,22#	08/2004 - 12/2013	1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60010	KDH20#,211,22#	08/2004 - 12/2013	1
89454 - SENSOR, FUEL TEMPERATURE
89454-60010	KDH20#,22#	08/2004 - 08/2005	1
89455A - SENSOR, EGR VALVE POSITION
89455-35020	KDH20#,211,22#	08/2004 - 08/2010	1
89661A - COMPUTER, ENGINE CONTROL
89661-26B10	KDH20#,22#..4FC DENSO	08/2004 - 09/2007	1
89661-26B90	KDH20#,22#..4FC DENSO,寒冷地仕様	08/2004 - 09/2007	1
89661-26E80	KDH20#,211,22#..4FC DENSO	09/2007 - 08/2010	1
89661-26F10	KDH20#,211,22#..4FC DENSO,寒冷地仕様	09/2007 - 08/2010	1
89661-26G00	KDH20#,211,22#..4FC DENSO	08/2010 - 05/2012	1
89661-26L20	KDH20#,211,22#..4FC DENSO	05/2012 - 12/2013	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-26160	KDH20#,211,22#	09/2007 - 12/2013	1
89667-26140	KDH20#,22#	08/2004 - 09/2007	2
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-26140	KDH20#,211,22#	09/2007 - 12/2999	1
89669B - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-26101	KDH20#,211,22#	09/2012 - 12/2999	2
89669-26100	KDH20#,211,22#	09/2007 - 08/2012	2
89669B - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-26101	KDH20#,211,22#	09/2012 - 12/2999	2
89669-26100	KDH20#,211,22#	09/2007 - 08/2012	2
89871A - DRIVER, INJECTOR
89871-26020	KDH20#,211,22# MARK 89871‐26020	08/2010 - 07/2011	1
89871-26030	KDH20#,211,22# MARK 89871‐26030	01/2013 - 12/2999	1
89871-71010	KDH20#,22#	08/2004 - 09/2007	1
89871-25010	KDH20#,211,22#	09/2007 - 08/2010	1
89871-20080	KDH20#,211,22# MARK 89871‐20080	07/2011 - 01/2013	1
89878 - DRIVER, TURBO MOTOR
89878-26010	KDH20#,211,22#	09/2007 - 06/2009	1
89878-26020	KDH20#,211,22#	07/2009 - 08/2010	1
89879B - BRACKET, INJECTOR DRIVER
89879-26050	KDH20#,211,22#	09/2007 - 08/2010	1
89879-26030	KDH20#,211,22#	08/2010 - 12/2012	1
89879-26020	KDH20#,22#	08/2004 - 09/2007	1
89879-26060	KDH20#,211,22#	01/2013 - 12/2999	1
Common parts
22193-1C170
82712-26280
90179-06274
90430-12221
90430-16010
91554-80612
91631-G0614
93319-14008
93319-15010
Linked diagrams
8401
8410

(1008- )KDH20#,211,22#

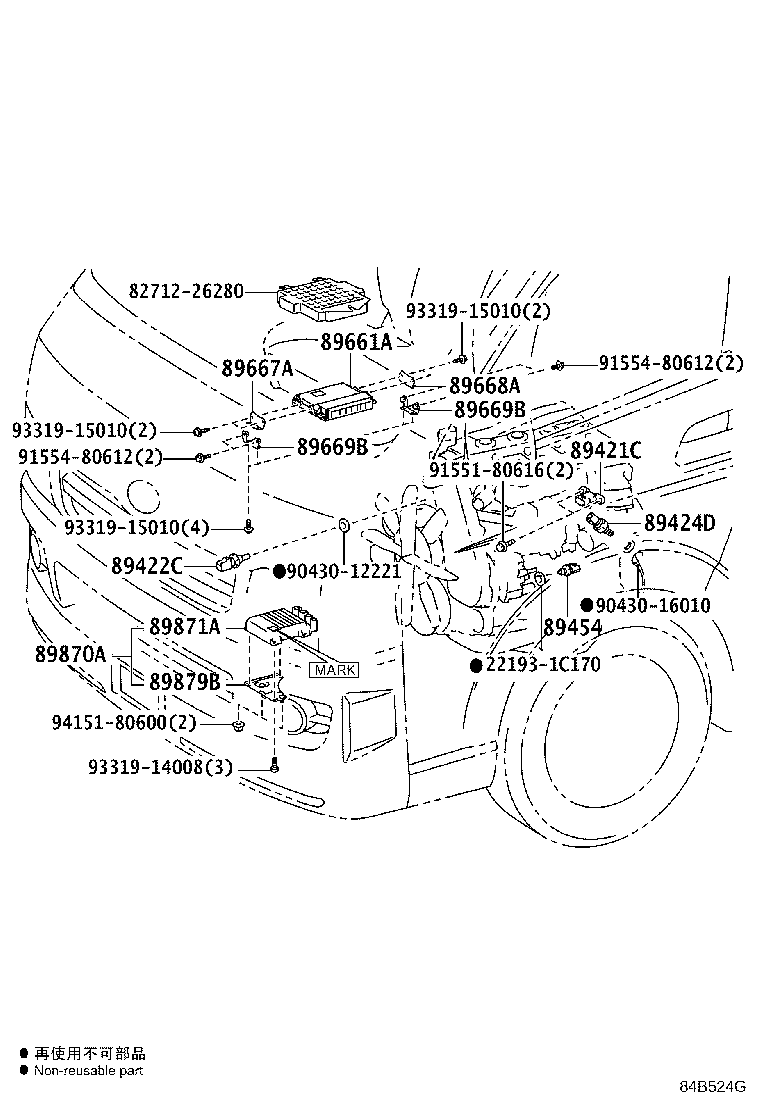

Click highlighted areas on diagram

Part #	Description	Period	Qty
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-71030	KDH20#,211,22#	09/2007 - 12/2013	1
89421-71020	KDH20#,22#	08/2004 - 09/2007	1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030	KDH20#,211,22#	08/2004 - 12/2013	1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60010	KDH20#,211,22#	08/2004 - 12/2013	1
89454 - SENSOR, FUEL TEMPERATURE
89454-60010	KDH20#,22#	08/2004 - 08/2005	1
89661A - COMPUTER, ENGINE CONTROL
89661-26B10	KDH20#,22#..4FC DENSO	08/2004 - 09/2007	1
89661-26B90	KDH20#,22#..4FC DENSO,寒冷地仕様	08/2004 - 09/2007	1
89661-26E80	KDH20#,211,22#..4FC DENSO	09/2007 - 08/2010	1
89661-26F10	KDH20#,211,22#..4FC DENSO,寒冷地仕様	09/2007 - 08/2010	1
89661-26G00	KDH20#,211,22#..4FC DENSO	08/2010 - 05/2012	1
89661-26L20	KDH20#,211,22#..4FC DENSO	05/2012 - 12/2013	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-26160	KDH20#,211,22#	09/2007 - 12/2013	1
89667-26140	KDH20#,22#	08/2004 - 09/2007	2
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-26140	KDH20#,211,22#	09/2007 - 12/2999	1
89669B - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-26101	KDH20#,211,22#	09/2012 - 12/2999	2
89669-26100	KDH20#,211,22#	09/2007 - 08/2012	2
89669B - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-26101	KDH20#,211,22#	09/2012 - 12/2999	2
89669-26100	KDH20#,211,22#	09/2007 - 08/2012	2
89870A - DRIVER ASSY, INJECTOR
89870-26061	KDH20#,211,22#	01/2013 - 12/2999	1
89871A - DRIVER, INJECTOR
89871-26020	KDH20#,211,22# MARK 89871‐26020	08/2010 - 07/2011	1
89871-26030	KDH20#,211,22# MARK 89871‐26030	01/2013 - 12/2999	1
89871-71010	KDH20#,22#	08/2004 - 09/2007	1
89871-25010	KDH20#,211,22#	09/2007 - 08/2010	1
89871-20080	KDH20#,211,22# MARK 89871‐20080	07/2011 - 01/2013	1
89879B - BRACKET, INJECTOR DRIVER
89879-26050	KDH20#,211,22#	09/2007 - 08/2010	1
89879-26030	KDH20#,211,22#	08/2010 - 12/2012	1
89879-26020	KDH20#,22#	08/2004 - 09/2007	1
89879-26060	KDH20#,211,22#	01/2013 - 12/2999	1
Common parts
22193-1C170
82712-26280
90430-12221
90430-16010
91551-80616
91554-80612
93319-14008
93319-15010
94151-80600

(1312- )KDH20#,211,22#

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
22193-1C170
90153-50015
90159-50386
90430-12221
90430-16010
91551-80616
91673-80612
93319-14008
94151-80600
