KDH201K-ERPDY5 (2007)
Toyota Hiace/Regiusace

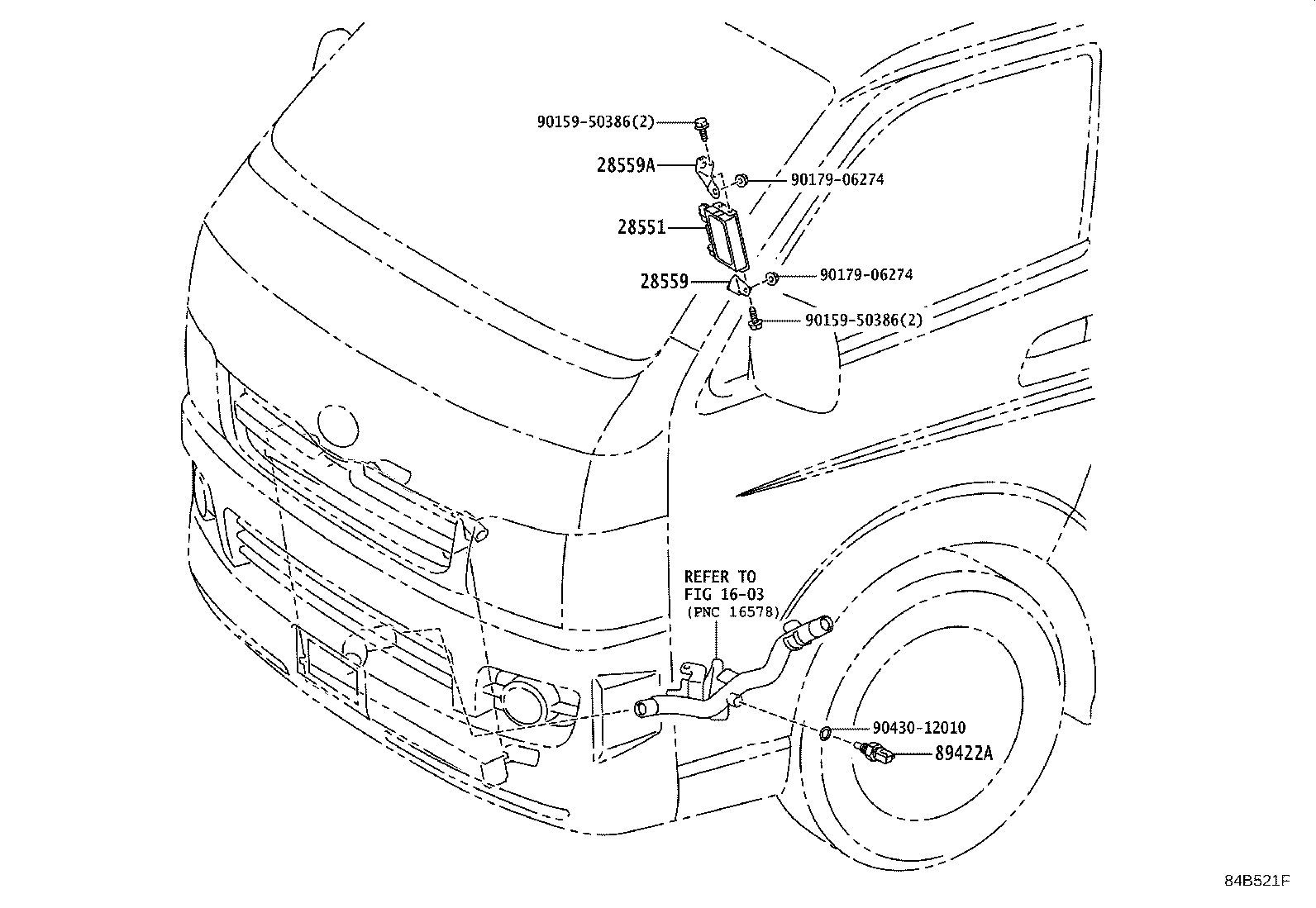

ILLUST NO. 2 OF 9(0408-1008)KDH20#,211,22#
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-26020 |
KDH201,206,211,221,223 |
1 | ||
| 89257B - COMPUTER, COOLING FAN, NO.2 | ||||
| 89257-26020 |
KDH201,206,211,221,223 |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| Common parts | ||||
| 90430-12010 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 1603 | ||||

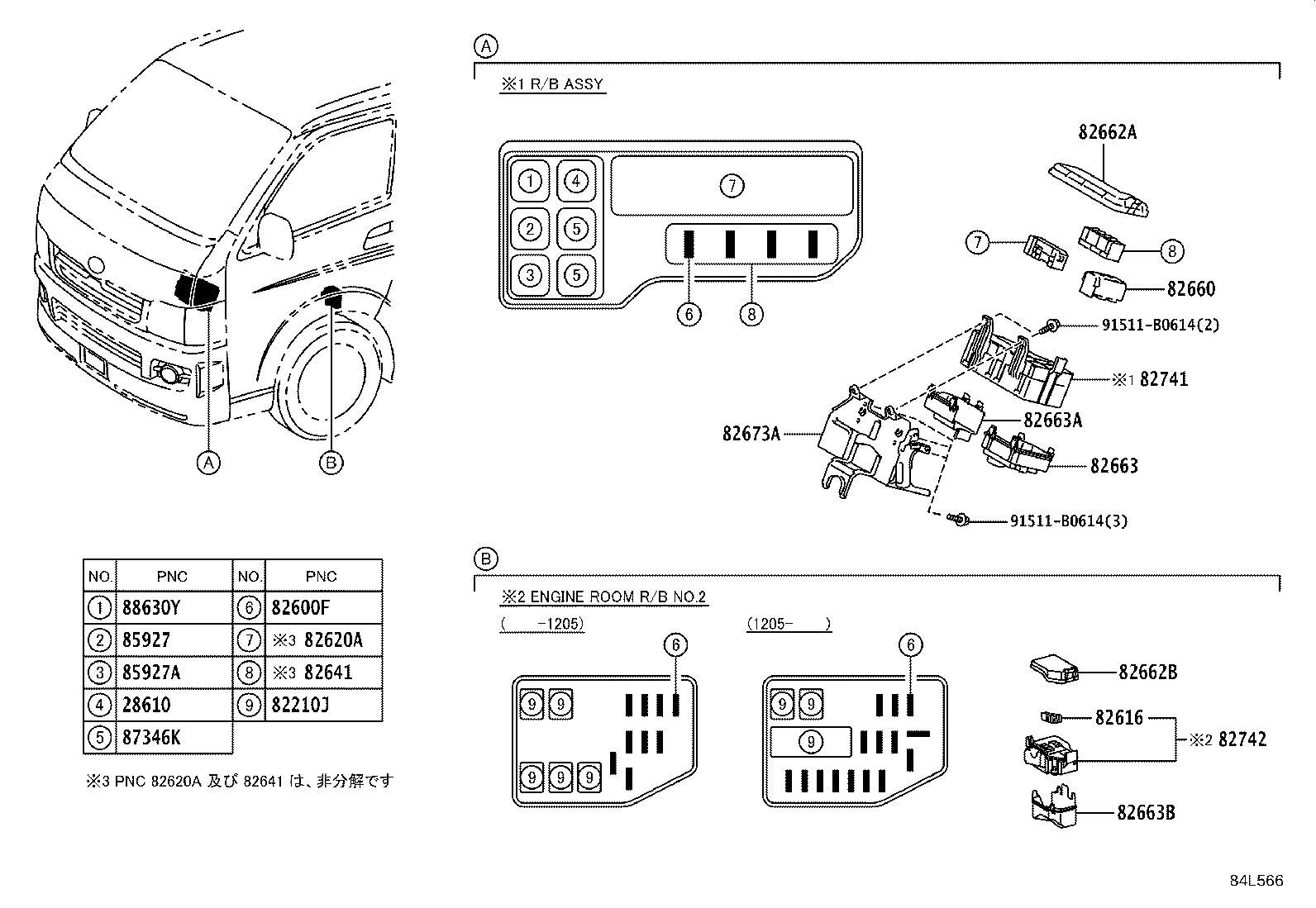

ILLUST NO. 4 OF 9(0408-1008)
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
1KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22# (J) |
1 | ||
| 90987-T2009 |
1KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22# (L) |
1 | ||
| 90987-02025 |
1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08280 |
KDH201,206,221;TRH200..V1..HRF..5D;TRH214,219,224,229..(GC,GL)..CBU;KDH200,205,211,223,TRH200,211,216,221,226..02S,05S,15S 30A,ﾒｽ端子,桃,ﾏｰｸ 32V |
1 | ||
| 90982-08280 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08281 |
KDH20#,211,22#,TRH200,21#,22# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08281 |
TRH221,226..SHRF;KDH20#,223,TRH200,223,224,228,229..IV5 40A,ﾒｽ端子,緑,*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 90982-08295 |
TRH221,226..SHRF;KDH201,TRH200..V2..03S..5F;KDH201,206,TRH200,214,219..4FC..DX;KDH200,205,22#,TRH221,223,226,228..03S,05S,06S,09S,15S 30A,ﾒｽ端子,桃,ﾏｰｸ 58V |
1 | ||
| 90982-08294 |
KDH20#,211,22#,TRH200,21#,22# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08308 |
KDH20#,211,22#,TRH200,21#,22# 40A−30A−30A,ﾒｽ端子,桃 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08280 |
KDH201,206,221;TRH200..V1..HRF..5D;TRH214,219,224,229..(GC,GL)..CBU;KDH200,205,211,223,TRH200,211,216,221,226..02S,05S,15S 30A,ﾒｽ端子,桃,ﾏｰｸ 32V |
1 | ||
| 90982-08280 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08281 |
KDH20#,211,22#,TRH200,21#,22# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08281 |
TRH221,226..SHRF;KDH20#,223,TRH200,223,224,228,229..IV5 40A,ﾒｽ端子,緑,*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 90982-08295 |
TRH221,226..SHRF;KDH201,TRH200..V2..03S..5F;KDH201,206,TRH200,214,219..4FC..DX;KDH200,205,22#,TRH221,223,226,228..03S,05S,06S,09S,15S 30A,ﾒｽ端子,桃,ﾏｰｸ 58V |
1 | ||
| 90982-08294 |
KDH20#,211,22#,TRH200,21#,22# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08308 |
KDH20#,211,22#,TRH200,21#,22# 40A−30A−30A,ﾒｽ端子,桃 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90080-82052 |
KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90080-82055 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,ﾏｰｸ 58V |
1 | ||
| 90080-82053 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90080-82051 |
KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90080-82050 |
KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90080-82054 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
KDH223,TRH223,224,228,229..IV5;KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,ﾏｰｸ 32V |
1 | ||
| 90982-09022 |
KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90080-82052 |
KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90080-82055 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,ﾏｰｸ 58V |
1 | ||
| 90080-82053 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90080-82051 |
KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90080-82050 |
KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90080-82054 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
KDH223,TRH223,224,228,229..IV5;KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,ﾏｰｸ 32V |
1 | ||
| 90982-09022 |
KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90080-82052 |
KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90080-82055 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,ﾏｰｸ 58V |
1 | ||
| 90080-82053 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90080-82051 |
KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90080-82050 |
KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90080-82054 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
KDH223,TRH223,224,228,229..IV5;KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,ﾏｰｸ 32V |
1 | ||
| 90982-09022 |
KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-20080 |
KDH223,TRH223,224,228,229..IV5;KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-26260 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-26300 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 82662-26440 |
KDH20#,211,22# |
1 | ||
| 82662-26441 |
KDH20#,211,22# |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-26160 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82663-26161 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-26030 |
KDH20#,TRH200..IV5 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り |
1 | ||
| 82730-26030 |
KDH20#,TRH200..IV5 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82730-26030 |
KDH206..DX;KDH201..SG..DX;KDH201..V1..SP;KDH222,227..IV5;TRH200..V1..HRF..5D;KDH200,205,223..(GL,SGL)..CBU |
1 | ||
| 82730-26030 |
KDH20#,TRH200..IV5 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り&ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82730-26030 |
KDH20#,TRH200..IV5 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り&ｲﾝﾊﾞｰﾀ−有り(100V)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82730-26061 |
KDH20#,221,TRH200,221,226..DX |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-20180 |
KDH20#,211,22# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49045 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-20030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-58010 |
KDH20#,211,22#,TRH200,21#,22#..4FC |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-T2003 |
KDH223,TRH223,224,228..IV5;KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX (L) |
1 | ||
| 90987-04010 |
KDH223,TRH223,224,228,229..IV5;KDH201,206,223,TRH200,214,219,223,228..DX;KDH200,205,220,221,222,225,227,TRH221,226..03S,05S,06S,09S,15S |
1 | ||
| 90987-04010 |
KDH223,TRH223,224,228..IV5;KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX (J) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2002 |
KDH20#,211,22#,TRH200,21#,22# ANDEN |
1 | ||
| 90987-02025 |
KDH20#,211,22#,TRH200,21#,22# DENSO |
1 | ||
| 90987-02025 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
KDH20#,211,22# |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8405 | ||||
ILLUST NO. 5 OF 9(0408- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-26030 |
KDH20#,211,220,221,225,TRH200,211,216,221,226 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 90010-01105 |
KDH20#,211,220,221,225,TRH200,211,216,221,226 14V 0.63W,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,NO.2 |
1 | ||
| 90010-01098 |
KDH20#,211,220,221,225,TRH200,211,216,221,226 14V 0.63W,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,NO.1 |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 90010-01105 |
KDH20#,211,220,221,225,TRH200,211,216,221,226 14V 0.63W,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,NO.2 |
1 | ||
| 90010-01098 |
KDH20#,211,220,221,225,TRH200,211,216,221,226 14V 0.63W,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,NO.1 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-26110 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 90010-01099 |
KDH20#,211,22#,TRH200,21#,22# 14V 0.84W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-26090 |
KDH200,205,222,227..05S,15S;KDH223,TRH214,219,223,228..DX;KDH20#,223,TRH200,223,224,228,229..IV5 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90010-01039 |
KDH200,205,222,227..05S,15S;KDH223,TRH214,219,223,228..DX;KDH20#,223,TRH200,223,224,228,229..IV5 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,夜間照明用 |
1 | ||
| 90010-01103 |
KDH200,205,222,227..05S,15S;KDH223,TRH214,219,223,228..DX;KDH20#,223,TRH200,223,224,228,229..IV5 14V 0.63W,ON ｲﾝｼﾞｹｰﾀ用 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90010-01039 |
KDH200,205,222,227..05S,15S;KDH223,TRH214,219,223,228..DX;KDH20#,223,TRH200,223,224,228,229..IV5 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,夜間照明用 |
1 | ||
| 90010-01103 |
KDH200,205,222,227..05S,15S;KDH223,TRH214,219,223,228..DX;KDH20#,223,TRH200,223,224,228,229..IV5 14V 0.63W,ON ｲﾝｼﾞｹｰﾀ用 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-26020 |
KDH20#,211,22# 寒冷地仕様 |
1 | ||
| 87290B - BULB (FOR HEATER SWITCH) | ||||
| 90010-01098 |
KDH20#,211,22# 14V 0.63W,寒冷地仕様,NO.2 |
1 | ||
| 90010-01105 |
KDH20#,211,22# 14V 0.63W,寒冷地仕様,NO.1 |
1 | ||
| 87290B - BULB (FOR HEATER SWITCH) | ||||
| 90010-01098 |
KDH20#,211,22# 14V 0.63W,寒冷地仕様,NO.2 |
1 | ||
| 90010-01105 |
KDH20#,211,22# 14V 0.63W,寒冷地仕様,NO.1 |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8410 | ||||
ILLUST NO. 8 OF 9(0408- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
KDH20#,211,22#,TRH200,21#,22#..4FC |
1 | ||
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
KDH20#,211,22#,TRH200,21#,22#..4FC |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-32220 |
KDH222,223,227,TRH223,228..CBU;KDH20#,220,221,225,TRH200,214,219,221,226..(03S,06S,09S,10S)..DX |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52041 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26470 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(06S,09S,10S,15S)..DX |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-58010 |
KDH20#,211,22#,TRH200,21#,22#..4FC |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 9 OF 9(0408- )
ﾄﾞｱ,ﾙｰﾌ & ﾗｯｹﾞｰｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28865 - SENSOR, BATTERY THERMOMETER | ||||
| 28865-75020 |
1KDFTV,2KDFTV..KDH20#,211,22# 寒冷地仕様 |
1 | ||
| 82351B - WIRE,COURTESY LAMP | ||||
| 82351-26010 |
KDH20#,22#,TRH200,214,219,22#..4D |
1 | ||
| 82351B - WIRE,COURTESY LAMP | ||||
| 82351-26010 |
KDH20#,22#,TRH200,214,219,22#..4D |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-26430 |
KDH20#,211,22# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52020 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52020 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
KDH20#,22#,TRH200,214,219,22#..4D |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
KDH20#,22#,TRH200,214,219,22#..4D |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-26120 |
TRH221,224,226,229..02S,10S;KDH20#,222,227,TRH200,223,228..IV5 |
1 | ||
| 84261-26140 |
TRH221,226,229..02S,10S;TRH214,219,224..(GC,GL)..CBU;KDH20#,223,TRH200,223,228..IV5 |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-26120 |
TRH221,224,226,229..02S,10S;KDH20#,222,227,TRH200,223,228..IV5 |
1 | ||
| 84261-26140 |
TRH221,226,229..02S,10S;TRH214,219,224..(GC,GL)..CBU;KDH20#,223,TRH200,223,228..IV5 |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-26090 |
TRH221,226..02S;TRH214,219,224,229..GC,GL;KDH20#,222,223,227,TRH200,223,228..IV5 |
1 | ||
| 84262-26130 |
TRH221,226..02S;KDH20#,TRH200..IV5;KDH201,TRH200..V2..03S |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-26090 |
TRH221,226..02S;TRH214,219,224,229..GC,GL;KDH20#,222,223,227,TRH200,223,228..IV5 |
1 | ||
| 84262-26130 |
TRH221,226..02S;KDH20#,TRH200..IV5;KDH201,TRH200..V2..03S |
1 | ||
| 84535D - SWITCH, DOOR LOCK, LH | ||||
| 84535-26190 |
TRH221,226..02S;KDH20#,222,223,227,TRH200,223,228..IV5;KDH20#,211,TRH200,21#,224,229..GC,GL,SGL |
1 | ||
| 84535-26220 |
TRH221,226..02S;KDH201,TRH200..V2..03S;KDH20#,223,TRH200,223,228..IV5;KDH20#,211,TRH200,21#,224,229..(GC,GL,SGL)..CBU |
1 | ||
| 84535-26210 |
TRH221,226..SHRF;KDH20#,223,TRH200,223,228,229..IV5 *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84535D - SWITCH, DOOR LOCK, LH | ||||
| 84535-26190 |
TRH221,226..02S;KDH20#,222,223,227,TRH200,223,228..IV5;KDH20#,211,TRH200,21#,224,229..GC,GL,SGL |
1 | ||
| 84535-26220 |
TRH221,226..02S;KDH201,TRH200..V2..03S;KDH20#,223,TRH200,223,228..IV5;KDH20#,211,TRH200,21#,224,229..(GC,GL,SGL)..CBU |
1 | ||
| 84535-26210 |
TRH221,226..SHRF;KDH20#,223,TRH200,223,228,229..IV5 *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 84810-12080 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-26191 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 84820-26190 |
KDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 84931D - SWITCH, SLIDE DOOR CONTROL | ||||
| 84931-26150 |
KDH20#,222,223,227,TRH200,223,224,228,229..IV5 *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84931-26151 |
TRH221,226..SHRF;KDH20#,TRH200,229..IV5 *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84931H - SWITCH, SLIDE DOOR CONTROL, LH | ||||
| 84931-26160 |
TRH221,226..SHRF;KDH20#,222,223,227,TRH200,223,228,229..IV5 *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 85918C - RELAY, DOOR CONTROL, LH | ||||
| 85918-26171 |
KDH201,TRH200..V2..03S;TRH221,226,229..02S,10S;KDH20#,223,TRH200,223,228..IV5;KDH20#,211,TRH200,21#,224..(GC,GL,SGL)..CBU |
1 | ||
| 85918-26170 |
TRH221,226..02S;KDH20#,222,223,227,TRH200,223,228..IV5;KDH20#,211,TRH200,21#,224,229..GC,GL,SGL |
1 | ||
| 85971A - RELAY, DOOR OPENING | ||||
| 85971-26020 |
TRH221,226..SHRF;KDH20#,222,223,227,TRH200,223,228,229..IV5 *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 85975C - RELAY, SLIDE DOOR CLOSER, LH | ||||
| 85975-26131 |
KDH201,TRH200..V2..03S;TRH221,226,229..02S,10S;KDH20#,223,TRH200,223,228..IV5;KDH20#,211,TRH200,21#,224..(GC,GL,SGL)..CBU |
1 | ||
| 85975-26130 |
TRH221,226..02S;KDH20#,222,223,227,TRH200,223,228..IV5;KDH20#,211,TRH200,21#,224,229..GC,GL,SGL |
1 | ||
| 85976 - RELAY, BACK DOOR CLOSER | ||||
| 85976-26040 |
TRH221,226..SHRF;KDH20#,222,223,227,TRH200,223,224,228,229..IV5 |
1 | ||
| 85976-26060 |
TRH221,226..SHRF;KDH201,TRH200..V2..03S;KDH20#,223,TRH200,223,224,228..IV5 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-26132 |
KDH20#,223,TRH200,223,224,228,229..IV5 *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 85980-26130 |
KDH20#,222,227,TRH200,223,224,228,229..IV5 *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 85980-26133 |
TRH221,226..SHRF;KDH20#,223,TRH200,223,224,228,229..IV5 *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 85980-26140 |
TRH221,226..SHRF;KDH20#,223,TRH200,223,228..IV5 *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 85980-26134 |
TRH221,226..SHRF;KDH20#,223,TRH200,223,224,228,229..IV5 *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| Common parts | ||||
| 90119-06779 | ||||
| 90119-06923 | ||||
| 90164-40103 | ||||
| 90166-60004 | ||||
| 90189-06018 | ||||
| 91551-80610 | ||||
| 91631-B0614 | ||||
| 93590-16014 | ||||
ILLUST NO. 6 OF 9(0408- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04840 - SWITCH KIT, GENERALLY USE, PULL TYPE | ||||
| 04840-26010 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り |
1 | ||
| 04840-26010 |
KDH20#,211,22# |
1 | ||
| 84093-26010 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り(DOP) |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-26010 |
KDH20#,211,22# |
1 | ||
| 84270N - BULB, DPR SWICH ASSY | ||||
| 90010-01080 |
KDH20#,211,22# NO.2 |
1 | ||
| 84999-10310 |
KDH20#,211,22# NO.1 |
1 | ||
| 84999-10310 |
KDH20#,211,22# NO.1 |
1 | ||
| 90010-01080 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り,NO.2 |
1 | ||
| 90010-01080 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り(DOP),NO.2 |
1 | ||
| 84999-10310 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り,NO.1 |
1 | ||
| 90010-01080 |
KDH20#,211,22# NO.2 |
1 | ||
| 84999-10310 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り(DOP),NO.1 |
1 | ||
| 84270N - BULB, DPR SWICH ASSY | ||||
| 90010-01080 |
KDH20#,211,22# NO.2 |
1 | ||
| 84999-10310 |
KDH20#,211,22# NO.1 |
1 | ||
| 84999-10310 |
KDH20#,211,22# NO.1 |
1 | ||
| 90010-01080 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り,NO.2 |
1 | ||
| 90010-01080 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り(DOP),NO.2 |
1 | ||
| 84999-10310 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り,NO.1 |
1 | ||
| 90010-01080 |
KDH20#,211,22# NO.2 |
1 | ||
| 84999-10310 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り(DOP),NO.1 |
1 | ||
| 84270N - BULB, DPR SWICH ASSY | ||||
| 90010-01080 |
KDH20#,211,22# NO.2 |
1 | ||
| 84999-10310 |
KDH20#,211,22# NO.1 |
1 | ||
| 84999-10310 |
KDH20#,211,22# NO.1 |
1 | ||
| 90010-01080 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り,NO.2 |
1 | ||
| 90010-01080 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り(DOP),NO.2 |
1 | ||
| 84999-10310 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り,NO.1 |
1 | ||
| 90010-01080 |
KDH20#,211,22# NO.2 |
1 | ||
| 84999-10310 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り(DOP),NO.1 |
1 | ||
| 84270N - BULB, DPR SWICH ASSY | ||||
| 90010-01080 |
KDH20#,211,22# NO.2 |
1 | ||
| 84999-10310 |
KDH20#,211,22# NO.1 |
1 | ||
| 84999-10310 |
KDH20#,211,22# NO.1 |
1 | ||
| 90010-01080 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り,NO.2 |
1 | ||
| 90010-01080 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り(DOP),NO.2 |
1 | ||
| 84999-10310 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り,NO.1 |
1 | ||
| 90010-01080 |
KDH20#,211,22# NO.2 |
1 | ||
| 84999-10310 |
KDH20#,211,22# 排出ｶﾞｽ浄化ｽｲｯﾁ−有り(DOP),NO.1 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0D030 |
KDH223,TRH223,228..CBU;KDH20#,221,TRH200,214,219,221,226..(03S,06S,09S,10S)..DX ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ,(L) |
1 | ||
| 84870-28020 |
KDH223,TRH223,228..CBU;KDH20#,221,TRH200,214,219,221,226..(03S,06S,09S,10S)..DX ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ,(J) |
1 | ||
| 84870-28020 |
KDH223,TRH223,228..CBU;KDH20#,221,TRH200,214,219,221,226..(03S,06S,09S,10S)..DX ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-60030 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 84930-60030 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 90010-01039 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 90010-01039 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84930J - SWITCH ASSY, AUTO SLIDE DOOR MAIN | ||||
| 84930-26060 |
TRH221,226..SHRF;KDH20#,222,223,227,TRH200,223,228,229..IV5 *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL | ||||
| 84930-58021 |
TRH221,226..SHRF;KDH20#,222,223,227,TRH200,223,228,229..IV5 *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH | ||||
| 90010-01061 |
TRH221,226..SHRF;KDH20#,222,223,227,TRH200,223,228,229..IV5 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱj |
2 | ||
| 84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH | ||||
| 90010-01061 |
TRH221,226..SHRF;KDH20#,222,223,227,TRH200,223,228,229..IV5 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱj |
2 | ||
| Linked diagrams | ||||
| 7455 | ||||

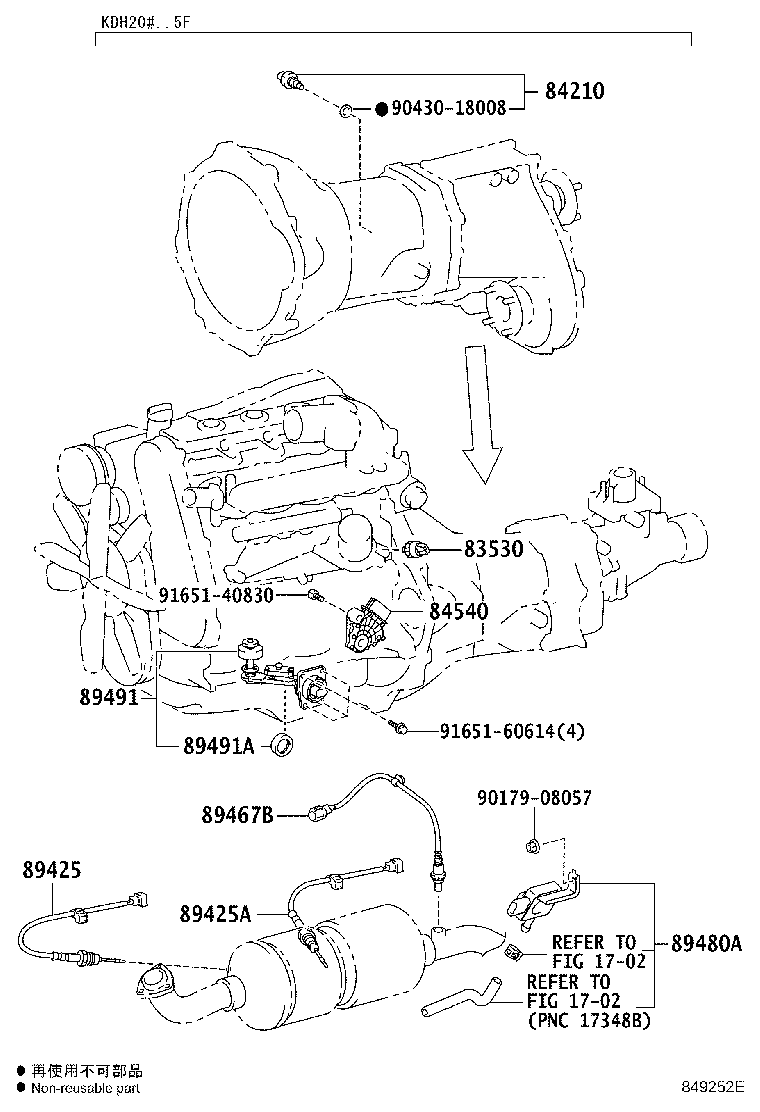

ILLUST NO. 1 OF 9(0709-1008)KDH20#,211,22#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
KDH20#,211,22# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-71010 |
TRH214,219..GL;TRH221,226..SHRF;KDH20#,211,22#,TRH211,216..4FC |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-26171 |
KDH20#,211,22# |
1 | ||
| 89425-26172 |
KDH20#,211,22# |
1 | ||
| 89425-26170 |
KDH20#,211,22# |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-26182 |
KDH20#,211,22# |
1 | ||
| 89425-26180 |
KDH20#,211,22# |
1 | ||
| 89425-26181 |
KDH20#,211,22# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-26030 |
KDH20#,211,22# |
1 | ||
| 89480A - SENSOR ASSY, DIFFERENTIAL PRESSURE | ||||
| 89480-26010 |
KDH20#,211,22# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-25040 |
KDH20#,211,22# |
1 | ||
| 89491-26180 |
KDH20#,211,22# |
1 | ||
| 89491-26170 |
KDH20#,22# |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
KDH20#,211,22# |
1 | ||
| 90430-36005 |
KDH20#,211,22# |
1 | ||
| 89493-60010 |
KDH20#,22# |
1 | ||
| Common parts | ||||
| 90179-08057 | ||||
| 90430-18008 | ||||
| 91651-40830 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 1702 | ||||
ILLUST NO. 4 OF 9(1008- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
1KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22# (J) |
1 | ||
| 90987-T2009 |
1KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22# (L) |
1 | ||
| 90987-02025 |
1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08280 |
KDH201,206,221;TRH200..V1..HRF..5D;TRH214,219,224,229..(GC,GL)..CBU;KDH200,205,211,223,TRH200,211,216,221,226..02S,05S,15S 30A,ﾒｽ端子,桃,ﾏｰｸ 32V |
1 | ||
| 90982-08280 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08281 |
KDH20#,211,22#,TRH200,21#,22# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08281 |
TRH221,226..SHRF;KDH20#,223,TRH200,223,224,228,229..IV5 40A,ﾒｽ端子,緑,*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 90982-08295 |
TRH221,226..SHRF;KDH201,TRH200..V2..03S..5F;KDH201,206,TRH200,214,219..4FC..DX;KDH200,205,22#,TRH221,223,226,228..03S,05S,06S,09S,15S 30A,ﾒｽ端子,桃,ﾏｰｸ 58V |
1 | ||
| 90982-08294 |
KDH20#,211,22#,TRH200,21#,22# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08308 |
KDH20#,211,22#,TRH200,21#,22# 40A−30A−30A,ﾒｽ端子,桃 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08280 |
KDH201,206,221;TRH200..V1..HRF..5D;TRH214,219,224,229..(GC,GL)..CBU;KDH200,205,211,223,TRH200,211,216,221,226..02S,05S,15S 30A,ﾒｽ端子,桃,ﾏｰｸ 32V |
1 | ||
| 90982-08280 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08281 |
KDH20#,211,22#,TRH200,21#,22# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08281 |
TRH221,226..SHRF;KDH20#,223,TRH200,223,224,228,229..IV5 40A,ﾒｽ端子,緑,*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 90982-08295 |
TRH221,226..SHRF;KDH201,TRH200..V2..03S..5F;KDH201,206,TRH200,214,219..4FC..DX;KDH200,205,22#,TRH221,223,226,228..03S,05S,06S,09S,15S 30A,ﾒｽ端子,桃,ﾏｰｸ 58V |
1 | ||
| 90982-08294 |
KDH20#,211,22#,TRH200,21#,22# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08308 |
KDH20#,211,22#,TRH200,21#,22# 40A−30A−30A,ﾒｽ端子,桃 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90080-82052 |
KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90080-82055 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,ﾏｰｸ 58V |
1 | ||
| 90080-82053 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90080-82051 |
KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90080-82050 |
KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90080-82054 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
KDH223,TRH223,224,228,229..IV5;KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,ﾏｰｸ 32V |
1 | ||
| 90982-09022 |
KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90080-82052 |
KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90080-82055 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,ﾏｰｸ 58V |
1 | ||
| 90080-82053 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90080-82051 |
KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90080-82050 |
KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90080-82054 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
KDH223,TRH223,224,228,229..IV5;KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,ﾏｰｸ 32V |
1 | ||
| 90982-09022 |
KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90080-82052 |
KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90080-82055 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,ﾏｰｸ 58V |
1 | ||
| 90080-82053 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90080-82051 |
KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90080-82050 |
KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90080-82054 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
KDH223,TRH223,224,228,229..IV5;KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,ﾏｰｸ 32V |
1 | ||
| 90982-09022 |
KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-20080 |
KDH223,TRH223,224,228,229..IV5;KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-26260 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-26300 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 82662-26440 |
KDH20#,211,22# |
1 | ||
| 82662-26441 |
KDH20#,211,22# |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-26160 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82663-26161 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-26030 |
KDH20#,TRH200..IV5 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り |
1 | ||
| 82730-26030 |
KDH20#,TRH200..IV5 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82730-26030 |
KDH206..DX;KDH201..SG..DX;KDH201..V1..SP;KDH222,227..IV5;TRH200..V1..HRF..5D;KDH200,205,223..(GL,SGL)..CBU |
1 | ||
| 82730-26030 |
KDH20#,TRH200..IV5 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り&ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82730-26030 |
KDH20#,TRH200..IV5 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り&ｲﾝﾊﾞｰﾀ−有り(100V)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82730-26061 |
KDH20#,221,TRH200,221,226..DX |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-20180 |
KDH20#,211,22# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49045 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-20030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-58010 |
KDH20#,211,22#,TRH200,21#,22#..4FC |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-T2003 |
KDH223,TRH223,224,228..IV5;KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX (L) |
1 | ||
| 90987-04010 |
KDH223,TRH223,224,228,229..IV5;KDH201,206,223,TRH200,214,219,223,228..DX;KDH200,205,220,221,222,225,227,TRH221,226..03S,05S,06S,09S,15S |
1 | ||
| 90987-04010 |
KDH223,TRH223,224,228..IV5;KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX (J) |
1 | ||
| 85915E - RELAY | ||||
| 90987-02028 |
KDH20#,211,22# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2002 |
KDH20#,211,22#,TRH200,21#,22# ANDEN |
1 | ||
| 90987-02025 |
KDH20#,211,22#,TRH200,21#,22# DENSO |
1 | ||
| 90987-02025 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
KDH20#,211,22# |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 94120-41000 | ||||
ILLUST NO. 2 OF 9(1008- )KDH20#,211,22#
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28551 - CONTROLLER, GLOW PLUG | ||||
| 28551-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 28559 - BRACKET, GLOW PLUG CONTROLLER, NO.1 | ||||
| 28559-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 28559A - BRACKET, GLOW PLUG CONTROLLER, NO.2 | ||||
| 28559-30020 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| Common parts | ||||
| 90159-50386 | ||||
| 90179-06274 | ||||
| 90430-12010 | ||||
| Linked diagrams | ||||
| 1603 | ||||
ILLUST NO. 1 OF 9(1008- )KDH20#,211,22#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60060 |
KDH20#,211,22# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-71010 |
TRH214,219..GL;TRH221,226..SHRF;KDH20#,211,22#,TRH211,216..4FC |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-26171 |
KDH20#,211,22# |
1 | ||
| 89425-26172 |
KDH20#,211,22# |
1 | ||
| 89425-26170 |
KDH20#,211,22# |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-26182 |
KDH20#,211,22# |
1 | ||
| 89425-26180 |
KDH20#,211,22# |
1 | ||
| 89425-26181 |
KDH20#,211,22# |
1 | ||
| 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 | ||||
| 89425-26200 |
KDH20#,211,22# |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-26060 |
KDH20#,211,22# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-26030 |
KDH20#,211,22# |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-12050 |
KDH20#,211,22# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-25040 |
KDH20#,211,22# |
1 | ||
| 89491-26180 |
KDH20#,211,22# |
1 | ||
| 89491-26170 |
KDH20#,22# |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
KDH20#,211,22# |
1 | ||
| 90430-36005 |
KDH20#,211,22# |
1 | ||
| 89493-60010 |
KDH20#,22# |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 91651-40830 | ||||
| 91651-60614 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1702 | ||||
ILLUST NO. 3 OF 9(0408-1008)KDH20#,211,22#
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-27010 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08280 |
KDH201,206,221;TRH200..V1..HRF..5D;TRH214,219,224,229..(GC,GL)..CBU;KDH200,205,211,223,TRH200,211,216,221,226..02S,05S,15S 30A,ﾒｽ端子,桃,ﾏｰｸ 32V |
1 | ||
| 90982-08280 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08281 |
KDH20#,211,22#,TRH200,21#,22# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08281 |
TRH221,226..SHRF;KDH20#,223,TRH200,223,224,228,229..IV5 40A,ﾒｽ端子,緑,*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 90982-08295 |
TRH221,226..SHRF;KDH201,TRH200..V2..03S..5F;KDH201,206,TRH200,214,219..4FC..DX;KDH200,205,22#,TRH221,223,226,228..03S,05S,06S,09S,15S 30A,ﾒｽ端子,桃,ﾏｰｸ 58V |
1 | ||
| 90982-08294 |
KDH20#,211,22#,TRH200,21#,22# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08308 |
KDH20#,211,22#,TRH200,21#,22# 40A−30A−30A,ﾒｽ端子,桃 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09025 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09020 |
KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
KDH201,TRH200..SG;KDH201,TRH200..V1..SP;KDH200,205,206,211,22#,TRH21#,22# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-26440 |
KDH20#,211,22# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-71020 |
KDH20#,211,22# |
1 | ||
| 82641-47020 |
KDH20#,211,22# |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-26290 |
KDH20#,211,22# |
2 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-26270 |
KDH20#,211,22# |
1 | ||
| 82662-26272 |
KDH20#,211,22# |
1 | ||
| 82662-26271 |
KDH20#,211,22# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-26280 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 82662-26310 |
KDH20#,211,22# |
1 | ||
| 82662-26311 |
KDH20#,211,22# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-26080 |
KDH20#,211,22# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-26100 |
KDH20#,211,22# |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-26090 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-26050 |
KDH20#,211,22# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-26010 |
KDH20#,211,22# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-26060 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82741-26020 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90987-T2002 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-T2002 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90987-02025 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
KDH20#,211,22# |
2 | ||
| 88630Y - RELAY, REAR COOLER | ||||
| 90987-04010 |
TRH229..CBU;KDH201,206,TRH200..IV5;KDH201,206,211,223,TRH200,21#,221,223,224,226,228..(HRF,SMRF,SRF)..(02S,05S,10S,15S) |
1 | ||
| 90987-04010 |
KDH20#,TRH200..IV5;KDH20#,211,223,TRH200,21#,22#..(HRF,SMRF,SRF)..(02S,05S,10S,15S) (J) |
1 | ||
| 90987-T2003 |
KDH20#,TRH200..IV5;KDH20#,211,223,TRH200,21#,22#..(HRF,SMRF,SRF)..(02S,05S,10S,15S) (L) |
1 | ||
| Common parts | ||||
| 91511-B0614 | ||||
ILLUST NO. 3 OF 9(1008- )KDH20#,211,22#
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-27010 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08280 |
KDH201,206,221;TRH200..V1..HRF..5D;TRH214,219,224,229..(GC,GL)..CBU;KDH200,205,211,223,TRH200,211,216,221,226..02S,05S,15S 30A,ﾒｽ端子,桃,ﾏｰｸ 32V |
1 | ||
| 90982-08280 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08281 |
KDH20#,211,22#,TRH200,21#,22# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08281 |
TRH221,226..SHRF;KDH20#,223,TRH200,223,224,228,229..IV5 40A,ﾒｽ端子,緑,*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 90982-08295 |
TRH221,226..SHRF;KDH201,TRH200..V2..03S..5F;KDH201,206,TRH200,214,219..4FC..DX;KDH200,205,22#,TRH221,223,226,228..03S,05S,06S,09S,15S 30A,ﾒｽ端子,桃,ﾏｰｸ 58V |
1 | ||
| 90982-08294 |
KDH20#,211,22#,TRH200,21#,22# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08308 |
KDH20#,211,22#,TRH200,21#,22# 40A−30A−30A,ﾒｽ端子,桃 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09025 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09020 |
KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
KDH201,TRH200..SG;KDH201,TRH200..V1..SP;KDH200,205,206,211,22#,TRH21#,22# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-26440 |
KDH20#,211,22# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-71020 |
KDH20#,211,22# |
1 | ||
| 82641-47020 |
KDH20#,211,22# |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-26290 |
KDH20#,211,22# |
2 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-26270 |
KDH20#,211,22# |
1 | ||
| 82662-26272 |
KDH20#,211,22# |
1 | ||
| 82662-26271 |
KDH20#,211,22# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-26280 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 82662-26310 |
KDH20#,211,22# |
1 | ||
| 82662-26311 |
KDH20#,211,22# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-26080 |
KDH20#,211,22# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-26100 |
KDH20#,211,22# |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-26090 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-26050 |
KDH20#,211,22# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-26010 |
KDH20#,211,22# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-26060 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82741-26020 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90987-T2002 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-T2002 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90987-02025 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
KDH20#,211,22# |
2 | ||
| 88630Y - RELAY, REAR COOLER | ||||
| 90987-04010 |
TRH229..CBU;KDH201,206,TRH200..IV5;KDH201,206,211,223,TRH200,21#,221,223,224,226,228..(HRF,SMRF,SRF)..(02S,05S,10S,15S) |
1 | ||
| 90987-04010 |
KDH20#,TRH200..IV5;KDH20#,211,223,TRH200,21#,22#..(HRF,SMRF,SRF)..(02S,05S,10S,15S) (J) |
1 | ||
| 90987-T2003 |
KDH20#,TRH200..IV5;KDH20#,211,223,TRH200,21#,22#..(HRF,SMRF,SRF)..(02S,05S,10S,15S) (L) |
1 | ||
| Common parts | ||||
| 91511-B0614 | ||||
ILLUST NO. 1 OF 7(1312- )KDH20#,211,22#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90430-18008 | ||||
| 91651-40830 | ||||
| 91651-60614 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1702 | ||||
ILLUST NO. 5 OF 7(1312-1712)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 7 OF 7(1312- )
ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾗｹﾞ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06779 | ||||
| 90119-06A06 | ||||
| 90164-40103 | ||||
| 90166-60004 | ||||
| 90189-06018 | ||||
| 91551-80610 | ||||
| 91631-B0614 | ||||
| 91673-80820 | ||||
| 93590-16014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 6758 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 7(1312- )KDH20#,211,22#
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50386 | ||||
| 90179-06274 | ||||
| 90430-12010 | ||||
| Linked diagrams | ||||
| 1603 | ||||
ILLUST NO. 4 OF 7(1312-1711)KDH20#,211,22# ; (1312-1712)TRH200,21#,22#
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06274 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 6 OF 7(1312- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 3 OF 7(1312- )KDH20#,211,22#
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91511-B0614 | ||||
| 91551-80608 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
