KDH201K-ERPDY5 (2007)

Toyota Hiace/Regiusace

Production Sep 2007 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼｰﾄﾍﾞﾙﾄ

diagram 73115 73139B 73210 73219 73220 73230 73240 9010511053 9010511053 9010911058 9010911058 9010911058 9010911058 9033340001 9033340001 9090119040 9090119040 9155380612 9155380612
Part # Description Qty Price
73115 - CLIP, BELT COMFORT NO.1
73115-26010B1

KDH20#,211,22#,TRH200,21#,22#

DK.GRAY,TRIM1#

 2
73115-26010B0

KDH20#,211,22#,TRH200,21#,22#

GRAY,TRIM1#

 2
73139B - COVER, SEAT BELT ANCHOR
73139-26030B1

KDH20#,211,22#,TRH200,21#,22#

DK.GRAY,TRIM1#

 1
73139-26030B0

KDH20#,211,22#,TRH200,21#,22#

GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26733C0

KDH20#,211,22#,TRH200,21#,22#

BLACK,TRIM1#

 1
73210-26732C0

KDH20#,211,22#,TRH200,21#,22#

BLACK,TRIM1#

 1
73210-26680B0

KDH20#,22#,TRH200,21#,22#

GRAY,TRIM1#

 1
73210-26681C0

KDH20#,211,22#,TRH200,21#,22#

BLACK,TRIM1#

 1
73210-26734C0

KDH20#,211,22#,TRH200,21#,22#

BLACK,TRIM1#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

KDH20#,211,22#,TRH200,21#,22#

ﾌﾞﾗｯｸ

 1
73219-33020

KDH20#,211,22#,TRH200,21#,22#

ｸﾞﾚｰ

 1
73219-33030

KDH20#,211,22#,TRH200,21#,22#

ﾍﾞｰｼﾞｭ

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-26680B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

ﾌﾛﾝﾄｼｰﾄﾍﾞﾙﾄ−ﾌﾟﾘﾃﾝｼｮﾅ:有り(運転席&助手席)&ｾﾝﾀｼｰﾄﾍﾞﾙﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1#

 1
73210-26680B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

ﾌﾛﾝﾄｼｰﾄﾍﾞﾙﾄ−ﾌﾟﾘﾃﾝｼｮﾅ:有り(運転席&助手席)&ｾﾝﾀｼｰﾄﾍﾞﾙﾄ,GRAY,TRIM1#

 1
73210-26690B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

GRAY,TRIM1#

 1
73220-26550B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1#

 1
73220-26561C0

KDH20#,221,TRH200,221,226..03S,06S,09S

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),BLACK,TRIM1#

 1
73220-26550C0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),BLACK,TRIM1#

 1
73220-26571C0

KDH20#,221,TRH200,221,226..03S,06S,09S

BLACK,TRIM1#

 1
73220-26570C0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

BLACK,TRIM1#

 1
73220-26562C0

KDH20#,221,TRH200,221,226..03S,06S,09S

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),BLACK,TRIM1#

 1
73220-26572C0

KDH20#,221,TRH200,221,226..03S,06S,09S

BLACK,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-26240C0

TRH214,219..GL;TRH224,229..IV5;TRH221,226..SHRF;KDH20#,211,22#,TRH200,211,216,221,223,226,228..03S,05S,06S,09S,15S

BLACK,TRIM1#

 1
73230-26240B0

KDH20#,211,22#,TRH200,21#,22#

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-26190B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

ﾌﾛﾝﾄｼｰﾄﾍﾞﾙﾄ−ﾌﾟﾘﾃﾝｼｮﾅ:有り(運転席&助手席)&ｾﾝﾀｼｰﾄﾍﾞﾙﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1#

 1
73240-26180B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

GRAY,TRIM1#

 1
73240-26190B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1#

 1
73240-26180C0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

BLACK,TRIM1#

 1
73240-26190C0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),BLACK,TRIM1#

 1
73240-26181C0

KDH20#,221,TRH200,221,226..03S,06S,09S

BLACK,TRIM1#

 1
73240-26191C0

KDH20#,221,TRH200,221,226..03S,06S,09S

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),BLACK,TRIM1#

 1
Common parts
90105-11053
90109-11058
90333-40001
90901-19040
91553-80612

(0408-1205)06S,09S

Click highlighted areas on diagram

ﾘﾔ ｼｰﾄﾍﾞﾙﾄ(ﾃﾞｨｰﾗｰ ｵﾌﾟｼｮﾝ)

diagram 6451 73360B 73360B 73370B 73380D 73431 73431 73431A 73432 73470 73470B 73480 73560 73560 73570 9010511045 9010511045 9010511045 9010511045 9010511053 9010511053 9010511053 9010511053 9010911055 9010911055 9010911055 9010911055 9010911055 9010911055 9155380612 9155380612
Part # Description Qty Price
Common parts
90105-11045
90105-11053
90109-11055
91553-80612
Linked diagrams
6451

(0408- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼｰﾄﾍﾞﾙﾄ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ)

diagram 73115 73139B 73150 73160A 73210 73210 73219 73220 73220 73230 73240 9010511053 9010511053 9010511053 9010911057 9010911058 9010911058 9010911058 9010911058 9090119040 9155380612 9155380612
Part # Description Qty Price
73115 - CLIP, BELT COMFORT NO.1
73115-26010B1

KDH20#,211,22#,TRH200,21#,22#

DK.GRAY,TRIM1#

 2
73115-26010B0

KDH20#,211,22#,TRH200,21#,22#

GRAY,TRIM1#

 2
73139B - COVER, SEAT BELT ANCHOR
73139-26030B1

KDH20#,211,22#,TRH200,21#,22#

DK.GRAY,TRIM1#

 1
73139-26030B0

KDH20#,211,22#,TRH200,21#,22#

GRAY,TRIM1#

 1
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-26030C0

TRH224,229..IV5;KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S

BLACK,TRIM1#

 1
73150-26012C0

KDH20#,221,TRH200,221,226..03S,06S,09S

BLACK,TRIM1#

 1
73150-26011C0

KDH20#,221,TRH200,221,226..03S,06S,09S

BLACK,TRIM1#

 1
73150-26030B0

KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S

GRAY,TRIM1#

 1
73160A - SEAT BELT ASSY, FRONT CENTER, RH
73160-26090B0

KDH20#,TRH200..DX

GRAY,TRIM1#

 1
73160-26090C0

KDH20#,TRH200..DX

BLACK,TRIM1#

 1
73160-26160C0

KDH20#,TRH200..DX

BLACK,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26733C0

KDH20#,211,22#,TRH200,21#,22#

BLACK,TRIM1#

 1
73210-26732C0

KDH20#,211,22#,TRH200,21#,22#

BLACK,TRIM1#

 1
73210-26680B0

KDH20#,22#,TRH200,21#,22#

GRAY,TRIM1#

 1
73210-26681C0

KDH20#,211,22#,TRH200,21#,22#

BLACK,TRIM1#

 1
73210-26734C0

KDH20#,211,22#,TRH200,21#,22#

BLACK,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26733C0

KDH20#,211,22#,TRH200,21#,22#

BLACK,TRIM1#

 1
73210-26732C0

KDH20#,211,22#,TRH200,21#,22#

BLACK,TRIM1#

 1
73210-26680B0

KDH20#,22#,TRH200,21#,22#

GRAY,TRIM1#

 1
73210-26681C0

KDH20#,211,22#,TRH200,21#,22#

BLACK,TRIM1#

 1
73210-26734C0

KDH20#,211,22#,TRH200,21#,22#

BLACK,TRIM1#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

KDH20#,211,22#,TRH200,21#,22#

ﾌﾞﾗｯｸ

 1
73219-33020

KDH20#,211,22#,TRH200,21#,22#

ｸﾞﾚｰ

 1
73219-33030

KDH20#,211,22#,TRH200,21#,22#

ﾍﾞｰｼﾞｭ

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-26680B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

ﾌﾛﾝﾄｼｰﾄﾍﾞﾙﾄ−ﾌﾟﾘﾃﾝｼｮﾅ:有り(運転席&助手席)&ｾﾝﾀｼｰﾄﾍﾞﾙﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1#

 1
73210-26680B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

ﾌﾛﾝﾄｼｰﾄﾍﾞﾙﾄ−ﾌﾟﾘﾃﾝｼｮﾅ:有り(運転席&助手席)&ｾﾝﾀｼｰﾄﾍﾞﾙﾄ,GRAY,TRIM1#

 1
73210-26690B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

GRAY,TRIM1#

 1
73220-26550B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1#

 1
73220-26561C0

KDH20#,221,TRH200,221,226..03S,06S,09S

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),BLACK,TRIM1#

 1
73220-26550C0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),BLACK,TRIM1#

 1
73220-26571C0

KDH20#,221,TRH200,221,226..03S,06S,09S

BLACK,TRIM1#

 1
73220-26570C0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

BLACK,TRIM1#

 1
73220-26562C0

KDH20#,221,TRH200,221,226..03S,06S,09S

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),BLACK,TRIM1#

 1
73220-26572C0

KDH20#,221,TRH200,221,226..03S,06S,09S

BLACK,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-26680B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

ﾌﾛﾝﾄｼｰﾄﾍﾞﾙﾄ−ﾌﾟﾘﾃﾝｼｮﾅ:有り(運転席&助手席)&ｾﾝﾀｼｰﾄﾍﾞﾙﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1#

 1
73210-26680B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

ﾌﾛﾝﾄｼｰﾄﾍﾞﾙﾄ−ﾌﾟﾘﾃﾝｼｮﾅ:有り(運転席&助手席)&ｾﾝﾀｼｰﾄﾍﾞﾙﾄ,GRAY,TRIM1#

 1
73210-26690B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

GRAY,TRIM1#

 1
73220-26550B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1#

 1
73220-26561C0

KDH20#,221,TRH200,221,226..03S,06S,09S

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),BLACK,TRIM1#

 1
73220-26550C0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),BLACK,TRIM1#

 1
73220-26571C0

KDH20#,221,TRH200,221,226..03S,06S,09S

BLACK,TRIM1#

 1
73220-26570C0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

BLACK,TRIM1#

 1
73220-26562C0

KDH20#,221,TRH200,221,226..03S,06S,09S

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),BLACK,TRIM1#

 1
73220-26572C0

KDH20#,221,TRH200,221,226..03S,06S,09S

BLACK,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-26240C0

TRH214,219..GL;TRH224,229..IV5;TRH221,226..SHRF;KDH20#,211,22#,TRH200,211,216,221,223,226,228..03S,05S,06S,09S,15S

BLACK,TRIM1#

 1
73230-26240B0

KDH20#,211,22#,TRH200,21#,22#

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-26190B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

ﾌﾛﾝﾄｼｰﾄﾍﾞﾙﾄ−ﾌﾟﾘﾃﾝｼｮﾅ:有り(運転席&助手席)&ｾﾝﾀｼｰﾄﾍﾞﾙﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1#

 1
73240-26180B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

GRAY,TRIM1#

 1
73240-26190B0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1#

 1
73240-26180C0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

BLACK,TRIM1#

 1
73240-26190C0

KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),BLACK,TRIM1#

 1
73240-26181C0

KDH20#,221,TRH200,221,226..03S,06S,09S

BLACK,TRIM1#

 1
73240-26191C0

KDH20#,221,TRH200,221,226..03S,06S,09S

SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),BLACK,TRIM1#

 1
Common parts
90105-11053
90109-11057
90109-11058
90901-19040
91553-80612

(1205- )06S,09S

Click highlighted areas on diagram

ﾘﾔｼｰﾄﾍﾞﾙﾄ

diagram 6451 73360B 73360B 73370B 73380D 73431 73431 73431A 73432 73470 73470B 73480 73560 73560 73570 9010511045 9010511045 9010511045 9010511045 9010511053 9010511053 9010511053 9010511053 9010911055 9010911055 9010911055 9010911055 9010911055 9010911055 9155380612 9155380612
Part # Description Qty Price
Common parts
90105-11045
90105-11053
90109-11055
91553-80612
Linked diagrams
6451

(1312- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼｰﾄﾍﾞﾙﾄ

diagram 73115 73139B 73210 73219 73220 73230 73240 9010511053 9010511053 9010911058 9010911058 9010911058 9010911058 9033340001 9033340001 9090119040 9090119040 9155380612 9155380612
Part # Description Qty Price
Common parts
90105-11053
90109-11058
90333-40001
90901-19040
91553-80612

(1312- )GDH20#,KDH20#,22#,TRH200,221,226..DX..CBU,IV5

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼｰﾄﾍﾞﾙﾄ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ)

diagram 73115 73139B 73150 73160A 73210 73210 73219 73220 73220 73230 73240 9010511053 9010511053 9010511053 9010911057 9010911058 9010911058 9010911058 9010911058 9090119040 9155380612 9155380612
Part # Description Qty Price
Common parts
90105-11053
90109-11057
90109-11058
90901-19040
91553-80612

(1312- )05S,06S,09S..DX ; (1312- )GDH20#,KDH20#,TRH200..IV5

Click highlighted areas on diagram

ﾘﾔ ｼｰﾄﾍﾞﾙﾄ

diagram 73360B 73360B 73370B 73380D 73431 73431 73432 73432 73470 73470B 73480 73560 73560 73570 9010511045 9010511045 9010511045 9010511045 9010511053 9010511053 9010511053 9010511053 9010511053 9010911055 9010911055 9011906951 9155380612 9155380612
Part # Description Qty Price
Common parts
90105-11045
90105-11053
90109-11055
90119-06951
91553-80612

(1312- )GDH20#,KDH20#,TRH200..IV5

Click highlighted areas on diagram

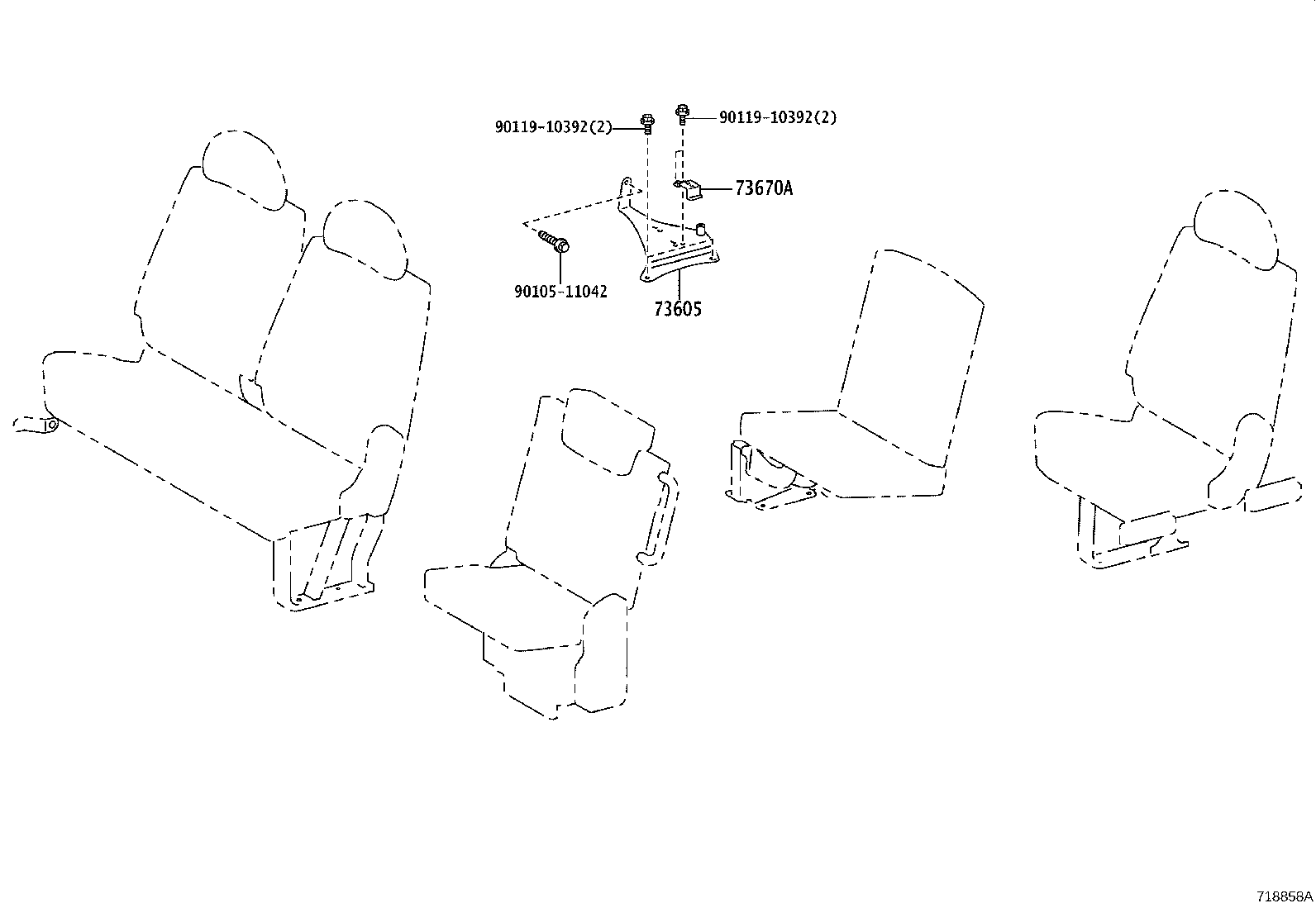

ｸﾙﾏｲｽ ｼﾖｳｼｬ ﾘﾔｼｰﾄﾍﾞﾙﾄ ｱﾝｶ

diagram 73605 73670A 9010511042 9011910392 9011910392
Part # Description Qty Price
Common parts
90105-11042
90119-10392
