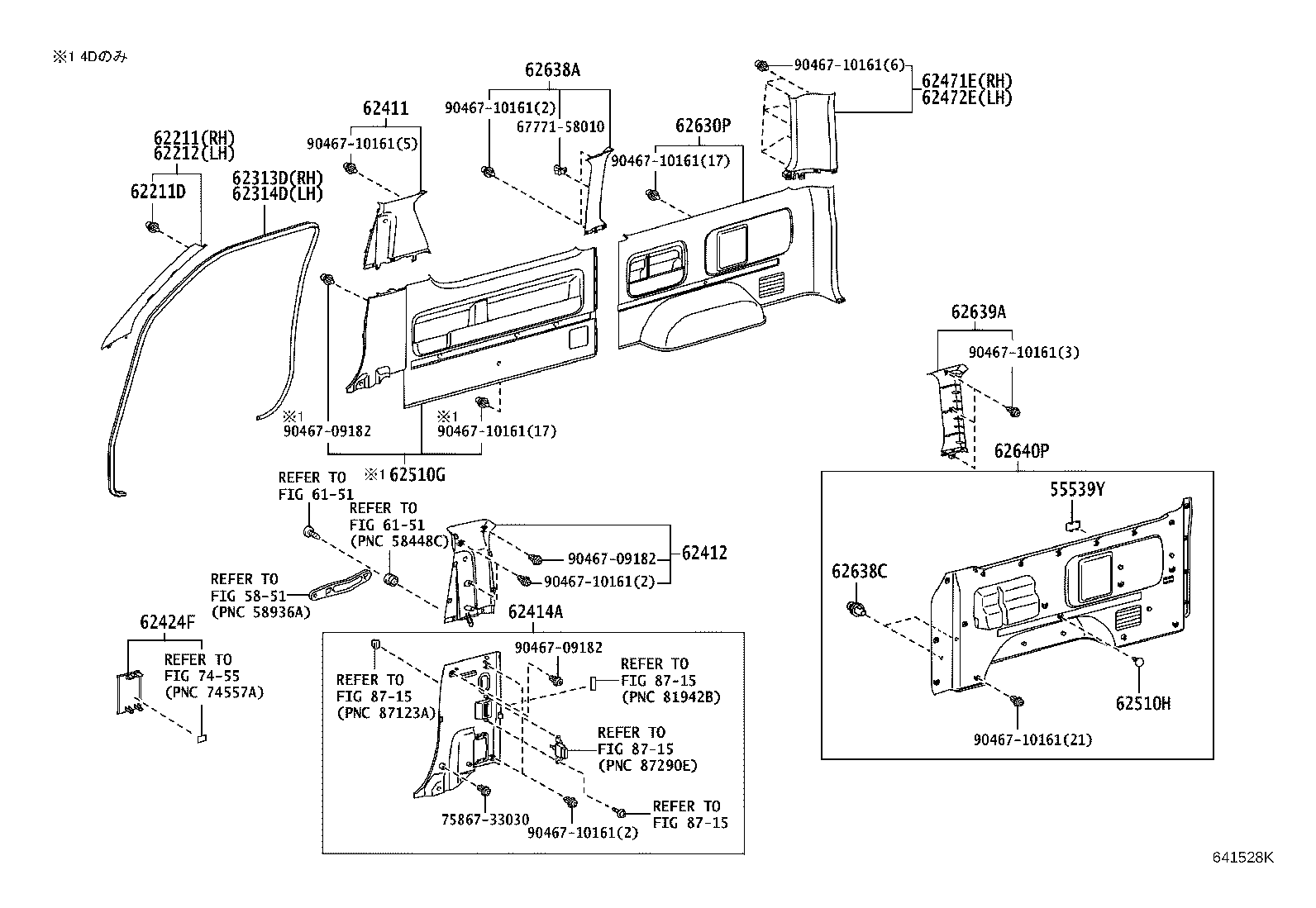

Toyota Hiace/regiusace KDH201 INSIDE TRIM BOARD

Part #	Description	Period	Qty
55539Y - COVER, SPARE SWITCH HOLE
55539-28120B4	KDH20#,TRH200..IV5;KDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL GRAY,TRIM1#	08/2004 - 08/2010	1
55539-28120B2	KDH20#,TRH200..IV5;KDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL DK.GRAY,TRIM1#	08/2010 - 12/2013	1
62211 - GARNISH, FRONT PILLAR, RH
62210-26050B0	TRH224,229..IV5;KDH20#,TRH200..SGL;KDH20#,22#,TRH200,21#,221,223,226,228..HRF,SMRF LT.GRAY,TRIM1#	08/2004 - 10/2006	1
62210-26052B0	TRH224..IV5;KDH20#,TRH200..SGL;KDH20#,211,22#,TRH200,21#,221,223,226,228..HRF,SHRF,SMRF LT.GRAY,TRIM1#	06/2013 - 12/2013	1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10161	KDH20#,TRH200..SGL;KDH20#,211,22#,TRH200,21#,22#..HRF,SHRF,SMRF	08/2004 - 12/2013	2
62212 - GARNISH, FRONT PILLAR, LH
62220-26032B0	TRH224..IV5;KDH20#,TRH200..SGL;KDH20#,211,22#,TRH200,21#,221,223,226,228..HRF,SHRF,SMRF LT.GRAY,TRIM1#	06/2013 - 12/2013	1
62220-26030B0	TRH224,229..IV5;KDH20#,TRH200..SGL;KDH20#,22#,TRH200,21#,221,223,226,228..HRF,SMRF LT.GRAY,TRIM1#	08/2004 - 10/2006	1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-26010C0	TRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S BLACK,TRIM1#	08/2004 - 12/2013	1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-26010C0	TRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S BLACK,TRIM1#	08/2004 - 12/2013	1
62411 - GARNISH, CENTER PILLAR, RH
62410-26110B0	KDH20#,TRH200,224,229..IV5;KDH222,223,227,TRH214,219,223,228..GL LT.GRAY,TRIM1#	08/2004 - 12/2013	1
62412 - GARNISH, CENTER PILLAR, LH
62420-26050B0	KDH20#,TRH200..IV5;KDH20#,TRH200,214,219..(05S,10S)..(DX,SGL) LT.GRAY,TRIM1#	08/2004 - 12/2013	1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26430B0	KDH20#..IV5;KDH20#,211..SGL GRAY,TRIM1#	09/2007 - 08/2010	1
62414-26430B1	KDH20#..IV5;KDH20#,211..SGL DK.GRAY,TRIM1#	08/2010 - 06/2013	1
62414-26430B2	KDH20#..IV5;KDH20#,211..SGL DK.GRAY,TRIM1#	06/2013 - 12/2013	1
62424F - COVER, CENTER PILLAR GARNISH, LOWER LH
62424-26030B0	KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1#	08/2010 - 05/2012	1
62424-26030B1	KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1#	08/2004 - 08/2010	1
62424-26031B0	KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1#	05/2012 - 12/2013	1
62471E - GARNISH, ROOF SIDE, INNER UPPER RH
62471-26260B0	KDH20#,223,TRH200,223,228..IV5;KDH211,222,227,TRH211,216,224,229..GC,GL,SGL LT.GRAY,TRIM1#	08/2004 - 12/2013	1
62472E - GARNISH, ROOF SIDE, INNER UPPER LH
62472-26250B0	KDH20#,222,223,227,TRH200,223,224,228,229..IV5 LT.GRAY,TRIM1#	08/2004 - 12/2013	1
62510G - TRIM ASSY, SIDE NO.1, RH
62510-26680B1	KDH20#,TRH200..IV5 GRAY,TRIM1#	08/2004 - 08/2010	1
62510-26680B2	KDH20#,TRH200..IV5 DK.GRAY,TRIM1#	08/2010 - 12/2013	1
62510H - CLIP(FOR QUARTER TRIM FRONT PANEL)
67771-26230B2	KDH20#,TRH200..IV5 DK.GRAY,TRIM1#	08/2010 - 12/2013	1
67771-26230B0	KDH20#,TRH200..IV5 GRAY,TRIM1#	08/2004 - 08/2010	1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-26A60B1	KDH20#,TRH200..IV5 GRAY,TRIM1#	08/2004 - 08/2010	1
62630-26A60B2	KDH20#,TRH200..IV5 DK.GRAY,TRIM1#	08/2010 - 12/2013	1
62638A - GARNISH, QUARTER PILLAR, RH
62638-26060B0	TRH214,219..GL;KDH20#,TRH200..IV5 LT.GRAY,TRIM1#	08/2004 - 12/2013	1
62638C - FASTENER(FOR QUARTER PILLAR GARNISH)
90530-06009B7	KDH20#,TRH200..IV5 GRAY,TRIM1#	08/2004 - 08/2010	2
90530-06009B8	KDH20#,TRH200..IV5 DK.GRAY,TRIM1#	08/2010 - 12/2013	2
62639A - GARNISH, QUARTER PILLAR, LH
62639-26101B0	KDH20#,TRH200..IV5 LT.GRAY,TRIM1#	05/2012 - 12/2013	1
62639-26040B0	KDH20#,TRH200..IV5 LT.GRAY,TRIM1#	08/2004 - 05/2012	1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-26B10B2	KDH20#,TRH200..IV5 GRAY,TRIM1#	08/2004 - 08/2010	1
62640-26B10B3	KDH20#,TRH200..IV5 DK.GRAY,TRIM1#	08/2010 - 05/2012	1
62640-26B11B1	KDH20#,TRH200..IV5 DK.GRAY,TRIM1#	05/2012 - 12/2013	1
Common parts
67771-58010
75867-33030
90467-09182
90467-10161
Linked diagrams
5851
6151
7455
8715

KDH201K-ERPDY5 (2007)

(0408- )KDH20#,TRH200..IV5

(1312- )GDH20#,KDH20#,TRH200..IV5
