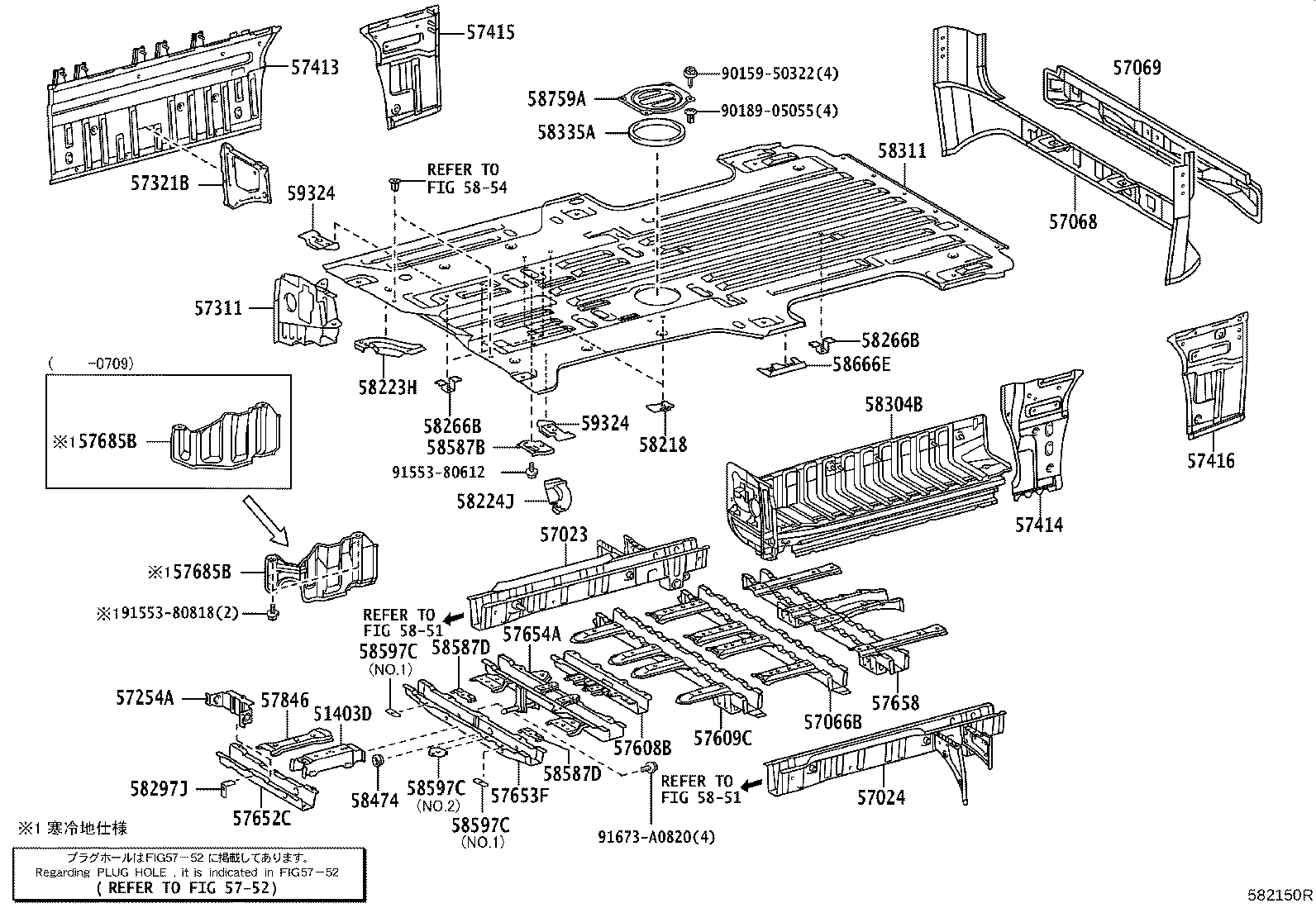

KDH201K-ERPDY5 (2007)
Toyota Hiace/Regiusace
(0408- )KDH20#,TRH200..IV5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51403D - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51403-26240 |
KDH200,201,211,220,221,222,223 |
1 | ||
| 51403-26242 |
KDH201,211,22# |
1 | ||
| 51403-26241 |
KDH201,211,22# |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-26650 |
KDH222,223,227,TRH223,224,228,229..IV5;KDH20#,211,220,221,225,TRH200,211,216,221,226..V1..(03S,05S,06S,09S) |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-26650 |
KDH20#,222,223,227,TRH200,223,224,228,229..IV5 |
1 | ||
| 57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 | ||||
| 57066-26120 |
KDH20#,TRH200..V1 |
1 | ||
| 57066-26121 |
KDH20#,TRH200..V1 |
1 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-26280 |
KDH20#,TRH200..IV5 |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-26140 |
KDH20#,TRH200 |
1 | ||
| 57254A - REINFORCEMENT, ENGINE REAR MOUNTING MEMBER | ||||
| 57254-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 57254-26041 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 57311 - OUTRIGGER, NO.1 RH | ||||
| 57301-26090 |
KDH205,206..4D..(06S,09S);KDH200,201,22#,TRH200,219,22#..(HRF,SHRF,SMRF)..4D |
1 | ||
| 57321B - OUTRIGGER, NO.5, RH | ||||
| 57321-26010 |
KDH20#,22#,TRH200,214,219,22#..4D |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-26A70 |
KDH20#,TRH200..IV5 |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57406-26560 |
KDH20#,TRH200..IV5 |
1 | ||
| 57406-26550 |
KDH20#,TRH200..IV5 |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-26270 |
KDH20#,222,223,227,TRH200,223,224,228,229..IV5 |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57048-26250 |
KDH20#,222,223,227,TRH200,223,224,228,229..IV5 |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-26361 |
KDH20#,TRH200..IV5 |
1 | ||
| 57608-26360 |
KDH20#,TRH200..IV5 |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-26210 |
KDH20#,TRH200..IV5 |
1 | ||
| 57609-26211 |
KDH20#,TRH200..IV5 |
1 | ||
| 57609-26212 |
KDH20#,TRH200..IV5 |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-26070 |
KDH20#,TRH200 |
1 | ||
| 57652-26071 |
KDH20#,TRH200 |
1 | ||
| 57653F - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57663-26030 |
KDH20# |
1 | ||
| 57663-26031 |
KDH20# |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57607-26610 |
KDH20#,TRH200..IV5 |
1 | ||
| 57607-26611 |
KDH20#,TRH200..IV5 |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57067-26150 |
KDH20#,TRH200..IV5;KDH200,201,TRH200..V2 |
1 | ||
| 57067-26151 |
KDH201,TRH200..V2;KDH20#,TRH200..IV5 |
1 | ||
| 57685B - GUARD, FUEL TANK | ||||
| 57685-26010 |
KDH20#,TRH200 寒冷地仕様 |
1 | ||
| 57685-26040 |
KDH20#,211,TRH200 寒冷地仕様 |
1 | ||
| 57685B - GUARD, FUEL TANK | ||||
| 57685-26010 |
KDH20#,TRH200 寒冷地仕様 |
1 | ||
| 57685-26040 |
KDH20#,211,TRH200 寒冷地仕様 |
1 | ||
| 57846 - REINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH | ||||
| 57846-26010 |
KDH20#,TRH200..IV5 |
1 | ||
| 58218 - PLATE, SEAT FLOOR PANEL | ||||
| 58218-26010 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 58223H - REINFORCEMENT, FLOOR PANEL SIDE, RH | ||||
| 58223-26071 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58223-26070 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58224J - REINFORCEMENT, FLOOR PANEL SIDE, LH | ||||
| 58224-26091 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58224-26090 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J00 |
KDH201,206 |
5 | ||
| 58266-95J00 |
KDH20# |
4 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J00 |
KDH201,206 |
5 | ||
| 58266-95J00 |
KDH20# |
4 | ||
| 58297J - RETAINER, FLOOR CLAMP | ||||
| 58297-26020 |
KDH201..V1;KDH201..V2..5F;KDH206,211,221,223,TRH200,21#,22# |
1 | ||
| 58297-26020 |
KDH201..V1;KDH201..V2..5F;KDH206,211,22#,TRH200,21#,22#..HRF,SMRF,SRF |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-26490 |
KDH20#,222,223,227..IV5 *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 58304-26460 |
KDH223;KDH20#,222,227..IV5 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-26A20 |
KDH20#,TRH200..IV5 |
1 | ||
| 58311-26E30 |
KDH20#,TRH200..IV5 |
1 | ||
| 58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER | ||||
| 58335-26030 |
TRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228 |
1 | ||
| 58474 - COVER, INSPECTION HOLE | ||||
| 58474-26010 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 58474-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58587B - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 RH | ||||
| 58587-26060 |
KDH222,223,227,TRH223,224,228,229..IV5;KDH20#,211,220,221,225,TRH200,211,216,221,226..V1..(05S,06S) |
1 | ||
| 58587D - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 | ||||
| 58587-26010 |
KDH200,201,TRH200..V2..03S;KDH222,223,227,TRH223,224,228,229..IV5;KDH20#,211,220,221,225,TRH200,211,216,221,226..05S,06S,09S |
2 | ||
| 58587D - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 | ||||
| 58587-26010 |
KDH200,201,TRH200..V2..03S;KDH222,223,227,TRH223,224,228,229..IV5;KDH20#,211,220,221,225,TRH200,211,216,221,226..05S,06S,09S |
2 | ||
| 58597C - PLATE, SEAT TRACK SET | ||||
| 58597-26070 |
KDH20#,TRH200..IV5 NO.2 |
1 | ||
| 58597-26030 |
KDH20#,TRH200..IV5;KDH200,205,TRH200..05S,09S NO.1 |
2 | ||
| 58597C - PLATE, SEAT TRACK SET | ||||
| 58597-26070 |
KDH20#,TRH200..IV5 NO.2 |
1 | ||
| 58597-26030 |
KDH20#,TRH200..IV5;KDH200,205,TRH200..05S,09S NO.1 |
2 | ||
| 58597C - PLATE, SEAT TRACK SET | ||||
| 58597-26070 |
KDH20#,TRH200..IV5 NO.2 |
1 | ||
| 58597-26030 |
KDH20#,TRH200..IV5;KDH200,205,TRH200..05S,09S NO.1 |
2 | ||
| 58666E - PLATE, REAR FLOOR, CENTER LOWER NO.2 LH | ||||
| 58666-26010 |
KDH20#,211,TRH200,21# |
1 | ||
| 58759A - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58759-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 59324 - BASE, SUB FLOOR LEG, NO.2 | ||||
| 59324-26020 |
KDH20#,TRH200..IV5 右側 |
1 | ||
| 59324-26010 |
KDH20#,TRH200..IV5 左側 |
1 | ||
| 59324 - BASE, SUB FLOOR LEG, NO.2 | ||||
| 59324-26020 |
KDH20#,TRH200..IV5 右側 |
1 | ||
| 59324-26010 |
KDH20#,TRH200..IV5 左側 |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05055 | ||||
| 91553-80612 | ||||
| 91553-80818 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5851 | ||||
| 5854 | ||||

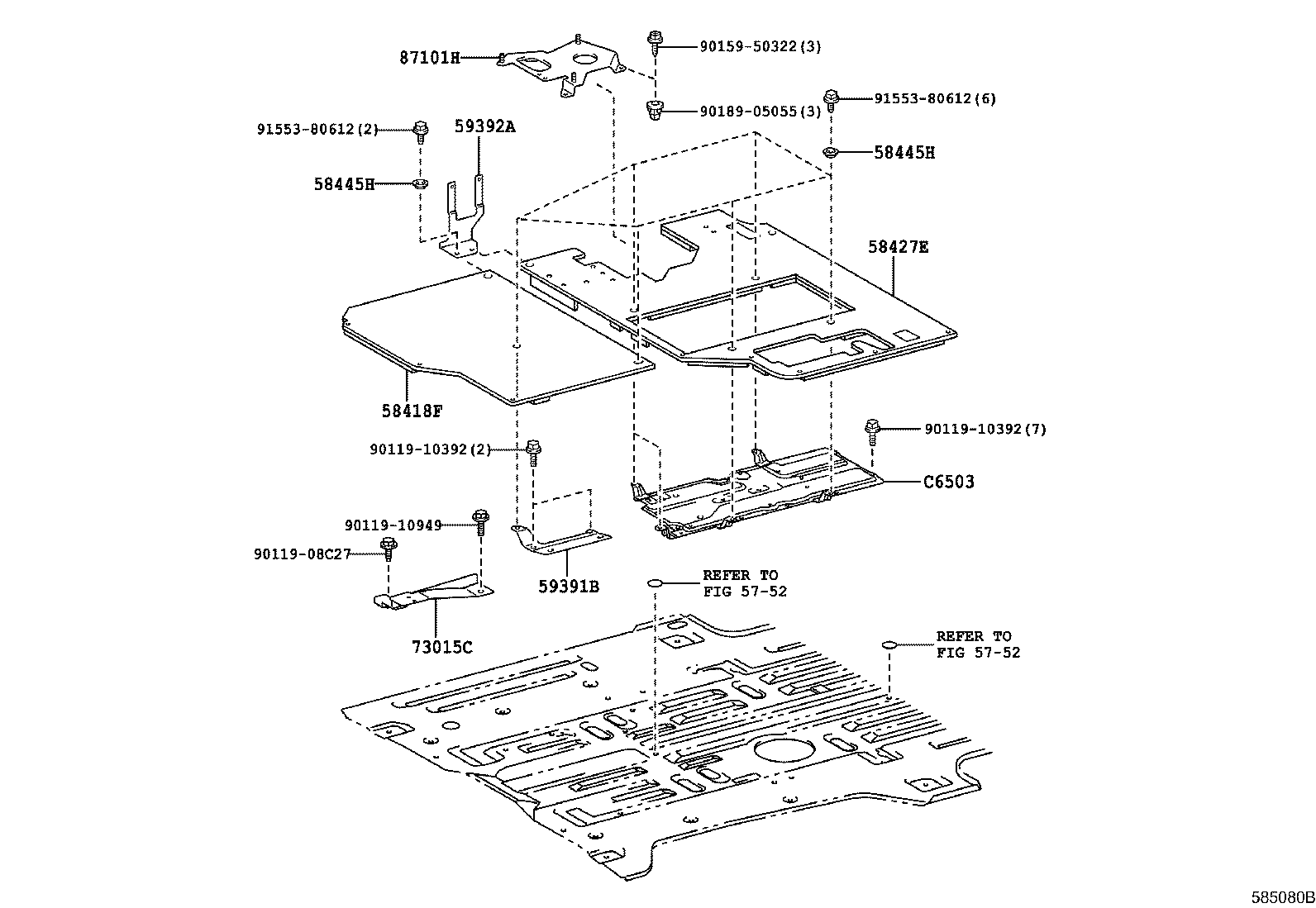

ILLUST NO. 2 OF 2(1312-1606)KDH20#,TRH200..IV5
ｳｪﾙｷｬﾌﾞ(ﾘﾔﾘﾌﾄA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08C27 | ||||
| 90119-10392 | ||||
| 90119-10949 | ||||
| 90159-50322 | ||||
| 90189-05055 | ||||
| 91553-80612 | ||||
| Linked diagrams | ||||
| 5752 | ||||

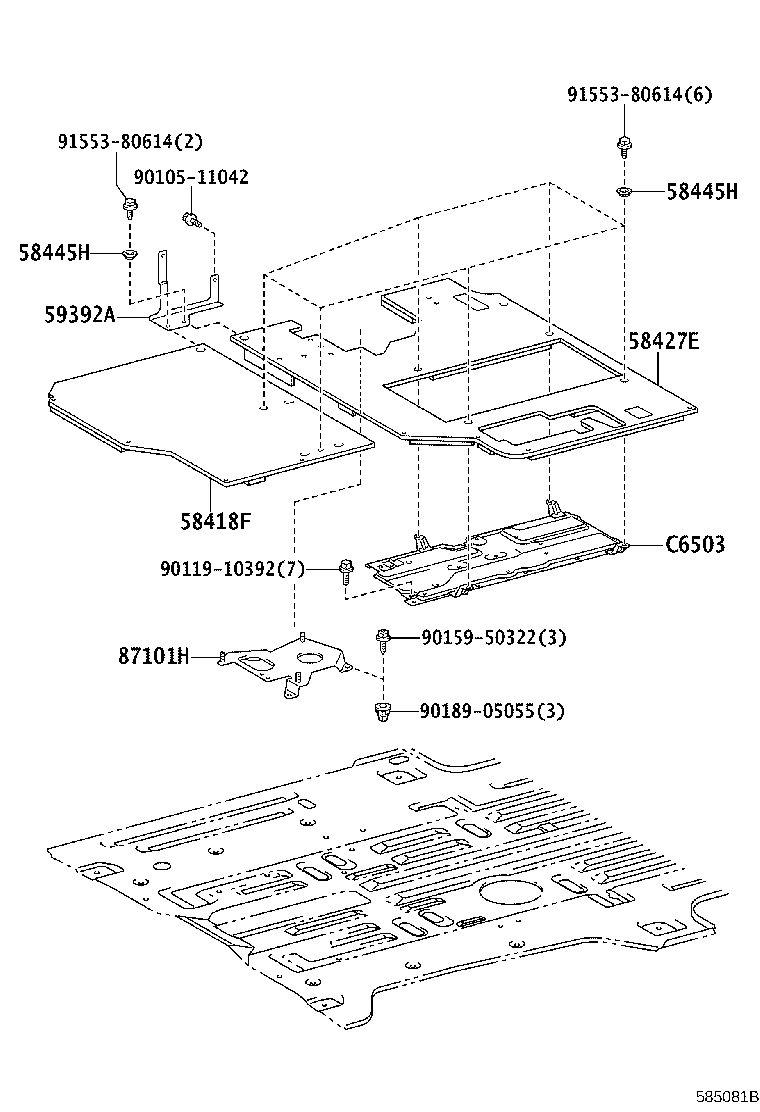

ILLUST NO. 2 OF 2(1312- )GDH20#,KDH20#,TRH200..IV5
ｳｪﾙｷｬﾌﾞ(ﾘﾔﾘﾌﾄB)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-11042 | ||||
| 90119-10392 | ||||
| 90159-50322 | ||||
| 90189-05055 | ||||
| 91553-80614 | ||||

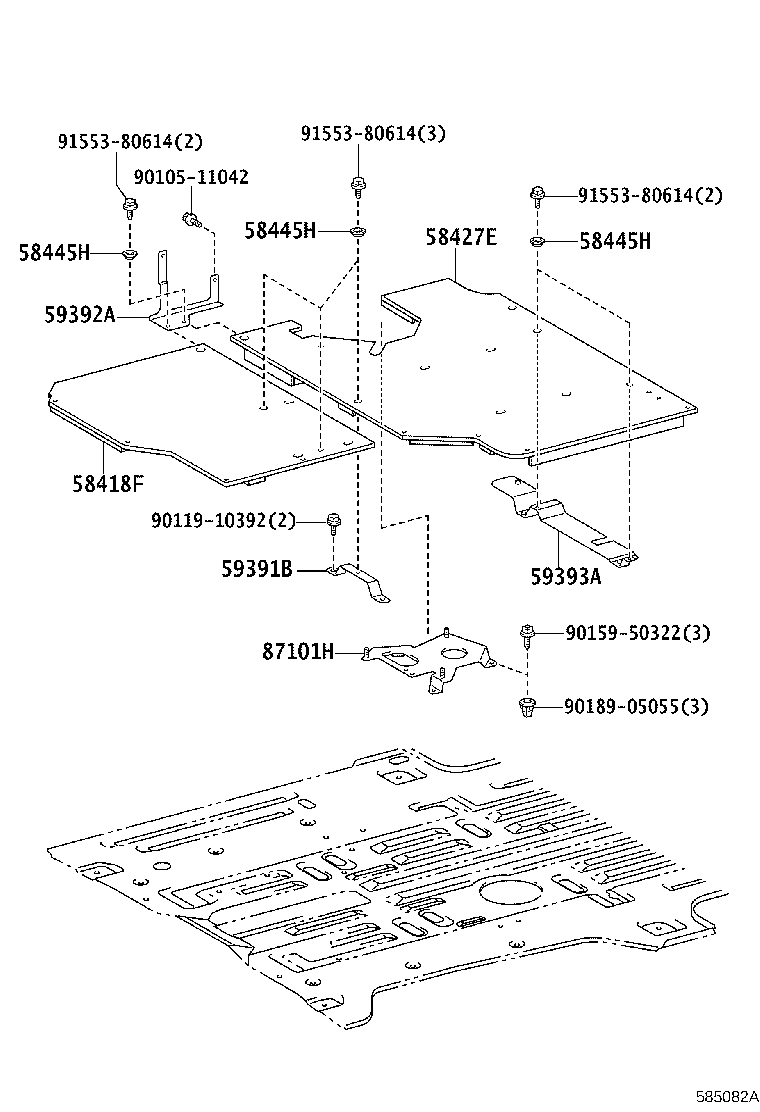

ILLUST NO. 2 OF 2(1312- )GDH20#,KDH20#,TRH200..IV5
ｳｪﾙｷｬﾌﾞ(ﾘﾔﾘﾌﾄCﾏﾀﾊD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-11042 | ||||
| 90119-10392 | ||||
| 90159-50322 | ||||
| 90189-05055 | ||||
| 91553-80614 | ||||
ILLUST NO. 1 OF 2(1312- )GDH20#,KDH20#,TRH200..IV5
ｳｪﾙｷｬﾌﾞ(ﾘﾔﾘﾌﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06877 | ||||
| 90159-50322 | ||||
| 90189-05055 | ||||
| 91553-80612 | ||||
| 91553-80818 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5851 | ||||
| 5854 | ||||
