KDH201K-ERPDY5 (2007)
Toyota Hiace/Regiusace
Production
Sep 2007
-
Dec 2013
Engine
1KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0408- )

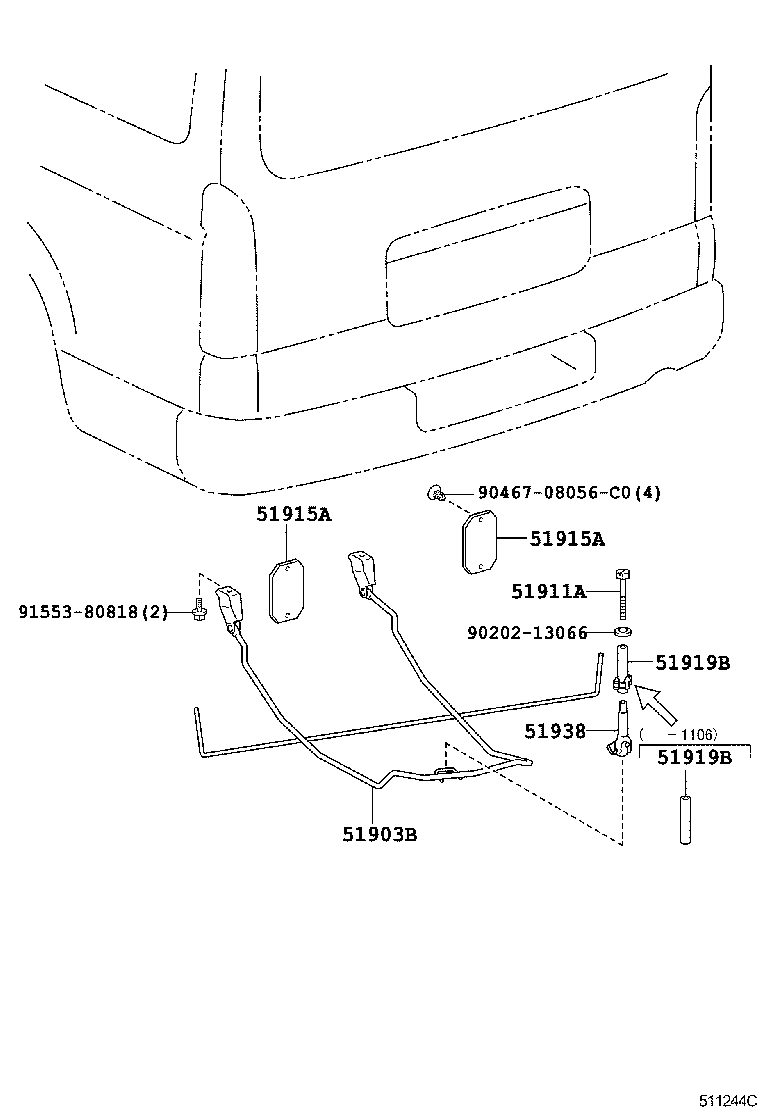

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51903B - CARRIER SUB-ASSY, SPARE WHEEL | ||||
| 51903-26660 |
KDH20#,211,22#,TRH200,21#,22#..COM,V1,WG |
1 | ||
| 51903-26661 |
KDH20#,211,22#,TRH200,21#,22#..COM,V1,WG |
1 | ||
| 51911A - BOLT, SPARE WHEEL | ||||
| 51911-28070 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 51915A - BASE, SPARE WHEEL CARRIER | ||||
| 51915-26030 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 51915A - BASE, SPARE WHEEL CARRIER | ||||
| 51915-26030 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 51919B - SPACER, SPARE WHEEL CARRIER | ||||
| 51919-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 51907-26020 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 51919B - SPACER, SPARE WHEEL CARRIER | ||||
| 51919-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 51907-26020 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 51938 - LOCK, SPARE WHEEL CARRIER | ||||
| 51938-44010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| Common parts | ||||
| 90202-13066 | ||||
| 90467-08056C0 | ||||
| 91553-80818 | ||||
(1312- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90202-13066 | ||||
| 90467-06020C0 | ||||
| 90467-08056C0 | ||||
| 91553-80818 | ||||
