KDH201K-ERPDY5 (2007)

Toyota Hiace/Regiusace

Production Sep 2007 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )1KDFTV,2KDFTV

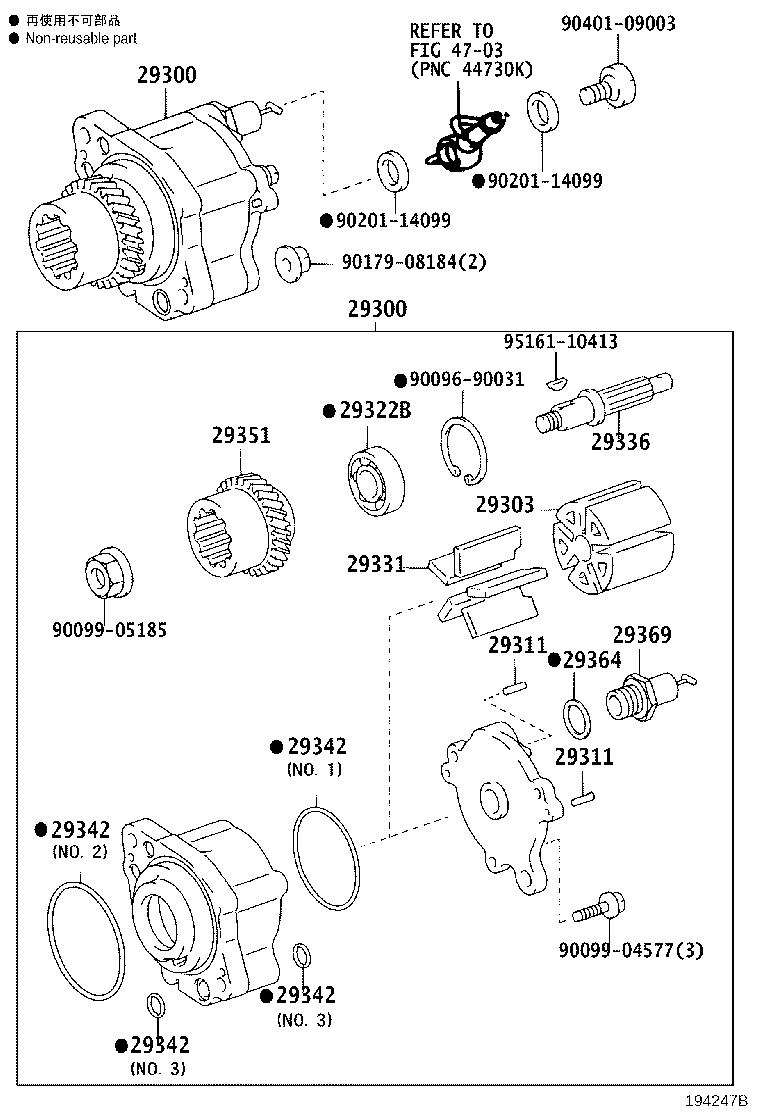

Click highlighted areas on diagram

diagram 29300 29300 29303 29311 29311 29322B 29331 29336 29342 29342 29342 29342 29351 29364 29369 4703 9009690031 9009904577 9009905185 9017908184 9020114099 9020114099 9040109001 9516110413
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-30020

1KDFTV..KDH20#,211,22#

 1
29300 - PUMP ASSY, VACUUM
29300-30020

1KDFTV..KDH20#,211,22#

 1
29303 - ROTOR SUB-ASSY, VACUUM PUMP
29303-67020

1KDFTV..KDH201,206,211,221,223

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

1KDFTV..KDH201,206,211,221,223

 2
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

1KDFTV..KDH201,206,211,221,223

 2
29322B - BEARING, VACUUM PUMP
90099-10185

1KDFTV..KDH201,206,211,221,223

 1
29331 - BLADE, VACUUM PUMP, A
29331-67020

1KDFTV..KDH201,206,211,221,223

 5
29336 - SHAFT, VACUUM PUMP
29336-58050

1KDFTV..KDH201,206,211,221,223

 1
29342 - PACKING, VACUUM PUMP
29342-58040

1KDFTV..KDH20#,211,22#

NO.1

 1
29342-58060

1KDFTV..KDH20#,211,22#

NO.3

 2
29342-58070

1KDFTV..KDH20#,211,22#

NO.2

 1
29342 - PACKING, VACUUM PUMP
29342-58040

1KDFTV..KDH20#,211,22#

NO.1

 1
29342-58060

1KDFTV..KDH20#,211,22#

NO.3

 2
29342-58070

1KDFTV..KDH20#,211,22#

NO.2

 1
29342 - PACKING, VACUUM PUMP
29342-58040

1KDFTV..KDH20#,211,22#

NO.1

 1
29342-58060

1KDFTV..KDH20#,211,22#

NO.3

 2
29342-58070

1KDFTV..KDH20#,211,22#

NO.2

 1
29342 - PACKING, VACUUM PUMP
29342-58040

1KDFTV..KDH20#,211,22#

NO.1

 1
29342-58060

1KDFTV..KDH20#,211,22#

NO.3

 2
29342-58070

1KDFTV..KDH20#,211,22#

NO.2

 1
29351 - GEAR, VACUUM PUMP
29351-67020

1KDFTV..KDH201,206,211,221,223

 1
29364 - WASHER, VACUUM PUMP
29364-66010

1KDFTV..KDH201,206,211,221,223

 1
29369 - VALVE SUB-ASSY, CHECK
29369-64030

1KDFTV..KDH201,206,211,221,223

 1
Common parts
90096-90031
90099-04577
90099-05185
90179-08184
90201-14099
90401-09001
95161-10413
Linked diagrams
4703

(1312- )1KDFTV

Click highlighted areas on diagram

diagram 29300 29300 29303 29311 29311 29322B 29331 29336 29342 29342 29342 29342 29351 29364 29369 4703 9009690031 9009904577 9009905185 9017908184 9020114099 9020114099 9040109003 9516110413
Part # Description Qty Price
Common parts
90096-90031
90099-04577
90099-05185
90179-08184
90201-14099
90401-09003
95161-10413
Linked diagrams
4703
