KDH201K-ERPDY5 (2007)

Toyota Hiace/Regiusace

Production Sep 2007 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

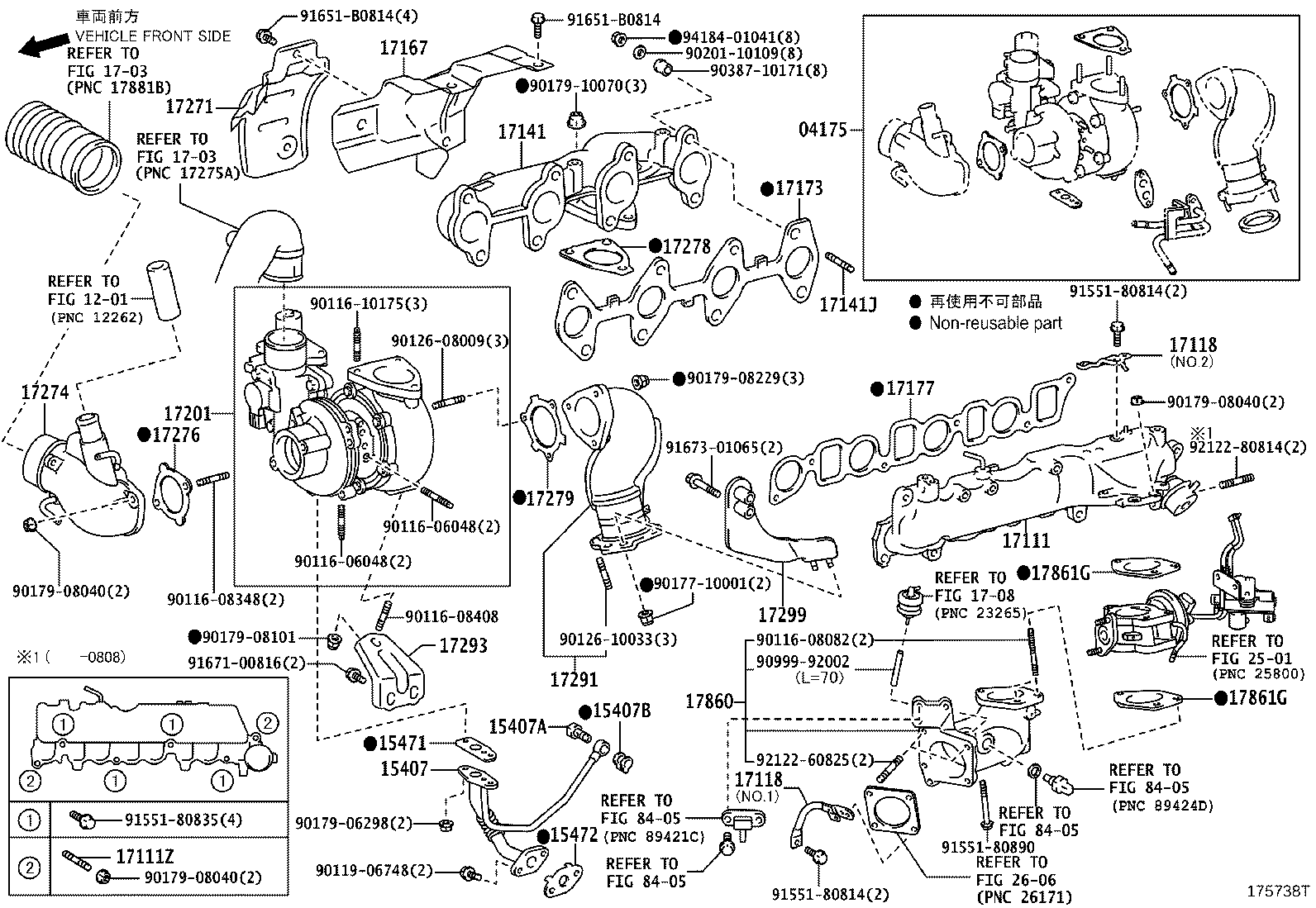

(0709-1008)1KDFTV

Click highlighted areas on diagram

diagram 04175 1201 15407 15407A 15407B 15471 15472 1703 1703 1708 17111 17111Z 17118 17118 17141 17141J 17167 17173 17177 17201 17271 17274 17276 17278 17279 17291 17293 17299 17860 17861G 17861G 2501 2606 8405 8405 8405 8405 9011606048 9011606048 9011608082 9011608348 9011608408 9011610175 9011906748 9012608009 9012610033 9017710001 9017906298 9017908040 9017908040 9017908040 9017908101 9017908229 9017910070 9020110109 9038710171 9099992002 9155180814 9155180814 9155180835 9155180890 91651B0814 91651B0814 9167100816 9167301065 9212260825 9212280814 9418401041
Part # Description Qty Price

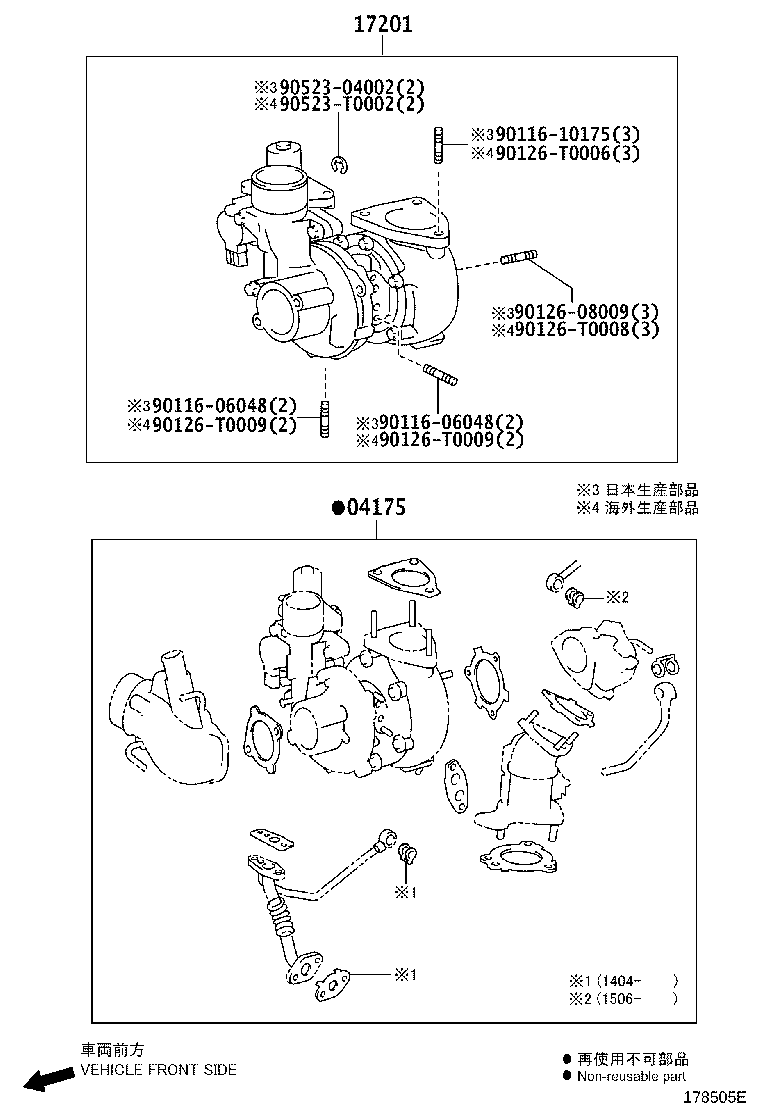

04175 - GASKET KIT, TURBOCHARGER
04175-30220

1KDFTV..KDH20#,211,22#

 1
04175-30181

1KDFTV..KDH20#,211,22#

 1
04175-30180

1KDFTV..KDH20#,211,22#

 1
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-30070

1KDFTV..KDH20#,211,22#

 1
15407-30110

1KDFTV..KDH20#,211,22#

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-12097

1KDFTV,2KDFTV..KDH20#,211,22#

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90904-30004

1KDFTV,2KDFTV..KDH20#,211,22#

 1
15471 - GASKET, TURBO OIL INLET
15471-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 1
15471-30011

1KDFTV..KDH20#,211,22#

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-67010

1KDFTV,2KDFTV..KDH20#,211,22#

 1
15472-30010

1KDFTV..KDH20#,211,22#

 1
17111 - MANIFOLD, INTAKE
17101-30081

1KDFTV..KDH20#,211,22#

 1
17101-30110

1KDFTV..KDH20#,211,22#

 1
17101-30080

1KDFTV..KDH20#,211,22#

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822

1KDFTV,2KDFTV..KDH20#,211,22#

 2
17118 - STAY, MANIFOLD
17118-30130

1KDFTV..KDH20#,211,22#

NO.2

 1
17118-30040

1KDFTV..KDH20#,211,22#

 1
17118-30040

1KDFTV,2KDFTV..KDH20#,211,22#

NO.1

 1
17118 - STAY, MANIFOLD
17118-30130

1KDFTV..KDH20#,211,22#

NO.2

 1
17118-30040

1KDFTV..KDH20#,211,22#

 1
17118-30040

1KDFTV,2KDFTV..KDH20#,211,22#

NO.1

 1
17141 - MANIFOLD, EXHAUST
17141-30081

1KDFTV..KDH20#,211,22#

 1
17141-30090

1KDFTV..KDH20#,211,22#

 1
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-10034

1KDFTV..KDH20#,211,22#

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-30031

1KDFTV..KDH20#,211,22#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-30020

1KDFTV,2KDFTV..KDH20#,211,22#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-30011

1KDFTV,2KDFTV..KDH20#,211,22#

 1
17201 - TURBOCHARGER SUB-ASSY
17201-30200

1KDFTV..KDH20#,211,22#

 1
17201-30180

1KDFTV..KDH20#,211,22#

 1
17201-30150

1KDFTV..KDH20#,211,22#

 1
17271 - INSULATOR, TURBO, NO.1
17271-0L020

1KDFTV..KDH20#,211,22#

 1
17271-30030

1KDFTV..KDH20#,211,22#

 1
17274 - ELBOW, COMPRESSOR INLET
17274-30090

1KDFTV..KDH20#,211,22#

 1
17276 - GASKET, COMPRESSOR INLET
17276-67010

1KDFTV..KDH20#,211,22#

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-67010

1KDFTV,2KDFTV..KDH20#,211,22#

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-30030

1KDFTV..KDH20#,211,22#

 1
17291 - ELBOW, TURBINE OUTLET
17291-30140

1KDFTV..KDH20#,211,22#

 1
17291-30171

1KDFTV..KDH20#,211,22#

 1
17291-30170

1KDFTV..KDH20#,211,22#

 1
17293 - STAY, TURBOCHARGER
17293-30100

1KDFTV..KDH20#,211,22#

 1
17293-30060

1KDFTV..KDH20#,211,22#

 1
17299 - STAY, TURBINE OUTLET ELBOW
17299-30100

1KDFTV..KDH20#,211,22#

 1
17299-30050

1KDFTV..KDH20#,211,22#

 1
17860 - CONNECTOR ASSY, INTAKE AIR
17860-30090

1KDFTV..KDH20#,211,22#

 1
17861-30120

1KDFTV..KDH20#,211,22#

 1
17861G - GASKET, INTAKE AIR CONNECTOR
25627-30040

1KDFTV..KDH20#,211,22#

 2
17861G - GASKET, INTAKE AIR CONNECTOR
25627-30040

1KDFTV..KDH20#,211,22#

 2
Common parts
90116-06048
90116-08082
90116-08348
90116-08408
90116-10175
90119-06748
90126-08009
90126-10033
90177-10001
90179-06298
90179-08040
90179-08101
90179-08229
90179-10070
90201-10109
90387-10171
90999-92002
91551-80814
91551-80835
91551-80890
91651-B0814
91671-00816
91673-01065
92122-60825
92122-80814
94184-01041
Linked diagrams
1201
1703
1708
2501
2606
8405

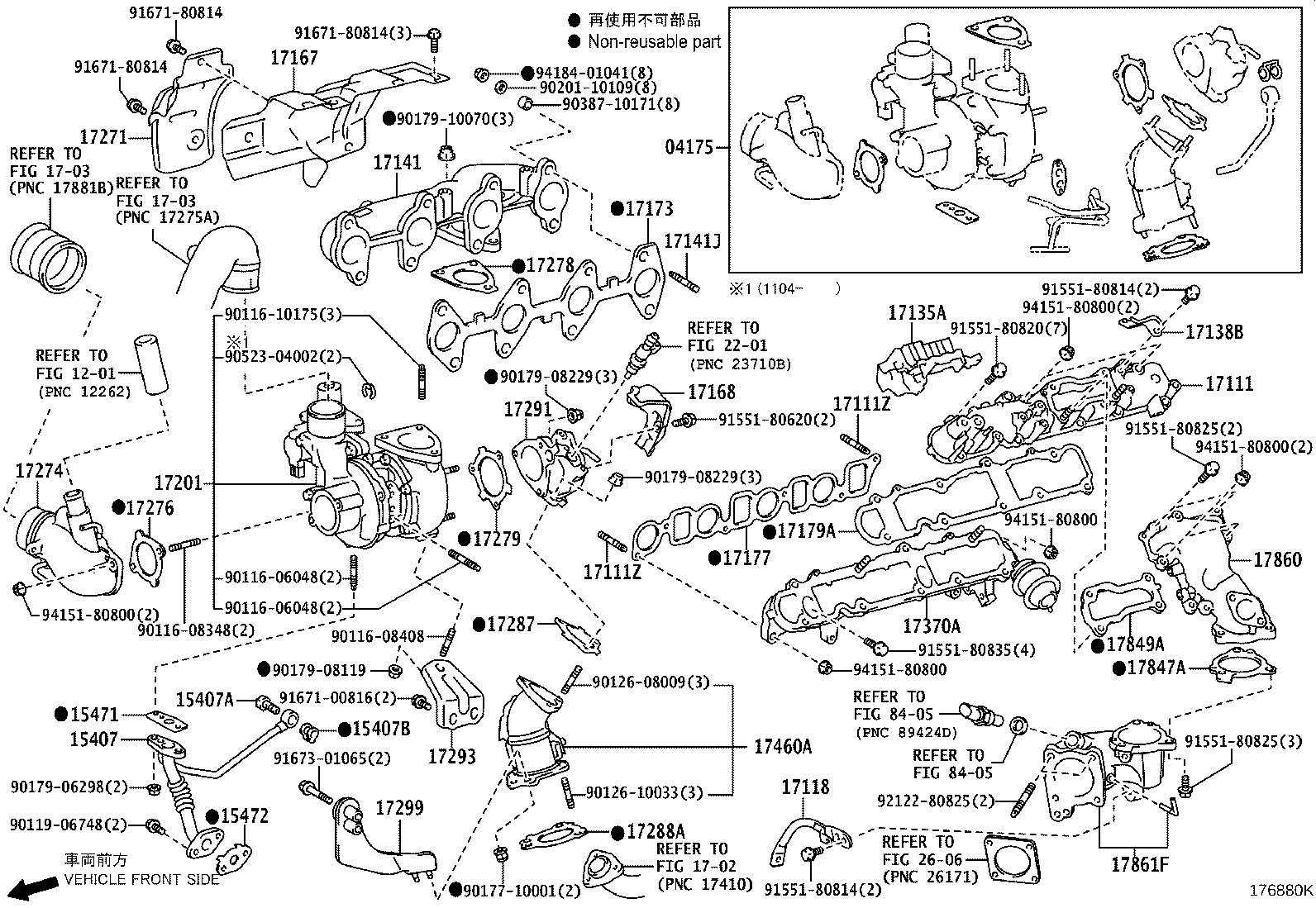

(1008- )1KDFTV

Click highlighted areas on diagram

diagram 04175 1201 15407 15407A 15407B 15471 15472 1702 1703 1703 17111 17111Z 17111Z 17118 17135A 17138B 17141 17141J 17167 17168 17173 17177 17179A 17201 17271 17274 17276 17278 17279 17287 17288A 17291 17293 17299 17370A 17460A 17847A 17849A 17860 17861F 2201 2606 8405 8405 9011606048 9011606048 9011608348 9011608408 9011610175 9011906748 9012608009 9012610033 9017710001 9017906298 9017908119 9017908229 9017908229 9017910070 9020110109 9038710171 9052304002 9155180620 9155180814 9155180814 9155180820 9155180825 9155180825 9155180835 9167100816 9167180814 9167180814 9167180814 9167301065 9212280825 9415180800 9415180800 9415180800 9415180800 9415180800 9418401041
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-30220

1KDFTV..KDH20#,211,22#

 1
04175-30181

1KDFTV..KDH20#,211,22#

 1
04175-30180

1KDFTV..KDH20#,211,22#

 1
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-30070

1KDFTV..KDH20#,211,22#

 1
15407-30110

1KDFTV..KDH20#,211,22#

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-12097

1KDFTV,2KDFTV..KDH20#,211,22#

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90904-30004

1KDFTV,2KDFTV..KDH20#,211,22#

 1
15471 - GASKET, TURBO OIL INLET
15471-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 1
15471-30011

1KDFTV..KDH20#,211,22#

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-67010

1KDFTV,2KDFTV..KDH20#,211,22#

 1
15472-30010

1KDFTV..KDH20#,211,22#

 1
17111 - MANIFOLD, INTAKE
17101-30081

1KDFTV..KDH20#,211,22#

 1
17101-30110

1KDFTV..KDH20#,211,22#

 1
17101-30080

1KDFTV..KDH20#,211,22#

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822

1KDFTV,2KDFTV..KDH20#,211,22#

 2
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822

1KDFTV,2KDFTV..KDH20#,211,22#

 2
17118 - STAY, MANIFOLD
17118-30130

1KDFTV..KDH20#,211,22#

NO.2

 1
17118-30040

1KDFTV..KDH20#,211,22#

 1
17118-30040

1KDFTV,2KDFTV..KDH20#,211,22#

NO.1

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-30030

1KDFTV..KDH20#,211,22#

 1
17138B - STAY, INTAKE MANIFOLD
17138-30040

1KDFTV..KDH20#,211,22#

 1
17141 - MANIFOLD, EXHAUST
17141-30081

1KDFTV..KDH20#,211,22#

 1
17141-30090

1KDFTV..KDH20#,211,22#

 1
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-10034

1KDFTV..KDH20#,211,22#

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-30031

1KDFTV..KDH20#,211,22#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-30050

1KDFTV..KDH20#,211,22#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-30020

1KDFTV,2KDFTV..KDH20#,211,22#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-30011

1KDFTV,2KDFTV..KDH20#,211,22#

 1
17179A - GASKET, INTAKE MANIFOLD, NO.2
17179-30010

1KDFTV..KDH20#,211,22#

 1
17201 - TURBOCHARGER SUB-ASSY
17201-30200

1KDFTV..KDH20#,211,22#

 1
17201-30180

1KDFTV..KDH20#,211,22#

 1
17201-30150

1KDFTV..KDH20#,211,22#

 1
17271 - INSULATOR, TURBO, NO.1
17271-0L020

1KDFTV..KDH20#,211,22#

 1
17271-30030

1KDFTV..KDH20#,211,22#

 1
17274 - ELBOW, COMPRESSOR INLET
17274-30090

1KDFTV..KDH20#,211,22#

 1
17276 - GASKET, COMPRESSOR INLET
17276-67010

1KDFTV..KDH20#,211,22#

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-67010

1KDFTV,2KDFTV..KDH20#,211,22#

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-30030

1KDFTV..KDH20#,211,22#

 1
17287 - GASKET, TURBINE OUTLET ELBOW, NO.2
17287-30010

1KDFTV..KDH20#,211,22#

 1
17288A - GASKET, TURBINE OUTLET ELBOW, NO.3
17288-30010

1KDFTV..KDH20#,211,22#

 1
17291 - ELBOW, TURBINE OUTLET
17291-30140

1KDFTV..KDH20#,211,22#

 1
17291-30171

1KDFTV..KDH20#,211,22#

 1
17291-30170

1KDFTV..KDH20#,211,22#

 1
17293 - STAY, TURBOCHARGER
17293-30100

1KDFTV..KDH20#,211,22#

 1
17293-30060

1KDFTV..KDH20#,211,22#

 1
17299 - STAY, TURBINE OUTLET ELBOW
17299-30100

1KDFTV..KDH20#,211,22#

 1
17299-30050

1KDFTV..KDH20#,211,22#

 1
17370A - VALVE ASSY, SWIRL CONTROL
17370-30080

1KDFTV..KDH20#,211,22#

 1
17460A - CONVERTER ASSY, CATALYTIC W/PIPE
17460-30021

1KDFTV..KDH20#,211,22#

 1
17460-30020

1KDFTV..KDH20#,211,22#

 1
17847A - GASKET, INTAKE AIR CONNECTOR, NO.2
17847-30010

1KDFTV..KDH20#,211,22#

 1
17849A - GASKET, INTAKE AIR CONNECTOR
17849-30010

1KDFTV..KDH20#,211,22#

 1
17860 - CONNECTOR ASSY, INTAKE AIR
17860-30090

1KDFTV..KDH20#,211,22#

 1
17861-30120

1KDFTV..KDH20#,211,22#

 1
17861F - CONNECTOR, INTAKE AIR
17862-30040

1KDFTV..KDH20#,211,22#

 1
Common parts
90116-06048
90116-08348
90116-08408
90116-10175
90119-06748
90126-08009
90126-10033
90177-10001
90179-06298
90179-08119
90179-08229
90179-10070
90201-10109
90387-10171
90523-04002
91551-80620
91551-80814
91551-80820
91551-80825
91551-80835
91671-00816
91671-80814
91673-01065
92122-80825
94151-80800
94184-01041
Linked diagrams
1201
1702
1703
2201
2606
8405

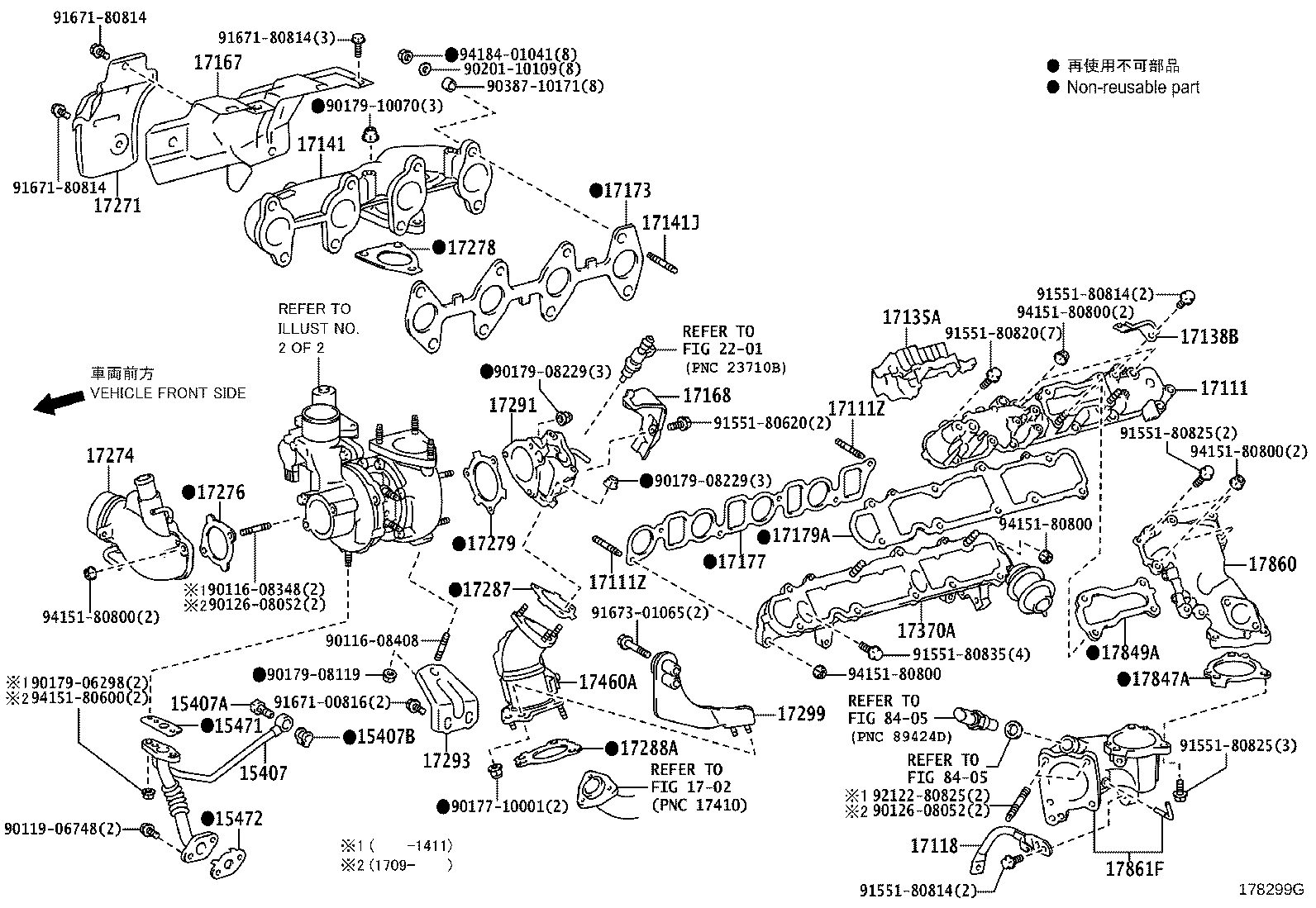

ILLUST NO. 1 OF 2(1312-1411)1KDFTV ; (1709- )1KDFTV

Click highlighted areas on diagram

diagram 15407 15407A 15407B 15471 15472 1702 17111 17111Z 17111Z 17118 17135A 17138B 17141 17141J 17167 17168 17173 17177 17179A 17271 17274 17276 17278 17279 17287 17288A 17291 17293 17299 17370A 17460A 17847A 17849A 17860 17861F 2201 8405 8405 9011608348 9011608408 9011906748 9012608052 9012608052 9017710001 9017906298 9017908119 9017908229 9017908229 9017910070 9020110109 9038710171 9155180620 9155180814 9155180814 9155180820 9155180825 9155180825 9155180835 9167100816 9167180814 9167180814 9167180814 9167301065 9212280825 9415180600 9415180800 9415180800 9415180800 9415180800 9415180800 9418401041
Part # Description Qty Price
Common parts
90116-08348
90116-08408
90119-06748
90126-08052
90177-10001
90179-06298
90179-08119
90179-08229
90179-10070
90201-10109
90387-10171
91551-80620
91551-80814
91551-80820
91551-80825
91551-80835
91671-00816
91671-80814
91673-01065
92122-80825
94151-80600
94151-80800
94184-01041
Linked diagrams
1702
2201
8405

ILLUST NO. 2 OF 2(1312- )1KDFTV

Click highlighted areas on diagram

diagram 04175 17201 9011606048 9011606048 9011610175 9012608009 90126T0006 90126T0008 90126T0009 90126T0009 9052304002 90523T0002
Part # Description Qty Price
Common parts
90116-06048
90116-10175
90126-08009
90126-T0006
90126-T0008
90126-T0009
90523-04002
90523-T0002
