KDH201K-ERPDY5 (2007)

Toyota Hiace/Regiusace

Production Sep 2007 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )1KDFTV,2KDFTV

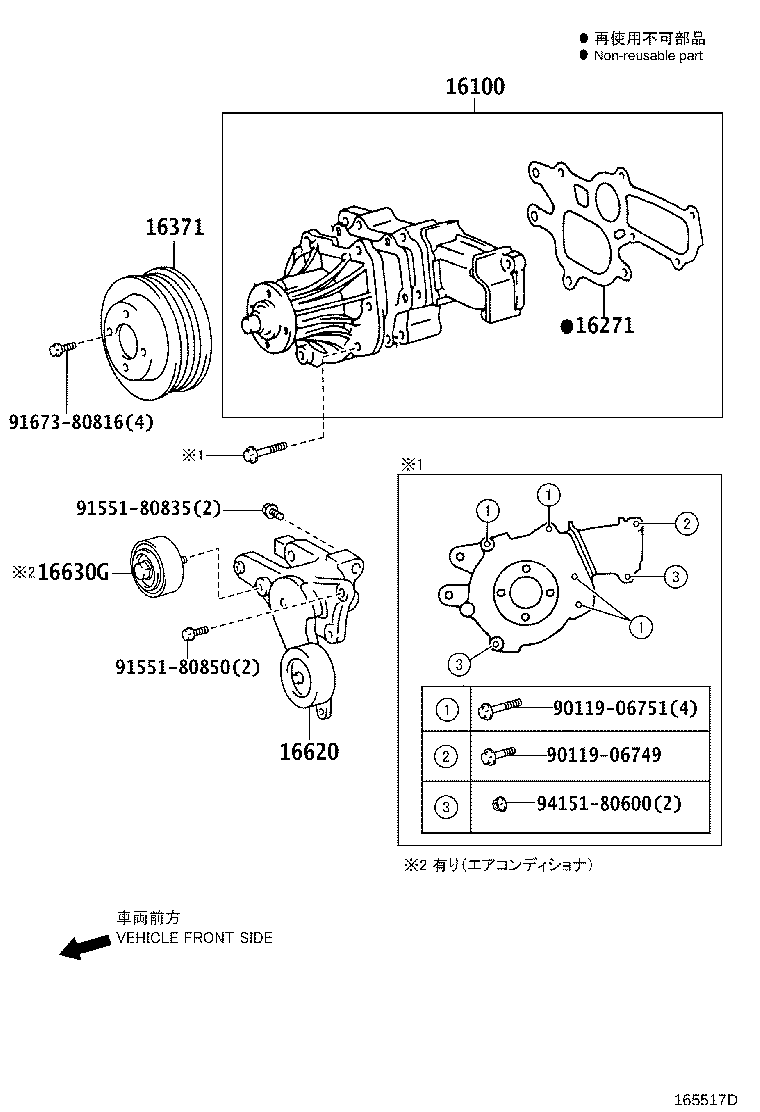

Click highlighted areas on diagram

diagram 16100 16271 16371 16620 16630G 9011906749 9011906751 9017906298 9155180835 9155180850 9167380816
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39425

1KDFTV,2KDFTV..KDH20#,211,22#

 1
16271 - GASKET, WATER PUMP
16271-67020

1KDFTV,2KDFTV..KDH20#,211,22#

 1
16371 - PULLEY, FAN
16371-30020

1KDFTV,2KDFTV..KDH20#,211,22#

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-30031

1KDFTV,2KDFTV..KDH20#,211,22#

 1
16630G - PULLEY ASSY, IDLER
88440-35130

1KDFTV,2KDFTV..KDH20#,211,22#

 1
Common parts
90119-06749
90119-06751
90179-06298
91551-80835
91551-80850
91673-80816

(1312- )1KDFTV

Click highlighted areas on diagram

diagram 16100 16271 16371 16620 16630G 9011906749 9011906751 9155180835 9155180850 9167380816 9415180600
Part # Description Qty Price
Common parts
90119-06749
90119-06751
91551-80835
91551-80850
91673-80816
94151-80600
