KDH201K-ERPDY5 (2007)
Toyota Hiace/Regiusace
Production
Sep 2007
-
Dec 2013
Engine
1KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

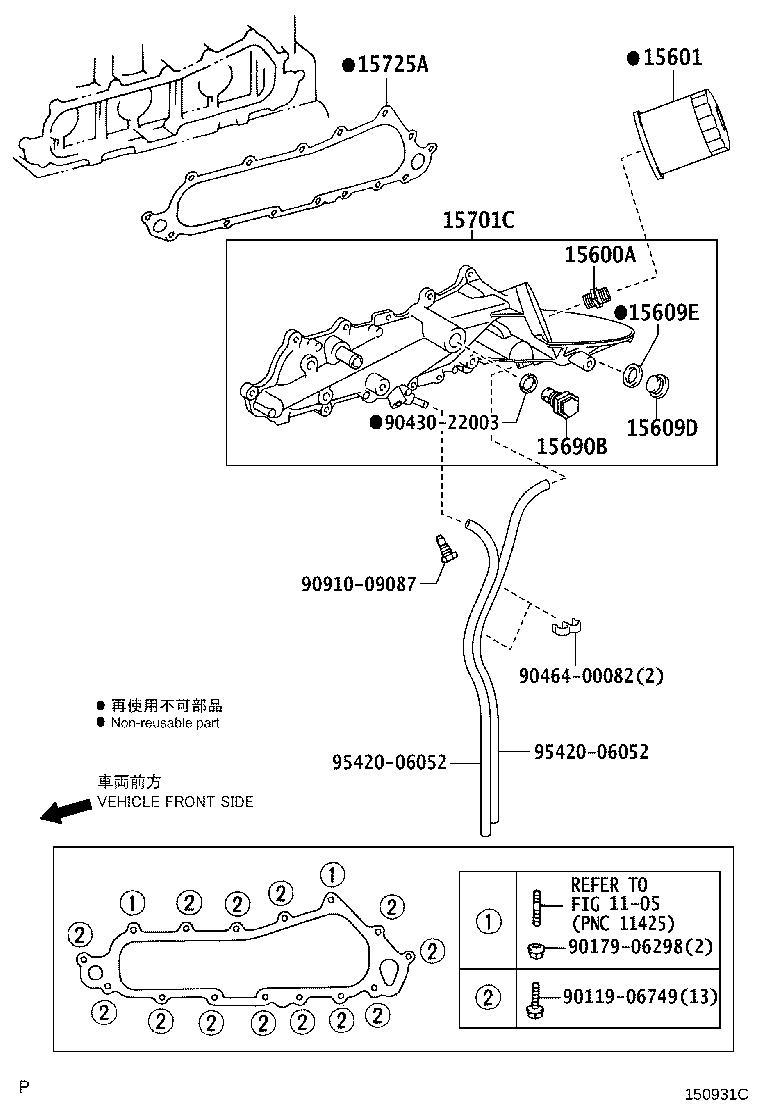

(0408-1008)1KDFTV,2KDFTV
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600A - UNION(FOR OIL FILTER) | ||||
| 90404-19002 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 90915-20003 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 15134-67020 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 15690B - VALVE ASSY, OIL COOLER RELIEF | ||||
| 15690-64011 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 15690-64010 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 15701C - COVER SUB-ASSY, OIL COOLER | ||||
| 15701-30100 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 15701-30110 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 15725A - GASKET, OIL COOLER COVER | ||||
| 15725-67010 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| Common parts | ||||
| 90119-06749 | ||||
| 90179-06298 | ||||
| 90430-22003 | ||||
| 90464-00082 | ||||
| 90910-09087 | ||||
| 95420-06052 | ||||
| Linked diagrams | ||||
| 1105 | ||||

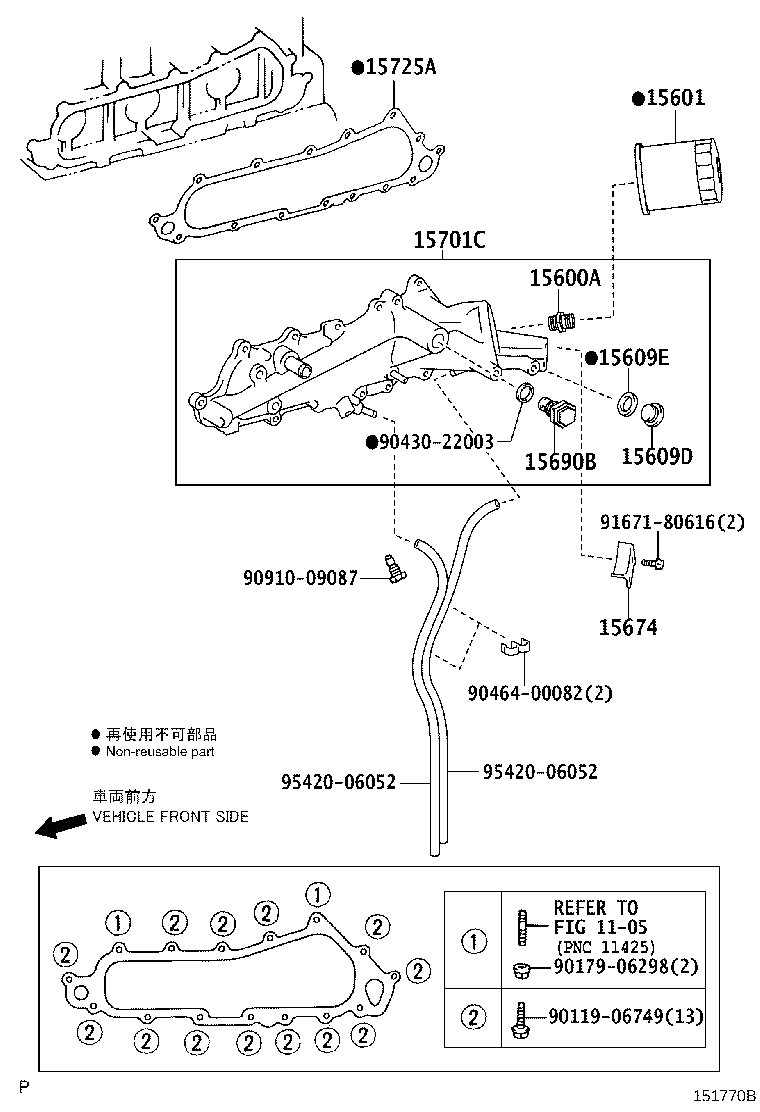

(1008- )1KDFTV
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600A - UNION(FOR OIL FILTER) | ||||
| 90404-19002 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 90915-20003 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 15134-67020 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 15674 - RECEIVER, OIL FILTER | ||||
| 15674-30010 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 15690B - VALVE ASSY, OIL COOLER RELIEF | ||||
| 15690-64011 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 15690-64010 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| 15701C - COVER SUB-ASSY, OIL COOLER | ||||
| 15701-30100 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 15701-30110 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 15725A - GASKET, OIL COOLER COVER | ||||
| 15725-67010 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| Common parts | ||||
| 90119-06749 | ||||
| 90179-06298 | ||||
| 90430-22003 | ||||
| 90464-00082 | ||||
| 90910-09087 | ||||
| 91671-80616 | ||||
| 95420-06052 | ||||
| Linked diagrams | ||||
| 1105 | ||||

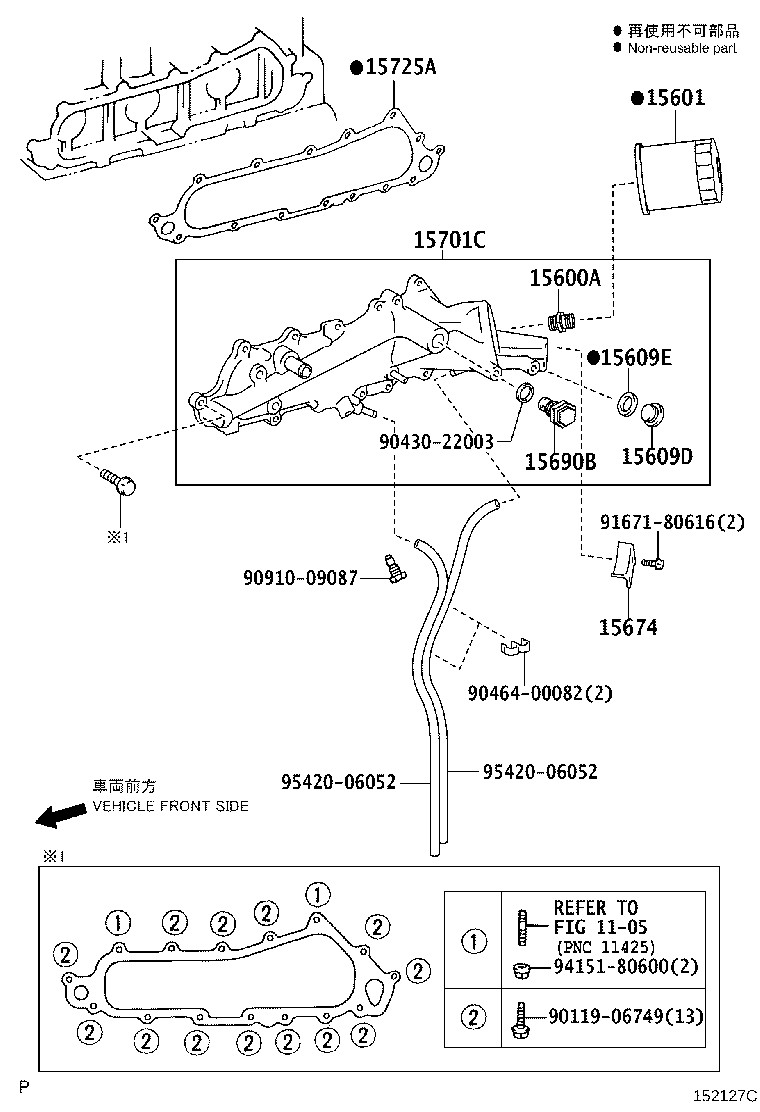

(1312- )1KDFTV
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06749 | ||||
| 90430-22003 | ||||
| 90464-00082 | ||||
| 90910-09087 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| 95420-06052 | ||||
| Linked diagrams | ||||
| 1105 | ||||
