KDH201K-ERPDY5 (2007)

Toyota Hiace/Regiusace

Production Sep 2007 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

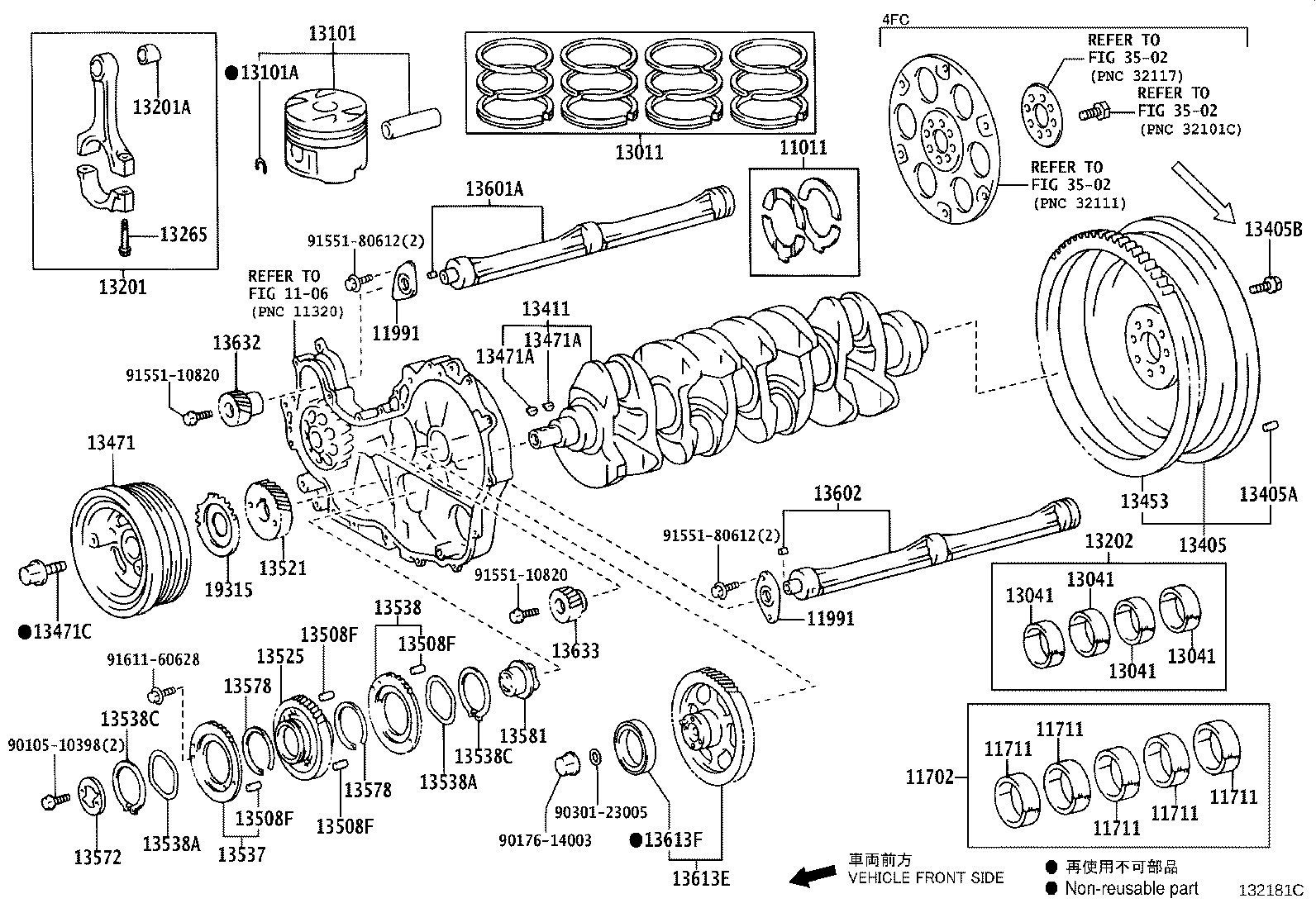

(0709- )1KDFTV

Click highlighted areas on diagram

diagram 11011 1106 11702 11711 11711 11711 11711 11711 11991 11991 13011 13041 13041 13041 13041 13101 13101A 13201 13201A 13202 13265 13405 13405A 13405B 13411 13453 13471 13471A 13471A 13471C 13508F 13508F 13508F 13508F 13521 13525 13537 13538 13538A 13538A 13538C 13538C 13572 13578 13578 13581 13601A 13602 13613E 13613F 13632 13633 19315 3502 3502 3502 9010510398 9017614003 9030123005 9155110820 9155110820 9155180612 9155180612 9161160628
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11012-30010

1KDFTV,2KDFTV..KDH20#,211,22#

O/S 0.125

 1
11011-30010

1KDFTV,2KDFTV..KDH20#,211,22#

STD

 1
11013-30010

1KDFTV,2KDFTV..KDH20#,211,22#

O/S 0.250

 1
11991 - WASHER, BALANCESHAFT THRUST
11991-67010

1KDFTV..KDH20#,211,22#

 2
11991 - WASHER, BALANCESHAFT THRUST
11991-67010

1KDFTV..KDH20#,211,22#

 2
13011 - RING SET, PISTON
13014-30090

1KDFTV..KDH20#,211,22#

O/S 0.75

 1
13015-30090

1KDFTV..KDH20#,211,22#

O/S 1.00

 1
13014-30150

1KDFTV..KDH20#,211,22#

O/S 0.75

 1
13011-30160

1KDFTV..KDH20#,211,22#

STD

 1
13011-30090

1KDFTV..KDH20#,211,22#

STD

 1
13015-30160

1KDFTV..KDH20#,211,22#

O/S 1.00

 1
13013-30150

1KDFTV..KDH20#,211,22#

O/S 0.50

 1
13013-30090

1KDFTV..KDH20#,211,22#

O/S 0.50

 1
13015-30150

1KDFTV..KDH20#,211,22#

O/S 1.00

 1
13013-30160

1KDFTV..KDH20#,211,22#

O/S 0.50

 1
13011-30150

1KDFTV..KDH20#,211,22#

STD

 1
13014-30160

1KDFTV..KDH20#,211,22#

O/S 0.75

 1
13101 - PISTON SUB-ASSY, W/PIN
13101-3013002

1KDFTV..KDH20#,211,22#

STD,MARK2,修理書参照

 4
13103-30130

1KDFTV..KDH20#,211,22#

O/S 0.50

 4
13101-3013003

1KDFTV..KDH20#,211,22#

STD,MARK3,修理書参照

 4
13101-3013001

1KDFTV..KDH20#,211,22#

STD,MARK1,修理書参照

 4
13104-30130

1KDFTV..KDH20#,211,22#

O/S 0.75

 4
13105-30130

1KDFTV..KDH20#,211,22#

O/S 1.00

 4
13101-3017001

1KDFTV..KDH20#,211,22#

STD,MARK 1,修理書参照

 4
13104-30170

1KDFTV..KDH20#,211,22#

O/S 0.75

 4
13103-30170

1KDFTV..KDH20#,211,22#

O/S 0.50

 4
13105-30170

1KDFTV..KDH20#,211,22#

O/S 1.00

 4
13101-3017002

1KDFTV..KDH20#,211,22#

STD,MARK 2,修理書参照

 4
13101-3017003

1KDFTV..KDH20#,211,22#

STD,MARK 3,修理書参照

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-37014

1KDFTV,2KDFTV..KDH20#,211,22#

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-30020

1KDFTV..KDH20#,211,22#

 4
13201-30021

1KDFTV..KDH20#,211,22#

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73143

1KDFTV..KDH20#,211,22#

 4
90999-73156

1KDFTV..KDH20#,211,22#

 4
13265 - BOLT, CONNECTING ROD
13265-67021

1KDFTV,2KDFTV..KDH20#,211,22#

 8
13405 - FLYWHEEL SUB-ASSY
13405-67030

1KDFTV,2KDFTV..KDH20#,211,22#..4FC

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-05121

1KDFTV,2KDFTV..KDH20#,211,22#..4FC

長さ=15,外径=5

 1
13411 - CRANKSHAFT
13401-30010

1KDFTV..KDH20#,211,22#

 1
13453 - GEAR, FLYWHEEL RING
13453-67030

1KDFTV,2KDFTV..KDH20#,211,22#

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-30516

1KDFTV,2KDFTV..KDH20#,211,22#

 2
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-30516

1KDFTV,2KDFTV..KDH20#,211,22#

 2
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-18003

1KDFTV,2KDFTV..KDH20#,211,22#

 1
13508F - PIN, STRAIGHT(FOR IDLE GEAR)
90250-05027

1KDFTV..KDH20#,211,22#

 4
13508F - PIN, STRAIGHT(FOR IDLE GEAR)
90250-05027

1KDFTV..KDH20#,211,22#

 4
13508F - PIN, STRAIGHT(FOR IDLE GEAR)
90250-05027

1KDFTV..KDH20#,211,22#

 4
13508F - PIN, STRAIGHT(FOR IDLE GEAR)
90250-05027

1KDFTV..KDH20#,211,22#

 4
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-30020

1KDFTV..KDH20#,211,22#

 1
13525 - GEAR, IDLE, NO.1
13508-67011

1KDFTV..KDH20#,211,22#

 1
13537 - GEAR, IDLE SUB, NO.1
13537-67900

1KDFTV..KDH20#,211,22#

 1
13538 - GEAR, IDLE SUB, NO.2
13538-67900

1KDFTV,2KDFTV..KDH20#,211,22#

 1
13538A - WASHER, WAVE
90206-69001

1KDFTV..KDH20#,211,22#

 2
13538A - WASHER, WAVE
90206-69001

1KDFTV..KDH20#,211,22#

 2
13538C - RING, SHAFT SNAP
90520-58002

1KDFTV..KDH20#,211,22#

 2
13538C - RING, SHAFT SNAP
90520-58002

1KDFTV..KDH20#,211,22#

 2
13572 - PLATE, IDLE GEAR THRUST
13572-67041

1KDFTV,2KDFTV..KDH20#,211,22#

 1
13578 - SPRING, IDLE GEAR
13578-67010

1KDFTV..KDH20#,211,22#

 2
13578 - SPRING, IDLE GEAR
13578-67010

1KDFTV..KDH20#,211,22#

 2
13581 - SHAFT, IDLE GEAR, NO.1
13581-67041

1KDFTV,2KDFTV..KDH20#,211,22#

 1
13601A - BALANCESHAFT SUB-ASSY, NO.1
13601-67020

1KDFTV..KDH20#,211,22#

 1
13602 - BALANCESHAFT SUB-ASSY, NO.2
13602-67020

1KDFTV..KDH20#,211,22#

 1
13613E - GEAR, INJECTION
13603-30020

1KDFTV,2KDFTV..KDH20#,211,22#

 1
13613F - BEARING, RADIAL BALL
90363-67001

1KDFTV,2KDFTV..KDH20#,211,22#

 1
13632 - GEAR, BALANCESHAFT DRIVEN, NO.1
13632-67010

1KDFTV..KDH20#,211,22#

 1
13633 - GEAR, BALANCESHAFT DRIVEN, NO.2
13633-67010

1KDFTV..KDH20#,211,22#

 1
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 1
19315-30020

1KDFTV..KDH20#,211,22#

 1
Common parts
90105-10398
90176-14003
90301-23005
91551-10820
91551-80612
91611-60628
Linked diagrams
1106
3502

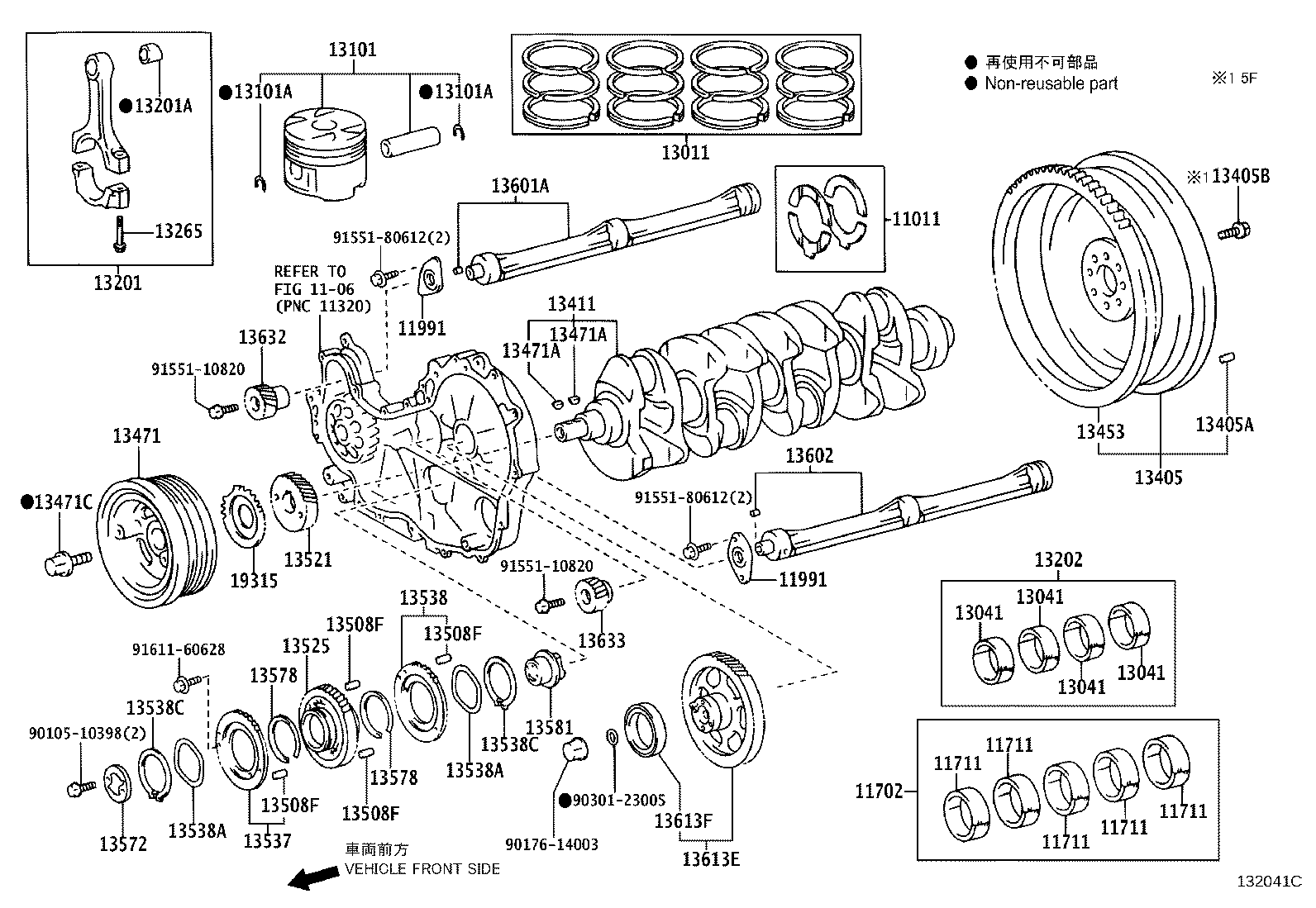

(1312- )1KDFTV

Click highlighted areas on diagram

diagram 11011 1106 11702 11711 11711 11711 11711 11711 11991 11991 13011 13041 13041 13041 13041 13101 13101A 13101A 13201 13201A 13202 13265 13405 13405A 13405B 13411 13453 13471 13471A 13471A 13471C 13508F 13508F 13508F 13508F 13521 13525 13537 13538 13538A 13538A 13538C 13538C 13572 13578 13578 13581 13601A 13602 13613E 13613F 13632 13633 19315 9010510398 9017614003 9030123005 9155110820 9155110820 9155180612 9155180612 9161160628
Part # Description Qty Price
Common parts
90105-10398
90176-14003
90301-23005
91551-10820
91551-80612
91611-60628
Linked diagrams
1106
