KDH201K-ERPDY5 (2007)

Toyota Hiace/Regiusace

Production Sep 2007 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )1KDFTV

Click highlighted areas on diagram

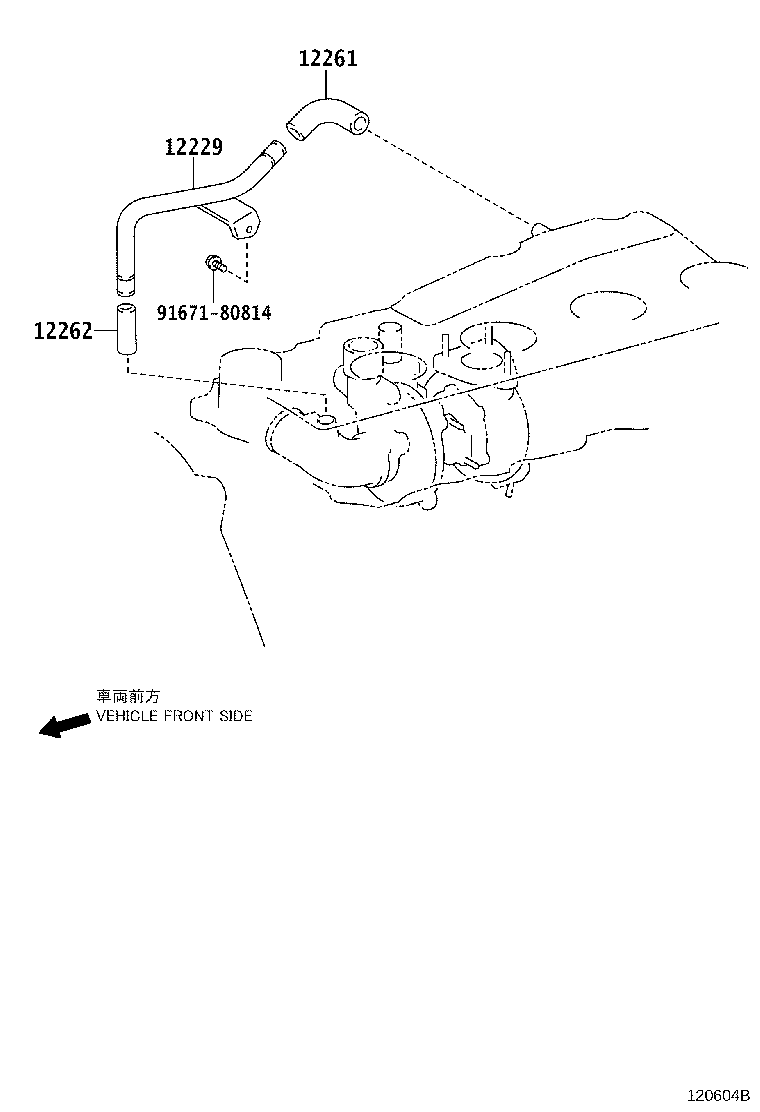

diagram 12229 12261 12262 9167180814
Part # Description Qty Price
12229 - PIPE, VENTILATION
12229-30100

1KDFTV..KDH20#,211,22#

 1
12261 - HOSE, VENTILATION
12261-30040

1KDFTV,2KDFTV..KDH20#,211,22#

 1
12262 - HOSE, VENTILATION, NO.2
12262-30060

1KDFTV..KDH20#,211,22#

 1
Common parts
91671-80814

(1312- )1KDFTV

Click highlighted areas on diagram

diagram 12229 12261 12262 9167180814
Part # Description Qty Price
Common parts
91671-80814
