KDH201K-ERPDY5 (2007)
Toyota Hiace/Regiusace
Production
Sep 2007
-
Dec 2013
Engine
1KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0408- )1KDFTV,2KDFTV

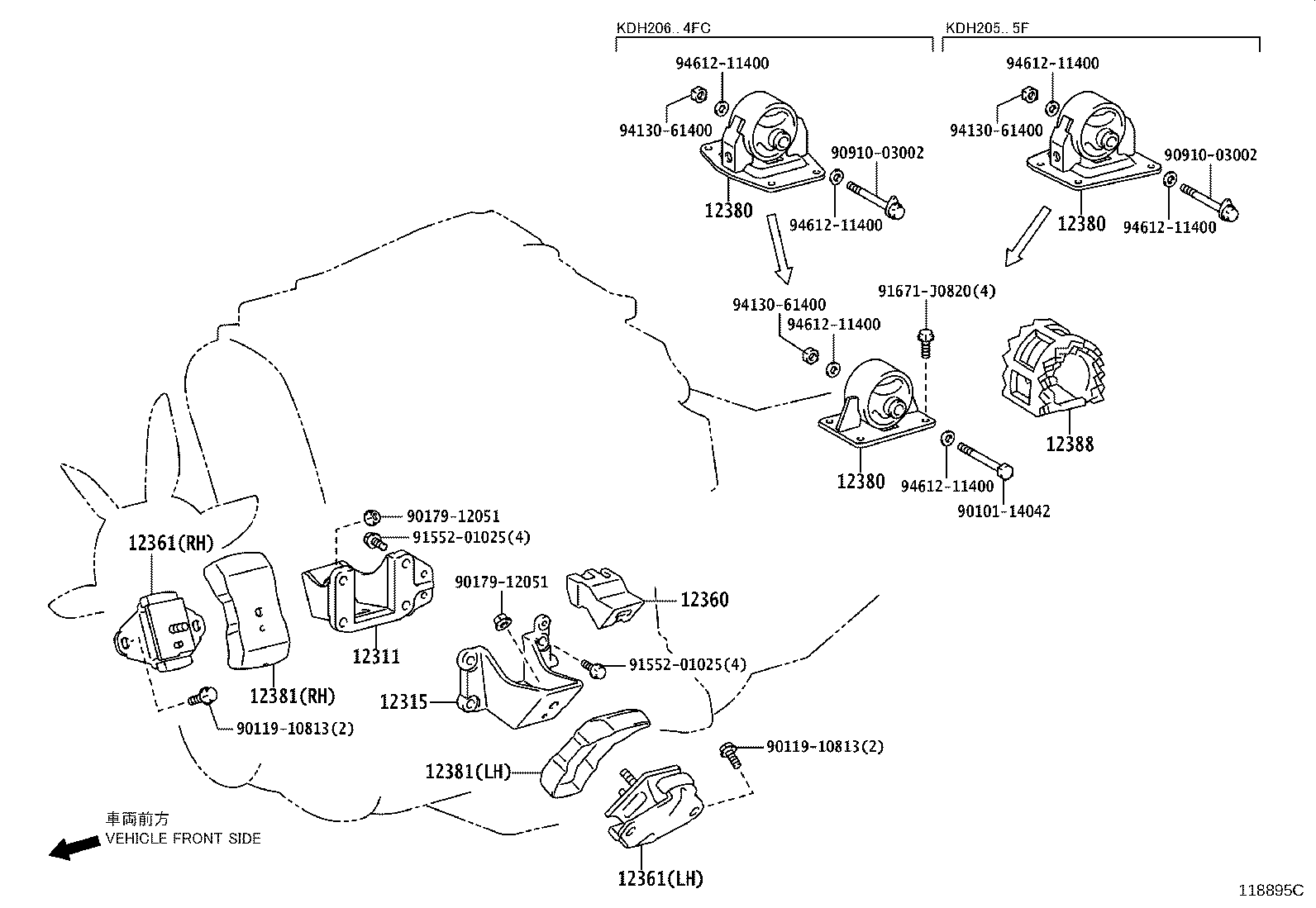

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT | ||||
| 12361-30070 |
1KDFTV..KDH20#,211,22# |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-30100 |
1KDFTV..KDH20#,211,22# 右側 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-30100 |
1KDFTV..KDH20#,211,22# 右側 |
1 | ||
| 12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR | ||||
| 12380-30010 |
1KDFTV,2KDFTV..KDH200,201,211,220,221,222,223 |
1 | ||
| 12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR | ||||
| 12380-30010 |
1KDFTV,2KDFTV..KDH200,201,211,220,221,222,223 |
1 | ||
| 12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR | ||||
| 12380-30010 |
1KDFTV,2KDFTV..KDH200,201,211,220,221,222,223 |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-30040 |
1KDFTV..KDH20#,211,22# 右側 |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-30040 |
1KDFTV..KDH20#,211,22# 右側 |
1 | ||
| 12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR | ||||
| 12388-67011 |
1KDFTV,2KDFTV..KDH20#,211,22# |
1 | ||
| Common parts | ||||
| 90101-14042 | ||||
| 90119-10813 | ||||
| 90179-12051 | ||||
| 90910-03002 | ||||
| 91552-01025 | ||||
| 91641-80822 | ||||
| 94130-61400 | ||||
| 94612-11400 | ||||
(1312- )1KDFTV
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-14042 | ||||
| 90119-10813 | ||||
| 90179-12051 | ||||
| 90910-03002 | ||||
| 91552-01025 | ||||
| 91671-J0820 | ||||
| 94130-61400 | ||||
| 94612-11400 | ||||
