KDH201K-ERPDY5 (2007)

Toyota Hiace/Regiusace

Production Sep 2007 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

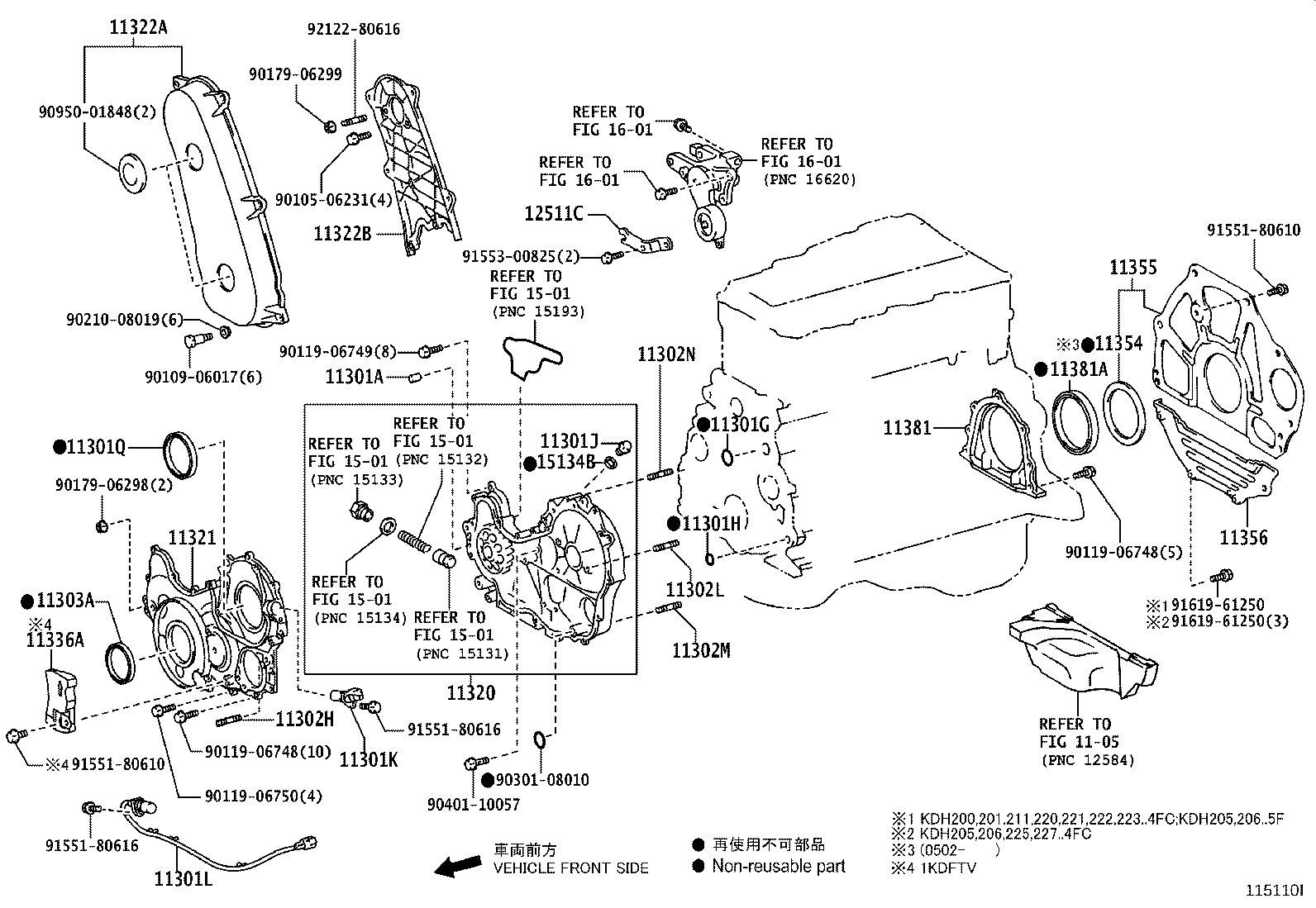

(0408-1008)1KDFTV,2KDFTV

Click highlighted areas on diagram

diagram 1105 11301A 11301G 11301H 11301J 11301K 11301L 11301Q 11302H 11302L 11302M 11302N 11303A 11320 11321 11322A 11322B 11336A 11354 11355 11356 11381 11381A 12511C 1501 1501 1501 1501 1501 15134B 1601 1601 1601 9010506231 9010906017 9011906748 9011906748 9011906749 9011906750 9017906298 9017906299 9021008019 9030108010 9040110057 9095001848 9155180610 9155180610 9155180616 9155180616 9155300825 9161961250 9161961250 9212280616
Part # Description Qty Price
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

1KDFTV,2KDFTV..KDH20#,211,22#

長さ=18,外径=8

 1
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90301-22007

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11301H - RING, O(FOR TIMING GEAR CASE, LOWER)
90301-09018

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90341-18015

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11301K - SENSOR, CRANK POSITION
90919-05052

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11301L - SENSOR, CRANK POSITION NO.2
90919-05085

1KDFTV..KDH20#,211,22#

ﾏｰｸ=90919−05085

 1
90919-05066

1KDFTV,2KDFTV..KDH20#,211,22#

 1
90919-05078

1KDFTV..KDH20#,211,22#

ﾏｰｸ=90919−05078

 1
11301Q - SEAL, TYPE T OIL(FOR INJECTION PUMP)
90311-65003

1KDFTV,2KDFTV..KDH20#,211,22#

 1
90311-65004

1KDFTV..KDH20#,211,22#

 1
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08377

1KDFTV..KDH20#,211,22#

 2
90116-08377

1KDFTV..KDH20#,211,22#

 2
11302L - BOLT, STUD(FOR INJECTION PUMP)
90116-08377

1KDFTV..KDH20#,211,22#

 2
90116-08374

1KDFTV,2KDFTV..KDH20#,211,22#

 2
11302M - BOLT, STUD(FOR POWER STEERING VANE PUMP)
90116-10160

1KDFTV,2KDFTV..KDH20#,211,22#

 2
11302N - BOLT, STUD(FOR VACUUM TRANSMITTING PIPE)
92112-60614

1KDFTV,2KDFTV..KDH20#,211,22#

 1
90126-06029

1KDFTV..KDH20#,211,22#

 1
11303A - SEAL, OIL(FOR CRANKSHAFT FRONT)
90311-50043

1KDFTV..KDH20#,211,22#

 1
90311-50017

1KDFTV,2KDFTV..KDH20#,211,22#

 1
90311-50051

1KDFTV..KDH20#,211,22#

 1
11320 - CASE ASSY, TIMING GEAR
11320-30032

1KDFTV..KDH20#,211,22#

 1
11320-30090

1KDFTV..KDH20#,211,22#

 1
11321 - CASE, TIMING GEAR
11302-30030

1KDFTV..KDH20#,211,22#

 1
11321-30020

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11322A - COVER, TIMING BELT, NO.1
11332-30011

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11332-30040

1KDFTV..KDH20#,211,22#

 1
11322B - COVER, TIMING BELT, NO.2
11322-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11336A - INSULATOR, TIMING GEAR COVER
11336-30010

1KDFTV..KDH20#,211,22#

 1
11356 - PLATE, REAR END, NO.2
11356-30030

1KDFTV,2KDFTV..KDH205,206..5F;1KDFTV,2KDFTV..KDH200,201,211,220,221,222,223..4FC

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-67020

1KDFTV,2KDFTV..KDH20#,211,22#

(J)

 1
11381-0K010

1KDFTV..KDH20#,211,22#

 1
11381-0K010

1KDFTV,2KDFTV..KDH20#,211,22#

(L)

 1
11381A - SEAL, ENGINE REAR OIL
90311-95015

1KDFTV..KDH20#,211,22#

 1
90311-95008

1KDFTV,2KDFTV..KDH20#,211,22#

 1
90311-95014

1KDFTV..KDH20#,211,22#

 1
12511C - BRACKET, ALTERNATOR
12511-30031

1KDFTV,2KDFTV..KDH20#,211,22#

 1
15134B - GASKET, OIL PUMP RELIEF VALVE
15134-67010

1KDFTV,2KDFTV..KDH20#,211,22#

 1
Common parts
90105-06231
90109-06017
90119-06748
90119-06749
90119-06750
90179-06298
90179-06299
90210-08019
90301-08010
90401-10057
90950-01848
91551-80610
91551-80616
91553-00825
91619-61250
92122-80616
Linked diagrams
1105
1501
1601

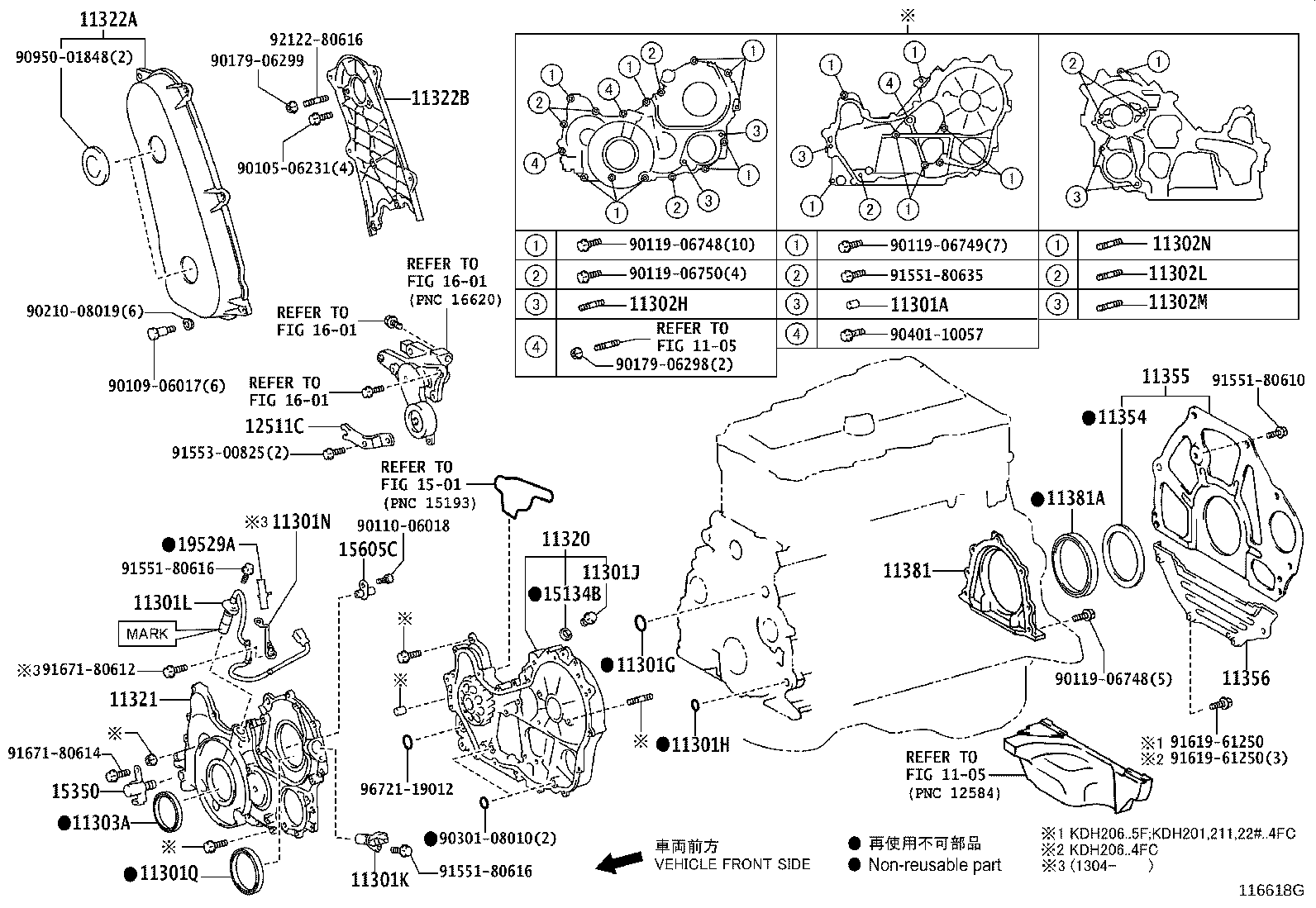

(1008- )1KDFTV

Click highlighted areas on diagram

diagram 1105 1105 11301A 11301G 11301H 11301J 11301K 11301L 11301N 11301Q 11302H 11302L 11302M 11302N 11303A 11320 11321 11322A 11322B 11354 11355 11356 11381 11381A 12511C 1501 15134B 15350 15605C 1601 1601 1601 19529A 9010506231 9010906017 9011006018 9011906748 9011906748 9011906749 9011906750 9017906298 9017906299 9021008019 9030108010 9040110057 9095001848 9155180610 9155180616 9155180616 9155180635 9155300825 9161961250 9161961250 9167180612 9167180614 9212280616 9672119012
Part # Description Qty Price
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

1KDFTV,2KDFTV..KDH20#,211,22#

長さ=18,外径=8

 1
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90301-22007

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11301H - RING, O(FOR TIMING GEAR CASE, LOWER)
90301-09018

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90341-18015

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11301K - SENSOR, CRANK POSITION
90919-05052

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11301L - SENSOR, CRANK POSITION NO.2
90919-05085

1KDFTV..KDH20#,211,22#

ﾏｰｸ=90919−05085

 1
90919-05066

1KDFTV,2KDFTV..KDH20#,211,22#

 1
90919-05078

1KDFTV..KDH20#,211,22#

ﾏｰｸ=90919−05078

 1
11301N - CLAMP
19529-30060

1KDFTV..KDH20#,211,22#

 1
11301Q - SEAL, TYPE T OIL(FOR INJECTION PUMP)
90311-65003

1KDFTV,2KDFTV..KDH20#,211,22#

 1
90311-65004

1KDFTV..KDH20#,211,22#

 1
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08377

1KDFTV..KDH20#,211,22#

 2
90116-08377

1KDFTV..KDH20#,211,22#

 2
11302L - BOLT, STUD(FOR INJECTION PUMP)
90116-08377

1KDFTV..KDH20#,211,22#

 2
90116-08374

1KDFTV,2KDFTV..KDH20#,211,22#

 2
11302M - BOLT, STUD(FOR POWER STEERING VANE PUMP)
90116-10160

1KDFTV,2KDFTV..KDH20#,211,22#

 2
11302N - BOLT, STUD(FOR VACUUM TRANSMITTING PIPE)
92112-60614

1KDFTV,2KDFTV..KDH20#,211,22#

 1
90126-06029

1KDFTV..KDH20#,211,22#

 1
11303A - SEAL, OIL(FOR CRANKSHAFT FRONT)
90311-50043

1KDFTV..KDH20#,211,22#

 1
90311-50017

1KDFTV,2KDFTV..KDH20#,211,22#

 1
90311-50051

1KDFTV..KDH20#,211,22#

 1
11320 - CASE ASSY, TIMING GEAR
11320-30032

1KDFTV..KDH20#,211,22#

 1
11320-30090

1KDFTV..KDH20#,211,22#

 1
11321 - CASE, TIMING GEAR
11302-30030

1KDFTV..KDH20#,211,22#

 1
11321-30020

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11322A - COVER, TIMING BELT, NO.1
11332-30011

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11332-30040

1KDFTV..KDH20#,211,22#

 1
11322B - COVER, TIMING BELT, NO.2
11322-30010

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11356 - PLATE, REAR END, NO.2
11356-30030

1KDFTV,2KDFTV..KDH205,206..5F;1KDFTV,2KDFTV..KDH200,201,211,220,221,222,223..4FC

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-67020

1KDFTV,2KDFTV..KDH20#,211,22#

(J)

 1
11381-0K010

1KDFTV..KDH20#,211,22#

 1
11381-0K010

1KDFTV,2KDFTV..KDH20#,211,22#

(L)

 1
11381A - SEAL, ENGINE REAR OIL
90311-95015

1KDFTV..KDH20#,211,22#

 1
90311-95008

1KDFTV,2KDFTV..KDH20#,211,22#

 1
90311-95014

1KDFTV..KDH20#,211,22#

 1
12511C - BRACKET, ALTERNATOR
12511-30031

1KDFTV,2KDFTV..KDH20#,211,22#

 1
15134B - GASKET, OIL PUMP RELIEF VALVE
15134-67010

1KDFTV,2KDFTV..KDH20#,211,22#

 1
15350 - VALVE ASSY, OIL PRESSURE SWITCHING
15350-30011

1KDFTV..KDH20#,211,22#

 1
15350-30010

1KDFTV..KDH20#,211,22#

 1
15605C - VALVE SUB-ASSY, OIL CHECK
15605-30040

1KDFTV..KDH20#,211,22#

 1
19529A - CLAMP
19529-30050

1KDFTV..KDH20#,211,22#

 1
Common parts
90105-06231
90109-06017
90110-06018
90119-06748
90119-06749
90119-06750
90179-06298
90179-06299
90210-08019
90301-08010
90401-10057
90950-01848
91551-80610
91551-80616
91551-80635
91553-00825
91619-61250
91671-80612
91671-80614
92122-80616
96721-19012
Linked diagrams
1105
1501
1601

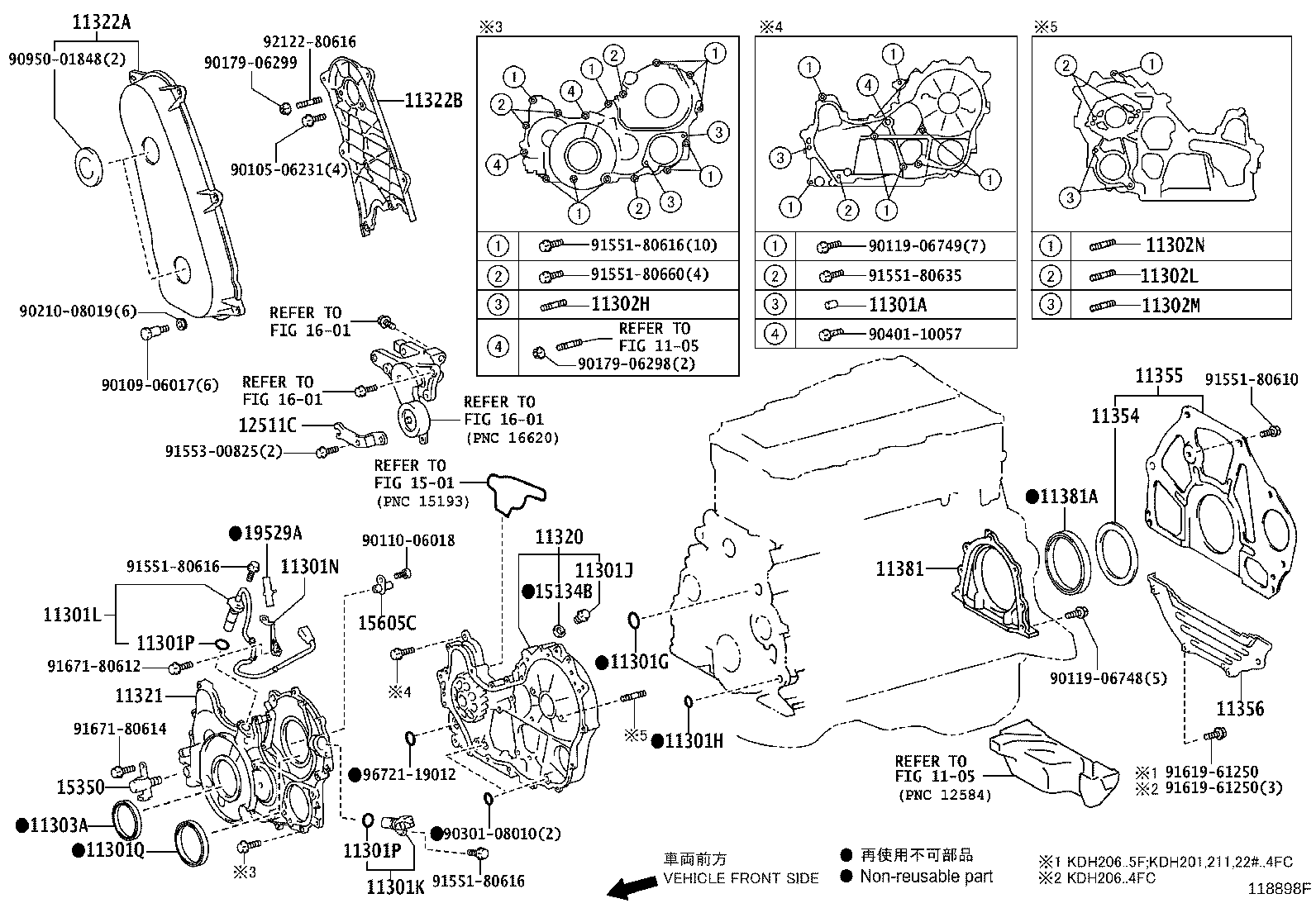

(1312- )1KDFTV

Click highlighted areas on diagram

diagram 1105 1105 11301A 11301G 11301H 11301J 11301K 11301L 11301N 11301P 11301P 11301Q 11302H 11302L 11302M 11302N 11303A 11320 11321 11322A 11322B 11354 11355 11356 11381 11381A 12511C 1501 15134B 15350 15605C 1601 1601 1601 19529A 9010506231 9010906017 9011006018 9011906748 9011906749 9017906298 9017906299 9021008019 9030108010 9040110057 9095001848 9155180610 9155180616 9155180616 9155180616 9155180635 9155180660 9155300825 9161961250 9161961250 9167180612 9167180614 9212280616 9672119012
Part # Description Qty Price
Common parts
90105-06231
90109-06017
90110-06018
90119-06748
90119-06749
90179-06298
90179-06299
90210-08019
90301-08010
90401-10057
90950-01848
91551-80610
91551-80616
91551-80635
91551-80660
91553-00825
91619-61250
91671-80612
91671-80614
92122-80616
96721-19012
Linked diagrams
1105
1501
1601
