KDH201K-ERPDY5 (2007)

Toyota Hiace/Regiusace

Production Sep 2007 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

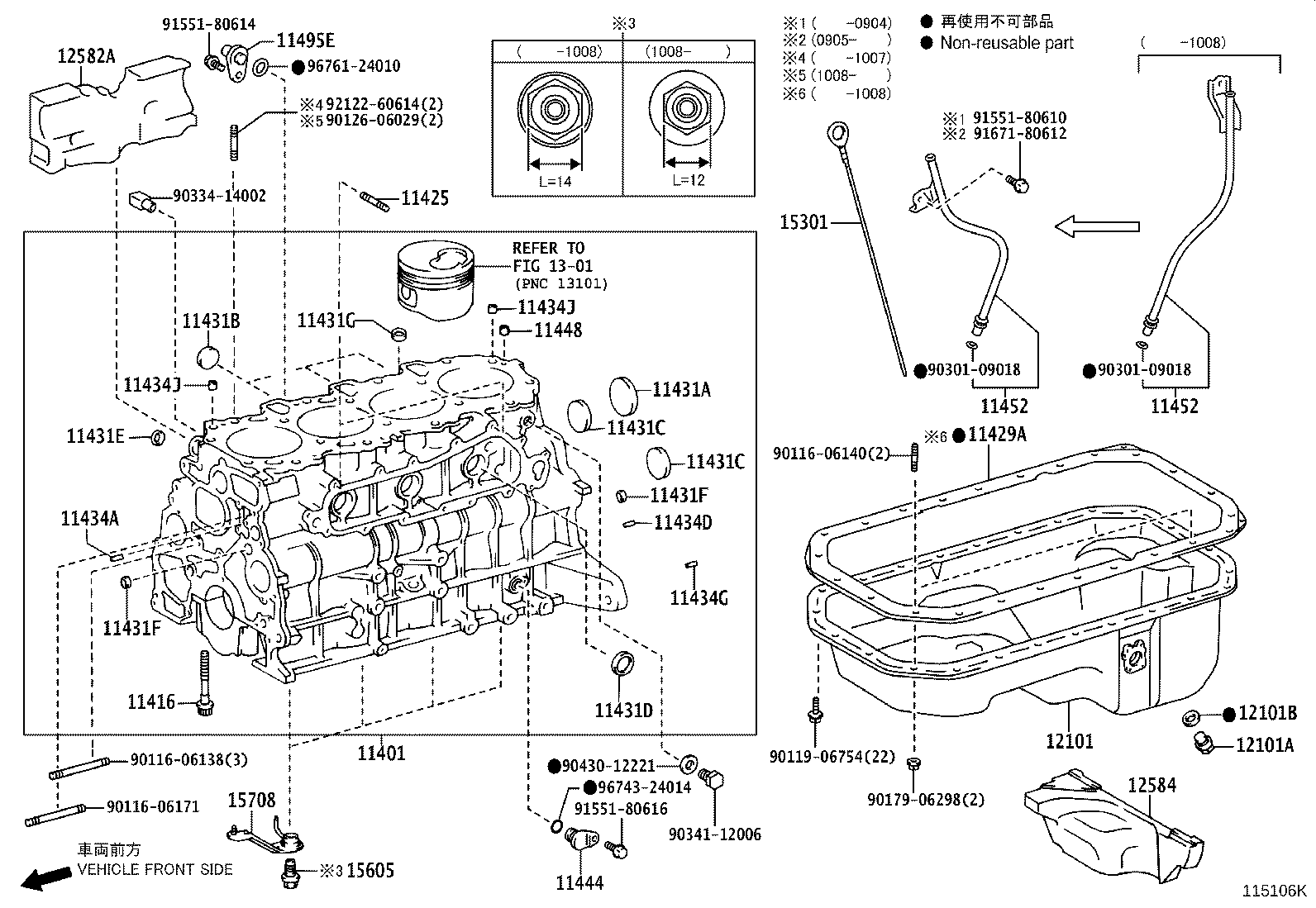

(0709- )1KDFTV

Click highlighted areas on diagram

diagram 11401 11416 11425 11429A 11431A 11431B 11431C 11431C 11431D 11431E 11431F 11431F 11431G 11434A 11434D 11434G 11434J 11434J 11444 11448 11452 11452 11495E 12101 12101A 12101B 12582A 12584 1301 15301 15605 15708 9011606138 9011606140 9011606171 9011906754 9012606029 9017906298 9030109018 9030109018 9033414002 9034112006 9043012221 9155180610 9155180614 9155180616 9167180612 9212260614 9674324014 9676124010
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80769

1KDFTV..KDH20#,211,22#

 1
11401-80783

1KDFTV..KDH20#,211,22#

 1
11401-80798

1KDFTV..KDH20#,211,22#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02113

1KDFTV,2KDFTV..KDH20#,211,22#

 10
11425 - BOLT, STUD(FOR OIL FILTER)
90116-06171

1KDFTV,2KDFTV..KDH20#,211,22#

 2
11429A - PLATE, CYLINDER BLOCK STIFFENING
11429-30010

1KDFTV..KDH20#,211,22#

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-64500

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-63500

1KDFTV,2KDFTV..KDH20#,211,22#

 3
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-64000

1KDFTV,2KDFTV..KDH20#,211,22#

 2
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-64000

1KDFTV,2KDFTV..KDH20#,211,22#

 2
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
90331-35004

1KDFTV,2KDFTV..KDH20#,211,22#

 3
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-62000

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
96411-61800

1KDFTV,2KDFTV..KDH20#,211,22#

 2
11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
96411-61800

1KDFTV,2KDFTV..KDH20#,211,22#

 2
11431G - PLUG, TIGHT
90331-14006

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1KDFTV,2KDFTV..KDH20#,211,22#

長さ=18,外径=8

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

1KDFTV,2KDFTV..KDH20#,211,22#

長さ=11,外径=6

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10192

1KDFTV,2KDFTV..KDH20#,211,22#

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016

1KDFTV,2KDFTV..KDH20#,211,22#

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016

1KDFTV,2KDFTV..KDH20#,211,22#

 2
11444 - PLUG, HOLE
11444-67020

1KDFTV..KDH20#,211,22#

 1
11448 - ORIFICE, CYLINDER BLOCK OIL
11448-67010

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11452 - GUIDE, OIL LEVEL GAGE
11409-30080

1KDFTV..KDH20#,211,22#

 1
11409-30100

1KDFTV..KDH20#,211,22#

 1
11452 - GUIDE, OIL LEVEL GAGE
11409-30080

1KDFTV..KDH20#,211,22#

 1
11409-30100

1KDFTV..KDH20#,211,22#

 1
11495E - PLUG, PLATE
11495-30010

1KDFTV..KDH20#,211,22#

 1
12101 - PAN SUB-ASSY, OIL
12101-30110

1KDFTV..KDH20#,211,22#

 1
12101-30120

1KDFTV..KDH20#,211,22#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1KDFTV,2KDFTV..KDH20#,211,22#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1KDFTV,2KDFTV..KDH20#,211,22#

 1
12582A - INSULATOR, CYLINDER BLOCK, NO.2
12582-30031

1KDFTV..KDH20#,211,22#

 1
12584 - INSULATOR, CYLINDER BROCK, NO.4
12584-67030

1KDFTV,2KDFTV..KDH20#,211,22#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-30080

1KDFTV..KDH20#,211,22#

 1
15301-67031

1KDFTV..KDH20#,211,22#

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-30030

1KDFTV..KDH20#,211,22#

 4
15605-17030

1KDFTV..KDH20#,211,22#

 4
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-30011

1KDFTV,2KDFTV..KDH20#,211,22#

 4
Common parts
90116-06138
90116-06140
90116-06171
90119-06754
90126-06029
90179-06298
90301-09018
90334-14002
90341-12006
90430-12221
91551-80610
91551-80614
91551-80616
91671-80612
92122-60614
96743-24014
96761-24010
Linked diagrams
1301

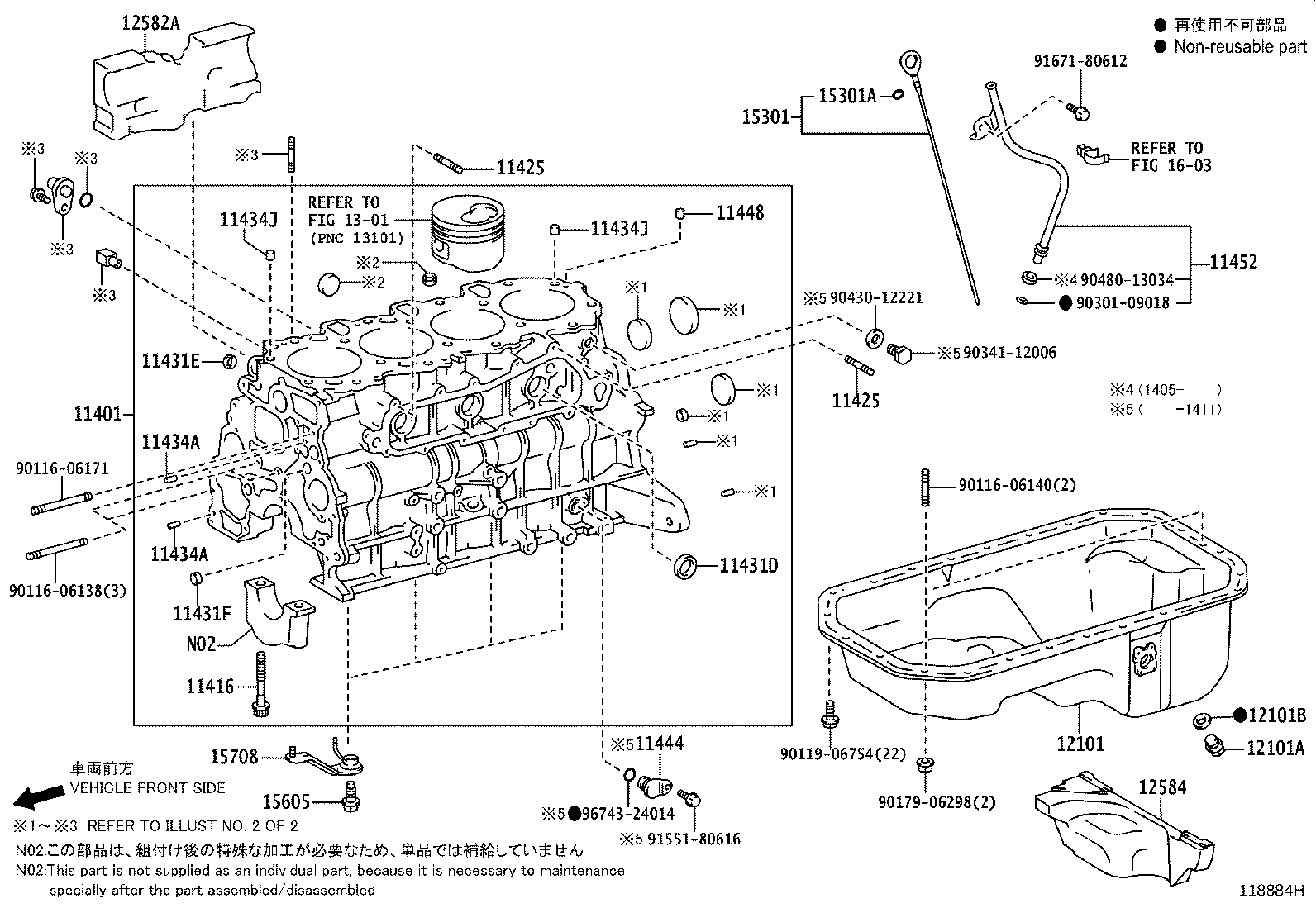

ILLUST NO. 1 OF 2(1312- )1KDFTV

Click highlighted areas on diagram

diagram 11401 11416 11425 11425 11431D 11431E 11431F 11434A 11434A 11434J 11434J 11444 11448 11452 12101 12101A 12101B 12582A 12584 1301 15301 15301A 15605 15708 1603 9011606138 9011606140 9011606171 9011906754 9017906298 9030109018 9034112006 9043012221 9048013034 9155180616 9167180612 9674324014
Part # Description Qty Price
Common parts
90116-06138
90116-06140
90116-06171
90119-06754
90179-06298
90301-09018
90341-12006
90430-12221
90480-13034
91551-80616
91671-80612
96743-24014
Linked diagrams
1301
1603

ILLUST NO. 2 OF 2(1312- )1KDFTV

Click highlighted areas on diagram

diagram 11431A 11431B 11431C 11431F 11431G 11434D 11434G 11495E 9012606029 9033414002 9155180614 9676124010
Part # Description Qty Price
Common parts
90126-06029
90334-14002
91551-80614
96761-24010
