KDH201K-ERPDY5 (2007)

Toyota Hiace/Regiusace

Production Sep 2007 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

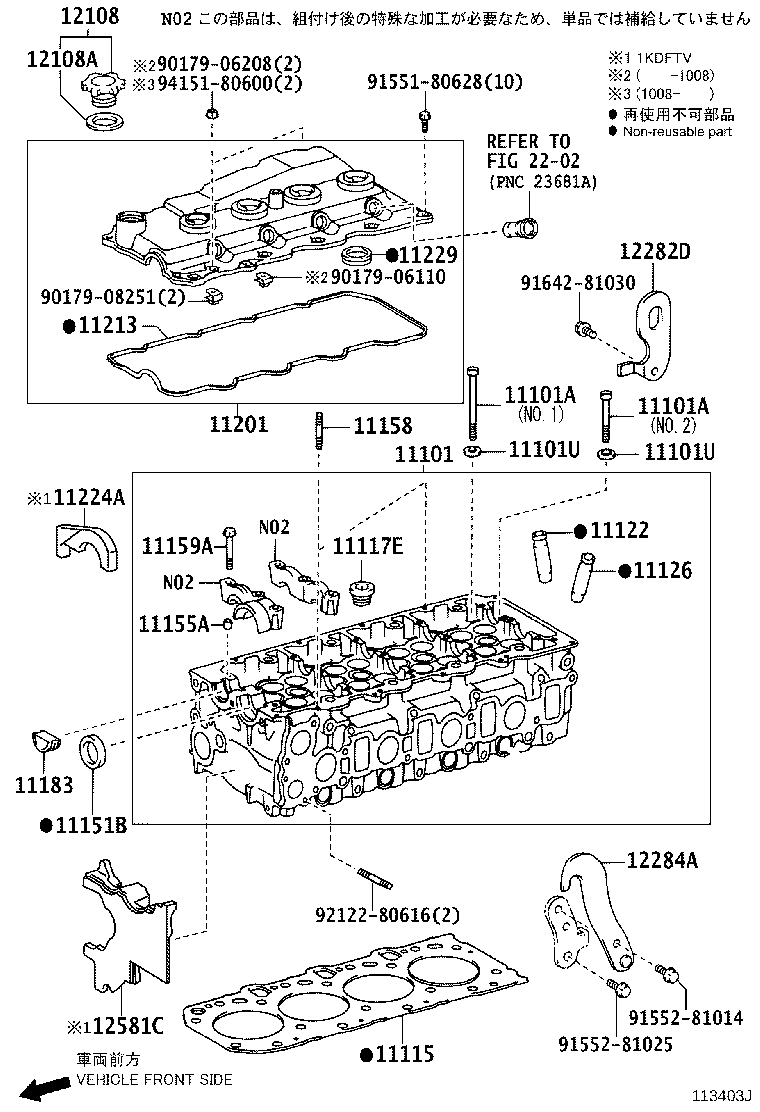

(0408- )1KDFTV,2KDFTV

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101U 11101U 11115 11117E 11122 11126 11151B 11155A 11158 11159A 11183 11201 11213 11224A 11229 12108 12108A 12282D 12284A 12581C 2202 9017906110 9017906208 9017908251 9155180628 9155281014 9155281025 9164281030 9212280616 9415180600
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-30100

1KDFTV..KDH20#,211,22#

 1
11101-30101

1KDFTV..KDH20#,211,22#

 1
11101-30051

1KDFTV..KDH20#,211,22#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02145

1KDFTV,2KDFTV..KDH20#,211,22#

NO.2

 10
90910-02146

1KDFTV,2KDFTV..KDH20#,211,22#

NO.1

 8
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02145

1KDFTV,2KDFTV..KDH20#,211,22#

NO.2

 10
90910-02146

1KDFTV,2KDFTV..KDH20#,211,22#

NO.1

 8
11101U - SPACER(FOR CYLINDER HEAD SET BOLT)
90560-13023

1KDFTV,2KDFTV..KDH20#,211,22#

 18
11101U - SPACER(FOR CYLINDER HEAD SET BOLT)
90560-13023

1KDFTV,2KDFTV..KDH20#,211,22#

 18
11115 - GASKET, CYLINDER HEAD
11115-30031D0

1KDFTV..KDH20#,211,22#

MARK D,修理書参照

 1
11115-30031A0

1KDFTV..KDH20#,211,22#

MARK A,修理書参照

 1
11115-30031B0

1KDFTV..KDH20#,211,22#

MARK B,修理書参照

 1
11115-30032A0

1KDFTV..KDH20#,211,22#

MARK A,修理書参照

 1
11115-30031E0

1KDFTV..KDH20#,211,22#

MARK E,修理書参照

 1
11115-30031C0

1KDFTV..KDH20#,211,22#

MARK C,修理書参照

 1
11115-30032D0

1KDFTV..KDH20#,211,22#

MARK D,修理書参照

 1
11115-30032E0

1KDFTV..KDH20#,211,22#

MARK E,修理書参照

 1
11115-30032C0

1KDFTV..KDH20#,211,22#

MARK C,修理書参照

 1
11115-30032B0

1KDFTV..KDH20#,211,22#

MARK B,修理書参照

 1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-14015

1KDFTV..KDH20#,211,22#

 4
11122 - BUSH, INTAKE VALVE GUIDE
11122-30020

1KDFTV,2KDFTV..KDH20#,211,22#

O/S 0.05

 8
11123-30020

1KDFTV,2KDFTV..KDH20#,211,22#

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-30020

1KDFTV,2KDFTV..KDH20#,211,22#

O/S 0.05

 8
11123-30020

1KDFTV,2KDFTV..KDH20#,211,22#

STD

 8
11151B - SEAL, OIL(FOR CAMSHAFT SETTING)
90311-32025

1KDFTV..KDH20#,211,22#

 1
90311-32019

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11155A - PIN, RING W/HEAD
90253-10004

1KDFTV..KDH20#,211,22#

 4
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-06149

1KDFTV,2KDFTV..KDH20#,211,22#

ﾈｼﾞ部長さ=9 & 16,長さ=37

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07011

1KDFTV,2KDFTV..KDH20#,211,22#

 15
11183 - PLUG, SEMICIRCULAR
11183-67020

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-30082

1KDFTV..KDH20#,211,22#

 1
11210-30081

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11210-30140

1KDFTV..KDH20#,211,22#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-30020

1KDFTV,2KDFTV..KDH20#,211,22#

 1
11213-30021

1KDFTV..KDH20#,211,22#

 1
11213-30040

1KDFTV..KDH20#,211,22#

 1
11224A - SILENCER, CYLINDER HEAD COVER, NO.1
11224-30020

1KDFTV..KDH20#,211,22#

 1
11224-30010

1KDFTV..KDH20#,211,22#

 1
11229 - GASKET, CYLINDER HEAD COVER, NO.3
23682-30040

1KDFTV..KDH20#,211,22#

 4
23682-30020

1KDFTV,2KDFTV..KDH20#,211,22#

 4
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

1KDFTV,2KDFTV..KDH20#,211,22#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37004

1KDFTV,2KDFTV..KDH20#,211,22#

 1
12282D - HANGER, ENGINE, NO.2
12282-67030

1KDFTV,2KDFTV..KDH20#,211,22#

 1
12284A - HANGER, ENGINE, NO.1 UPPER
12284-30020

1KDFTV,2KDFTV..KDH20#,211,22#

 1
12581C - INSULATOR, CYLINDER BLOCK
12581-30010

1KDFTV..KDH20#,211,22#

 1
Common parts
90179-06110
90179-06208
90179-08251
91551-80628
91552-81014
91552-81025
91642-81030
92122-80616
94151-80600
Linked diagrams
2202

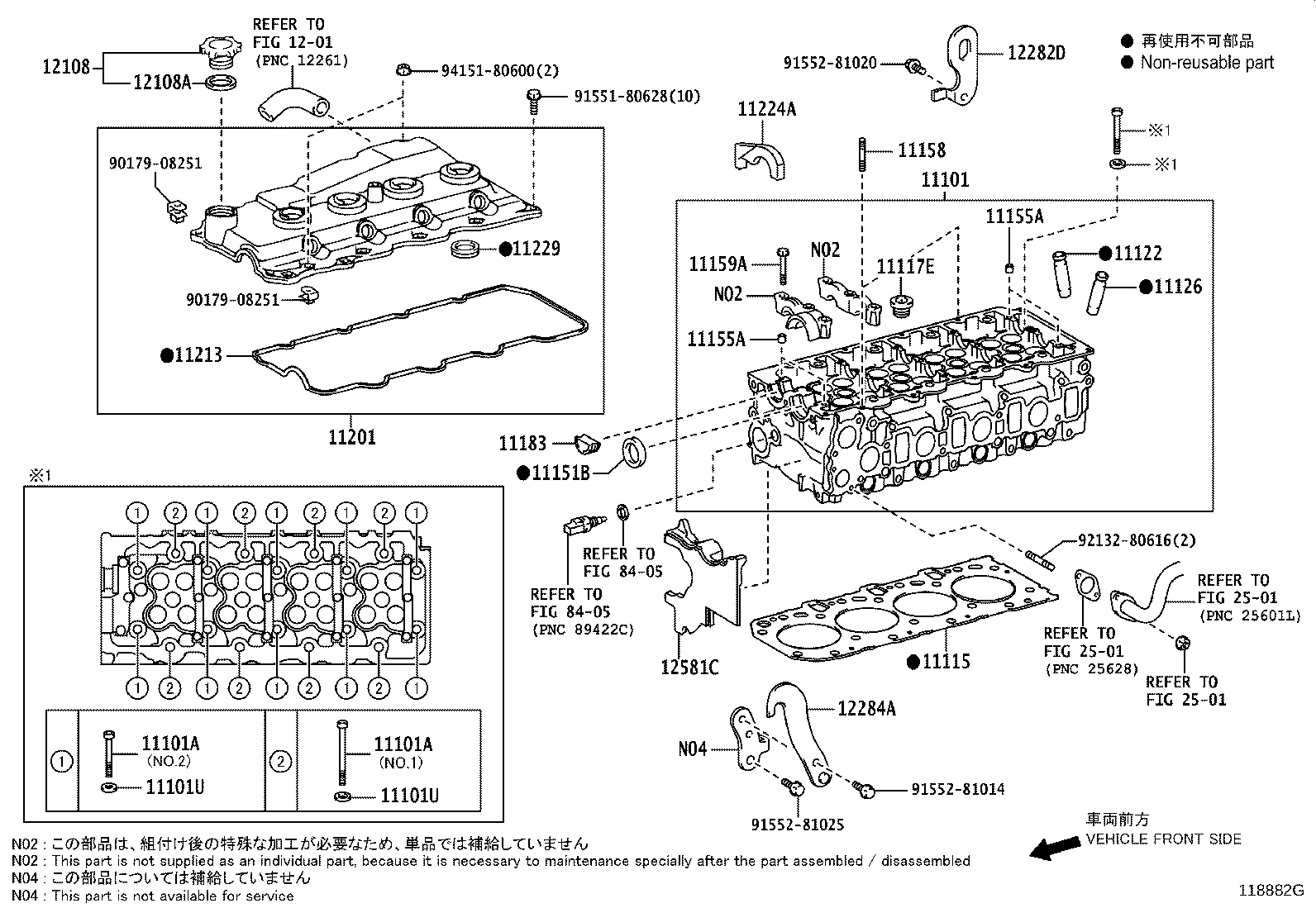

(1312- )1KDFTV

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101U 11101U 11115 11117E 11122 11126 11151B 11155A 11155A 11158 11159A 11183 11201 11213 11224A 11229 1201 12108 12108A 12282D 12284A 12581C 2501 2501 2501 8405 8405 9017908251 9017908251 9155180628 9155281014 9155281020 9155281025 9213280616 9415180600
Part # Description Qty Price
Common parts
90179-08251
91551-80628
91552-81014
91552-81020
91552-81025
92132-80616
94151-80600
Linked diagrams
1201
2501
8405
