KDH200V-RKMDY (2004)
Toyota Hiace/Regiusace

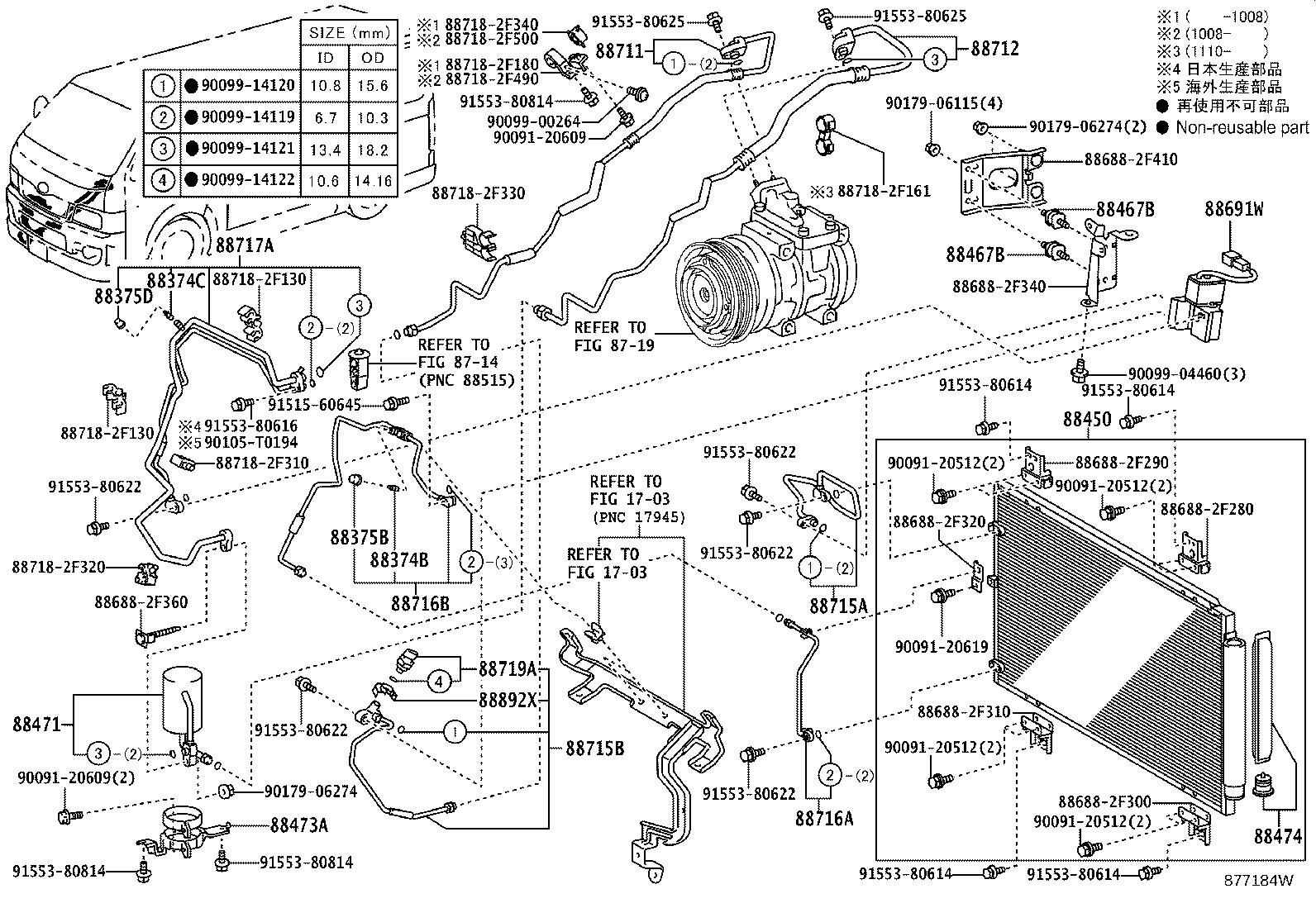

ILLUST NO. 1 OF 2(0408-0709)KDH20#..DX..CBU ; (0709- )KDH20#..DX..CBU
ﾌﾛﾝﾄ:ｼﾝｸﾞﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KDH200,205,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88374-30010 |
KDH20# 寒冷地仕様 |
1 | ||
| 88374-30010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88374-30010 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88374-30010 |
KDH200,205,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88374-30010 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88375-30280 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88375-30280 |
KDH200,205,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88375-30290 |
KDH200,205,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88375-30290 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26120 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88450-26120 |
KDH20#,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-30270 |
KDH20#,211,22# 寒冷地仕様 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-30270 |
KDH20#,211,22# 寒冷地仕様 |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-26021 |
KDH20#,220,221,225..DX..CBU 寒冷地仕様 |
1 | ||
| 88473A - HOLDER, RECEIVER | ||||
| 88473-26011 |
KDH20#,211,22# 寒冷地仕様 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KDH20#,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88474-17010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88691-26020 |
KDH20#,211,22# 寒冷地仕様 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F151 |
KDH200,201 |
1 | ||
| 88711-2F151 |
KDH200,201..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F171 |
KDH200,201 |
1 | ||
| 88712-2F171 |
KDH200,201..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
KDH20#,TRH200 |
1 | ||
| 88715-26390 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88715-26390 |
KDH20#,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88715-26410 |
KDH20# 寒冷地仕様 |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88710-2F730 |
KDH20#,211,22# 寒冷地仕様 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F620 |
KDH20#,220,221,225,TRH200,221,226..(03S,06S,09S)..CBU |
1 | ||
| 88710-2F620 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88710-2F620 |
KDH20#,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N120 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88716-2N120 |
KDH20#,TRH200 |
1 | ||
| 88716-2N120 |
KDH200,205,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88716-2N151 |
KDH20# 寒冷地仕様 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88710-2F861 |
KDH20# 寒冷地仕様 |
1 | ||
| 88717-2F680 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88717-2F680 |
KDH20#,TRH200..DX..CBU |
1 | ||
| 88717-2F680 |
KDH200,205,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
TRH214,219..GL;TRH200..V1..HRF..5D;KDH20#,211,22#,TRH211,216 |
1 | ||
| 88719-40020 |
KDH20#,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88719-40020 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88892X - COVER, COOLER, NO.2 | ||||
| 88892-50120 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88892-50120 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 88892-50120 |
KDH20#,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| Common parts | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88688-2F340 | ||||
| 88688-2F360 | ||||
| 88688-2F410 | ||||
| 88718-2F130 | ||||
| 88718-2F161 | ||||
| 88718-2F180 | ||||
| 88718-2F310 | ||||
| 88718-2F320 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F490 | ||||
| 88718-2F500 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-00264 | ||||
| 90099-04460 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0194 | ||||
| 90179-06115 | ||||
| 90179-06274 | ||||
| 91515-60645 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 2(0408-0610)KDH20#..HRF ; (0408- )TRH200..V2..HRF ; (0408- )TRH200..HRF..4D ;
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88718-2F070 | ||||
| 88718-2F080 | ||||
| 88718-2F100 | ||||
| 88718-2F200 | ||||
| 88718-2F210 | ||||
| 88718-2F220 | ||||
| 90099-00264 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 91553-80630 | ||||
| 91553-80814 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 8714 | ||||

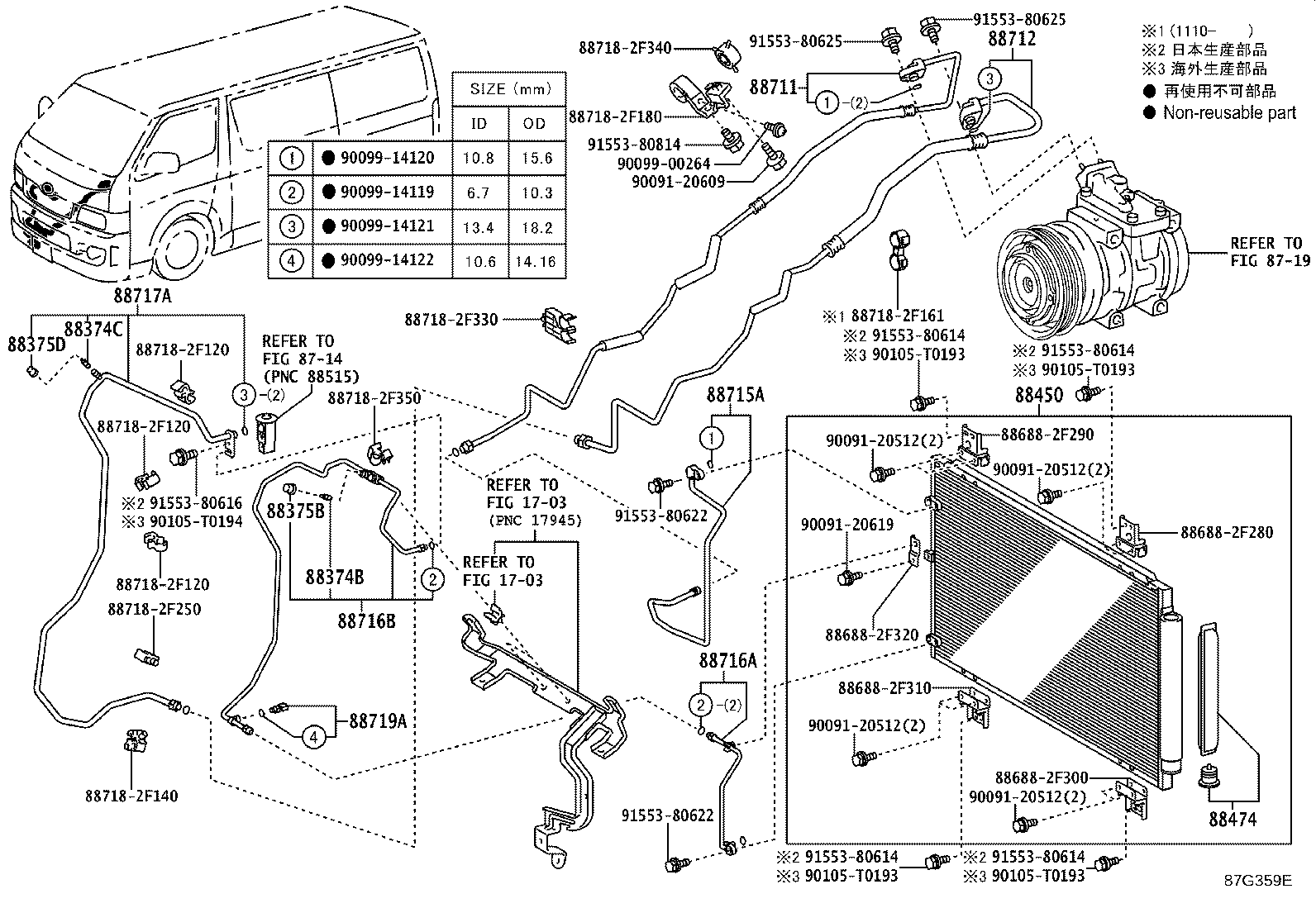

ILLUST NO. 1 OF 2(0408-0709)KDH20#..DX..CBU ; (0709- )KDH20#..DX..CBU
ﾌﾛﾝﾄ:ｼﾝｸﾞﾙｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KDH200,205,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88374-30010 |
KDH20# 寒冷地仕様 |
1 | ||
| 88374-30010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88374-30010 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88374-30010 |
KDH200,205,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88374-30010 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88375-30280 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88375-30280 |
KDH200,205,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88375-30290 |
KDH200,205,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88375-30290 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26120 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88450-26120 |
KDH20#,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KDH20#,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88474-17010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F151 |
KDH200,201 |
1 | ||
| 88711-2F151 |
KDH200,201..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F171 |
KDH200,201 |
1 | ||
| 88712-2F171 |
KDH200,201..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
KDH20#,TRH200 |
1 | ||
| 88715-26390 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88715-26390 |
KDH20#,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88715-26410 |
KDH20# 寒冷地仕様 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F620 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88710-2F620 |
KDH20#,220,221,225,TRH200,221,226..(03S,06S,09S)..CBU |
1 | ||
| 88710-2F620 |
KDH20#,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N120 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88716-2N120 |
KDH20#,TRH200 |
1 | ||
| 88716-2N120 |
KDH200,205,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88716-2N151 |
KDH20# 寒冷地仕様 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88710-2F861 |
KDH20# 寒冷地仕様 |
1 | ||
| 88717-2F680 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| 88717-2F680 |
KDH20#,TRH200..DX..CBU |
1 | ||
| 88717-2F680 |
KDH200,205,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
TRH214,219..GL;TRH200..V1..HRF..5D;KDH20#,211,22#,TRH211,216 |
1 | ||
| 88719-40020 |
KDH20#,TRH200..SP 冷凍ﾊﾞﾝ |
1 | ||
| 88719-40020 |
KDH20#..SP 冷凍ﾊﾞﾝ&寒冷地仕様 |
1 | ||
| Common parts | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F161 | ||||
| 88718-2F180 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 90105-T0194 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 8714 | ||||
| 8719 | ||||
