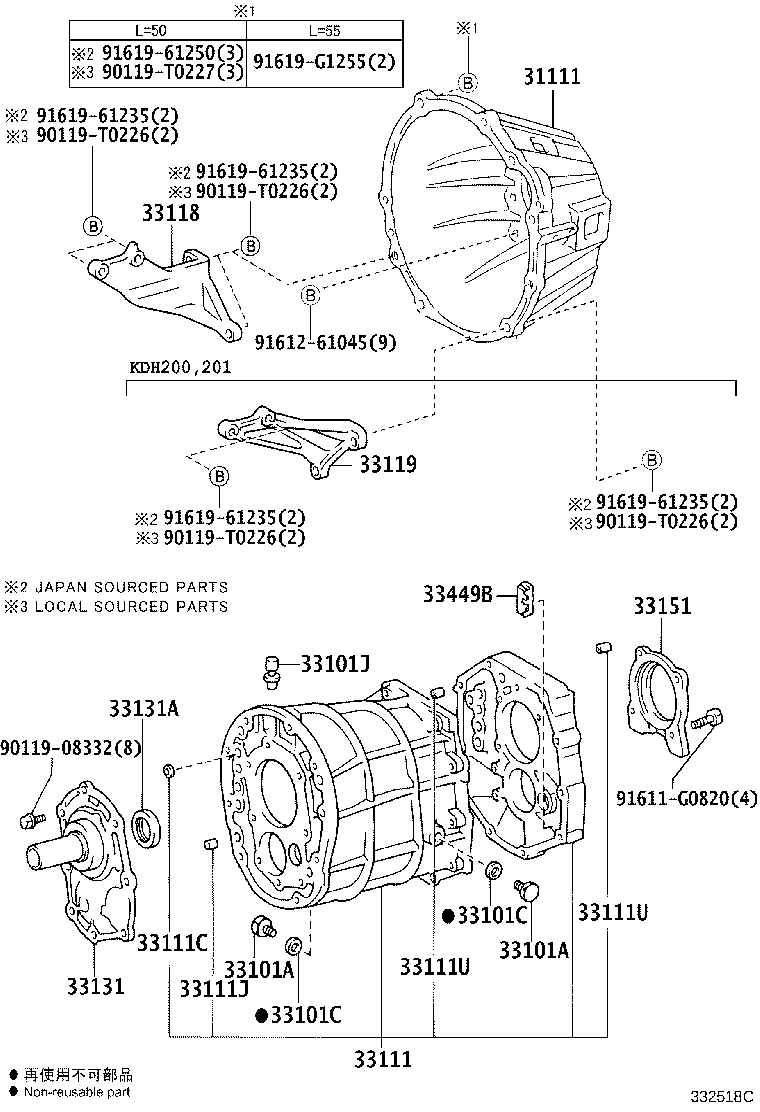

Toyota Hiace/regiusace KDH200 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-26090	KDH200..5F	08/2004 - 09/2007	1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	KDH20#..5F	08/2004 - 12/2013	2
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	KDH20#..5F	08/2004 - 12/2013	2
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	KDH20#..5F	08/2004 - 12/2013	2
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	KDH20#..5F	08/2004 - 12/2013	2
33101J - PLUG, BREATHER
90930-03085	KDH20#,TRH200..5F	08/2004 - 12/2013	1
33111 - CASE, MANUAL TRANSMISSION
33101-26040	KDH200,205,206..5F	08/2004 - 05/2011	1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004	KDH200,205..5F 外径=14	08/2004 - 12/2013	1
96411-41200	KDH200,201..5F 外径=12	08/2004 - 12/2013	1
96411-41800	KDH20#..5F 外径=18	08/2004 - 12/2013	3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	KDH20#..5F 長さ=16,外径=12	08/2004 - 12/2013	2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	KDH20#..5F 長さ=14,外径=15	08/2004 - 12/2013	4
90253-11001	KDH20#,TRH200..5F 長さ=11,外径=11	08/2004 - 12/2013	2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	KDH20#..5F 長さ=14,外径=15	08/2004 - 12/2013	4
90253-11001	KDH20#,TRH200..5F 長さ=11,外径=11	08/2004 - 12/2013	2
33118 - PLATE, STIFFENER, RH(MTM)
33118-35070	KDH20#..5F	08/2004 - 12/2999	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-25070	KDH200,201..5F	08/2004 - 12/2999	1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-35031	KDH20#..5F	08/2004 - 12/2013	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32012	KDH20#..5F	08/2004 - 09/2007	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35020	KDH20#..5F	08/2004 - 12/2013	1
33449B - MAGNET, TRANSMISSION
33449-35030	KDH20#..5F	08/2004 - 12/2013	1
Common parts
90119-08332
90119-T0226
90119-T0227
91611-G0820
91612-61045
91619-61235
91619-61250
91619-G1255

KDH200V-RKMDY (2004)

(0408- )KDH20#..5F
